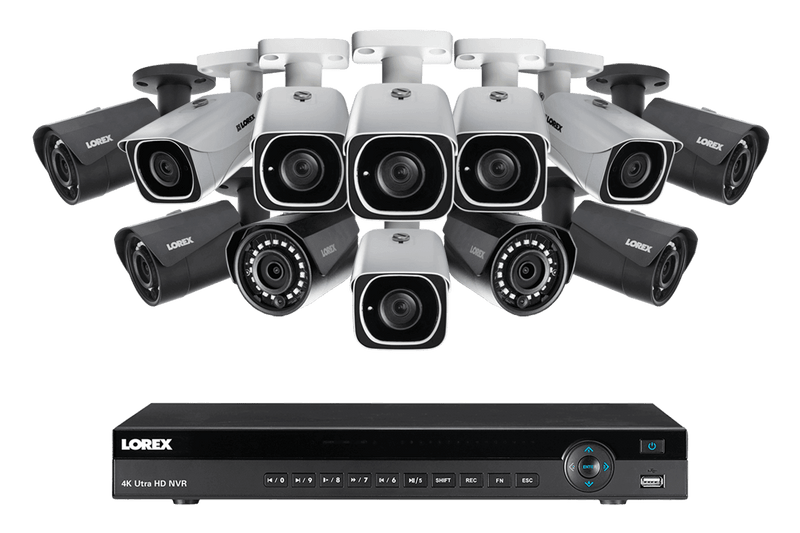

4K Ultra HD IP NVR system with 6 Outdoor 4K 8MP IP Cameras and 6 IP 2K 4MP Cameras, 150FT Color Night Vision

4KHDIP1666
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

bi-ecology

No Monthly Fees

Local recording protects privacy and saves money.

Features

HDIP1688DW

The next generation of security monitoring is here. With industry-leading 4K (8 megapixel) resolution, the 4KHDIP1666 security camera system from Lorex will bring a whole new level of detail to your security monitoring. It includes our revolutionary 4K capable 16-channel NR900 Series network video recorder (NVR), six LNB8111B 4K bullet security cameras and six LNB4421 2K color night vision security cameras. Whether you are looking to protect your home, small business or commercial property, this powerful security camera system will help you secure the things that matter most.

4KHDIP1666

SPECIFICATIONS

16

CHANNELS

4K NVR can support up to 16 cameras

12

CAMERAS

6 x 4K and 6 x 2K bullet IP cameras

150FT

NIGHT VISION

Maximum night vision range

3TB

HARD DRIVE

Expandable up to 16TB

2K security monitoring


4K and 2K security cameras

The included LNB8111B and LNB4221 security cameras are capable of recording stunningly detailed security footage. The 8-megapixel image sensor within the LNB8111B security cameras can record a pixel resolution of 3840 × 2160 at 15 frames-per-second (FPS) - that's 4× the resolution of 1080p. Furthermore, your two LNB4421 security cameras can record a 2K pixel resolution of 2688 × 1520 at 20 FPS - double the resolution of 1080p.

2K (4 megapixel) network security monitoring

Zoom in on important details

Don't miss out on those ever-important details. The additional resolution provided by your 4K and 2K security cameras will allow you to digitally zoom in further on distant objects when analyzing footage. This is because every frame contains more pixels than you would receive with a 1080p HD security camera. So the details won't deteriorate as quickly as you zoom in further and further, which means you have a much better chance to capture the specific evidence you require. Every security camera in this bundle also uses a wide-angle lens that provides an expansive field-of-view.

30 Frames Per Second real-time NVR recording

Real-time 30FPS recording rate

The cameras in the bundle are capable of recording at a real-time 30 frames per second (FPS) rate at a 2K Super HD resolution. Recording at 30 FPS will provide you with exceptionally smooth on-screen movement and help provide you with the best chance to capture the precise moment you need for evidence. This is because there are simply more frames available to choose from.

Resolution Frames Per Second (FPS) Per Channel Pixels Per Frame (PPF)

1MP | HD 720P

@30fps

1280 x 720 | (921,600 pixels)

2MP | Full HD 1080P

@30fps

1920 x 1080 | (2,073,600 pixels)

3MP | Super HD 2K

@30fps

2048 x 1536 | (3,145,728 pixels)

4MP | Super HD 2K

@30fps

2688 x 1520 | (4,085,760 pixels)

8MP | Ultra HD 4K

@15fps

3840

Video

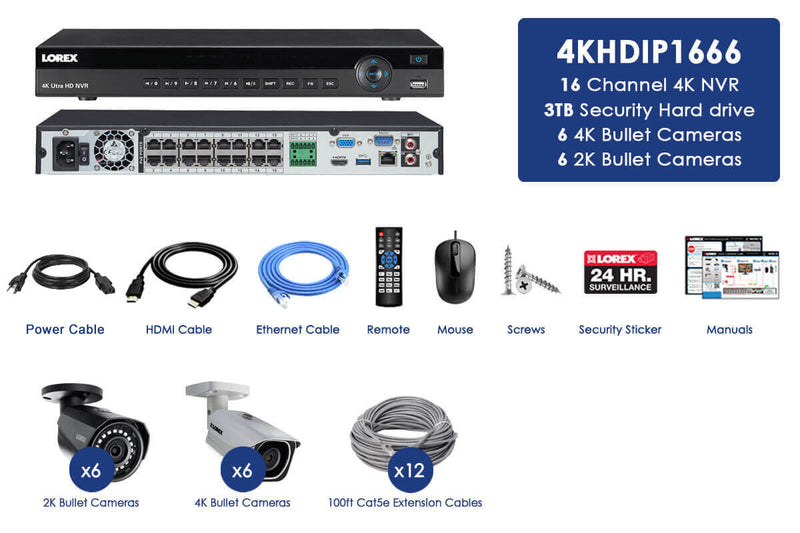

What's Included?

NR9163

16 channel, 4K ultra HD network video recorder:

  • Real-time recording up to 8MP on all channels - 4× the detail of 1080p
  • Supports industry-leading 4K recording1
  • 8/16 built in PoE (Power over Ethernet) ports providing video and power over a single Ethernet cable
  • Lorex Cloud™ apps for live viewing, playback, video recording & snapshots (iPhone® / iPad® / Android™)2
  • PC and Mac compatible - Lorex Cloud™ video management software gives you complete control over your security systemfrom anywhere 2
  • 24/7 security-grade pre-installed hard drive3
  • Expandable high capacity storage up to 16TB (2×8TB HDD)
  • Automatically detects compatible IP cameras in the network4
  • 4K video output - view multiple HD channels at once in full resolution on a 4K TV
  • H.265 / H.264 video compression offers reduced file size and improved network performance for remote viewing3
  • Mirror hard drive recording - secure your recordings by backing up footage to an internal hard drive at the same time asrecording to the primary hard drive5
  • Pentaplex Operation - view, record, playback, back up & remotely control the system simultaneously
  • Click-and-drag digital zoom in live view and playback
  • Convenient front panel button controls
  • Accurate time stamps with NTP & daylight savings time
  • Instant backup of live video to a USB flash drive
  • Automatic firmware upgrade over the Internet ensures your system is secure and up-to-date6
  • Push notifications of motion events
  • Instant email alerts with snapshot attachment
  • Multi-streaming to conserve bandwidth
  • Continuous, scheduled, and motion recording
  • Dual video outputs (HDMI and VGA) to connect multiple monitors
  • HDMI cable included for simple connection to HD amp; 4K TVs
Operating System Linux (embedded)
Pentaplex Simultaneous View, Record, Playback, Backup & Remote Monitoring
Number of Channels 8/16/32 Channels
Video IN 8ch: 8 PoE, 16/32ch: 16 PoE
Video OUT No
VGA OUT Yes
HDMI Yes
Audio IN 1 Line IN (RCA) for service only
Audio OUT 1 Line OUT (RCA) for service only
USB Port 1 at the back, 1 at the front
Alarm IN 4 Alarm IN
Alarm OUT 2 Alarm OUT
Video Output Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
PTZ control Lorex IP PTZ cameras only
Display 8ch: 1/4/8, 16ch: 1/4/8/9/16, 32ch: 1/4/8/9/16/25/36
Live Display Speed 8ch: 240fps NTSC / 200fps PAL, 16ch: 480fps NTSC / 400fps PAL, 32ch: 960fps NTSC / 800fps PAL
OSD ON/OFF
System Navigation USB Mouse, IR Remote Control, Front Panel Buttons
Motion Area Setting Fixed Grid (22×18)
Sensitivity Levels 100
Firmware Upgrade Automatic over the Internet & via USB device and network
User Authority By user group
Time Synchronization Automatic time sync by NTP server
Video Compression H.264 / H.265
Audio Compression G.711
Resolution Up to 4K (3840×2160), 1080p (1920×1080)
Record Rate 8ch: 240fps@720p/1080p/3MP/4MP/8MP, 16ch: 480fps@720p/1080p/3MP/4MP/8MP, 32ch: 960fps@720p/1080p/3MP/4MP/8MP
Recording Resolution Setting Per camera for different resolutions
Recording Quality Control 6 Levels
Recording Schedule By hour, by day, by recording mode, by motion, by alarm, by channel
Pre Recording Max. 4 Secs
Post Recording Max. 5 Minutes
Reliability Watch-Dog, auto-recovery after power failure
Covert Video Yes
Playback Channel 1CH/4CH@4K, 8CH@4MP, 16CH@2MP
Playback Speed Variable Max 16x
Playback Players Backup Player
Search By Time & Event
Log Search Up to 1,000 lines for motion detected, configuration, changes, connects/disconnects and video loss
Audio Play Yes (audio camera required)
Storage Up to 2 HDDs (SATA)
Maximum Capacity Up to 2×8TB (16TB Max)
Backup Media USB Flash Drive & HDD
Backup File Format DAV or ASF File
Cloud Connection Lorex Cloud™
Supported Operating Systems Windows™ / Mac OS X
Remote Software Client Software (PC & Mac)
Email Notification Text with snapshot
Instant Smart Phone & Tablet Android™, iPad®, iPhone®
DDNS Free Lorex DDNS
System Configuration Full setup configuration over network
Ports Programmable by User
Network Protocol HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter
Network Interface 10/100/1000-Base-TX, RJ-45
Network Bit Rate 320Mbps total, 48~8192kbps per camera
Power Consumption Approx. 15W (no HDD included)
Supply Voltage 100VAC-240VAC, 50/60Hz
Total PoE Power Output 130W (Max 25W per Camera)
Unit Dimensions (W × D × H) 14.7 × 12.9 × 2.1" / 375 × 327 × 53mm
Unit Weight 8ch: 5.1lbs / 2.6kg, 16/32ch: 13.2lbs / 2.7kg
Operating Temperature 14° ~ 131°F / -10° ~ 55°C
Humidity 10 ~ 90% RH

Each NR9163 Includes:

1 × NVR
1 × Power cable
1 × Remote control
1 × USB mouse
1 × Ethernet cable
1 × HDMI cable
Quick start guides

1. 8MP IP cameras are required to take advantage of 4K recording.
2. Requires a high speed internet connection and a router (not included). A minimum upload speed of 3.5Mbps is required for the best video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorextechnology.com/support
3. Recording time may vary based on recording resolution & quality, lighting conditions and movement in the scene.
4. Compatible with Lorex PoE HD IP cameras only. For a list of compatible cameras, please visit www.lorextechnology.com/support
5. Mirror recording requires a second hard drive (not included) to be installed in the NVR. Mirrored hard drive must be as large or larger than the primary hard drive to backup all recordings. Backup begins from when the mirrored hard drive is installed and configured.
6. Both firmware and software must be updated to latest version to ensure remote connectivity. Firmware updates are pushed to the NVR automatically over the Internet (available at www.lorextechnology.com). Always update to the latest software after upgrading the NVR firmware.

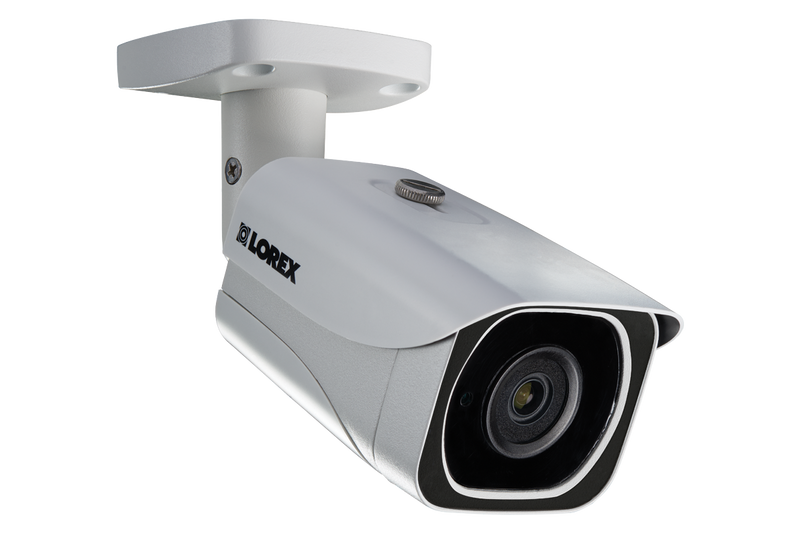

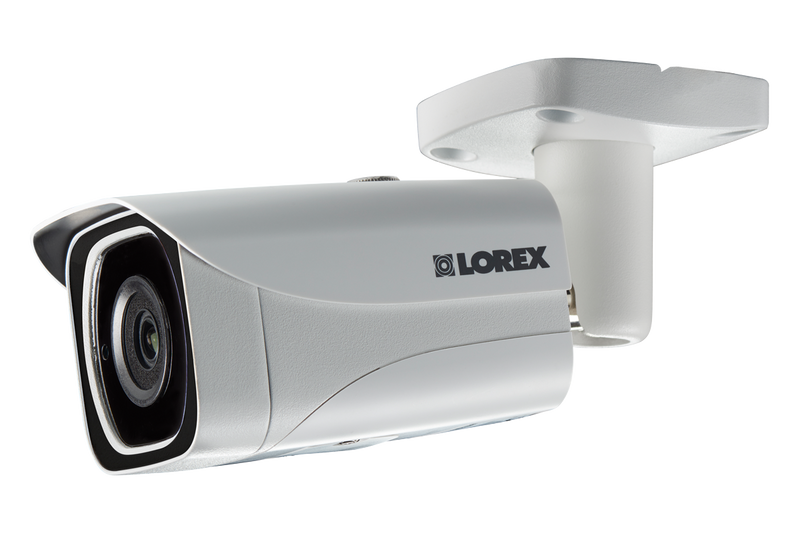

LNB8111B

4K Ultra HD IR Bullet IP Camera Features:

  • UltraHD 4K image sensor delivers 4x the detail of 1080p1
  • 4K video recording provides ultraHD quality even when zoomed, offering clearer identification in video evidence
  • IR night vision range up to 130ft (40m) in ambient lighting and 90ft (27m) in total darkness2
  • ClearNight imaging for improved low light performance and improved recording efficiency
  • H.265 offers significant bandwidth and video storage savings over older compression technologies, extending the amount of video stored on the hard drive
  • Intelligent compression saves recording space by optimizing video performance based on available bandwidth
  • Wide angle 88° field of view (horizontal)
  • Ceiling / wall mountable
  • Simple camera installation using a single CAT5e cable with Power over Ethernet (PoE)
  • 100ft (30m) UL-compliant cable suitable for surface and in-wall installation
  • Extend the camera's video and power with a single Ethernet cable up to 300ft (91m) from the recorder
  • Single-screw bracket adjustment for faster installation
  • Cold climate capability (-22°F / -30°C)
  • Weatherproof metal housing for outdoor & indoor installation (IP66 Rated)3
Image Sensor 1/2.5" 8MP
Video Format NTSC
Compression H.265/H.264
Effective Pixels H: 3840 × V: 2160
Resolution 8MP/4K (3840×2160) @ 15fps
Scan System Progressive
Sync System Internal
S/N Ratio ≥42dB (AGC OFF)
Iris EIS
AES Shutter Speed 1/3 (1/4) ~ 1/10,000 seconds
Min. Illumination 0.5 lux without IR, 0.3 lux with IR
Video Output IP
Lens / Lens Type 4mm F1.6 / Fixed
Field of View (Horizontal) 88°
Termination RJ45 Ethernet / 12V DC Power
IR LED Type 850nm
Night Vision Range 130ft (40m) / 90ft (27m)
Power Requirement PoE (Power over Ethernet) Class 0 / 12V DC
Power Consumption Max. 330mA / 4W
Operating Temp. Range -22° ~ 140°F / -30° ~ 60°C
Operating Humidity Range <95% RH
Environmental Rating IP66 (Indoor / Outdoor)

Each LNB8111B Includes:

1 × IP Bullet Camera
1 × Mounting Kit
1 × 100ft Ethernet Cable

1. Compatible with the Lorex HD LNR600 Series only. For the most up-to-date list of compatible recorders, visit www.lorextechnology.com/support
2. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection / absorption level of object. In low light, the camera will switch to black and white.
3. Not intended for submersion in water. Installation in a sheltered location recommended.

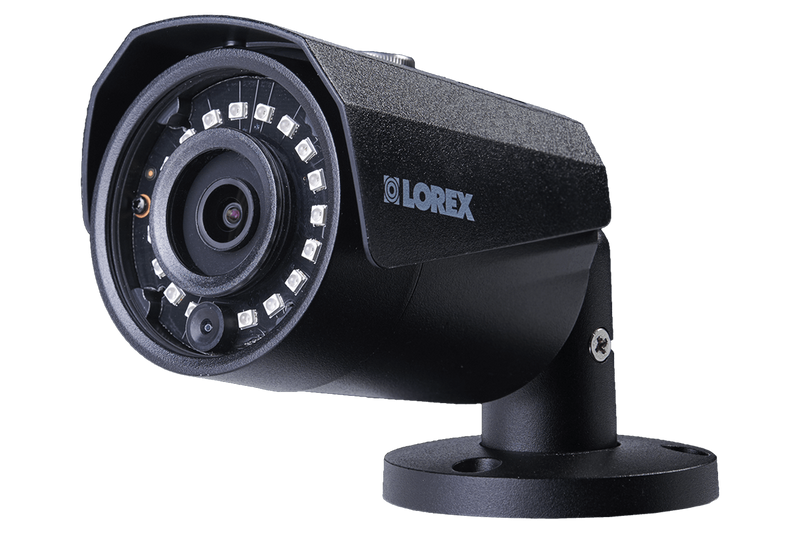

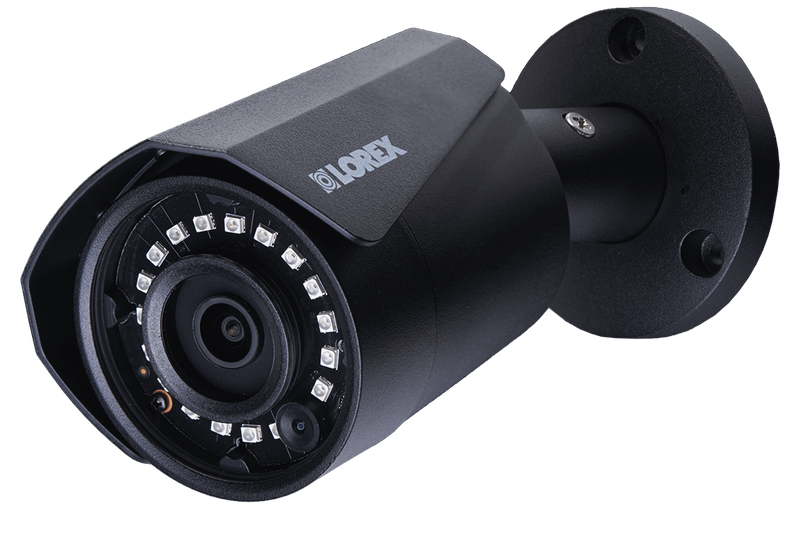

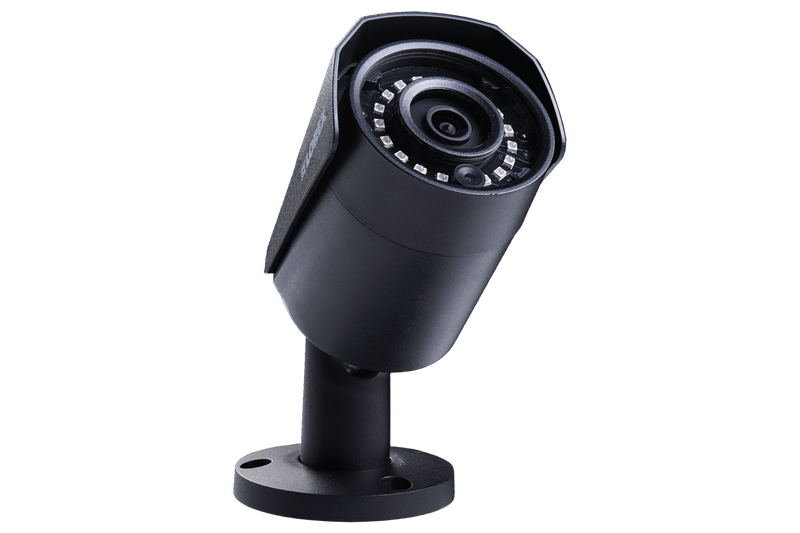

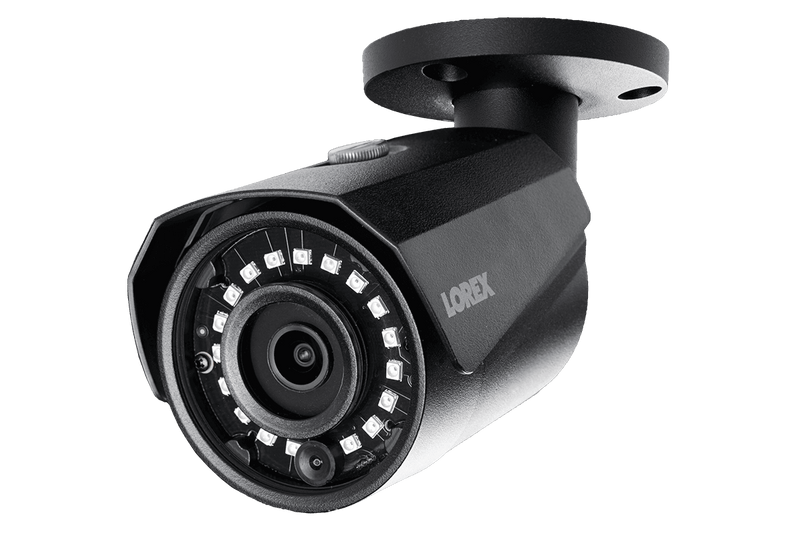

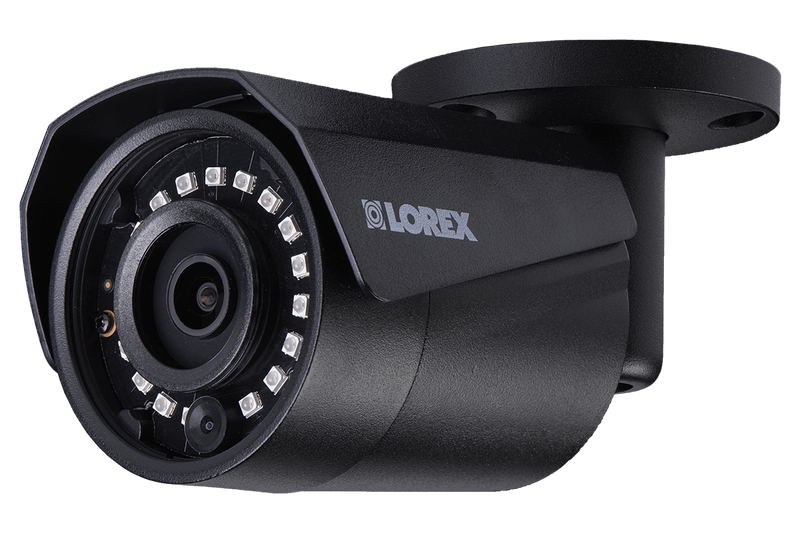

LNB4421

Weatherproof 2K 4mp HD Night Vision IP Security Camera Features:

  • High definition 4mp image sensor delivers double the detail of 1080p1
  • 4mp Super HD video recording provides superior quality for reviewing fine details in heightened resolution
  • Color Night Vision™ provides full color images at night, letting you identify objects and people more accurately than in black & white2
  • IR night vision range up to 150ft (40m) in ambient lighting and 90ft (27m) in total darkness3
  • ClearNight imaging for improved low light performance and improved recording efficiency
  • H.265 offers significant bandwidth and video storage savings over older compression technologies, extending the amount of video stored on the hard drive4
  • True High Dynamic Range (HDR) improves image clarity in high-contrast lighting, revealing details in extremely bright and dark areas of the image
  • Intelligent compression saves recording space by optimizing video performance based on available bandwidth
  • Wide angle 90
