9 Camera HD Home Security System featuring 4 Ultra-Wide Angle Cameras and PTZ
9 Camera HD Home Security System featuring 4 Ultra-Wide Angle Cameras and PTZ
9 Camera HD Home Security System featuring 4 Ultra-Wide Angle Cameras and PTZ
9 Camera HD Home Security System featuring 4 Ultra-Wide Angle Cameras and PTZ
9 Camera HD Home Security System featuring 4 Ultra-Wide Angle Cameras and PTZ
9 Camera HD Home Security System featuring 4 Ultra-Wide Angle Cameras and PTZ
9 Camera HD Home Security System featuring 4 Ultra-Wide Angle Cameras and PTZ - Lorex Technology Inc.
9 Camera HD Home Security System featuring 4 Ultra-Wide Angle Cameras and PTZ - Lorex Technology Inc.
9 Camera HD Home Security System featuring 4 Ultra-Wide Angle Cameras and PTZ - Lorex Technology Inc.
9 Camera HD Home Security System featuring 4 Ultra-Wide Angle Cameras and PTZ
9 Camera HD Home Security System featuring 4 Ultra-Wide Angle Cameras and PTZ
zoom Roll over image to zoom in Click on image to zoom

9 Camera HD Home Security System featuring 4 Ultra-Wide Angle Cameras and PTZ

MPX16441ZUW
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

bi-ecology

No Monthly Fees

Local recording protects privacy and saves money.

Features

MPX16441ZUW home security system

An exciting and exclusive HD security system from Lorex. It features our exclusive DV700 HD digital video recorder (DVR) and four HD ultra-wide angle security cameras, plus four LBV2711B cameras. To top it off, this exclusive security system comes with a 720p HD pan-tilt-zoom (PTZ) security camera. Combined, you have the MPX16441ZUW home security system - well-equipped to protect many types of properties. It brings an increased level of detail and coverage to your home monitoring needs, thanks to stunning ultra-wide cameras and HD 1080p video.

MPX16441ZUW

SPECIFICATIONS

16

CHANNELS

1080P DVR can support up to 16 cameras

9

CAMERAS

1 PTZ + 8 HD 1080p security cameras

150FT

NIGHT VISION

Maximum night vision

3TB

HARD DRIVE

Maximum capacity 1 x 4TB hard drive

Lorex Cloud App

Lorex Cloud™ Enabled
Video - super wide angle security camera four-pack

Ultra-wide angle security cameras

Four LBV2561UW security cameras are the perfect choice for large-area or doorway monitoring. These cameras provide superior coverage, thanks to their massive 160° diagonal field of view. Whether you need to monitor a large room, the street in front of your house, or a wide backyard, even a single wide angle security camera can often take the place of multiple standard viewing cameras - let alone four of them monitoring concurrently.

wide angle security camera
Real-time 1080p viewing and recording


1080p HD home security

Each camera has been designed to produce stunningly vivid high definition footage. When it comes to security monitoring nothing should be left to the imagination. Smooth on-screen movement helps ensure that you never miss a moment, thanks to the real-time 30 frames-per-second recording rate (in 720p mode). An included HDMI cable easily connects the exclusive Lorex DV700 DVR to any HD enabled TV or monitor, allowing you to view live security camera feeds, and review previously recorded security video.

BNC cables for high defininition video transmission and plug-and-play security set-up

Analog HD technology for plug-and-play installation

Standard siamese BNC cabling is used in the MPX16441ZUW to deliver crystal clear 1080p HD video. This type of cabling provides both video and power transmission for an easy-to-install process that will have you monitoring your home or business in no time. If needed, analog HD cameras can be placed up to 800 feet away from the DVR - making this type of system ideal for securing large properties (see documentation for complete details).

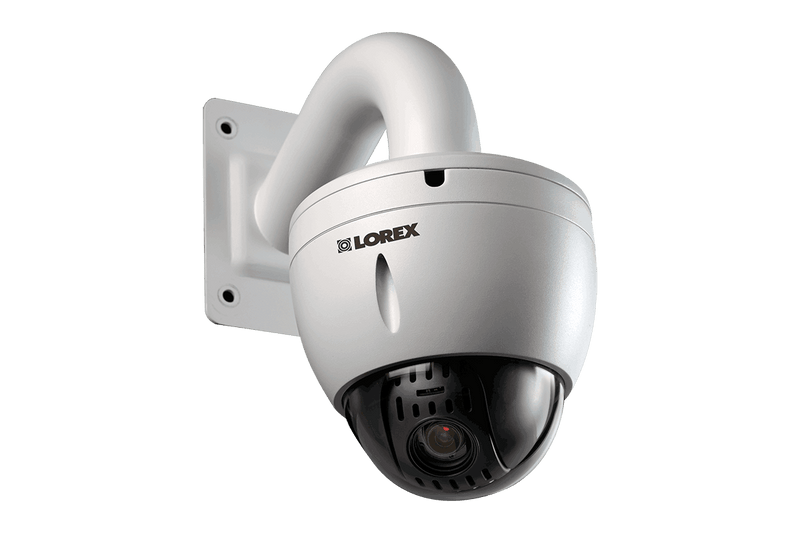

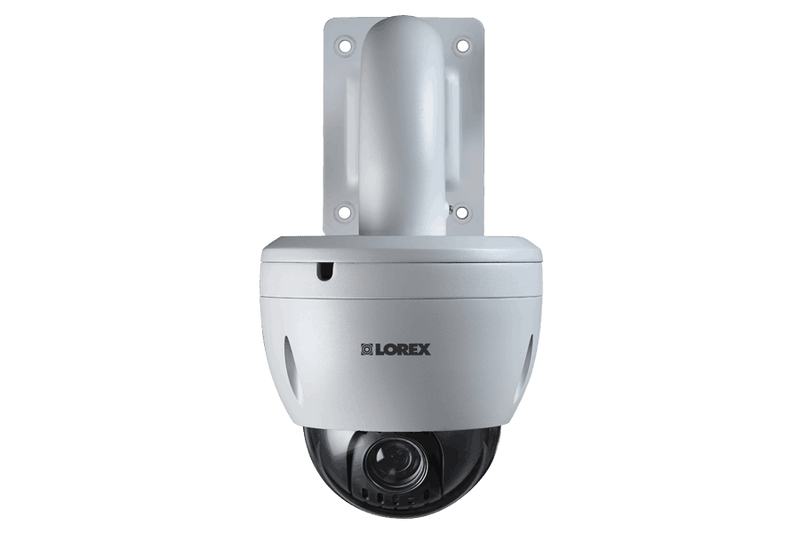

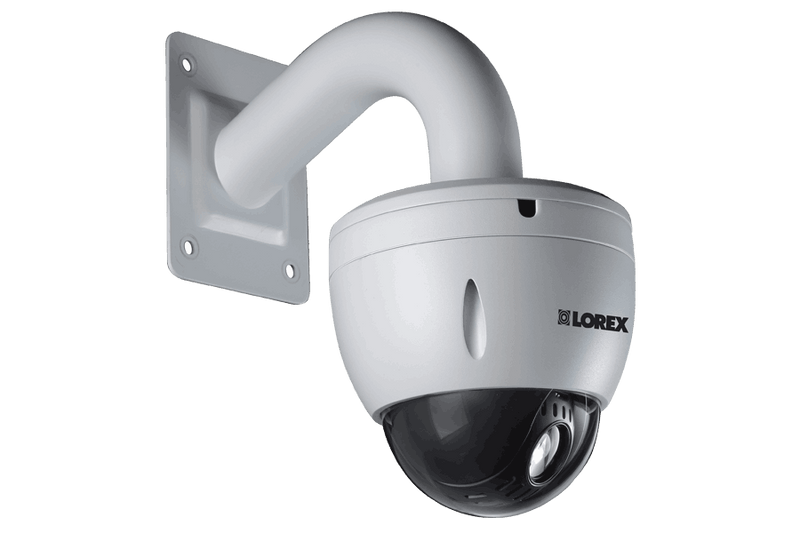

Pan-Tilt-Zoom Camera with optical zoom

Pan-tilt-zoom (PTZ) security camera with optical zoom

The centerpiece of the exclusive MPX16441ZUW security system is this HD 720p PTZ camera. It boasts 12x optical zoom (and a 16x digital zoom) that enable it to see small and distant objects and with incredible detail. Rapid 300° per second panning speed, 200° per second tilt speed, and continuous 360° rotation enables quick movement and focus. Our DV700 DVR allows for complete control of the PTZ, including setting up viewing points and scanning patterns.

Lorex Cloud mobile app for your HD security system

Mobile remote connectivity with Lorex Cloud™ App

Watch live feeds of every camera in your security system by connecting your DVR to Lorex Cloud™, our innovative cloud solution. Using our free app you can access your home security system via your smartphone or tablet. Remotely control the included PTZ camera from virtually anywhere in the world. Set your DVR to send motion-activated push notifications, and email alerts with screenshot attachments with Lorex Cloud™ connectivity.

Works With

System Compatibility
System Compatibility
HD night vision bullet MPX cameras

Around-the-clock security surveillance with night vision

Lorex’s exclusive MPX16441ZUW comes with four LBV2711B HD security cameras and four LBV2561UW ultra-wide angle security cameras. Each uses cutting edge infrared (IR) LEDs that provide excellent security coverage in the dark. With the the LBV2711B you can see clearly up to 150ft / 46m away in ambient lighting and up to 100ft / 31m away in total darkness. ClearNight imaging technology is used for superior low light operation (and recording efficiency). SmartIR technology aids close up recognition. With these features you can always feel confident that your Lorex security cameras will never leave you in the dark.

LBV2711B Night Vision Range
ide angle night vision security camera
LBV2711B HD weatherproof sturdy security cameras

Security cameras for outdoor installations

This exclusive Lorex bundle features eight IP66 weatherproof-rated security cameras. Versatile mounting options make it possible to place cameras where you need them most - indoors and outdoors. Vandal resistant and lightweight polycarbonate housings make these security cameras a reliable option when it comes to protecting what matters most.

LBV2561UW

LBV2561U

Heat Rating

122°F | 50°C

Heat Rating

Cold Rating

-4°F | -20°C

Cold Rating

Water Rating

IP66

Water Rating
LBV2711B

LBV2711B

Heat Rating

140°F | 60°C

Heat Rating

Cold Rating

-22°F | -30°C

Cold Rating

Water Rating

IP66

Water Rating
LZV1722B

LZV1722B

Heat Rating

140°F | 60°C

Heat Rating

Cold Rating

14°F | -10°C

Cold Rating

Water Rating

IP66

Water Rating
Security HDD hard drive for security recording

Heavy-duty hard drive

The MPX16441ZUW security system contains a security grade hard drive, engineered precisely for the intensive task of security recording. A 3TB hard drive within Lorex’s DV700 HD DVR stores weeks (and even months) of recorded security footage. Simple settings make it easy to record at a lower resolution (or program scheduled recording times). The motion-triggered recording option saves space by keeping watch 24/7, but only recording when movement is detected.

1080 MPX Comparison Chart
  HD 1080 Digital IP HD 720 Digital IP HD 1080 Analog BNC HD 720 Analog BNC
Recording Full 1080p HD (1920x1080) 720p HD (1280x720) Analog 1080p HD (1920x1080) 720p HD (1280x720)
Platform 1080p HD NVR systems 720p HD NVR systems 1080p HD DVR systems 720p HD DVR systems
Video Digital IP / RJ45 connection Digital IP / RJ45 connection Analog BNC / RG59 connection Analog BNC / RG59 connection
Power PoE (Power over Ethernet) PoE (Power over Ethernet) Standard DC power Standard DC power
Installation Connect cameras to NVR or to router/LAN Connect cameras to NVR or to router/LAN Cameras require wired connection to DVR Cameras require wired connection to DVR

Video

What's Included?

DV7163

16 channel, analog HD 1080p security DVR:
  • True high definition 1080p recording on all cameras1
  • 24/7 security-grade hard drive
  • Continuous, scheduled and motion recording
  • PTZ cameras supported, remote control through App1
  • H.264 video compression2
  • HDMI cable included for simple connection to HD TVs3
  • Accurate time stamps with NTP & daylight savings time
  • Click and drag digital zoom in live view and playback
  • 2 video outputs (HDMI & VGA) to connect multiple monitors
  • Instant USB backup of live video from selected camera
  • Automatic firmware upgrade
  • 3-Step remote view with Lorex Cloud4
  • PC and Mac compatible5
  • Instant mobile viewing on smartphones and tablets5
  • Advanced apps with live viewing, playback, video recording, and snap shot
  • Mobile push notifications of motion events and email alerts
  • Dual streaming to conserve bandwidth

Each DV7163 Includes:

1 × DVR
1 × HDMI Cable
1 × Remote Control
1 × Power adapter
1 × Mouse
1 × Ethernet Cable
Quick Start Guides

1. Compatible with Lorex 1080p and 720p wired HD cameras only. For a list of compatible cameras, please visit lorextechnology.com/support
2. Recording time may vary based on recording resolution & quality, lighting conditions and movement in the scene.
3. HDMI output (1920x1080) HD for high definition multi-channel live viewing only. 1080p recording resolution is limited to a maximum of 1920x1080 per channel. Image quality and resolution is dependent on the type of camera connected to the DVR.
4. Requires a high speed internet connection and a router (not included). A minimum upload speed of 1Mbps is required for the best video performance. Up to 2 devices may connect to the system at the same time.
5. For the latest list of supported apps and devices, please visit www.lorextechnology.com/support

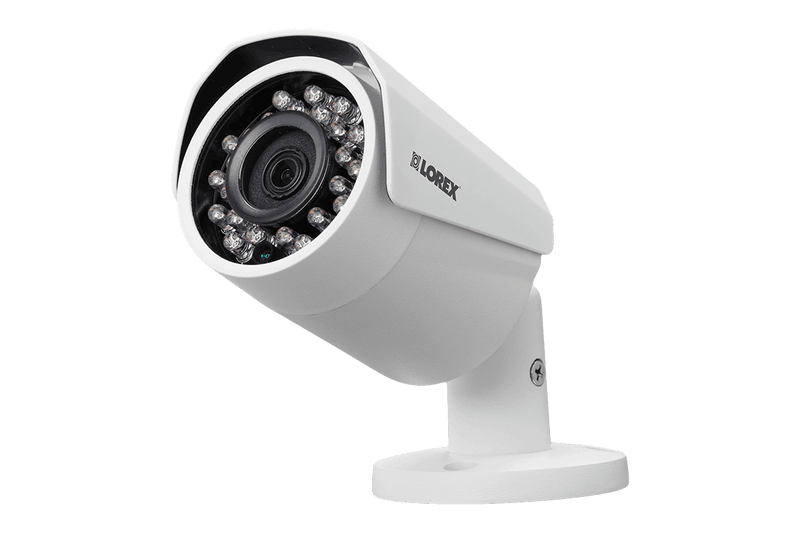

LBV2711B

1080p HD Bullet Security Camera Features:
  • True HD 1080p Image Sensor1
  • Infrared cut filter ensures accurate color representation
  • Night vision range up to 130ft (40m) in ambient lighting & 90ft (28m) in total darkness2
  • Close up recognition in the dark with SmartIR
  • Anti-glare feature ensures clear images under strong lighting conditions
  • ClearNight imaging for superior low light performance, improving recording efficiency
  • Split glass design minimizes IR reflection
  • Weatherproof for outdoor & indoor installation (IP66 Rated)3
  • Extreme temperature performance (-22° ~ 140°F / -30° ~ 60°C)
  • 90° field of view
  • Vandal resistant design with cable pass-through bracket
  • Lightweight and durable polycarbonate housing
  • Versatile ceiling or wall mounting options
  • Residential and business friendly compact design

Each LBV2711B Includes:

1 × HD Bullet Camera
1 × 60ft Extension Cable
1 × Mounting Kit
1 × 4-in-1 Power Adapter

1. Compatible with Lorex MPX Series DVRs only.
2. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area and light reflection / absorption level of object.
3. Not intended for submersion in water. Installation in a sheltered location recommended.

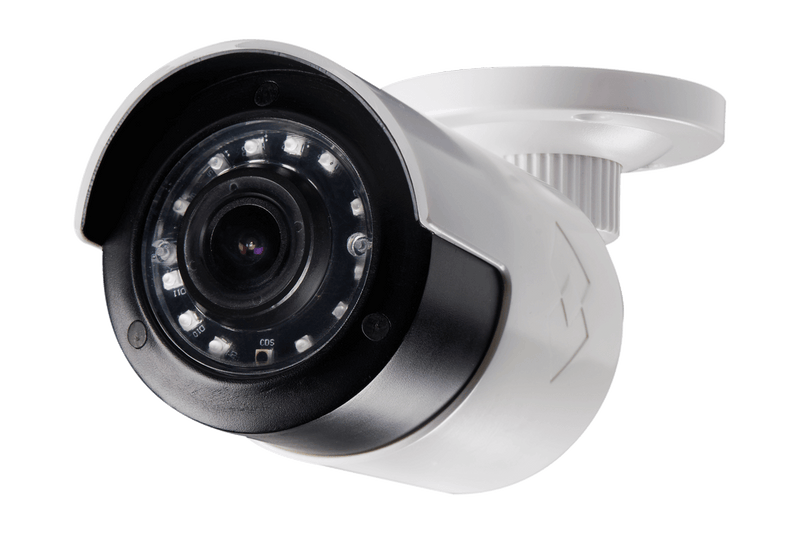

LBV2561U

1080p HD super wide-angle security camera:
  • High definition 1080p image sensor1
  • Ultra-Wide field of view captures the entire scene for superior coverage
  • Night vision range up to 90ft (27m) in ambient lighting and 60ft (18m) in total darkness2
  • Close up recognition in the dark with SmartIR
  • Infrared cut filter ensures accurate color representation
  • Anti-glare feature ensures clear images under strong lighting conditions
  • Split glass design minimizes IR reflection
  • Versatile ceiling or wall mounting options
  • Vandal resistant design with cable pass-through bracket and durable Polycarbonate construction
  • UL compliant cable suitable for surface and in-wall installation
  • Weatherproof for outdoor & indoor installation (IP66 Rated)3

Each LBV2561U Includes:

1 × Night Vision Camera
1 × Mounting Kit
1 × 60ft Extension Cable
1 × Power Adapter*

1. 1080p HD cameras are compatible with Lorex 1080p HD DVRs only. For a list of compatible recorders please visit lorextechnology.com/support.
2. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection / absorption level of object. In low light, the camera will switch to black and white.
3. Not intended for submersion in water. Installation in a sheltered location recommended.

*A Multi-Camera Power Adapter that provides power to multiple cameras or individual power adapters may be provided, depending on product configuration.

LZV1722B

High definition 720p resolution 1.3 MP Sony Exmor® image sensor
  • High definition 720p resolution 1.3 MP Sony Exmor® image sensor.1
  • Powerful 12x optical zoom and 16x digital zoom to focus in on even the finest details.
  • Full 360° continuous pan rotation for complete area coverage. Fast 300° per second panning speed.
  • Zoom lens for viewing small or distant objects with enhanced definition.
  • Control PTZ camera movement and transmit video over a single coaxial cable.
  • Program preset viewing points, patterns, scan cycles and tours when connected to a DVR.
  • Remote control of the PTZ camera using a smartphone or tablet (when connected to a DVR).
  • Day/Night mode: picture automatically switches to B&W delivering better clarity in low light conditions.
  • ClearNight imaging for superior low light performance.2
  • Infrared cut filter ensures accurate color representation.
  • High definition video with outstanding detail, day or night.
  • Weatherproof for outdoor & indoor installation (IP66 Rated).3
  • Wall mount & 100ft extension cable included for installation flexibility.

Each LZV1722B Includes:

1 × PTZ Camera
1 × 100ft Extension Cable
1 × Power Adapter
1 × Mounting Template
4 × Mounting Screws
4 × Mounting Anchors
4 × O-Rings
1 × Allen Key
4 × Allen Bolts
1 × Instruction Manual

1. Compatible with Lorex LHV1000 Series only.
2. This camera features an ultra-low light sensitive image sensor and therefore does not feature Infra-Red LEDs. The camera requires ambient lighting (for example, street/ building lighting, star or moon light) to render a night time image. In total darkness (zero Lux), the camera will not produce a night time image and therefore the camera should not be installed in completely dark areas.
3. Not intended for submersion in water. Installation in a sheltered location recommended.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown. Images are simulated.
