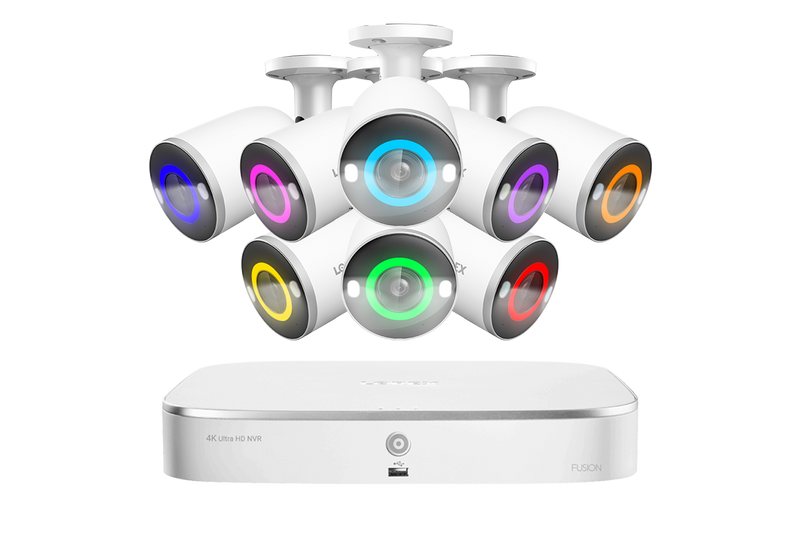

Lorex Fusion 4K 16 Camera Capable (8 Wired and 8 Wi-Fi) 2TB Wired NVR System with Bullet Cameras Featuring Smart Security Lighting
Lorex Fusion 4K 16 Camera Capable (8 Wired and 8 Wi-Fi) 2TB Wired NVR System with Bullet Cameras Featuring Smart Security Lighting - Lorex Technology Inc.
Lorex Fusion 4K 16 Camera Capable (8 Wired and 8 Wi-Fi) 2TB Wired NVR System with Bullet Cameras Featuring Smart Security Lighting - Lorex Technology Inc.
Lorex Fusion 4K 16 Camera Capable (8 Wired and 8 Wi-Fi) 2TB Wired NVR System with Bullet Cameras Featuring Smart Security Lighting - Lorex Technology Inc.
Lorex Fusion 4K 16 Camera Capable (8 Wired and 8 Wi-Fi) 2TB Wired NVR System with Bullet Cameras Featuring Smart Security Lighting - Lorex Technology Inc.
Lorex Fusion 4K 16 Camera Capable (8 Wired and 8 Wi-Fi) 2TB Wired NVR System with Bullet Cameras Featuring Smart Security Lighting - Lorex Technology Inc.
Lorex Fusion 4K 16 Camera Capable (8 Wired and 8 Wi-Fi) 2TB Wired NVR System with Bullet Cameras Featuring Smart Security Lighting - Lorex Technology Inc.
Lorex Fusion 4K 16-Channel 2TB Wired NVR System with Bullet Cameras Featuring Smart Security Lighting - 4 Cameras
Lorex Fusion 4K 16-Channel 2TB Wired NVR System with Bullet Cameras Featuring Smart Security Lighting
Lorex Fusion 4K 16-Channel 2TB Wired NVR System with Bullet Cameras Featuring Smart Security Lighting
zoom Roll over image to zoom in Click on image to zoom

Lorex Fusion 4K 16 Camera Capable (8 Wired and 8 Wi-Fi) 2TB Wired NVR System with Bullet Cameras Featuring Smart Security Lighting

N4K2SL-82WB
Number of cameras:
$779.99
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

bi-ecology

No Monthly Fees

Local recording protects privacy and saves money.

Features

Create a personal security ecosystem like never before starting with this security system that features our latest 4K Deterrence Security Cameras with Smart Security Lighting and an NVR that has 8 wired channels and 8 Wi-Fi channels. This means that you can also add up to 8 Smart Home products, such as Wi-Fi Cameras, Video Doorbells, and Floodlights to the reliability and professional performance of the wired security cameras on the same system!




Customize light colors with



The customizable smart LED light band comes with 16.7 million color options to choose from. Colors can be assigned to pre-set camera modes, such as a "Welcome" or "Panic" mode.

Select Color



Get alerts that matter

Reduce unwanted alerts and only get notifications you care about with key motion detection modes at no extra cost.


Person Detection Person Detection

Vehicle Detection Vehicle Detection

Face Detection Face Detection

Animal Detection Animal Detection

Package Detection Package Detection




Impressive clarity and wider coverage



Get the best view of your property around-the-clock with stunning 4K clarity and vivid Color Night Vision.



4K Ultra HD
Resolution

Color Night
Vision Booster
drag left and right to see product in 360 view


Wide field of view in full 4K

At the core of this camera is an 8MP image sensor. 8MP means there are more than 8 million pixels, which results in exceptionally sharp 4K video, realistic color representation, and superior digital zoom capabilities. The 108° field-of-view also allows your camera to monitor a broader area so you see more and detect motion earlier.



Boost Your Color Night Vision

Experience the best night vision on the market. This camera features our revolutionary Color Night Vision (CNV) Booster, which produces our most vivid and longest range full-color nighttime video yet. CNV works best with the help of ambient lighting, however, in conditions that are too dark, this camera will use its infrared LEDs to record crisp black and white video footage.



IR Night Vision



Color Night Vision



Color Night Vision Booster




Built to Last

Pro-Grade heavy-duty aluminum housings protect against weather and vandalism, extending the life-cycle of your camera so you can count on years of uninterrupted service.




Proactive Security

Stop events before they happen with with two motion-activated LED lights and a remotely triggered siren from the Lorex Home app.



Motion-activated LED lights

Remote-activated siren



Built for the outdoors

This camera has been designed to withstand the harshness of nature. It has an IP67 rating (our highest weatherproof rating) and has a durable, all-metal housing for added protection.



140°F | 60°C Heat Rating

-22°F | -30°C Cold Rating

IP67 Weatherproof



Speak with Ease

Easily communicate through the camera’s built-in microphone and speaker using the Lorex Home App. You can also choose pre-set or personalized voice messages to welcome or instruct visitors.



Microphone

Speaker




Smart Home Compatibility

Get faster access to your security system by connecting it to other Smart Home devices; use simple voice commands to activate camera features with Amazon Alexa™ and Google Assistant™, use it with Chromecast or Firestick to monitor your security camera footage on a larger screen. For more information about current smart home integrations, visit our Smart Home Guide.

works with Google works with Alexa

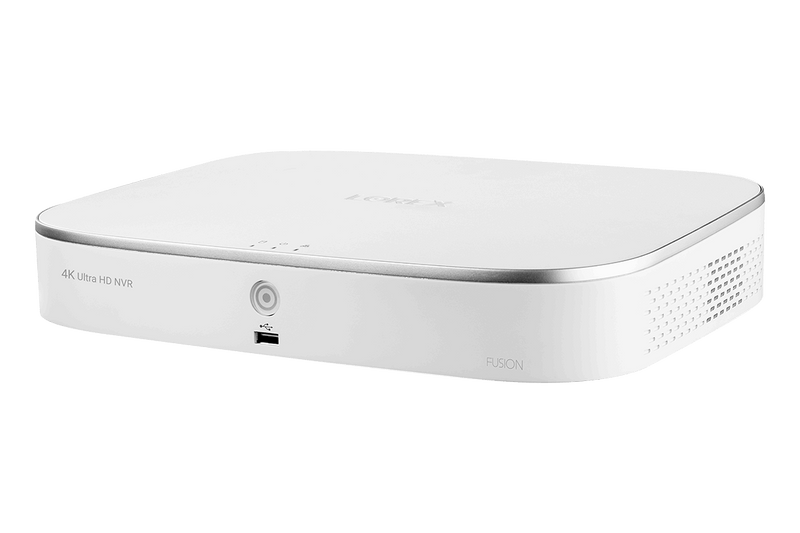

Same Look - Home or Away

Enjoy a seamless monitoring experience whether you are accessing your system locally through the recorder or remotely through the app. The Recorder User Interface now uses the same look and feel as the Lorex app, making it easier than ever to navigate and find events as you switch platforms.




Customize Your Security With Fusion

Create a personalized Lorex Smart Home ecosystem by pairing your system with up to 8 wired and 8 Wi-Fi devices. This allows you to record continuous video from all Wired and Wi-Fi cameras to the recorder's hard drive. This can also provide invaluable back-up of events should a Wi-Fi camera's local storage become disabled.


Get Support for Lorex Fusion How to set up Fusion System


All-In-One Security

Get the most out of your system by connecting wired and wireless cameras, doorbells, and sensors to your recorder.

Continuous Recording

24/7 continuous recording directly to your hard drive with expandable storage and no monthly fees.*

Lorex App

Access all of your Lorex devices from one place, allowing for easy control and monitoring of your property.



*To conserve battery life, Lorex Battery-Operated Doorbells and Cameras cannot record 24/7 continuously to the Fusion Recorder’s local hard drive.





Free Local Storage, No Monthly Fees

Local storage means no monthly fees and with the built-in 2TB hard drive, you will have ample storage, while your recordings stay safe and private.




Fusion Series NVR Comparison Chart

  N845 Series Lorex Fusion 4K 16-Channel NVR N843 Series Lorex Fusion 4K 8-Channel NVR N864 Series Lorex Fusion 4K 16-Channel NVR N863 Series Lorex Fusion 4K 8-Channel NVR
Channels (Wired / Wi-Fi Fusion) 16 Total (8 Wired and 8 Wi-Fi) 8 Total (up to two Wi-Fi) 16 Total (Wired and Wi-Fi) 16 Total (up to two Wi-Fi)
Resolution 4K @ 15fps 4K @ 15fps 4K @ 15fps 4K @ 15fps
Storage / Capacity 1 Bay / Up to 8TB 1 Bay / Up to 8TB 2 Bay / Up to 2 x 8TB 2 Bay / Up to 2 x 8TB
Video Compression H.265/H.264 H.265/H.264 H.265/H.264 H.265/H.264
PoE Output Max 25.5W for single port, 72W total Max 25.5W for single port, 72W total PoE: Max 25.5W for single port, 130W total PoE: Max 25.5W for single port, 130W total
Power Consumption Approx. 8.3W Approx. 8.3W Approx. 13.2W Approx. 13.2W
Smart Motion Detection Person / Vehicle / Face / Animal / Package Person / Vehicle / Face / Package Person / Vehicle / Face / Animal / Package Person / Vehicle / Face / Package
Special Features Active Deterrence / Panic Button / Smart Search Active Deterrence / Panic Button / Smart Search Active Deterrence / Panic Button / Smart Search Active Deterrence / Panic Button / Smart Search
Lorex Sensor Compatible Yes Yes Yes Yes
Mobile Viewing Lorex App Lorex App Lorex App Lorex App
Smart Home Amazon Alexa™, Google Assistant™ Amazon Alexa™, Google Assistant™ Amazon Alexa™, Google Assistant™ Amazon Alexa™, Google Assistant™
Streaming Options Chromecast™, Apple TV™, Amazon Echo Show™, Google Home Hub™ Chromecast™, Apple TV™, Amazon Echo Show™, Google Home Hub™ Chromecast™, Apple TV™, Amazon Echo Show™, Google Home Hub™, Lenovo Smart Display™ Chromecast™, Apple TV™, Amazon Echo Show™, Google Home Hub™, Lenovo Smart Display™
PC/Mac Remote Viewing Yes - Lorex Cloud Client Yes - Lorex Cloud Client Yes - Lorex Cloud Client Yes - Lorex Cloud Client

Smart Lighting / Smart Deterrence Series

E891 4K Ultra HD Smart Deterrence IP Camera

E891 Series
E892 Series


4K Ultra HD Smart Deterrence IP Camera

 E893 4K Ultra HD Smart Deterrence IP Camera with Smart Motion Plus

E893 Series



4K Ultra HD Smart Deterrence IP Camera with Smart Motion Plus

 Lorex 4K Smart Security Lighting Deterrence Bullet AI PoE IP Wired Cameras

E894 Series
E895 Series
E896 Series

4K Smart Security Lighting Deterrence Bullet AI PoE IP Wired Cameras
Two-Way Talk ● ● ●
Safeguard ● ●
Package Detection ●
Person and Vehicle Detection ● ● ●
Face and Mask Detection ● ●
Heat map* ●
Sound Detection** ●
Smart Security Lighting** ●
In App Quick Response ●

*N845/N846/N883 NVR Required
**N845/N864/N846 NVR Required

Video

What's Included?

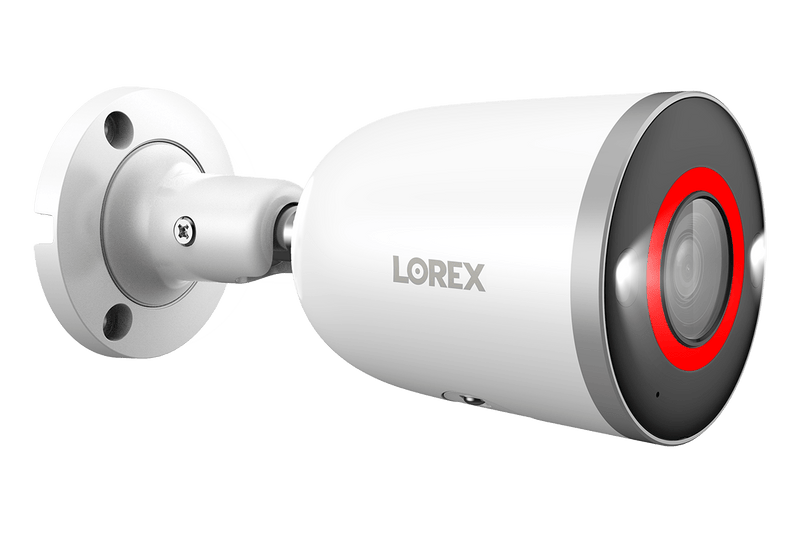

E896AB Overview

Dimensions (W—D—H): 2.9" x 6.9" x 2.9" (73mm x 175mm x70mm)
Weight: 1.15lbs / 0.52kg

  1. Cable Notch
  2. Adjustment Screw
  3. Speaker and Siren
  4. MicroSD Card Slot
  5. Reset Button
  6. Warning Lights
  7. Smart Security Lighting
  8. Microphone


Package Contents:

4K Deterrence IP Camera

Mounting Kit

Ethernet Extension Cable*

*With pre-attached weather-resistant cap.
  1. Compatible with select Lorex Network Video Recorders HD recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility
  2. Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
  3. Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 98ft/30m in total darkness). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
  4. For Face Detection to operate, this camera requires a connection to a compatible Lorex Network Video Recorder with smart face detection technology. For a list of compatible recorders please visit: www.lorex.com/compatibility
  5. When Face Detection is enabled, all other Smart Plans will be disabled. When not using Face Detection, Smart Plans vary by model. Click here to learn more
  6. Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws
  7. Not intended for submersion in water. Installation in a sheltered location recommended.
  8. Cable length is dependent on product configuration. See product packaging for details.
  9. Mask Detection is compatible with select Lorex Network Video Recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility
  10. Color Night Vision Booster can be enabled using the Lorex App and will light for 3 minutes when turned on.
  11. A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.
