Data + PoE
over Any 2-Wire
600m (1970ft)
Long Range
PoE from NVR
to IP Camera
Twisted or Untwisted
2-Wire
Solid or Stranded
2-Wire
60W
PoE++
Surge / Short
Protection
Simplified
Installation
Cost
Saving

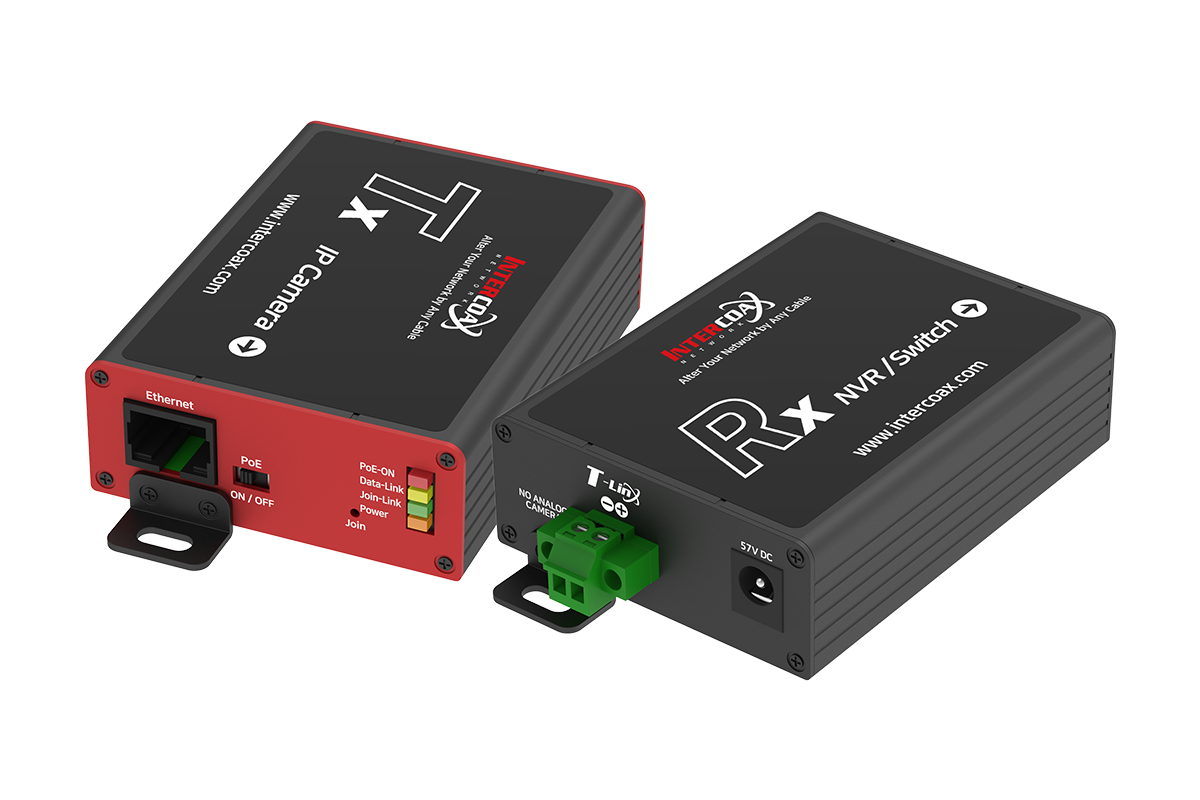

The ETP-2601 is a high-speed, long-distance Ethernet & PoE extender that enables the transmission of Ethernet signals and PoE via 2-Wire cable (twisted pair cable, COM, power line) in various situations. It offers a cost-effective and time-saving solution for migrating existing analog systems to IP-based systems, as the ETP-2601 supports easy installation using existing cables. With its long-distance transmission capability, this device easily overcomes the 100-meter distance limitation and significantly reduces construction costs compared to fiber optic configurations.
Connection Diagram
Additional installation of IP cameras on current system
Enhance Elevator Surveillance with ALP-ETP-2601TR: The Premium Ethernet over 2Wire Solution
The ALP-ETP-2601TR Premium Ethernet over 2Wire is the ideal choice for elevator surveillance, offering a cost-effective, efficient solution for camera installations. Utilizing existing two-wire cabling, it reduces installation costs and logistical challenges, ensuring high-speed data transmission and reliable connectivity. Perfect for retrofitting older buildings, it guarantees stable, uninterrupted data transfer for high-quality surveillance footage. Its robust performance and adaptability in confined spaces enhance security and monitoring capabilities in elevator environments, making it the best solution for elevator surveillance needs.
Product Specifications
| Modèle | ETP-2601T | ETP-2601R | |
|---|---|---|---|
| Interface | |||
| 2 fils | 1 bornier Ethernet à 2 broches sur 2 fils (T-LinX) | ||
| Ethernet | 1 x RJ45 - 10/100 Base-T avec détection automatique MDIX | ||
| Taux de transmission |
Duplex intégral 95 Mbps (270 Mbps entre les modèles de la série Intercoax 2) |
||
| Distance de transmission | |||
| 2 fils | jusqu'à 600 m (câble à paire torsadée/Cat.5e) | ||
| PoE (PoC) | jusqu'à 300 m (caméra Cat.5e / 7W) | ||
| Indication LED | Ethernet | 1 x Data-Link (jaune) | |
| EoC | 1 x Join-Link (vert) | ||
| Pouvoir | 1 x Power On (ambre) | ||
| PoE | 1 x sortie PoE (rouge) | ||
| Cryptage | AES 128 bits | ||
| Modèle | ETP-2601T | ETP-2601R | |
|---|---|---|---|
| Pouvoir | |||
| Saisir | T-Linx ou DC12V~57V | Commutateur PoE ou DC48V~57V | |
| Sortie PoE |
IEEE802.3af (PoE), IEEE802.3at (PoE+), PoE supplémentaire jusqu'à 60 W |
PoE non pris en charge Alimentation sur 2 fils uniquement |
|
| Entrée PoE | Non pris en charge | Jusqu'à 25,5 W (PD) | |
| Mécanique | |||
| Dimension | 80,4 (L) x 61,6 (l) x 24 (H) mm | ||
| Poids | 102 g | ||
| Environnement | |||
| Température de fonctionnement | -20 ~ 60°C | ||
| Température de stockage | -30 ~ 80°C | ||
| Humidité relative | 10% ~ 90% | ||
| Conformité | |||
| Certification | FCC, CE, KC, RoHS | ||
| Protection contre les surtensions | CEI 61000-4-5 4 kV (1,2 / 50 µs), 2 kA (8 / 20 µs) | ||
What's Included?
Package Contents:

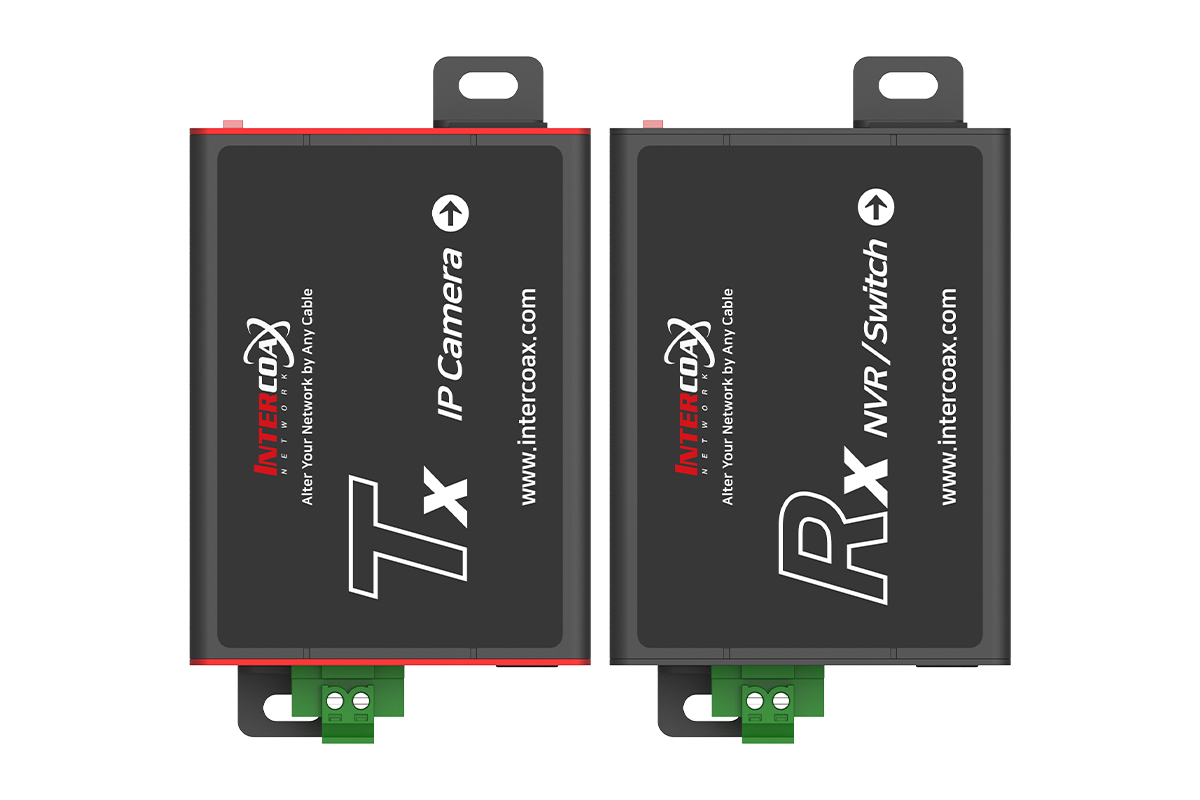

ETP-2601T
(Transmitter)
ETP-2601R
(Receiver)
Terminal Connector
Bracket x 2
Screw x 4
Manual
Product Compatibility
Product Support
Ensemble IP et PoE professionnel à port unique sur 2 fils ALP-ETP-2601T/R
