Provide continuous power to your Lorex Video Doorbell, even if you don’t have pre-existing doorbell wiring, with this power adapter. The simple plug-and-play setup comes with eyelet connectors for a secure installation. You can rely the on the built-in over voltage, over current, and short circuit protection for a reliable doorbell connection.
24/7
Power
Easy
Installation
Power
Protection
Works with Lorex
Video Doorbells
Power your Lorex Doorbell
Make sure your doorbell is always powered with this Lorex doorbell adapter. It's compatible with both wired and battery-operated doorbells and can be used to provide an uninterrupted power supply if there's no existing power wiring or compatible transformer. Keep your doorbell always ready to go and never worry about charging a battery doorbell again.
Easy Installation
Simply install with the eyelet connector and plug and play into a wall outlet, ensuring a reliable connection to your doorbell. To install the doorbell without any gaps, drill a hole in the wall for the cable to pass through.
Safe and Reliable
Over voltage, over current, and short circuit protection are vital for electrical systems, preventing damage and ensuring safety by regulating voltage levels, limiting current flow, and interrupting circuits in case of short circuits.
Product Specifications
| Tension nominale | CA 100-240 V |
|---|---|
| Plage de variation | CA 90-264 V |
| Fréquence nominale | 50/60 Hz |
| Fréquence de variation | 47-63 Hz |
| Courant d'entrée | 1,0 A maximum |
| Courant d'appel |
60 A max. Démarrage à froid à 100 V CA, entrée 60 Hz 80 A max. Démarrage à froid à 240 V CA, entrée 50 Hz |
| Courant de fuite CA | 0,25 mAh max. |
| Caractéristiques de sortie | |
|---|---|
| Tension | 24 Vcc ± 5 % |
| Charge minimale | 0A |
| Charge max. | 1,0 A |
| Ondulation et bruit de sortie | 120 mVp-p max. |
| Délai de mise en marche | 3 s max. à 100-240 Vca d'entrée |
| Temps de montée | 50 ms max. de 10 % à 90 % de la tension nominale à 100 Vca/240 Vca |
| Temps d'attente | 10 ms min à 100 Vca/240 Vca |
| Tension de dépassement | -3 à +7 % de tension nominale max. à la mise sous tension ou hors tension |
| Efficacité moyenne | 86,20 % min. à l'entrée 115/230 Vca et charge nominale de 100 %, 75 %, 50 %, 25 % |
| Exigence environnementale | |
|---|---|
| Température de fonctionnement | -10°C à 45°C |
| Température de stockage | -40°C à 80°C |
| Humidité relative | 5% à 95%, sans condensation |
| Exigence mécanique | |
|---|---|
| Adaptateur secteur | |
| Enceinte | 76 (L) x 44 (l) x 31,3 (H) mm |
| Poids | 115 g |
| Couleur | Noir |
| prise CC | 5,5 mm x 2,1 mm x 10 mm |
| Corde | 3 mètres, UL2468, 24AWG/2C |
| Câble d'extension | |
| Couleur | Noir |
| Connecteur à œillet | RV1-3.2 |
| Longueur | 5 mètres |

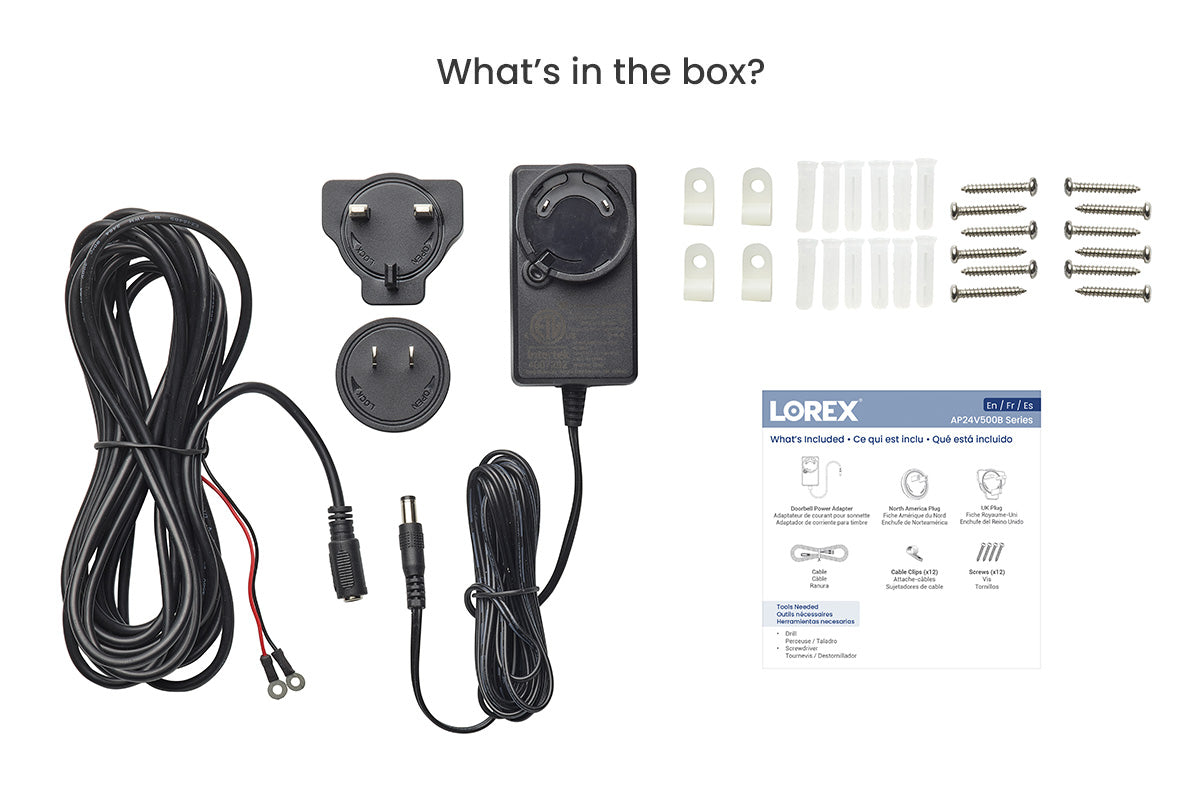

What's Included?
Package Contents:
1 × Doorbell Power Adapter (with 3m cable)
1 × North America Plug
1 × UK Plug
1 × Extension Cable (5m)
12 × Cable Clips
12 × Screws
Quick Start Guide
