The Lorex 4K Dual Lens Wired Security Camera.
Increase your security coverage with a complete 180° panoramic view thanks to the built-in dual lenses. With 4K clarity, Color Night Vision, Smart Security Lighting and more, this camera provides complete coverage - day and night.

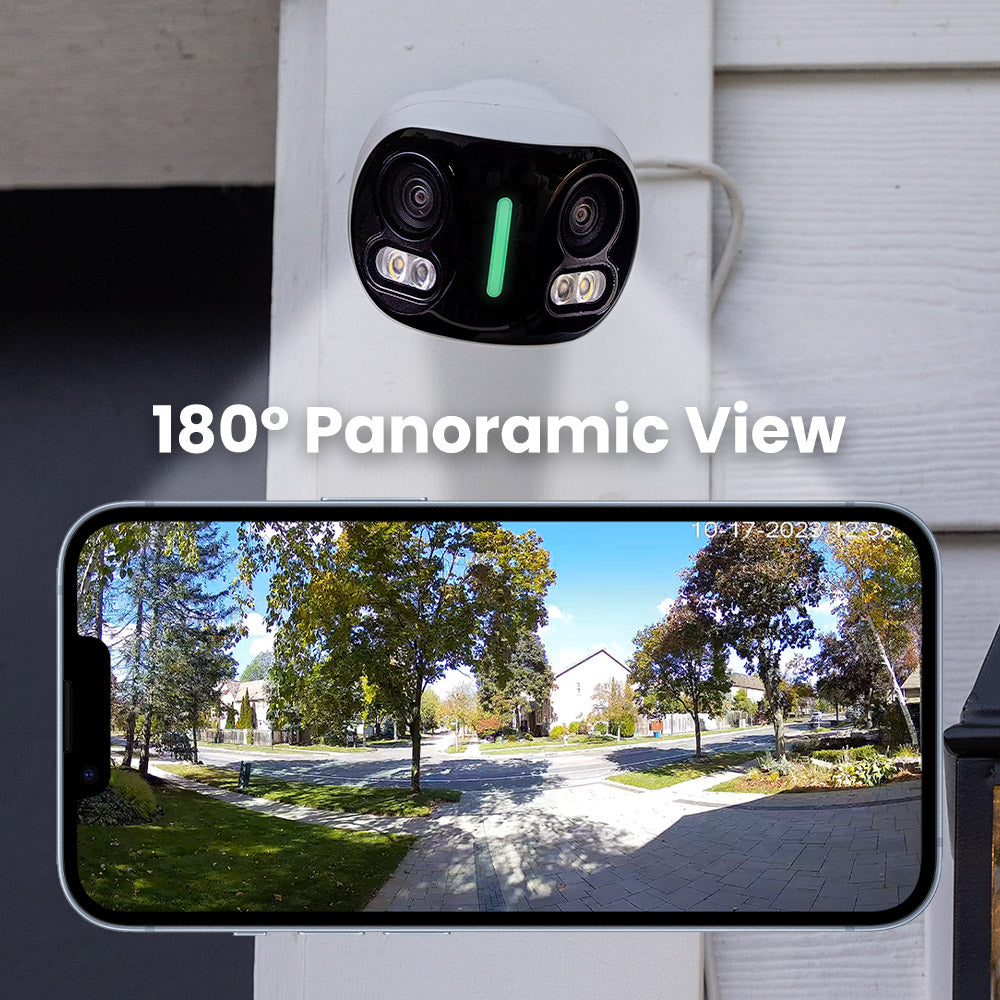

Double your view
Monitor larger areas with less cameras. The Dual Lens features two built-in professional-grade lenses, which connects two adjacent scenes together to create one continuous 180° panoramic view.
Superior video quality, day and night
Add colorful details and improve clarity with Color Night Vision*. In complete darkness, the camera will use its Infrared Night Vision to record crisp black and white video so you’re never left in the dark.
*Ambient lighting required

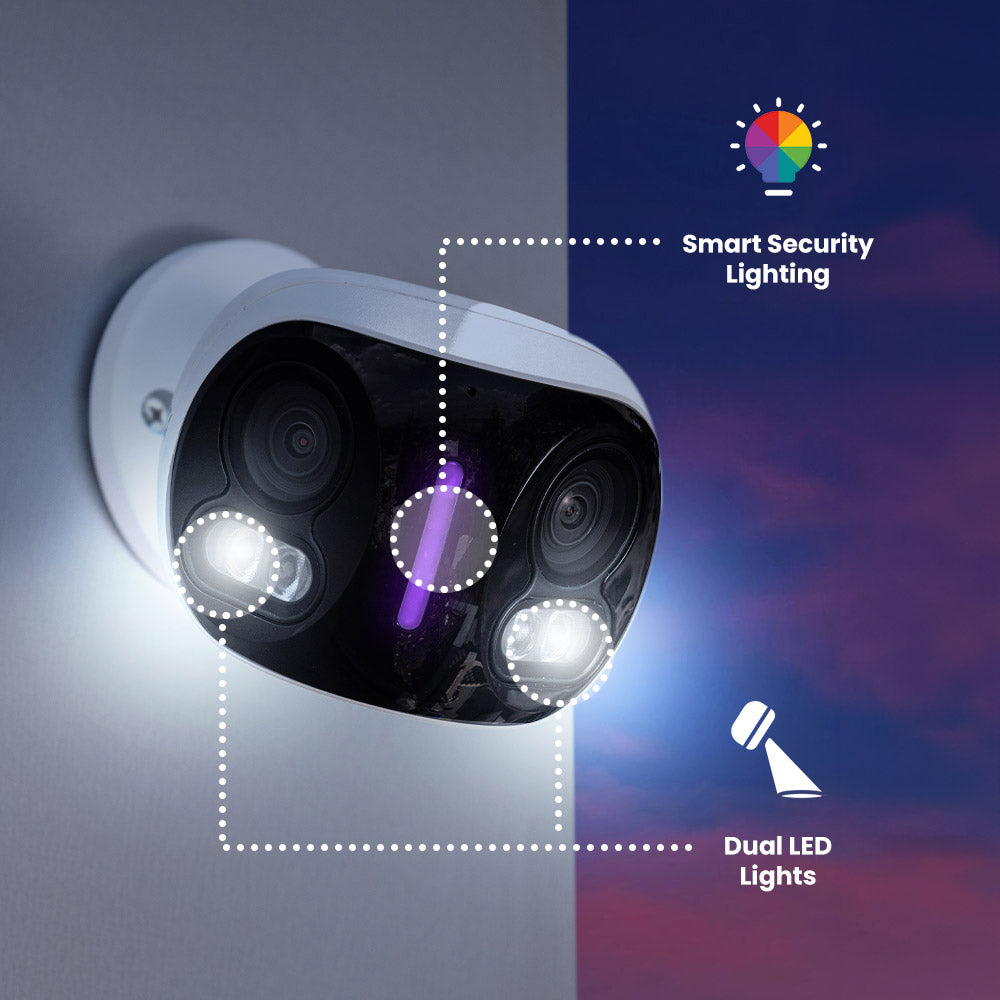

Smart Security Lighting
Add some colour to your security with the ability to personalize your LEDs with a choice of over 16 Million colors. Assign colors for motion events and camera modes, which can be seen from a distance deterring unwanted visitors in their tracks.
Proactive Prevention
With proactive features like motion-activated warning lights and siren, this camera will help stop crime before it even happens!

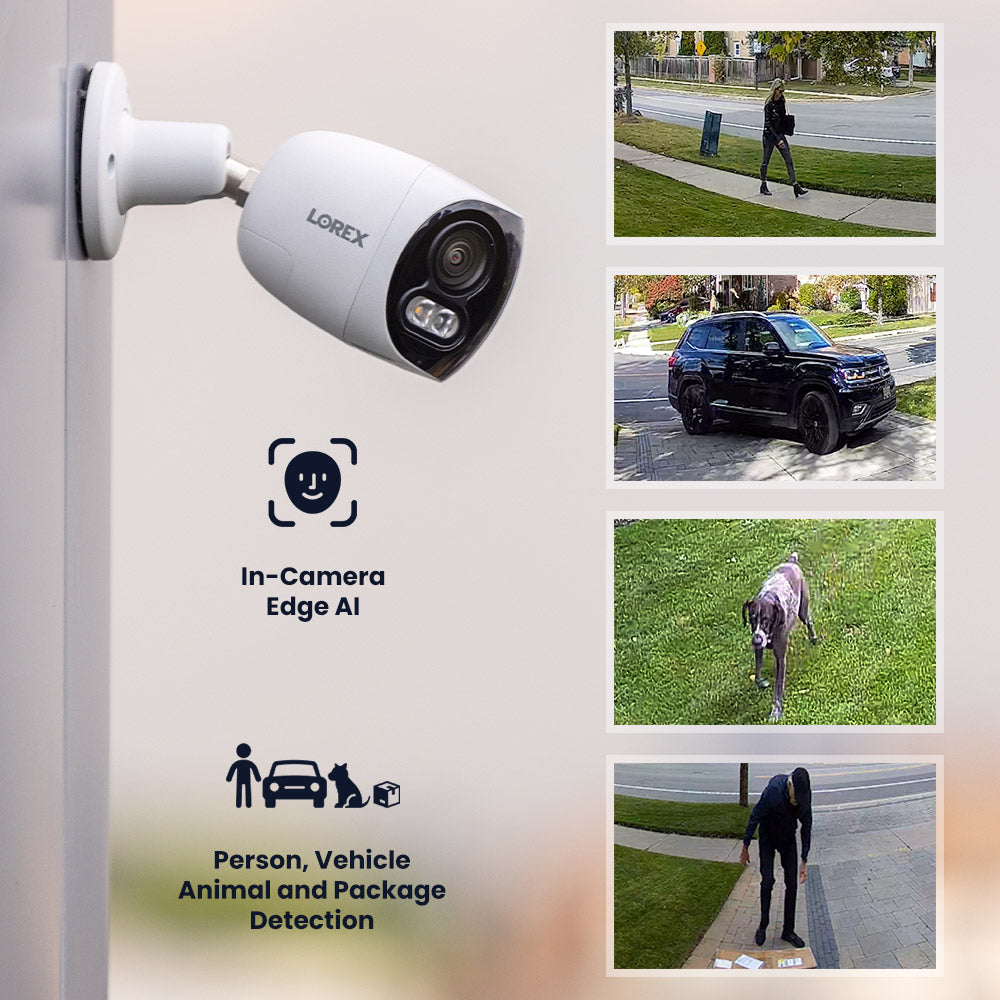

Get Alerts that Matter
Get detailed notifications regarding what type of motion is detected and personalize your settings to only receive the alerts you want. The 180° field of view has a slight curvature throughout, which enhances the detection feature accuracy.
Two stitched into one
In order to achieve the expansive 180° coverage, the two connected views are fused together with Image Stitching Technology. Depending on placement and distance factors, camera performance may adjust with curvature or misalignment. Click here for more info.
*For best results, install the camera to be horizontally parallel to the ground (i.e. do not tilt/rotate sideways)

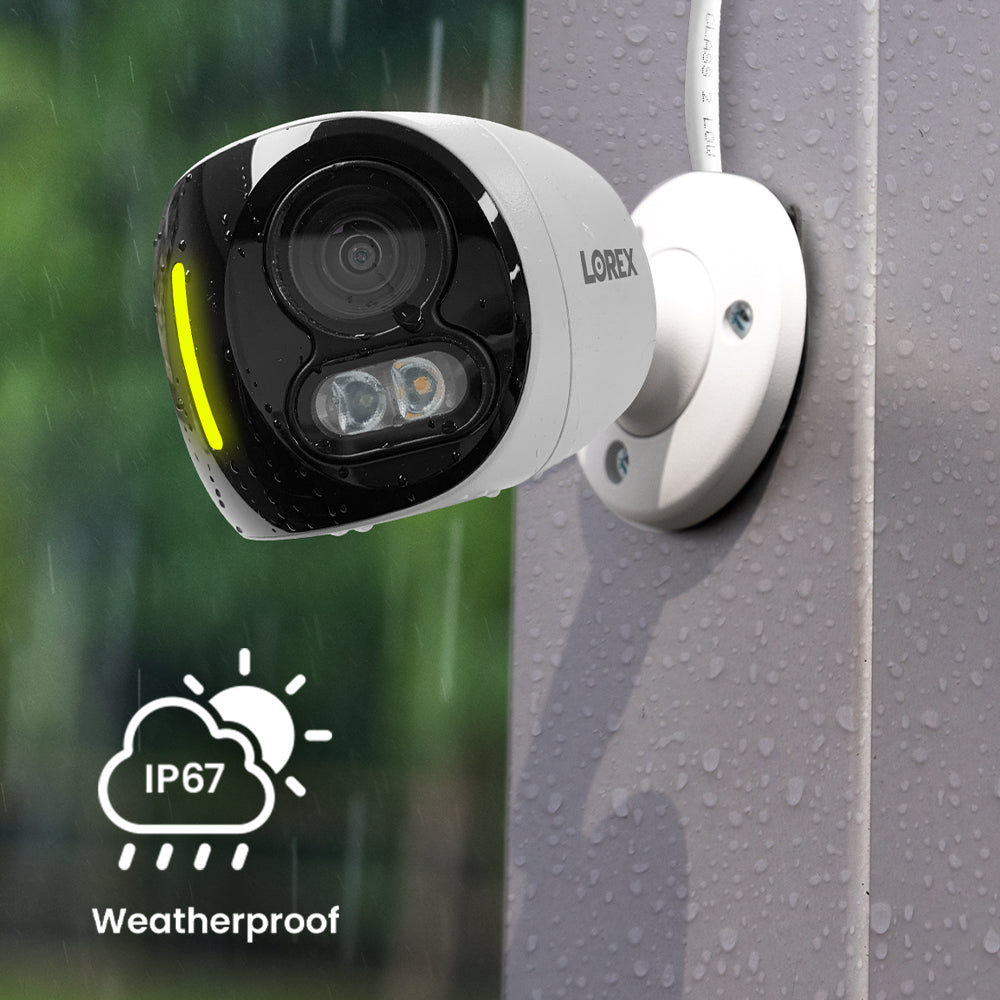

Year-Round Durability
This camera is built to last. IP67 Rated, the housing protects against harsh conditions like snow, rain, dust and extreme heat, allowing for years of service, no matter the weather.
131°F | 55°C Heat Rating
-22°F | -30°C Cold Rating
IP67 Weatherproof Rating

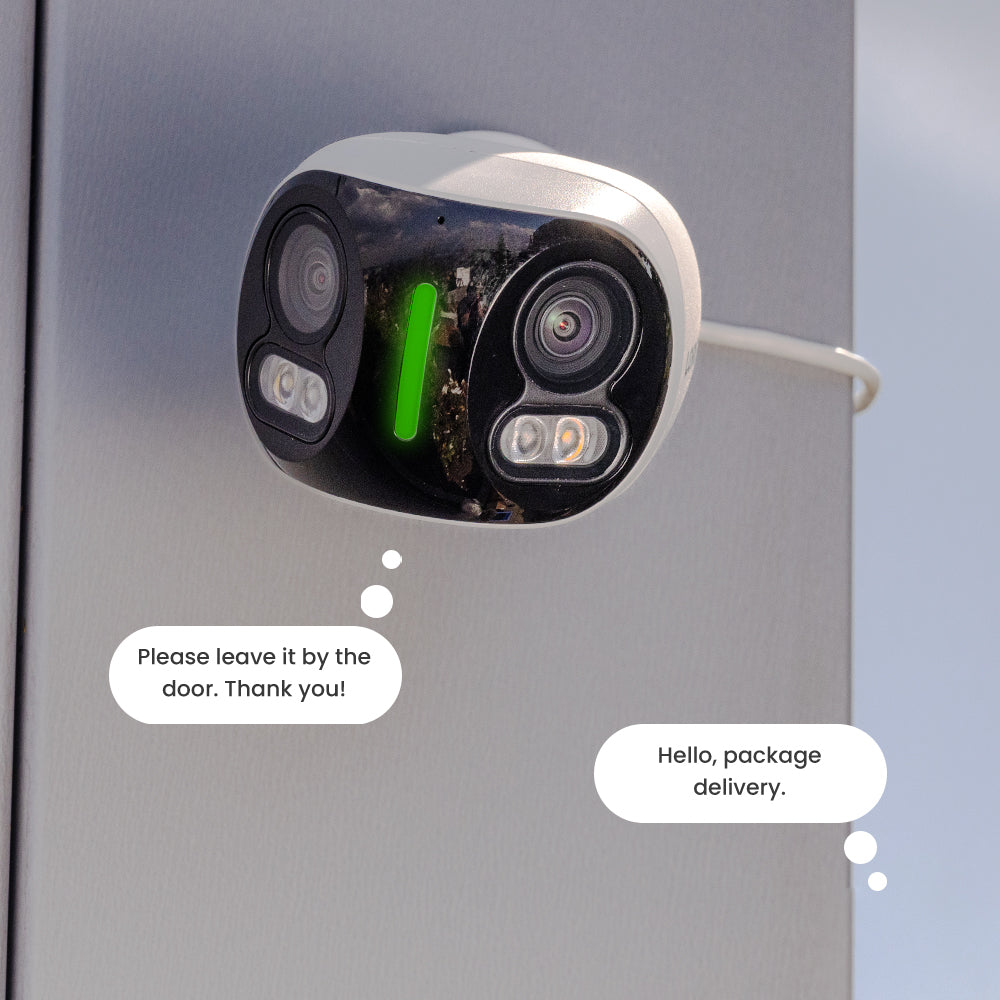

Answer Instantly
Hear and speak to anyone through the camera using 2-Way Talk. If you're busy, select a Quick Response message to answer for you.
Enjoy the Reliability of Wired Security
A stable wired camera connection provides reliable 24/7 security. You can customize where you want to install each type when integrating them into your property.
Auto-Framing
Automatically track, follow and zoom in on a person, vehicle or animal as they move across the field of view - all hands-free!
Product Specifications
| Angle de vision (diagonale) | Vue panoramique à 180° |
|---|---|
| Lentille/Type de lentille | 2,1 mm F1.6/Fixe |
| Résolution/Fréquence d'images | 4096x1856 à 15 ips, 2880x1312 à 15 ips, 2048x932 à 15 ips |
| Pixels effectifs | 4096 x 1856 |
| Microphone/Haut-parleur | Oui/Oui |
| Sirène | Oui |
| Conversation bidirectionnelle | Oui |
| Portée de vision nocturne (obscurité totale) | 65 pieds (20 m) |
| Portée de vision nocturne max. | 98 pieds (30 m) |
| Vision nocturne couleur | Oui, 0,008 Lux à F1,6 (couleur 30 IRE) |
| Détection de mouvement intelligente | Colis, véhicule, personne, visage et animal |
| Cartographie thermique | Oui |
| Prise en charge de la messagerie rapide dans l'application | Oui |
|---|---|
| Dissuasion active | Voyant d'avertissement, sirène, message préenregistré |
| Éclairage de sécurité intelligent | Oui |
| Matériau du boîtier de l'appareil photo | Alliage d'aluminium + plastique |
| Exigences d'alimentation | PoE (Power over Ethernet Classe 802.3af)/12 V CC |
| Consommation électrique (max) | 8,2 W (12 VCC) ; 9,1 W (PoE) |
| Dimensions de la caméra (L x P x H) | 6,8 x 3,9 x 3,0" 172 x 99 x 76 mm |
| Poids de l'appareil photo | 1,75 lb / 0,79 kg |
| Température de fonctionnement | -22°F (-30°C) ~ +131°F (+55°C) |
| Évaluation environnementale | IP67 |
What's Included?
- Microphone
- Dual Lens
- Smart Security Lighting
- IR (Infrared) Lights
- Warning Lights ×2
- Adjustment Screws ×2
- Camera Base
- MicroSD Card Slot*
- Reset Button
- Speaker & Siren
- Cable Notch
Package Contents:
4K Dual Lens Bullet Camera
Mounting Kit
Ethernet Extension Cable
*A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing
Product Compatibility
Product Support
Série E871AB - Caméra de sécurité IP filaire 4K à double objectif
