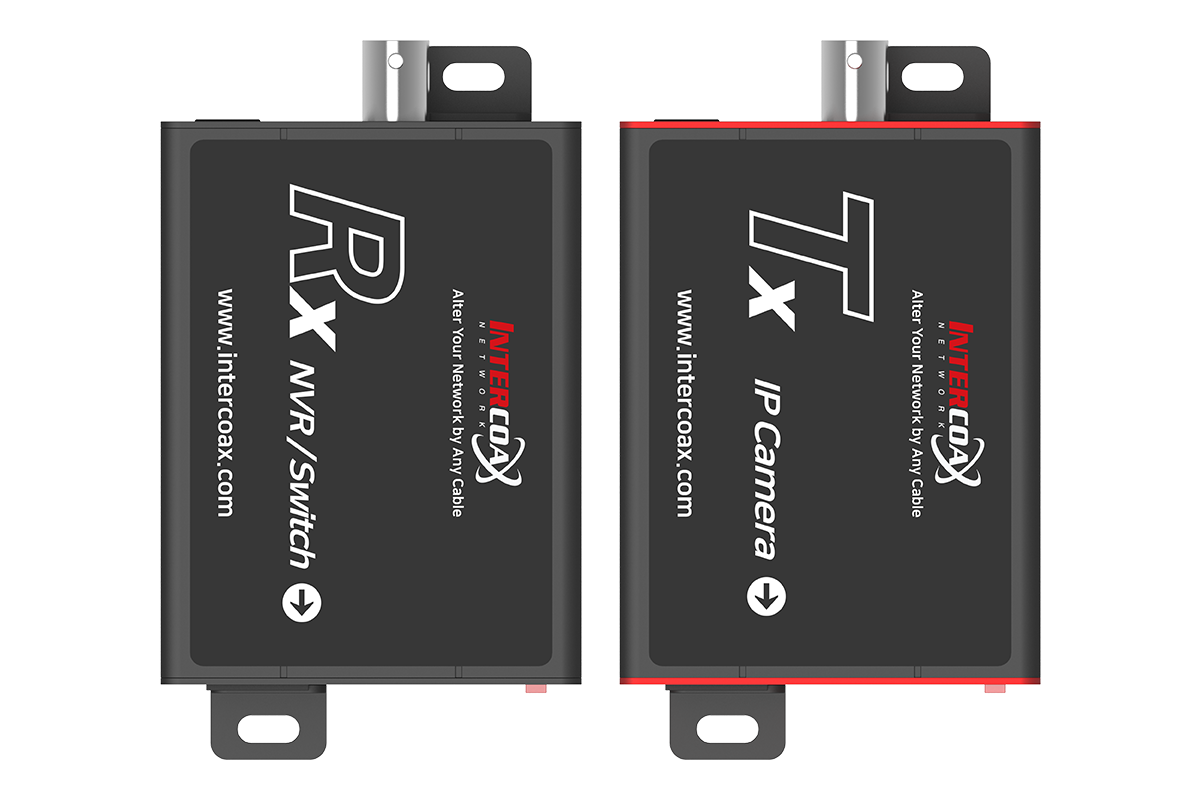

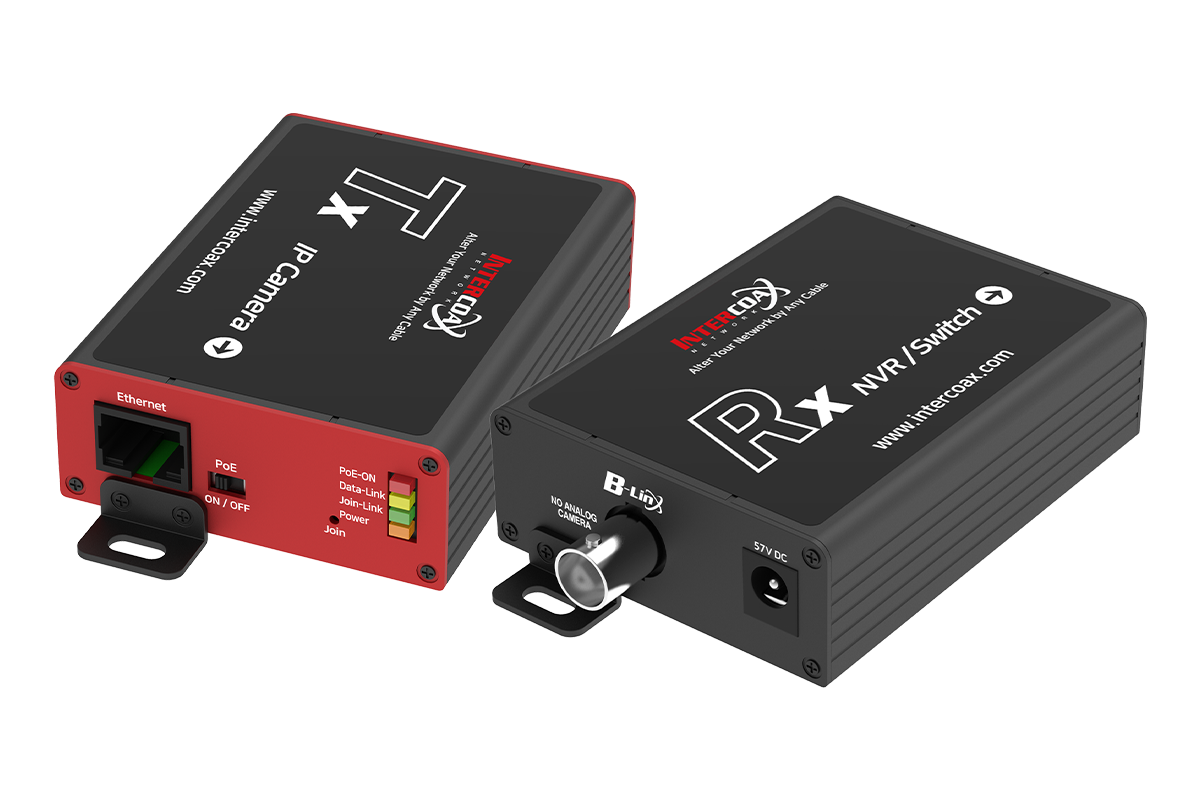

The ECP-2601 is a high-speed, long-distance Ethernet & PoE extender that enables the transmission of Ethernet signals up to 2.4 km and PoE up to 1.2 km via Coax (or UTP, 2-wire) cables in various situations. It offers a cost-effective and time-saving solution for migrating existing analog systems to IP-based systems, as the ECP-2601 supports easy installation using existing cables. With its long-distance transmission capability, this device easily overcomes the 100-meter distance limitation and significantly reduces construction costs compared to fiber optic configurations.
Connection Diagram
*Transmission distance may vary depending on the type and quality of cable, use of power and environmental condition.
**Distance is based on RG-6 cable and 7 Watt IP Camera.
Product Specifications
| Modèle | ECP-2601T | ECP-2601R | |
|---|---|---|---|
| Interface | |||
| Amadouer | 1 x 75Ω BNC (femelle) - Ethernet sur coaxial (B-LinX) | ||
| Ethernet | 1 x RJ45 - 10/100 Base-T avec détection automatique MDIX | ||
| Taux de transmission | Duplex intégral 95 Mbps (270 Mbps entre les appareils Intercoax) |
||
| Distance de transmission | |||
| Ethernet | jusqu'à 2,4 km (RG-6) | ||
| PoE (PoC) | jusqu'à 1,2 km (caméra RG-6 / 7W) | ||
| Indication LED | Ethernet | 1 x Data-Link (jaune) | |
| EoC | 1 x Join-Link (vert) | ||
| Pouvoir | 1 x Power On (ambre) | ||
| PoE | 1 x sortie PoE (rouge) | ||
| Cryptage | AES 128 bits | ||
| Modèle | ECP-2601T | ECP-2601R | |
|---|---|---|---|
| Pouvoir | |||
| Saisir | B-Linx ou DC12V~57V | Commutateur PoE ou DC12V~57V | |
| Sortie PoE | IEEE802.3af (PoE), IEEE802.3at (PoE+), PoE supplémentaire jusqu'à 60 W |
PoE non pris en charge PoC uniquement |
|
| Mécanique | |||
| Dimension | 82,4 (L) x 61,6 (l) x 24 (H) mm | ||
| Poids | 77 g | ||
| Environnement | |||
| Température de fonctionnement | -20 ~ 60°C | ||
| Température de stockage | -30 ~ 80°C | ||
| Humidité relative | 10% ~ 90% | ||
| Conformité | |||
| Certification | FCC, CE, KC, RoHS | ||
| Protection contre les surtensions | CEI 61000-4-5 4 kV (1,2 / 50 µs), 2 kA (8 / 20 µs) | ||
What's Included?
Package Contents:
ECP-2601T
(Transmitter)
ECP-2601R
(Receiver)
Bracket x 2
Screw x 4
Manual
Product Compatibility
Product Support
ALP-ECP-2601T/R - Émetteur/récepteur Ethernet monoport sur câble coaxial haut de gamme
