Data + PoE
over 2-wire
300m (1000ft)
Long Range
PoE from NVR
to IP Camera
8K High-Quality
Video Stream
Surge / Short
Protection
Professional
CCTV Quality
Simplified
Installation
Cost
Saving
Worldwide
Certification

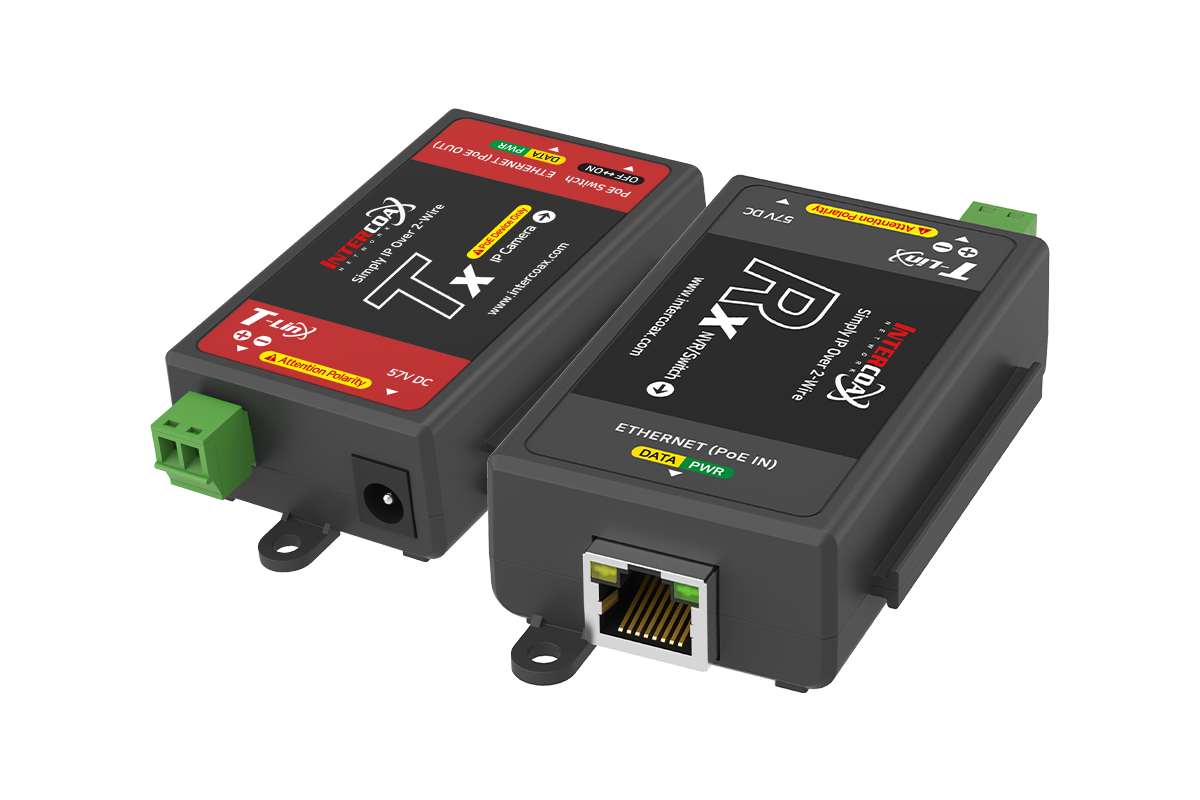

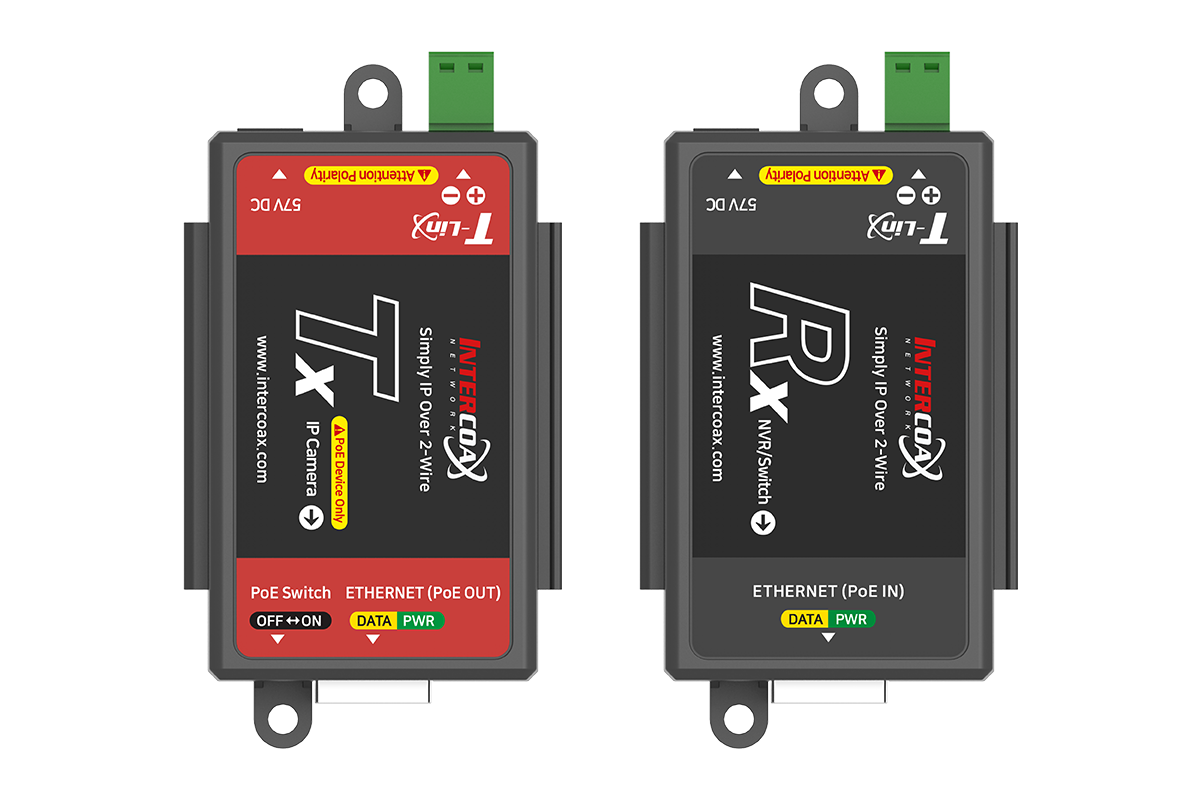

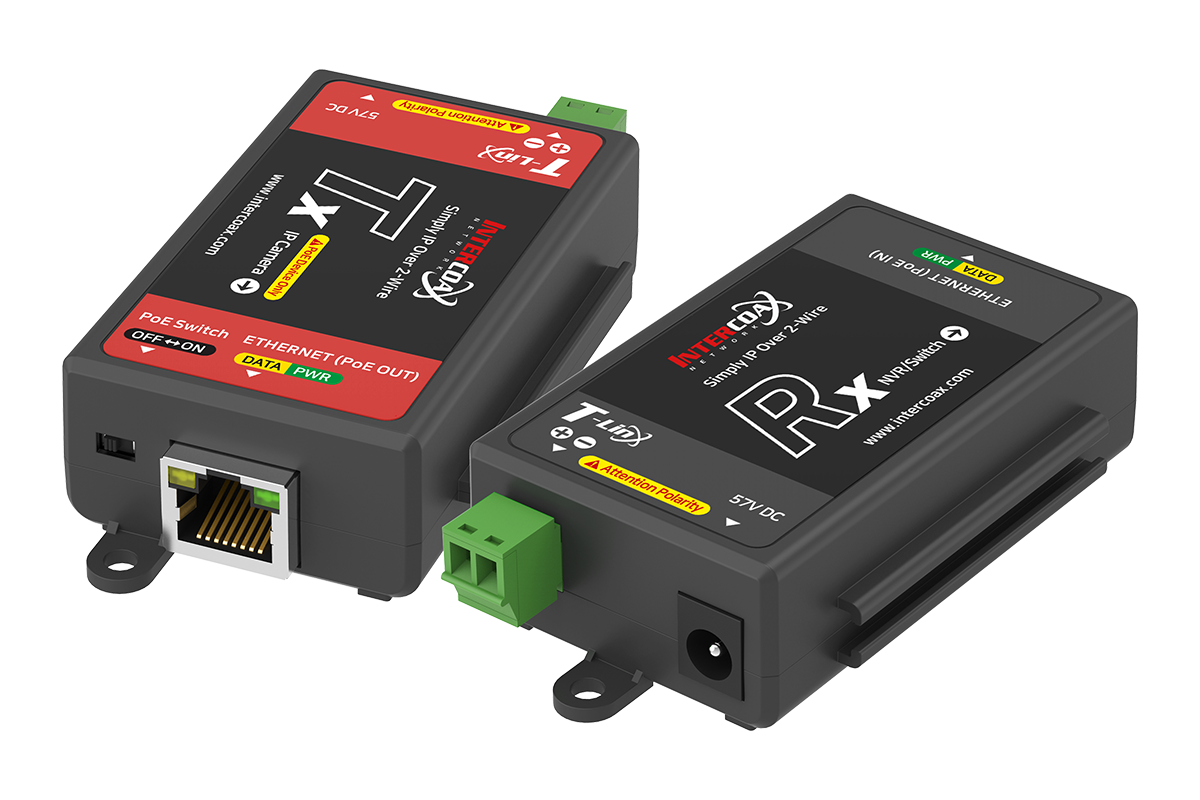

The ETP-01 Series are high-speed, long-distance Ethernet & PoE extenders that enable the transmission of Ethernet signals and PoE up to 300m through a single pair of twisted wires. They offer a cost-effective and time-saving solution for migrating existing analog systems to IP-based systems, as the ETP-01 series supports easy installation utilizing existing UTP bundle cables or any single twisted pair cables. With the long-distance transmission feature, these devices easily overcome the 100-meter distance limitation and significantly reduce construction costs compared to fiber optic configurations.
Connection Diagram
Product Specifications
| Modèle | ETP-01T | ETP-01R | |
|---|---|---|---|
| Interface | |||
| 2 fils | 1 bornier à 2 broches – câble Ethernet à 2 fils | ||
| Ethernet | 1 x RJ45 - 100 Base-T | ||
| Taux de transmission | Duplex intégral 100 Mbps (100 Mbps entre les appareils Intercoax) |
||
| Distance de transmission | |||
| Ethernet | Jusqu'à 300 m (1 paire de Cat.5e) | ||
| PoE (PoC) | Jusqu'à 300 m (1 paire de caméras Cat.5e / 7 W) | ||
| Indication LED | Ethernet | 1 x Lien (Jaune) / 1 x ACT (Vert) | |
| Pouvoir | |||
| Saisir | T-Linx ou DC48V~57V | Commutateur PoE ou DC48V~57V | |
| Sortie PoE | IEEE802.3af (PoE), IEEE802.3at (PoE+), PoE supplémentaire jusqu'à 60 W avec adaptateur secteur 57 V |
PoE non pris en charge PoC uniquement |
|
| Modèle | ETP-01T | ETP-01R | |
|---|---|---|---|
| Mécanique | |||
| Dimension | 93 (L) x 51 (l) x 24 (H) mm | ||
| Poids | 52 g | ||
| Environnement | |||
| Température de fonctionnement | -20 ~ 60°C | ||
| Température de stockage | -30 ~ 80°C | ||
| Humidité relative | 10% ~ 90% | ||
| Conformité | |||
| Certification | FCC, CE, KC, RoHS | ||
| Protection contre les surtensions | CEI 61000-4-5 4 kV (1,2 / 50 µs), 2 kA (8 / 20 µs) | ||
What's Included?
Package Contents:
ETP-01T
(Transmitter)
ETP-01R
(Receiver)
Terminal
Connector x 2
Manual
Product Compatibility
Product Support
ALP-ETP-01T/R - Émetteur/récepteur Ethernet à port unique sur 2 fils
