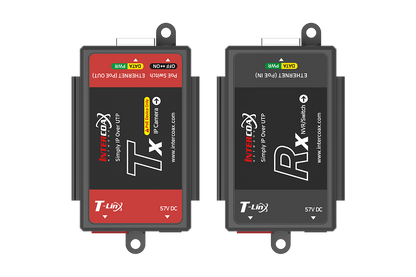

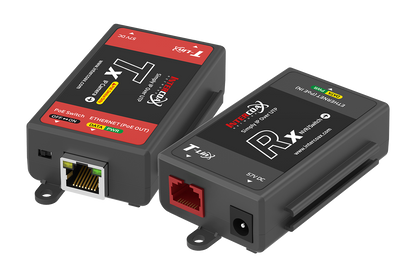

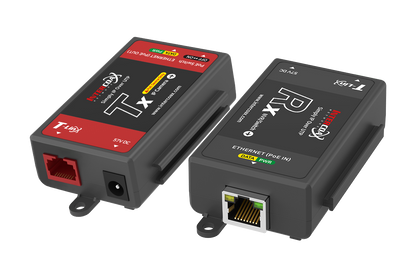

The EUP-01 Series are high-speed, long-distance Ethernet and PoE extenders—ideal for applications requiring PoE injector functionality—that enable the transmission of Ethernet signals and power up to 400 meters through standard UTP cables. Acting as a reliable alternative to traditional PoE injectors, they provide a cost-effective and time-saving solution for migrating existing systems to IP-based infrastructure. The EUP-01 series supports simple installation using existing UTP cabling, making it a practical upgrade path. With their long-distance transmission capabilities, these devices overcome the typical 100-meter PoE limitation and significantly reduce installation and construction costs compared to fiber optic deployments.
Connection Diagram
*Transmission distance may vary depending on the type and quality of cable, use of power and environmental condition.
**Distance is based on Cat.5e cable and 7 Watt IP Camera.
Product Specifications
| Modèle | EUP‑01T | EUP‑01R | |
|---|---|---|---|
| Interface | |||
| Signal EoC | 1 x RJ45 - Ethernet sur UTP (T-LinX) | ||
| Ethernet | 1 x RJ45 - 10/100 Base-T avec manuel | ||
| Taux de transmission | Duplex intégral 10/100 Mbps | ||
| Distance de transmission | |||
| Ethernet | jusqu'à 400 m (câble UTP Cat5e) | ||
| PoE (PoC) | jusqu'à 400 m (Cat.5e / 20W) | ||
| Indication LED | Ethernet | 1 x Lien (Jaune) / 1 x ACT (Vert) | |
| Pouvoir | |||
| Saisir | B-Link ou DC48V~57V | Commutateur PoE ou DC48V~57V | |
| Sortie PoE | IEEE802.3af (PoE), IEEE802.3at (PoE+), PoE supplémentaire jusqu'à 60 W avec adaptateur secteur 57 V |
PoE non pris en charge PoC uniquement |
|
| Entrée PoE | Jusqu'à 25,5 W (PD) | Jusqu'à 25,5 W (PD) | |
| Modèle | EUP‑01T | EUP‑01R | |
|---|---|---|---|
| Mécanique | |||
| Dimension | 93 (L) x 51 (l) x 24 (H) mm | ||
| Poids | 52 g | ||
| Environnement | |||
| Température de fonctionnement | -20 ~ 60°C | ||
| Température de stockage | -30 ~ 80°C | ||
| Humidité relative | 10% ~ 90% | ||
| Conformité | |||
| Certification | FCC, CE, KC, RoHS | ||
| Protection contre les surtensions | CEI 61000-4-5 4 kV (1,2 / 50 µs), 2 kA (8 / 20 µs) | ||
What's Included?
Package Contents:
EUP-01T
(Transmitter)
EUP-01R
(Receiver)
Manual
Product Compatibility
Product Support
ALP-EUP-01T/R - Émetteur/récepteur Ethernet sur UTP à port unique
