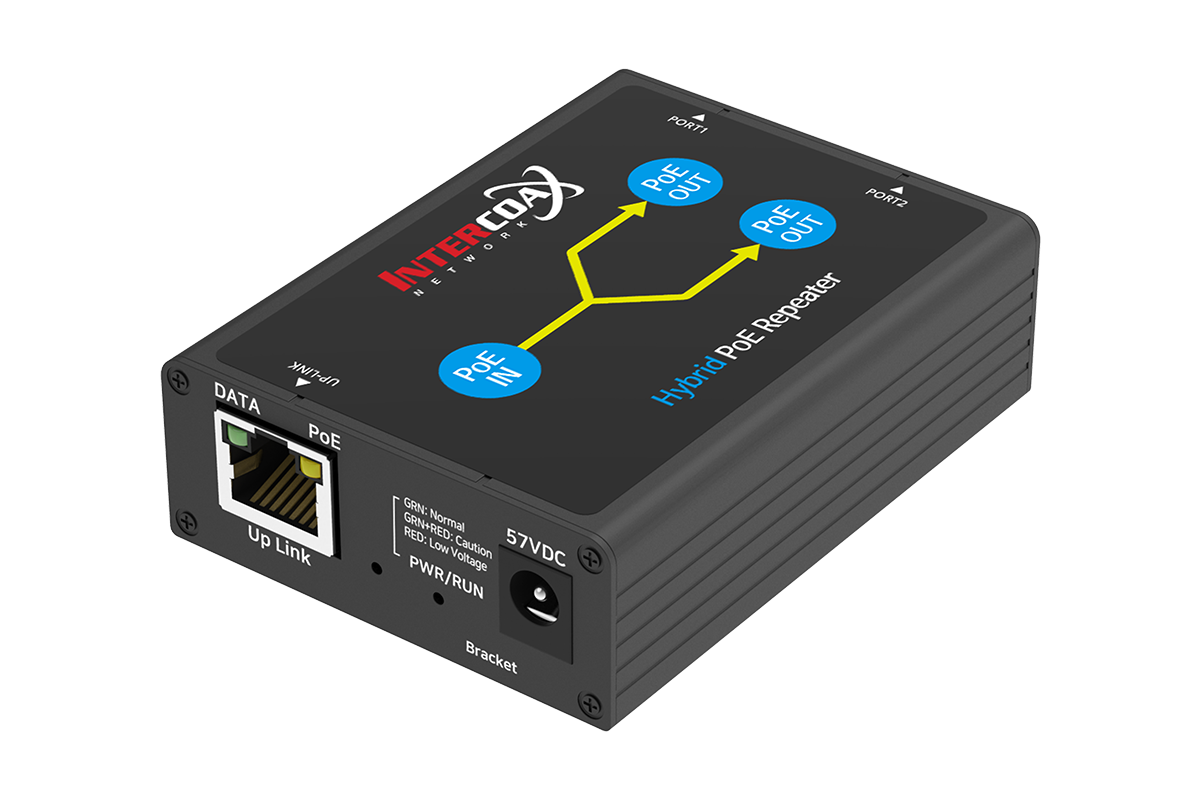

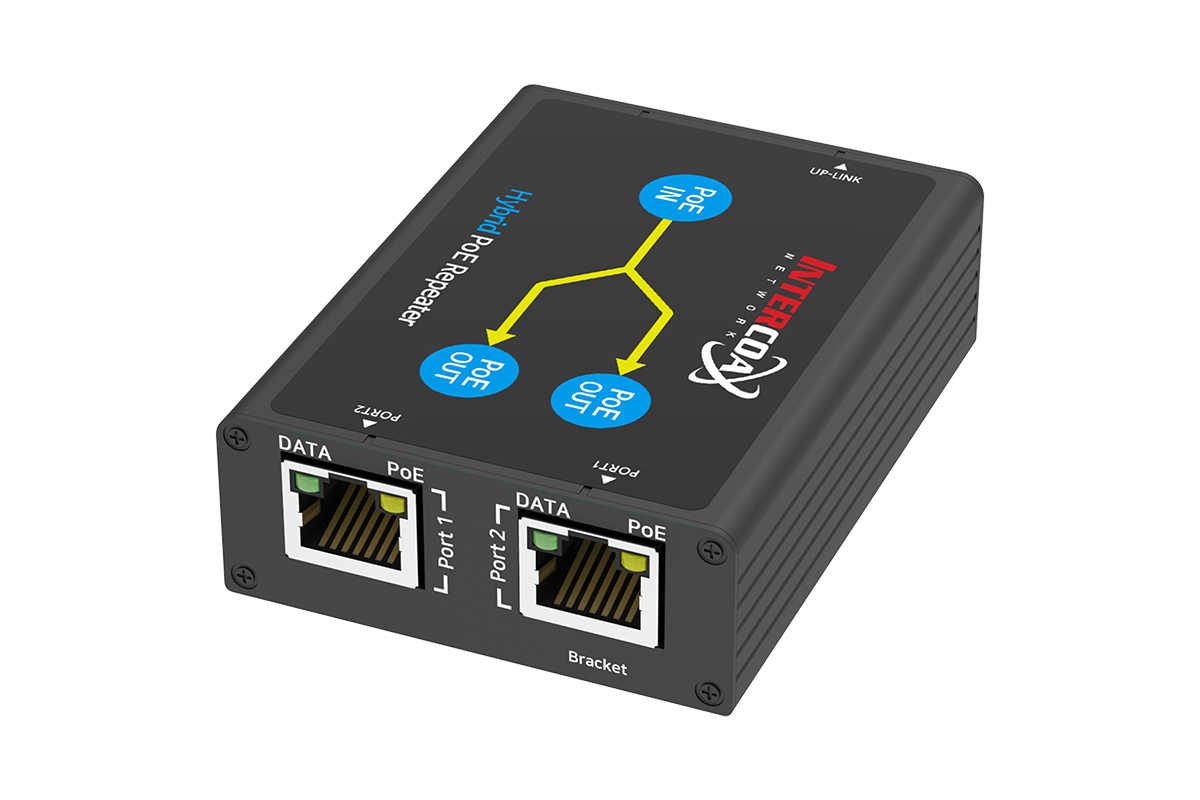

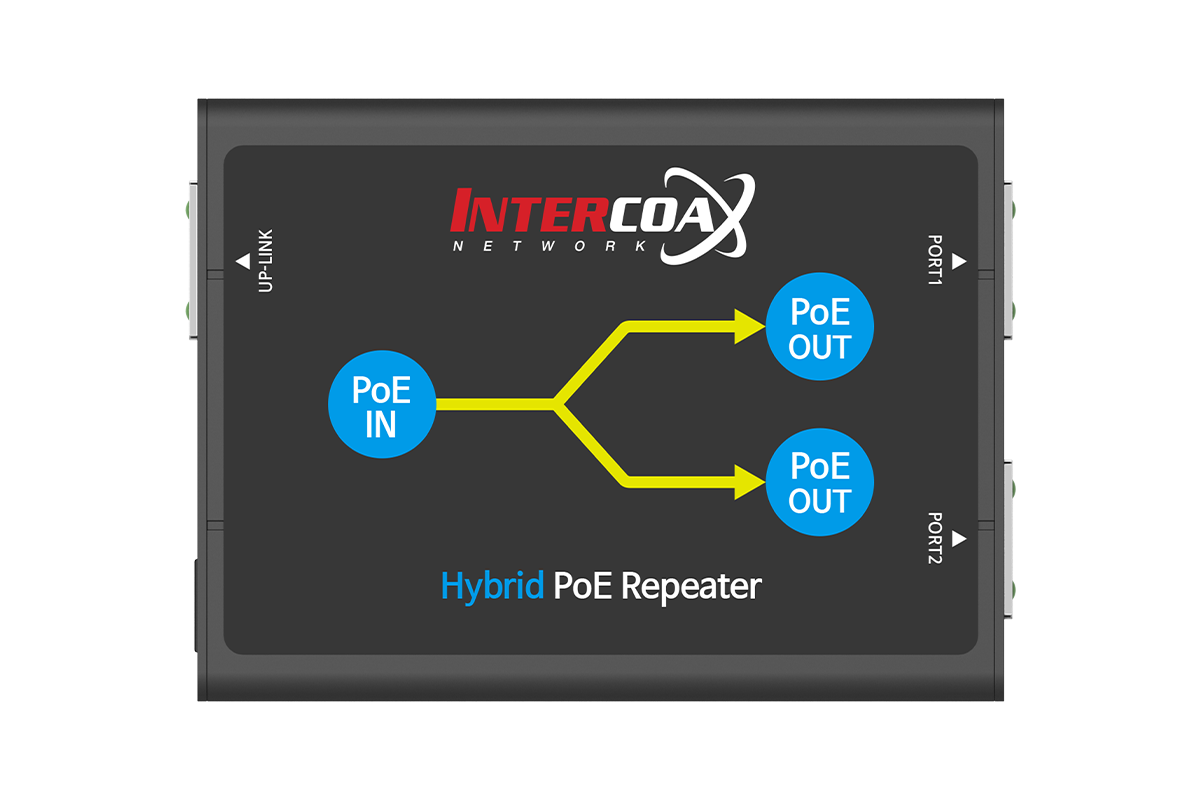

The HPS-01 is a 2-port Hybrid PoE Switch that transmits both network signals and PoE+ power up to 200 meters between devices. Its 1-input, 2-output design simplifies the installation of two network devices onto a single LAN cable and enables the connection of multiple devices in a cascade configuration. Equipped with a built-in standard PD, the device provides a secure PoE+ power supply and supports PoE output up to 25.5W (up to 30W with a DC 57V power supply).
Connection Diagram
*Transmission distance may vary depending on the type and quality of cable.
Product Specifications
| Modèle | HPS-01 : commutateur PoE hybride à 2 ports | |
|---|---|---|
| Interface | ||
| EoDownlink | 2 x RJ-45 | |
| Liaison montante | 1 x RJ-45 – 10/100 Base-T avec détection automatique MDIX | |
| Taux de transmission | Duplex intégral 100 Mbps | |
| Distance de transmission | Ethernet / PoE | Jusqu'à 100 m - 1000 Base-T Jusqu'à 200 m entre les appareils – 10/100 Base-T |
| Indication LED | ||
| Données | 3 x Liaison de données (vert) | |
| PoE | 3 x PoE Link (Ambre) | |
| REP | 1 x Qualité de l'alimentation d'entrée (Vert : Normal/48 V CC et plus, Vert + Rouge : Attention, Rouge : Panne de courant/38 VDC et moins |
|
| Puissance d'entrée | ||
| PoE | IEEE802.3af, IEEE802.3at | |
| DC | DC48V ~ 57V | |
| Puissance de sortie | PoE | IEEE802.3af, IEEE802.3at |
| Modèle | HPS-01 : commutateur PoE hybride à 2 ports | |
|---|---|---|
| Mécanique | ||
| Dimension | 80,4 (L) x 61,6 (l) x 24 (H) mm | |
| Poids | 102 g | |
| Environnement | ||
| Température de fonctionnement | -20 ~ 60°C | |
| Température de stockage | -30 ~ 80°C | |
| Humidité relative | 10% ~ 90% | |
| Conformité | ||
| Certification | FCC, CE, KC, RoHS | |
| Protection contre les surtensions | CEI 61000-4-5 4 kV (1,2 / 50 µs), 2 kV (8 / 20 µs) | |
What's Included?
Package Contents:
HPS-01
Bracket x 2
Screw x 4
Manual
Product Compatibility
Product Support
Commutateur PoE hybride 2 ports ALP-HPS-01
