Meet the Noc4 Lite
The same powerful AI features — now with improved energy efficiency and a more cost-effective design.

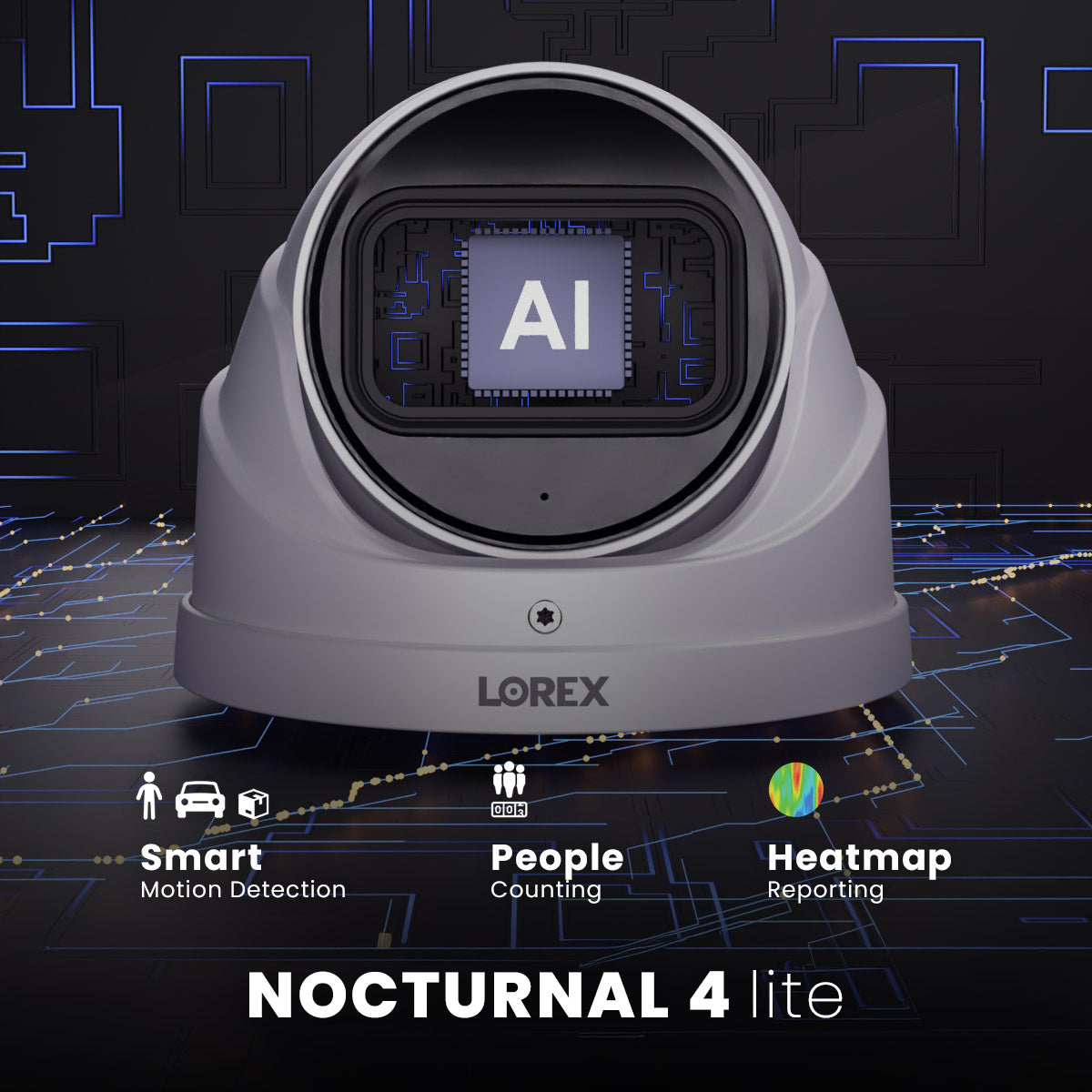

Advanced Analytics Perfect for Your Business
People Counting
Monitors the number of people entering and exiting by tracking movement across a designated line, providing accurate occupancy data for security and operational insights.
Heatmap
Visualizes activity levels in different areas, helping to optimize security coverage and business efficiency.
Occupancy and Traffic Reporting
Track and visualize foot traffic trends with customizable bar and line graphs. Easily export reports to gain insights into daily, monthly, and yearly visitor patterns.
Stay In-The-Know with Smart Motion Detection
Person & Vehicle Detection
Accurately detects people and vehicles, reducing false alerts and ensuring smarter security notifications.
Object Detection
Identifies abandoned or missing objects, helping to prevent theft or unauthorized activity.
Compatible with Elite Series NVR
The Nocturnal 4 Lite cameras are fully compatible with the Lorex N884 Elite Series NVR, delivering seamless integration and powerful performance. Paired with the new and improved Lorex Pro app, this NVR gives you the ultimate control over your security system—right from your smartphone or tablet.
Shop N884 Elite Series NVR >
Product Specifications
| Général | |
|---|---|
| Technologie de transmission vidéo | propriété intellectuelle |
| Capteur d'image | 4K (8MP) C |
| Format vidéo | NTSC |
| Compression vidéo | H.265/H264 (flux principal et sous-flux) |
| Flux vidéo | 4 |
| Optique | |
|---|---|
| Angle de vue (diagonale) | 133° - 53° |
| Lentille/Type de lentille | F1.8/Varifocale motorisée |
| Distance focale | 2,7 mm - 12,0 mm |

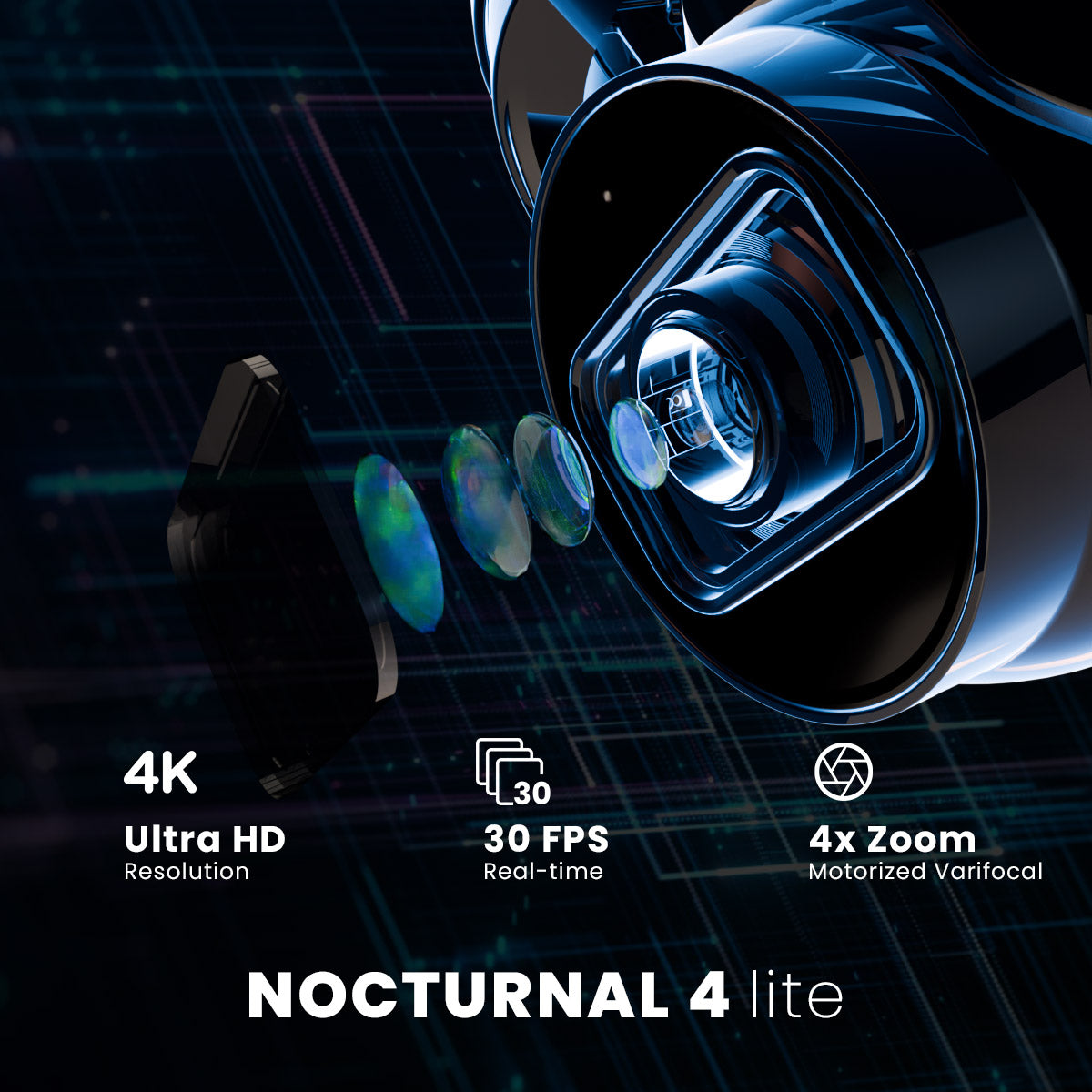

| Zoom optique | Zoom optique 4× |
| Sortie vidéo | |
|---|---|
| Résolution/Fréquence d'images |
8 Mo (3840 × 2160) ; 6 Mo (3 072 × 2 048) ; 5 M (3 072 × 1 728) ; 5M (2592 × 1944); 4 Mo (2 688 × 1 520) ; 3,6 M (2560 × 1440) ; 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080) ; 1,3 M (1280 × 960) ; 720p (1280 × 720) ; D1 (704 × 576/704 × 480); VGA (640 × 480) ; CIF (352 × 288/352 × 240) |
| Fréquence d'images (maximale) |
Flux principal : 3 840 × 2 160 à (1–25/30 ips) Sous-flux : D1@(1–25/30 ips) Troisième flux : 1080p@(1–25/30 ips) Quatrième flux : 720p à (1–10 ips) |
| WDR | Oui |
| Terminaison | RJ45 |
| Rapport hauteur/largeur | 16:9 |
| Audio | |
|---|---|
| Microphone | Oui |
| Sirène | Non |
| Conversation bidirectionnelle | Non |
| Entrée/Sortie | Microphone intégré, entrée audio et sortie audio de ligne |
| Vision nocturne | |
|---|---|
| Portée de vision nocturne | 40 m (131,23 pi) |

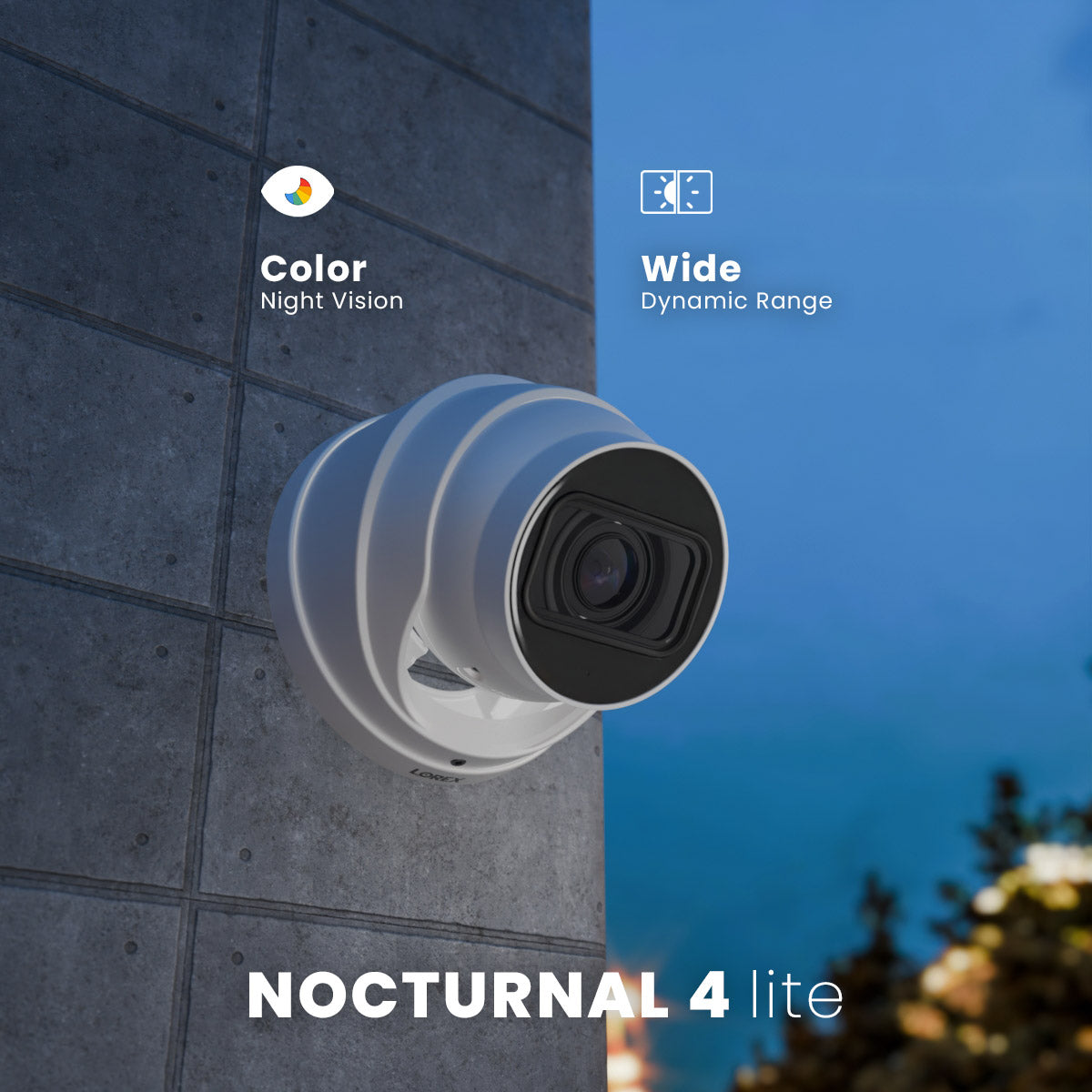

| Vision nocturne couleur | Oui |
| Caractéristiques spéciales | |
|---|---|
| Détection de mouvement intelligente | Oui |
| Types de détection | Véhicule et personne |
| Autres fonctionnalités | Cartographie thermique, comptage de personnes |
| Spécifications supplémentaires | |
|---|---|
| Matériau du boîtier de l'appareil photo | Alliage d'aluminium |
| Emplacement pour carte SD | Oui* |
| Exigences d'alimentation | ePoE (Power over Ethernet Classe 802.3af)/12 V CC |
| Consommation électrique (max) | 7,5 W (12 VCC) ; 9,0 W (PoE) |
| Dimensions de la caméra (P x H) |
4,3 × 4,8 pouces 108 x 122 mm |
| Poids de l'appareil photo | 0,70 kg (1,54 lb) |
| Température de fonctionnement | –40 °C à +60 °C (–40 °F à +140 °F) |
| Humidité | ≤95% |

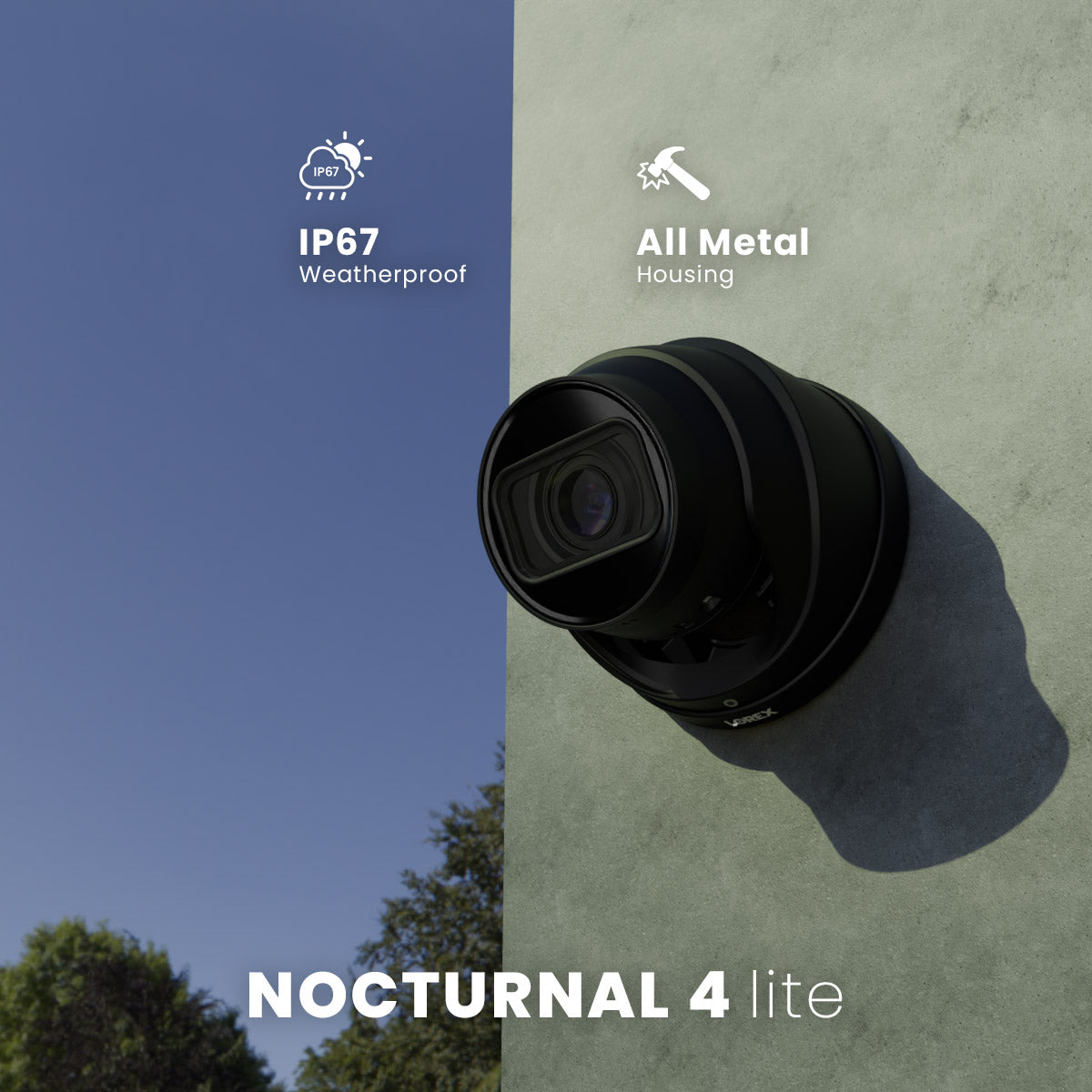

| Évaluation environnementale | IP67 |
| Certification | FCC |
What's Included?
- 12V DC Power Connector
- Ethernet Connector
- Cable Notch
- Adjustment Screw
- Microphone
- Camera Lens
- IR Lights (2×)
- Camera Base
- Camera Cover
- Turret Camera
- MicroSD Card Slot
- Reset Button
Package Contents:
4K IP PoE Wired Turret Camera
Mounting Kit
T15 Torx Key
Weather-resistant Cap
Product Compatibility
Product Support
LNE95MDB, LNE95MDW, N4 Lite, série Nocturnal
