Pre-recording is available only when using Motion Detection and can be viewed exclusively during local playback. This feature is not supported for Smart Motion Detection (SMD), continuous recording, or through the Lorex app or cloud services. The duration of the pre-recorded footage may vary based on the recorder available cache memory at the time the event was detected, up to a maximum time set by the user.
All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.
Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.
Key Features
- NVR 4K 16 canaux
- Détection de personnes, de véhicules, de visages, d'animaux et de colis
- Visualisation à distance via l'application Lorex
- Stockage local de 4 To (extensible jusqu'à 2 x 10 To)





Create a tailored security system by combining both wired and Fusion Wi-Fi security cameras with this 16-channel (16 wired or Fusion Wi-Fi) 4K Fusion Network Video Recorder (NVR). With support for all of the latest detection and deterrence camera features, you will always know what's happening around your property and stop potential events before they happen. The 4TB local storage also means ample private storage with no monthly fees.
16
CHANNELS
16 × Wired or Fusion Wi-Fi
4K
RESOLUTION
Supports 4K Ultra HD resolution
4TB
HARD DRIVE
Expandable up to 2 × 10TB
See the Finest Detail
Record 4K video on every channel. 4K resolution provides the highest quality video and digital zooms, which gives you the best chance to decipher distant details.
*Detection types need to be supported by the camera.
Smart home compatibility
Get faster access to your security system by connecting it to other Smart Home devices; use simple voice commands to activate camera features with Amazon Alexa™ and Google Assistant™, use it with Chromecast or Firestick to monitor your security camera footage on a larger screen, or download the Lorex app on your Apple TV* to view live video in single or multiple feeds. For more information about current smart home integrations, visit our Smart Home Guide.
*Requires Gen 4 or newer Apple TV with support for App Store



Panic button
Stop events before they happen. An easy-to-use panic button located on the front of the recorder will activate all lights and sirens on your compatible Active Deterrence cameras.

Free Local Storage, No Monthly Fees
This NVR comes with two separate hard drive bays, each one of which can be upgraded with a hard drive up to 10TB, giving you the potential for a total of 16TB's of storage space.
Product Specifications
Entrée vidéo | 16 x PoE |
---|---|
Résolution de sortie | Jusqu'à 4K UHD, détection automatique |
Fréquence d'images d'enregistrement | 4K à 15 ips ; 5 MP à 30 ips ; 1080p à 30 ips ; 720p à 30 ips |
Résolution d'enregistrement | 4K (8MP)/5MP/4MP/3MP/1080p/720p |
Capacité du disque dur | Jusqu'à 2 x 10 To (SATA) |
Détection de mouvement intelligente | Détection de personne/visage/masque/véhicule |
Options de diffusion en continu | Chromecast™, Apple TV™, Amazon Echo Show™, Google Home Hub, Lenovo Smart Display™ |
Contrôle vocal | Amazon Alexa™, Google Assistant™ |
Visualisation à distance | Oui |
---|---|
DDNS | Oui (facultatif) |
Mise à niveau du micrologiciel | USB/Réseau |
Dimensions de l'unité (L × P × H) | 14,7 x 12,9 x 2,1 po (375 x 327 x 53 mm) |

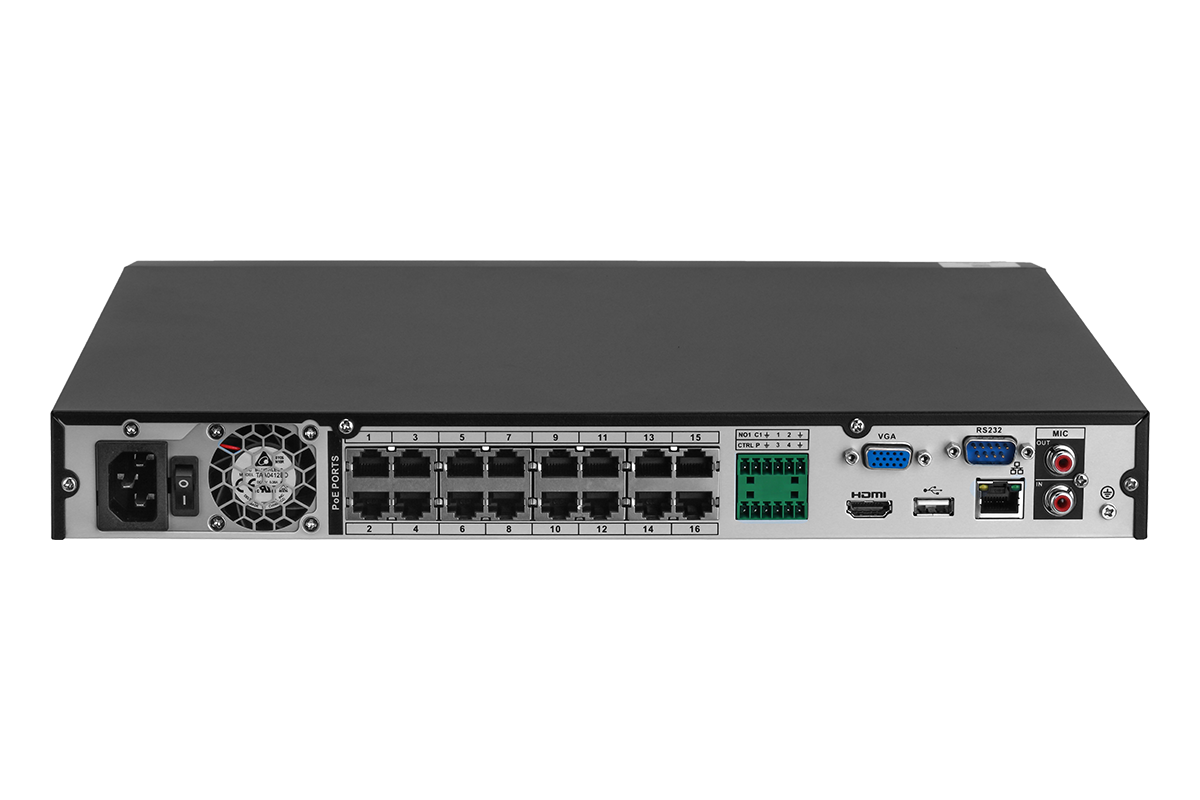

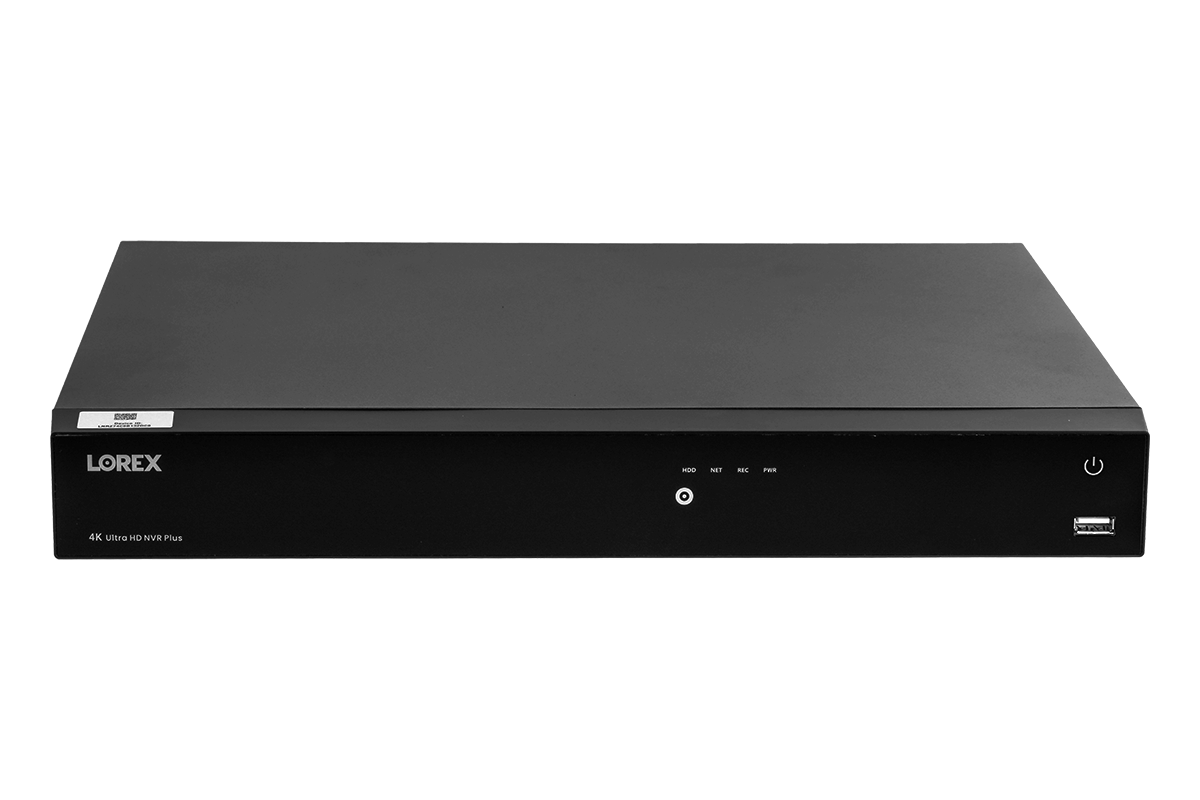

What's Included?


- Info / Panic Button
- Hard Drive, Network, Recorder & Power LEDs
- USB
- Power Button
- Power Input
- Power Switch
- PoE Ports
- Alarm
- HDMI
- VGA Port
- RS232
- LAN
- Audio In / Out
Package Contents:

4K Fusion NVR

Ethernet Cable

USB Mouse

HDMI Cable
- 4K (8MP) IP cameras are required to take advantage of 4K recording.
- Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
- This Fusion NVR can connect to 16 wireless devices per system. The NVR must be connected to the your Wi-Fi Router via network cable. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
- Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com/smarthome
- Accuracy of Smart Motion Detection will be influenced by multiple factors, such as the object’s distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection. Compatible with certain Lorex IP cameras only.
- Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
- Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
- HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
- NVR has a total PoE power output of 130w. Different IP cameras have different wattage specifications. Please double check your camera specifications for power consumption (Wattage) requirements in order to not exceed the NVRs power output availability of the recorder when adding cameras. To learn more, please visit www.lorex.com/compatibility
Fusion Series NVR Comparison Chart
Product Compatibility
Product Support
Série N864 - Système NVR filaire Lorex Fusion 4K 16 canaux
