IP67 Water Rating
–40 °C / -40 °F Cold Rating
60 °C / 140 °F Heat Rating All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.
Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.

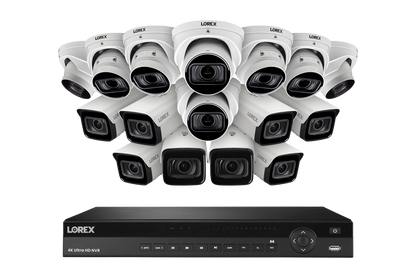

NOCTURNAL 4
SERIES SECURITY CAMERA

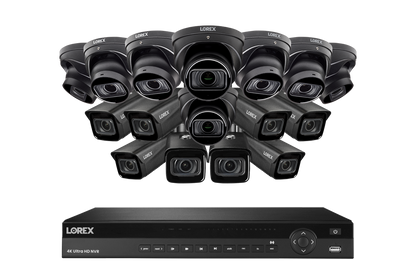

Empower your business with a top performing professional-grade monitoring solution –
The Lorex 4K IP Nocturnal Motorized Varifocal Wired Camera.
See Clearly,
Day and Night
Ultra HD Resolution
Nocturnal security cameras use an 8MP image sensor that delivers exceptionally detailed 4K Ultra HD resolution video and incomparable low-light performance.
Color Night Vision
Nocturnal security cameras have the longest night vision ranges available. With the help of external lighting, these cameras will also record in full color all night long.
Real-time 30 FPS
Don't miss a moment with our Real-Time 4K Nocturnal Security Cameras. With 30 frames recorded within each second, the on-screen movement will look like you are witnessing events in real life.
Improve Service, Efficiency, and Profitability
People Counting
Advance people counting analytics provides valuable information about the number of people inside your premises at any point in time.
Heat Mapping
Heat Maps illustrate customer movement to better understand where the heaviest and lightest traffic areas are.
*People Counting and Heat Map functions are only supported by the N883 Series NVR.”
Vandal Resistant
Nocturnal 4 Bullet Cameras (LNB9383 and LB9393) are rated IK10. This means their heavy-duty metal exteriors are built with additional protection to withstand direct impacts.
Audio Recording
A built in microphone on the dome cameras will add another layer of security coverage. Listen-in audio can add valuable information (such as voices) or analysis to the scene*.
Go The Distance With ePoE Technology
Save on long distance cabling with Nocturnal 4 Cameras. They feature Enhanced PoE (ePoE) technology, which allows you to connect them up to 600m (2000 ft) away, compared to the standard 100m (328 ft), without the need for numerous PoE switches.
*N883/N882/N881 Series NVRs have 8 designated ePoE ports (CH 1-8) compatible with Nocturnal 4 Series Cameras.
Built for the
Outdoors
Nocturnal security cameras can endure anything from torrential downpours to freezing snowstorms. So go ahead and place these security cameras where you need them most.
360° Product View
360° Product View
What's Included?
-
Caméras de sécurité IP
LNB9383 / LNB9393 -
Caméras de sécurité IP
LNE9383 / LNE9393 -
NVR de sécurité
N883A64B

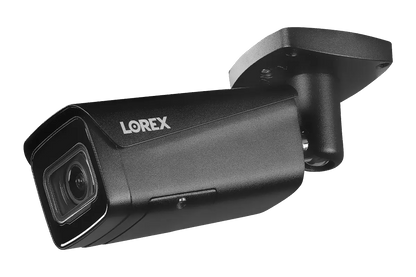

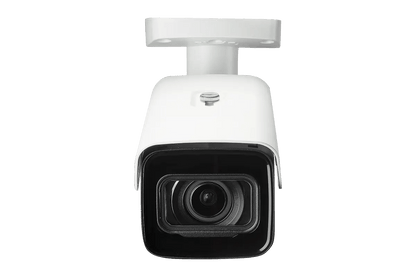

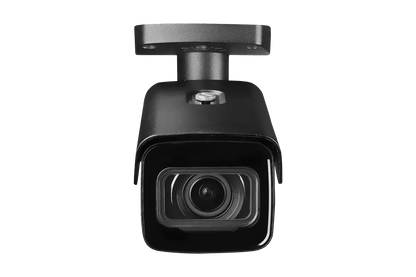

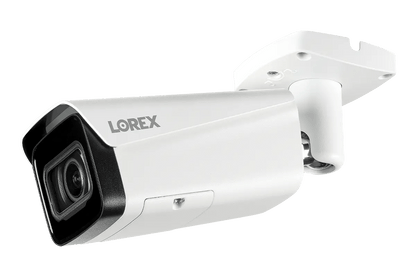

Dimensions (LxWxH): 273.2mm × 95.0mm × 95.0mm (10.76" × 3.74" × 3.74")
Weight: 1.11lbs / 2.44kg
- Cable Notch
- Adjustment Screw
- Adjustment Knob
- Zoom (T) Wide Angle (W) Buttons
- MicroSD Card Slot
- Reset Button
- Camera Lens
- Infrared Lights
Package Contents:
4K Motorized Varifocal IP Camera
Mounting Kit*
Allen Key*

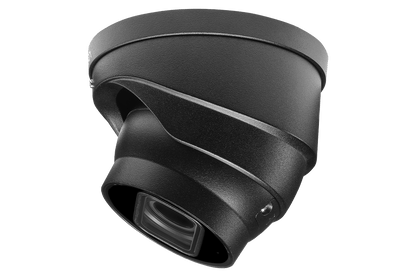

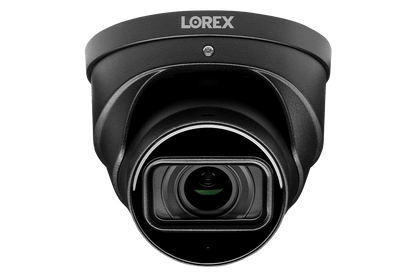

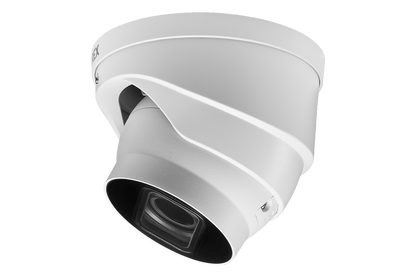

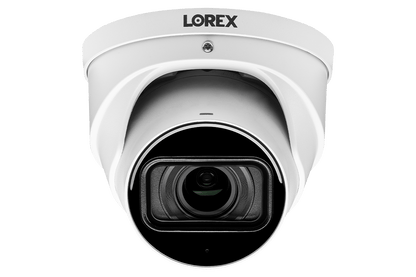

Dimensions (LxWxH): 108.3 mm × Φ122 mm (4.3" × Φ4.8")
Weight: 1.5lbs / 685g
- Rear Cable Notch
- Camera Base
- Adjustment Screw
- Camera Lens
- Infrared Lights
- Camera Dome Cover
- Ball Camera
- MicroSD Card Slot
- Reset Button
Package Contents:
4K Motorized Varifocal IP Camera
Mounting Kit*
Allen Key*
- 4K capable recorder (not included) is required to record video in 4K resolution. 4K TV (not included) is required to view live or pre-recorded 4K video.
- Smart Motion Detection is enabled by default. When enabled, the camera's recording frame rate is reduced from 30 frames per second to 20 frames per second. To obtain the maximum of 30 frames per second, the camera must be connected to a recorder that supports the maximum frame rate. For a list of compatible recorders, please visit lorextechnology.com/compatibility
- In order for Person and Vehicle detection to operate, this camera requires a connection to a compatible Lorex Network Video Recorder with smart motion detection technology. For a list of compatible recorders please visit lorextechnology.com/compatibility
- Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
- Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 98ft/30m in total darkness). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
- Not intended for submersion in water. Installation in a sheltered area recommended.
All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.
Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.

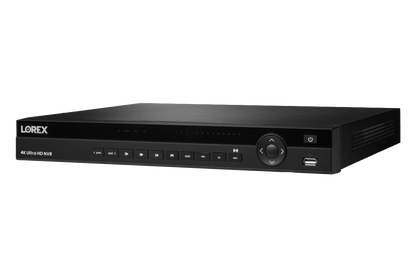

- Power, Hard Drive & Network Statuses
- Channel Statuses
- Navigation Controls
- Power Button
- Playback Controls
- Switch Keyboards (shift)
- Start/Stop Recording (rec)
- Special Functions (fn)
- Back/Cancel (esc)
- Info Button
- USB Port

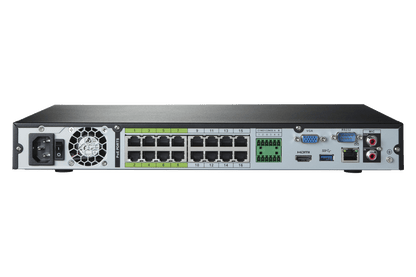

- Power Connection
- Power Switch
- Camera Connection (ePoE)
- Camera Connection (PoE)
- RS485 Alarm
- Monitor Connection (VGA)
- RS232
- Audio In/Out
- Monitor Connection (HDMI)
- USB Port
- Network Connection (LAN)
Package Contents:
4K NVR
Ethernet Cable
USB Mouse
HDMI Cable
Power Cord
- 4K (8MP) IP cameras are required to take advantage of 4K recording.
- Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
- Accuracy of Advanced Person and Vehicle Motion Detection will be influenced by multiple factors, such as the object’s distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection.
- Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 6 Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
- Compatible with certain Lorex IP cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
- HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
- Both firmware and software must be updated to latest version to ensure remote connectivity.
