Features

A Robust & Commercial-Grade Solution

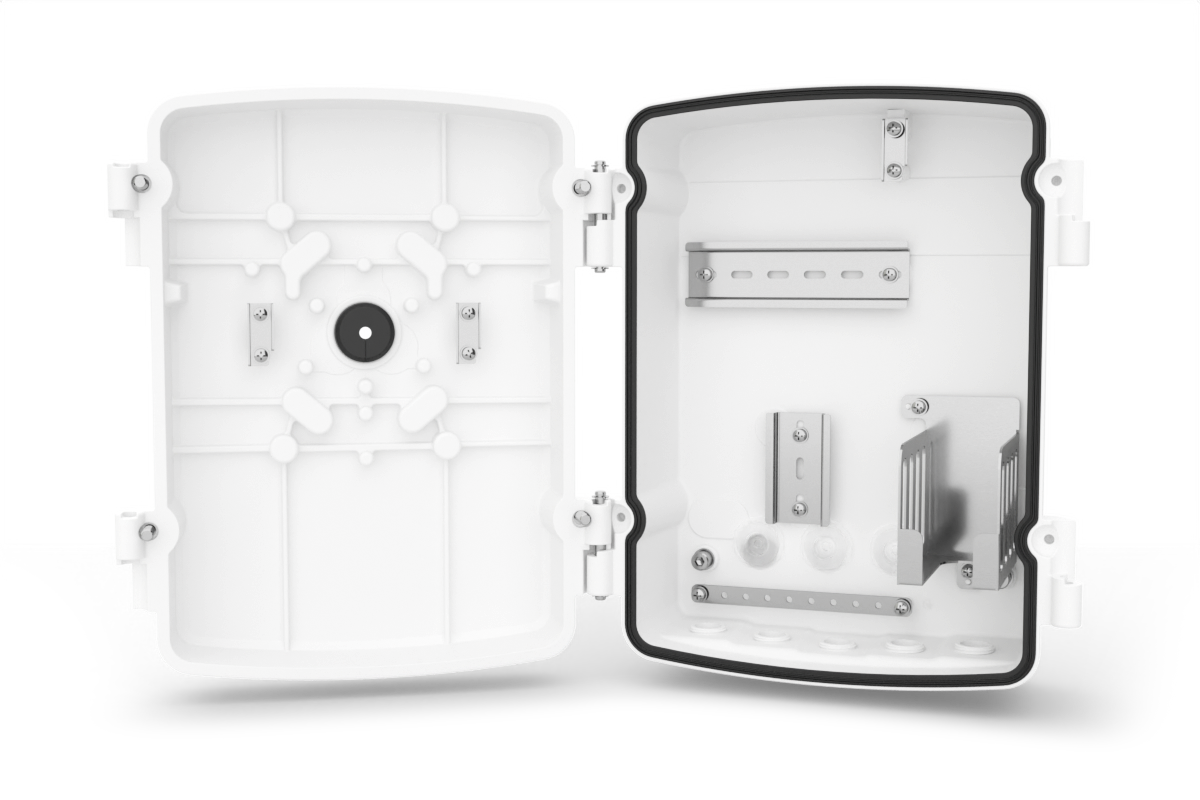

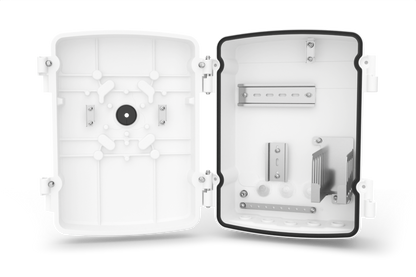

Your customizable commercial-grade solution for your PTZ camera—the new Lorex Junction Box. With its versatile design, it offers unmatched weather, dust, and vandalism protection, clutter-free cables, and effortless access and maintenance.

*Items inside the junction box are added for illustration purposes only and are not included in the package.
Superior Size for Superior Performance
This spacious junction box stands out for its sheer size. Its vast interior can accommodate multiple industrial range components.
Dimensions in inches - H: 11.70 D:5.15 W:9.76

Elevate Your Vision
Get that perfect viewing angle and eliminate blind spots with the Junction Box's flexible and adjustable design.
Maximum Protection
Shield the camera cables, with the durable Weatherproof exterior and prevent tampering or camera disabling.
Additionally, get enhanced protection against vandalism.

140°F | 60°C Heat Rating

-40°F | -40°C Cold Rating

IP66 Weatherproof Rating

Organize Your Space
Keep your space tidy to prevent cable tangling. Use with a Conduit to hide cables on walls and ceilings.
Installation Made Simple
With multiple mounting options, you can install on a Wall, Ceiling or Corner.

Mount directly on a wall.

Mount between two external vertical walls using the AUX-1W Lorex Corner Mount Bracket (sold separately).
Product Compatibility
Product Specifications
Material | Aliminum alloy & SECC |
Finishing | Powder spray |
Color | White |
Operating Temperature | -40 °F to 140 °F / -40 °C to 60 °C |
Humidity | <90% RH |
Load-Bearing | 17.64 lb / 8.0 kg |
IP Rating | IP66 |
Screw Thread Type | G1/2 |
Dimension (L × W × H) | 11.70 × 9.76 × 5.15” / 297.2 × 248.0 × 130.7 mm |
Weight | 7.45 lb / 3.38 kg |
What's Included?

Package Contents:

Junction Box

5mm Allen Key

Silicone Plug

4 × M6x25 screws
4 × M6x14 screws

16 × Washers

4 × Expansion Bolts

3 × Cable Glands

5 × Cable Ties
Product Support
AJLZ-1W Series - Junction Box for PTZ Cameras
