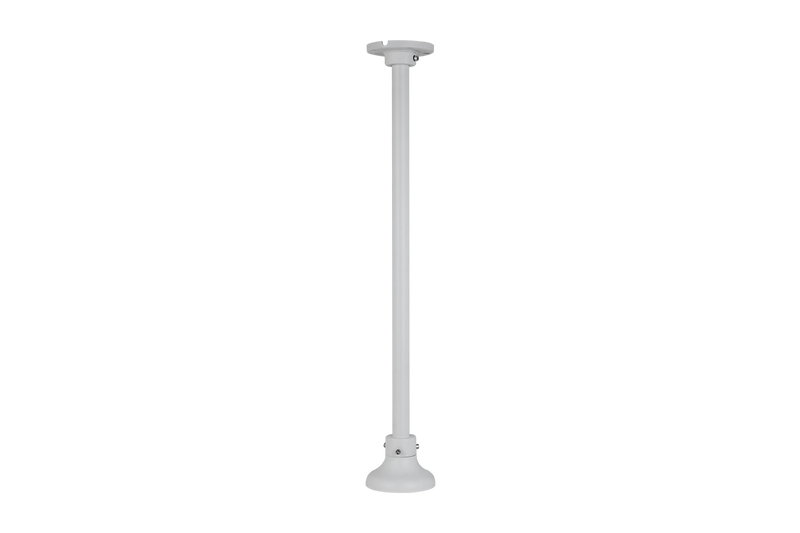

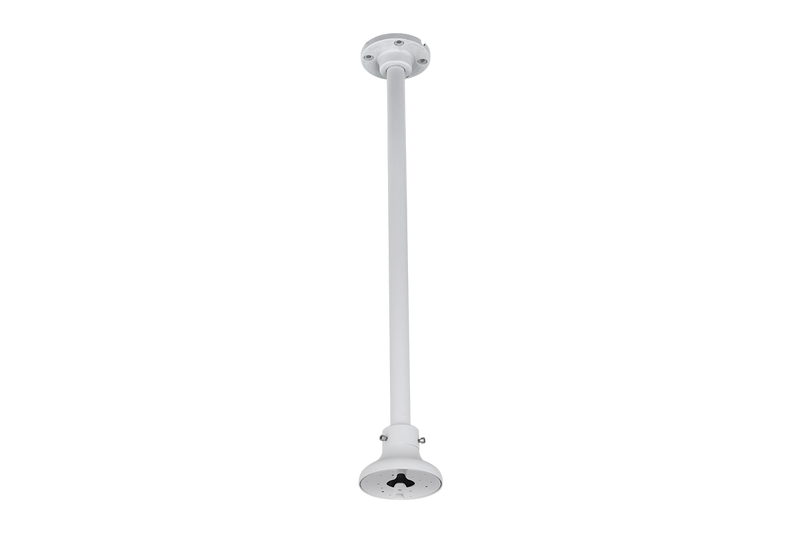

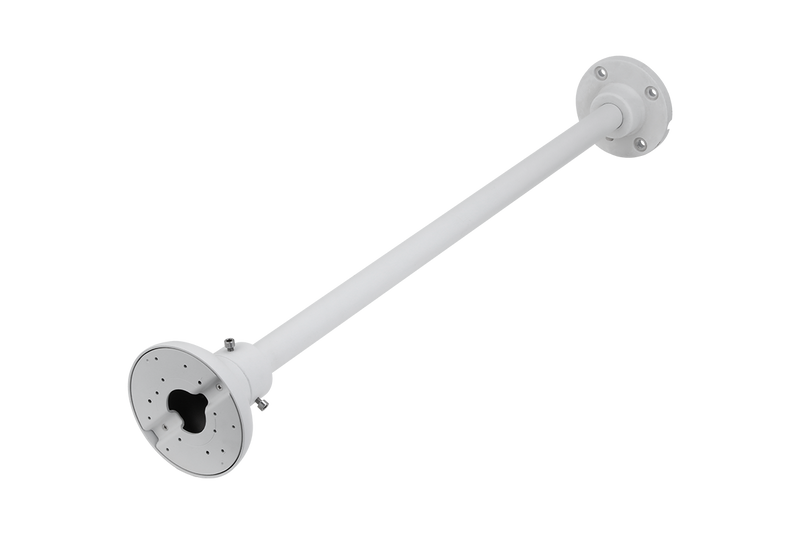

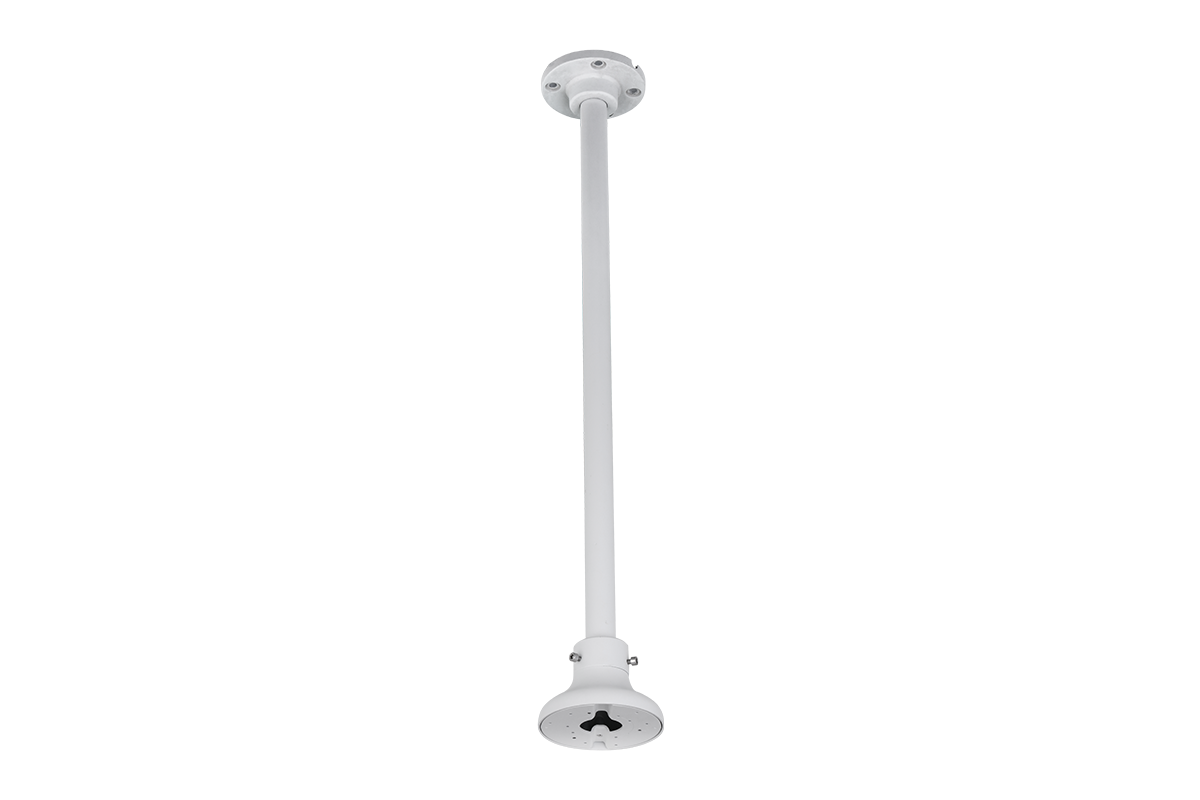

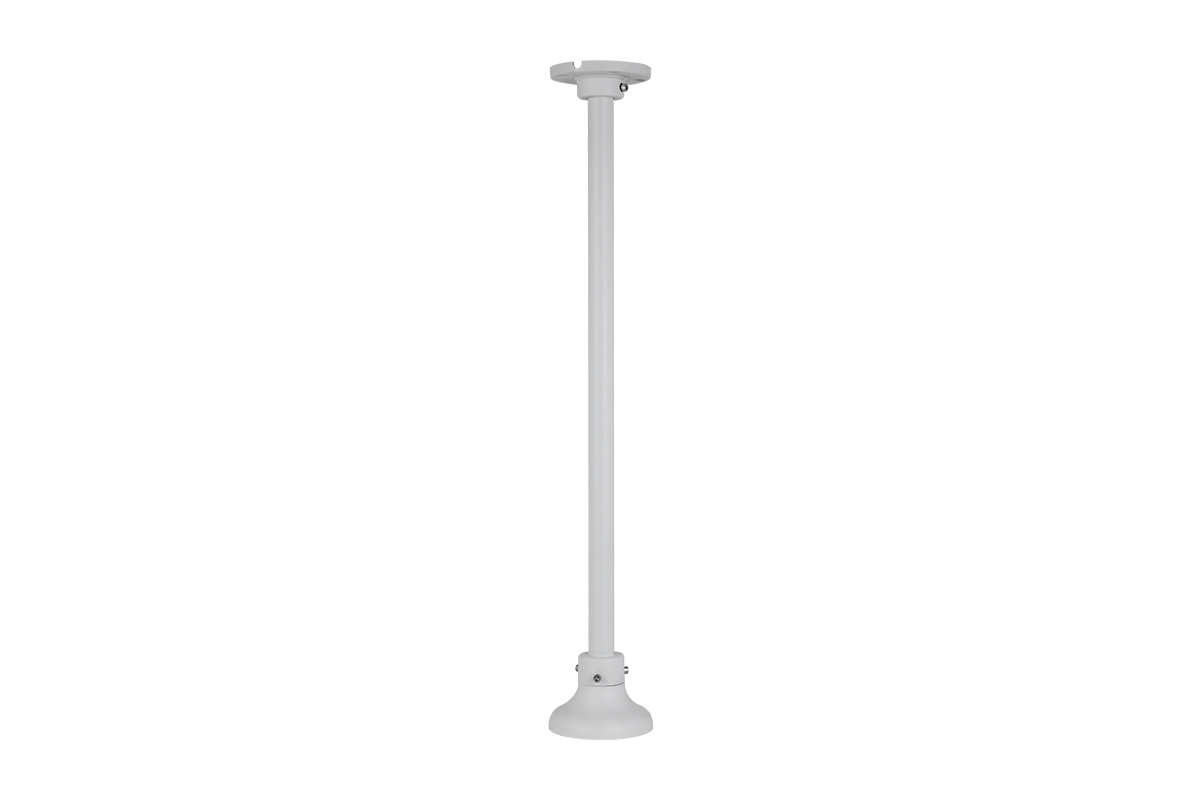

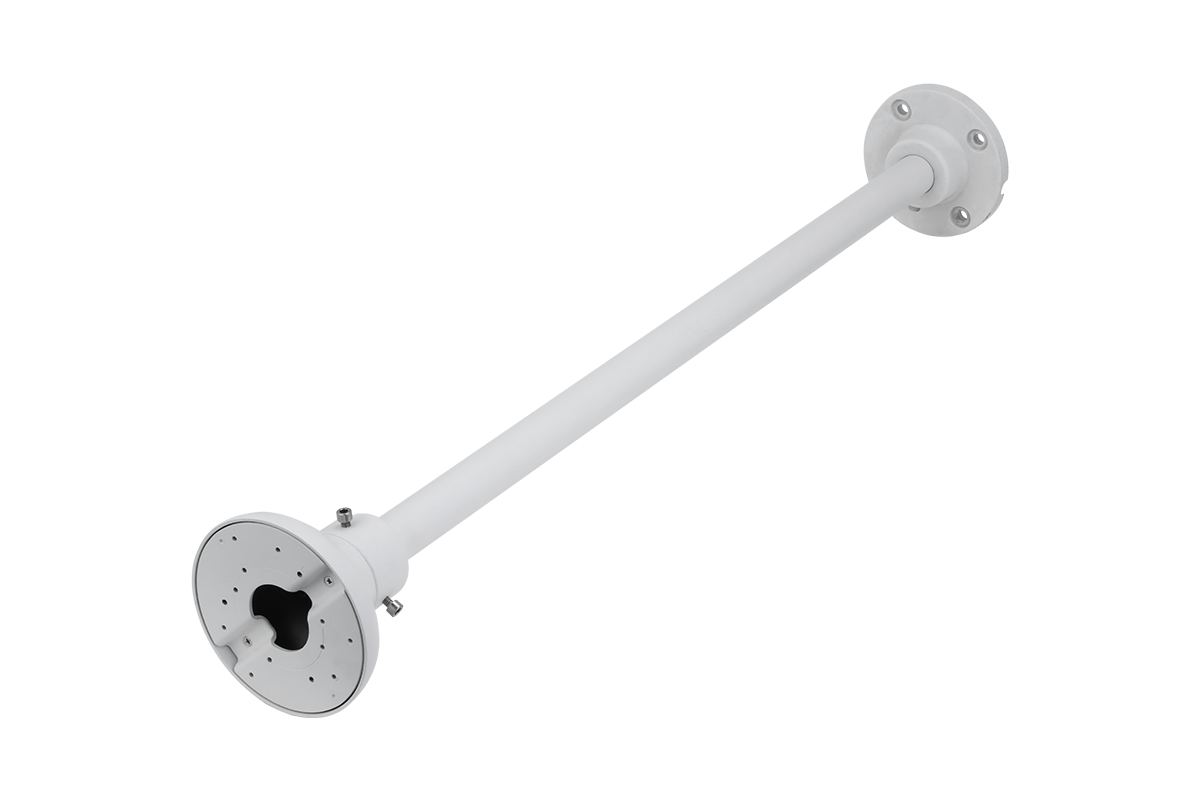

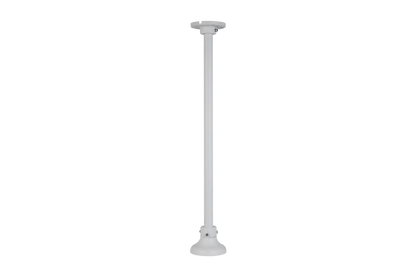

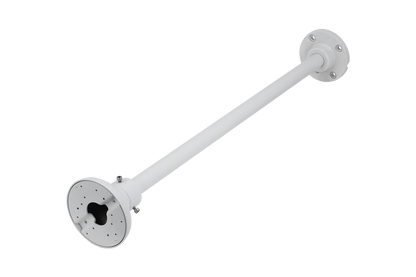

Drop Ceiling Mount for Security Cameras

Lorex for business badge

Safe & Secure

Apps are protected with end-to-end data encryption.


Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.


No Monthly Fees

Local recording protects privacy and saves money.

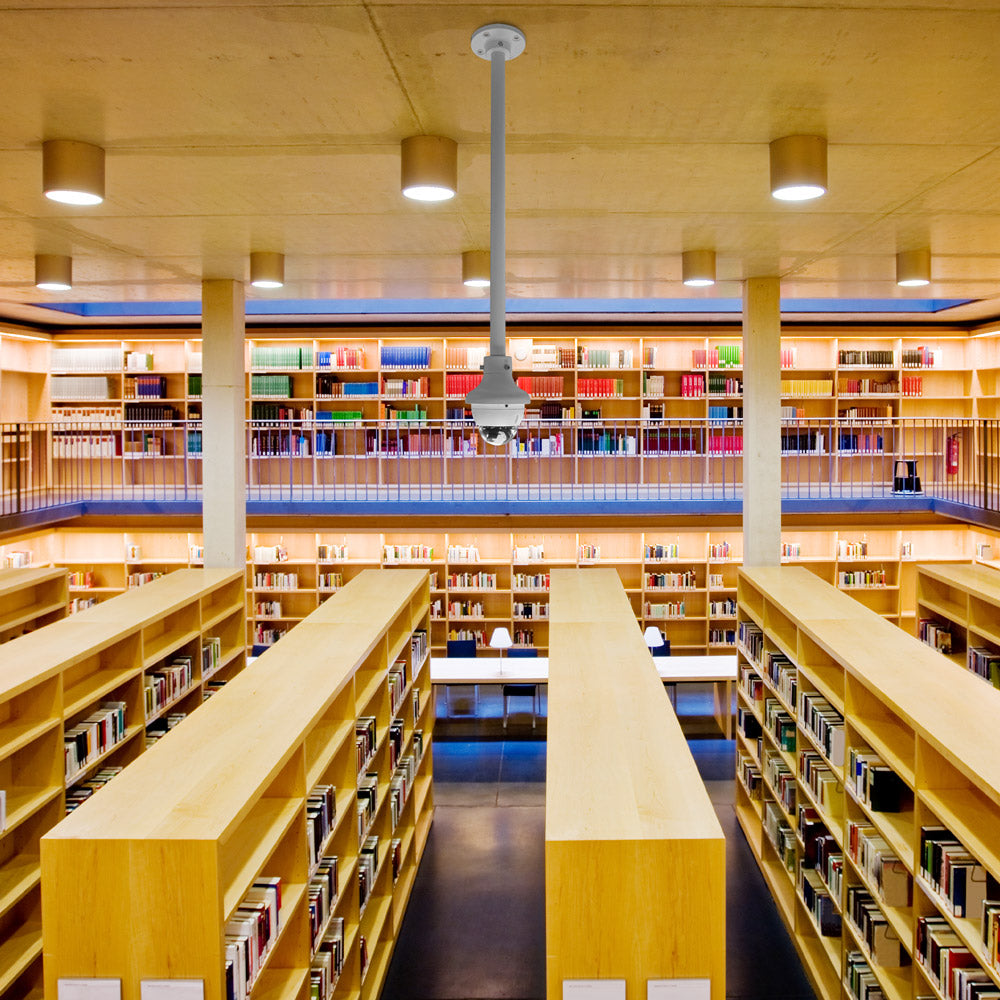

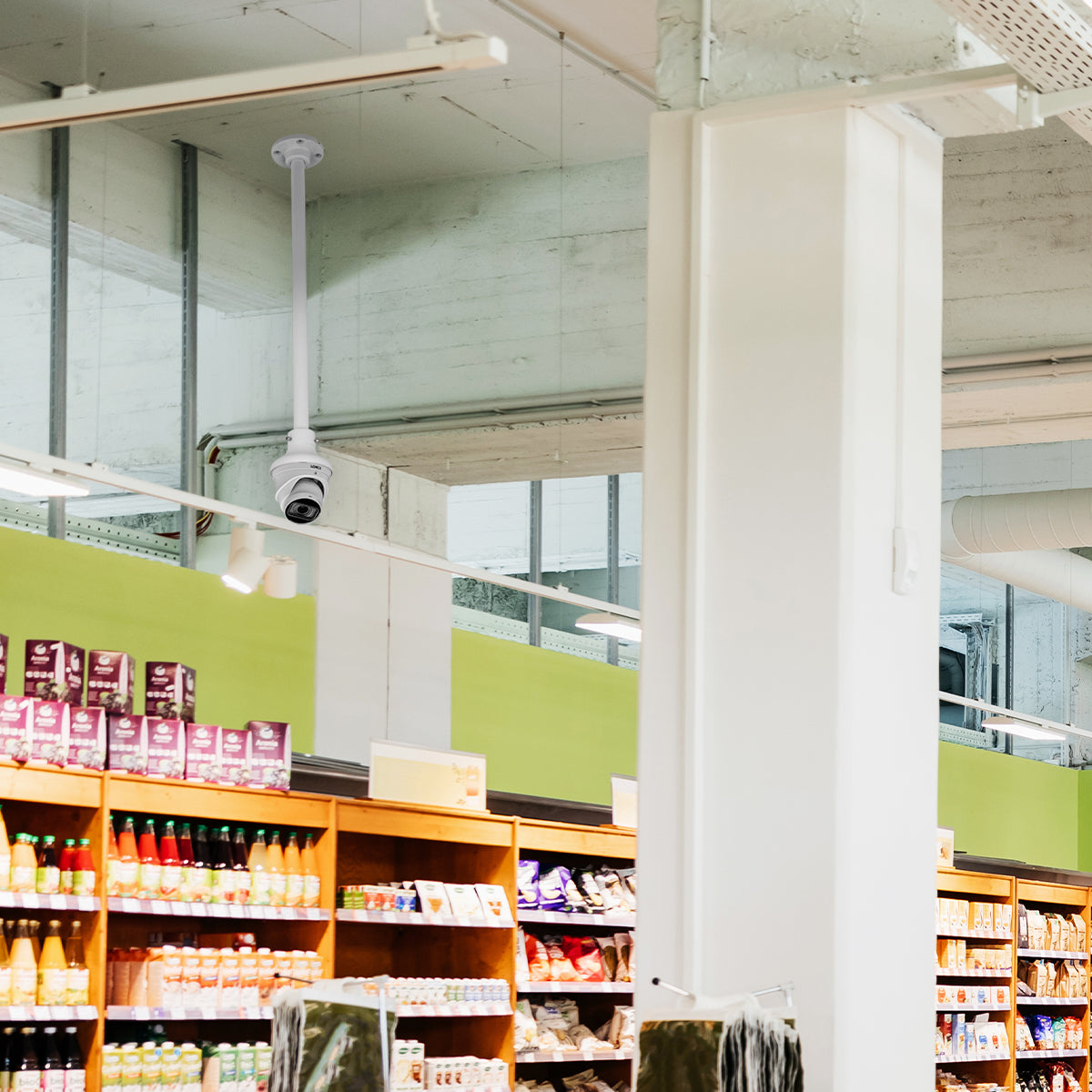

Optimal Coverage, Professionally Built

Get the most optimal view from your security camera with the Lorex Ceiling Mount Bracket. The bracket pole extends from the mounting surface to avoid any obstructions and to increase the camera's field of view so you can see more of your business.


Easy Install

Simply attach your camera to the ceiling mount bracket with the included tool kit.


Feed the cable to the ceiling mount


Install the mount to the desired location


Attach and secure the camera to the mount


Built to Last

Get security year round with the weather-resistant ceiling mount bracket, designed to withstand harsh weather conditions. The ceiling mount can tolerate extreme temperatures ranging from -40C to 60C (-40F to 140F).

Compatible with Lorex Junction Box

Use the ceiling mount bracket with the Lorex round junction box (ACCJ7R3B / ACCJ7R3W) to attach a wide variety of compatible cameras.


Product Compatibility

Product Specifications

Material Aluminum and aluminum alloy
Finishing Power spray
Color White
Operating Temperature -40 °F to 140 °F / -40 °C to 60 °C
Humidity <90% (RH)
Load Bearing Bracket: 4.41lbs / 2kg
Adapter: 2.2lbs / 1.0kg
Dimensions Bracket:
Φ5.07 × 30.2" / Φ128.8 × 767.0mm
5.28 × 5.28 × 3.29" / 134.1 × 134.1 × 83.5mm
Weight Bracket: 1.98lb / 0.9kg
Adapter: 0.66lb / 0.3kg

What's Included?

AUCD-1W Overview

Package Contents:

Ceiling Mount Bracket

Mount Adapter

Hex Wrench × 2

Locking Screw × 8
