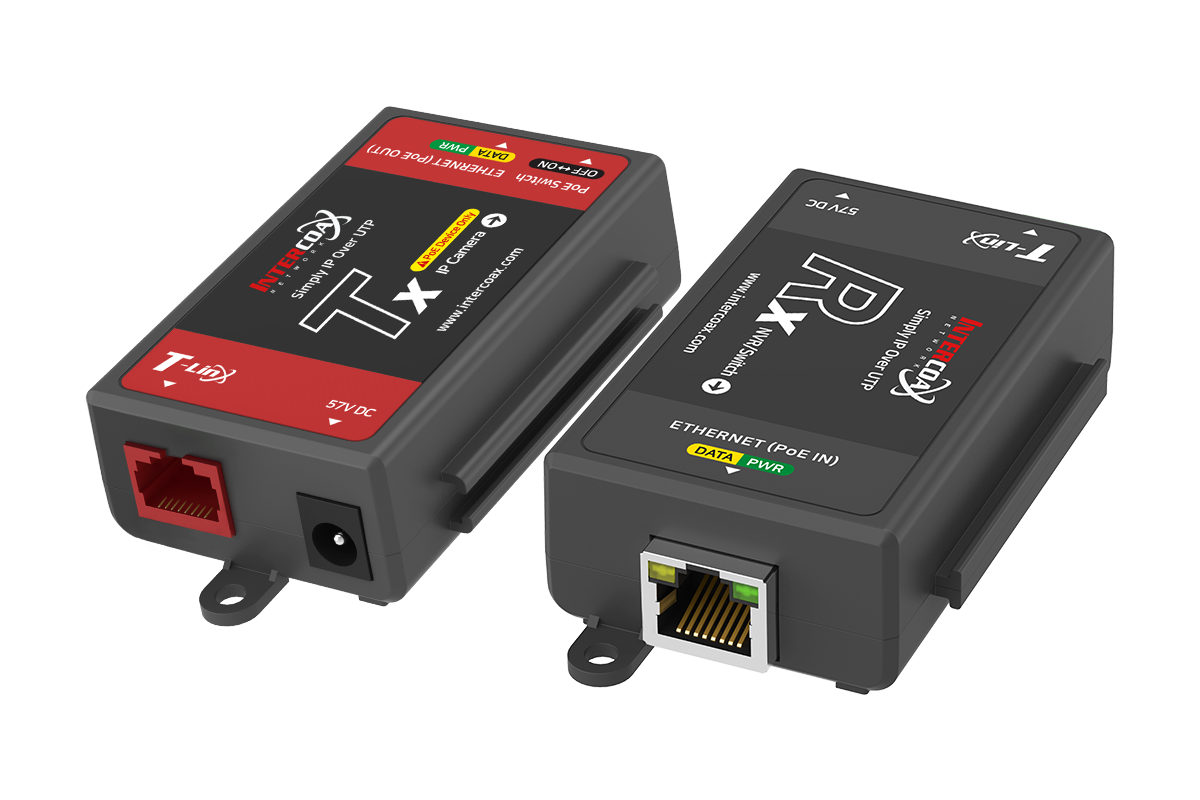

The EUP-01 Series are high-speed, long-distance Ethernet and PoE extenders—ideal for applications requiring PoE injector functionality—that enable the transmission of Ethernet signals and power up to 400 meters through standard UTP cables. Acting as a reliable alternative to traditional PoE injectors, they provide a cost-effective and time-saving solution for migrating existing systems to IP-based infrastructure. The EUP-01 series supports simple installation using existing UTP cabling, making it a practical upgrade path. With their long-distance transmission capabilities, these devices overcome the typical 100-meter PoE limitation and significantly reduce installation and construction costs compared to fiber optic deployments.
Connection Diagram
*Transmission distance may vary depending on the type and quality of cable, use of power and environmental condition.
**Distance is based on Cat.5e cable and 7 Watt IP Camera.
Product Specifications
| Model | EUP‑01T | EUP‑01R | |
|---|---|---|---|
| Interface | |||
| EoC Signal | 1 x RJ45 - Ethernet over UTP (T-LinX) | ||
| Ethernet | 1 x RJ45 - 10/100 Base-T with manual | ||
| Transmission Rate | 10/100Mbps Full Duplex | ||
| Transmission Distance | |||
| Ethernet | up to 400 m (Cat5e UTP Cable) | ||
| PoE (PoC) | up to 400 m (Cat.5e / 20W) | ||
| LED Indication | Ethernet | 1 x Link (Yellow) / 1 x ACT (Green) | |
| Power | |||
| Input | B-Link or DC48V~57V | PoE Switch or DC48V~57V | |
| PoE Output | IEEE802.3af (PoE), IEEE802.3at (PoE+), Extra PoE up to 60W with 57V Power Adaptor |
PoE Not Supported PoC Only |
|
| PoE Input | Up to 25.5W (PD) | Up to 25.5W (PD) | |
| Model | EUP‑01T | EUP‑01R | |
|---|---|---|---|
| Mechanical | |||
| Dimension | 93(L) x 51(W) x 24(H)mm | ||
| Weight | 52g | ||
| Environment | |||
| Operating Temp | -20 ~ 60°C | ||
| Storage Temp | -30 ~ 80°C | ||
| Relative Humidity | 10% ~ 90% | ||
| Compliance | |||
| Certification | FCC, CE, KC, RoHS | ||
| Surge Protection | IEC 61000-4-5 4kV(1.2 / 50us), 2kA(8 / 20us) | ||
