X Series

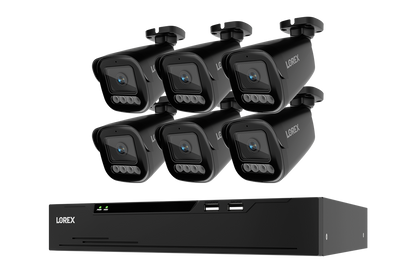

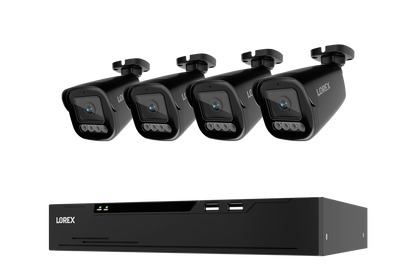

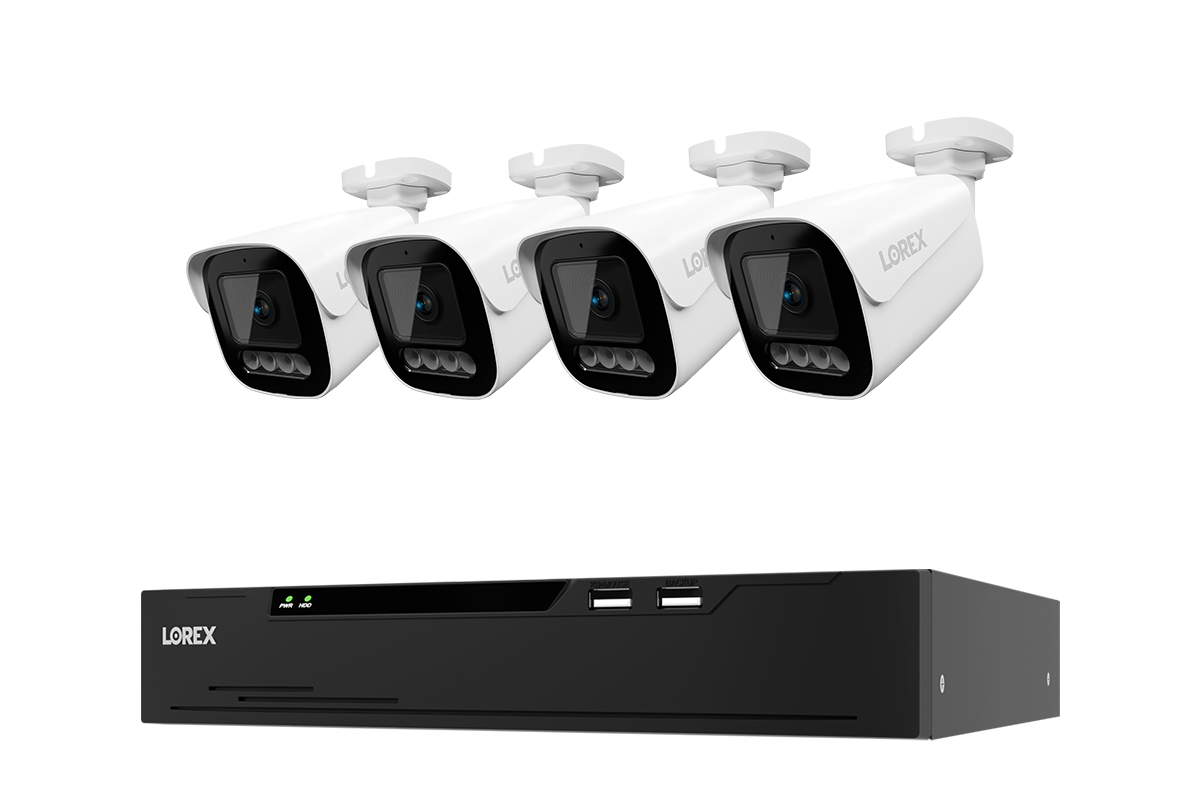

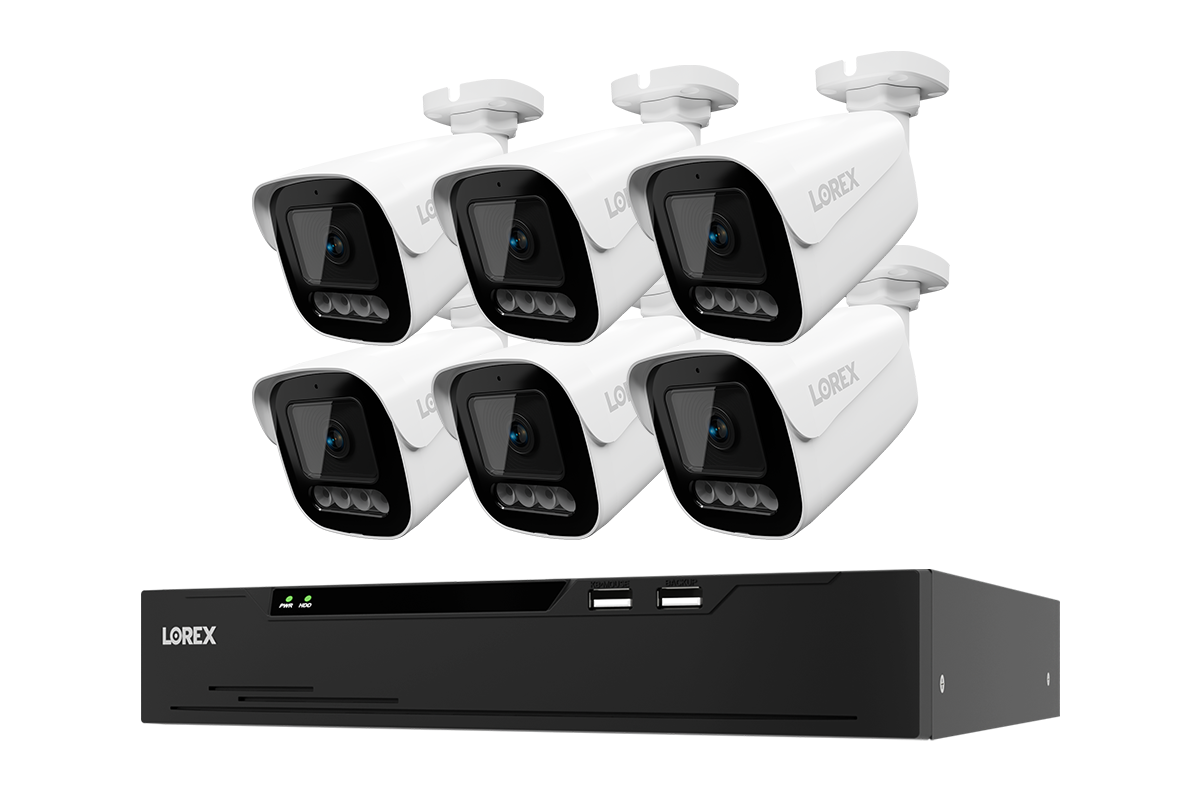

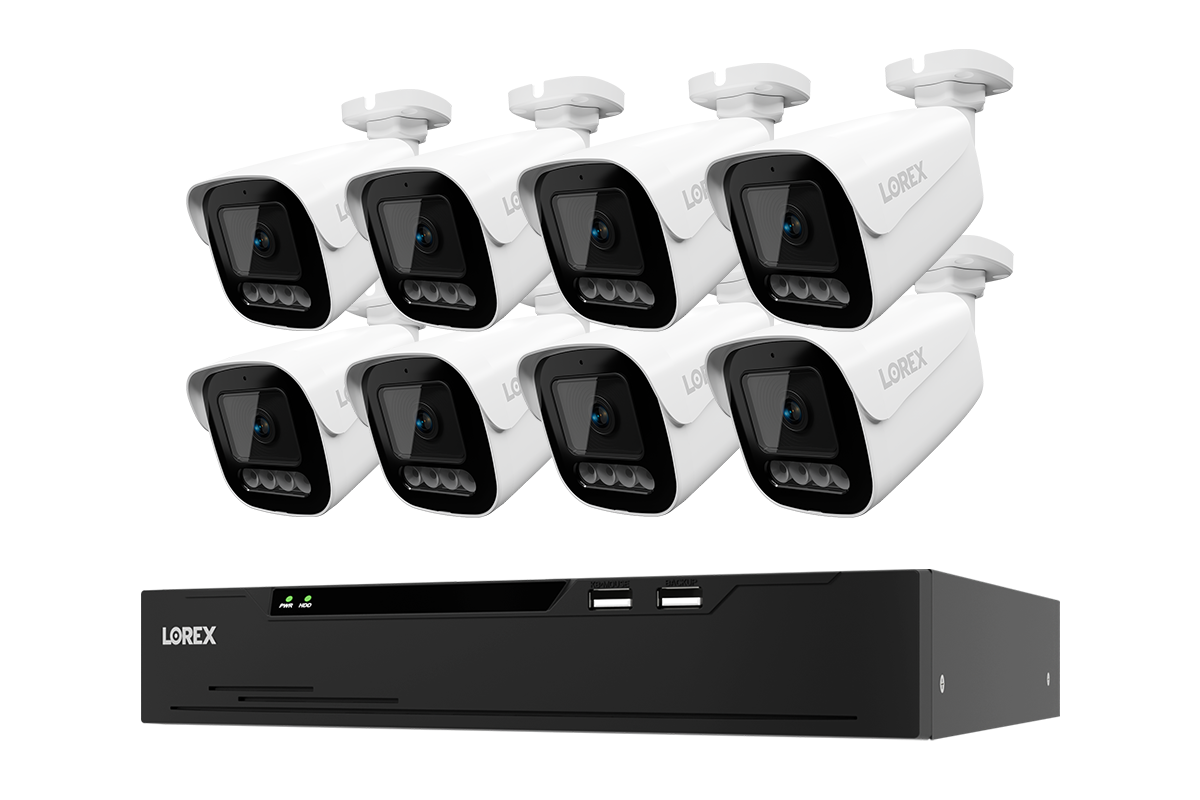

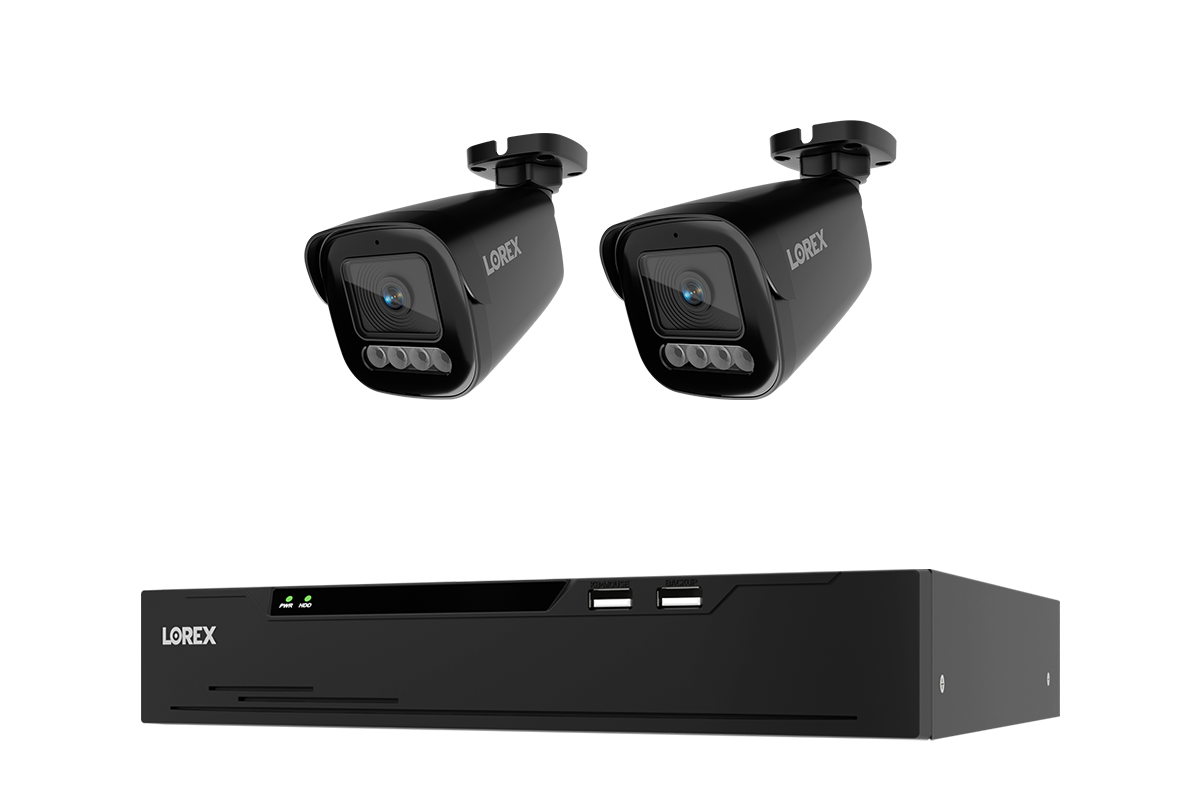

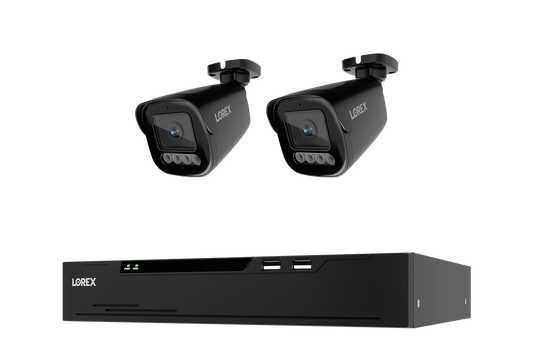

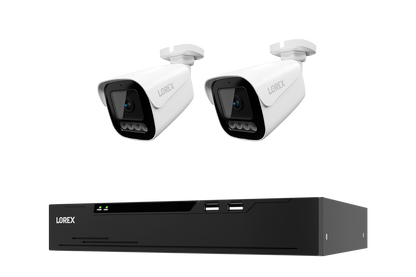

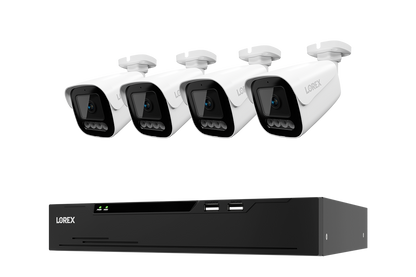

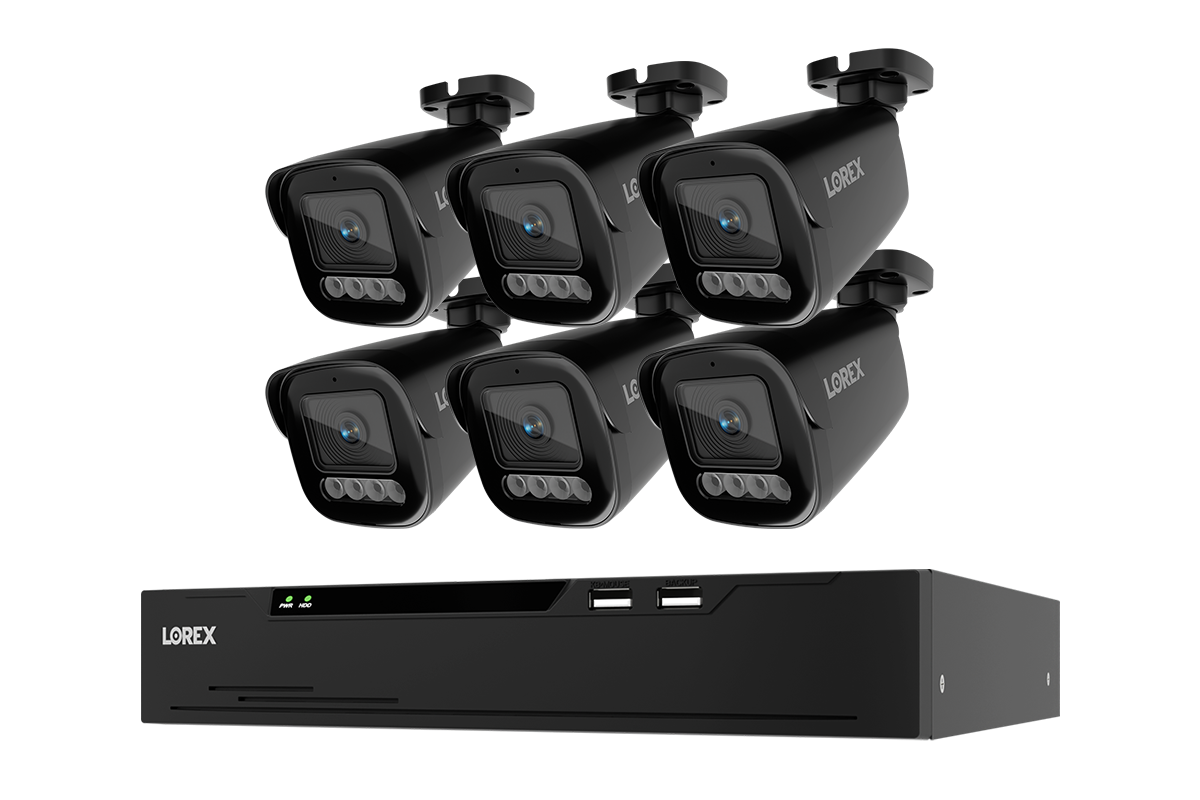

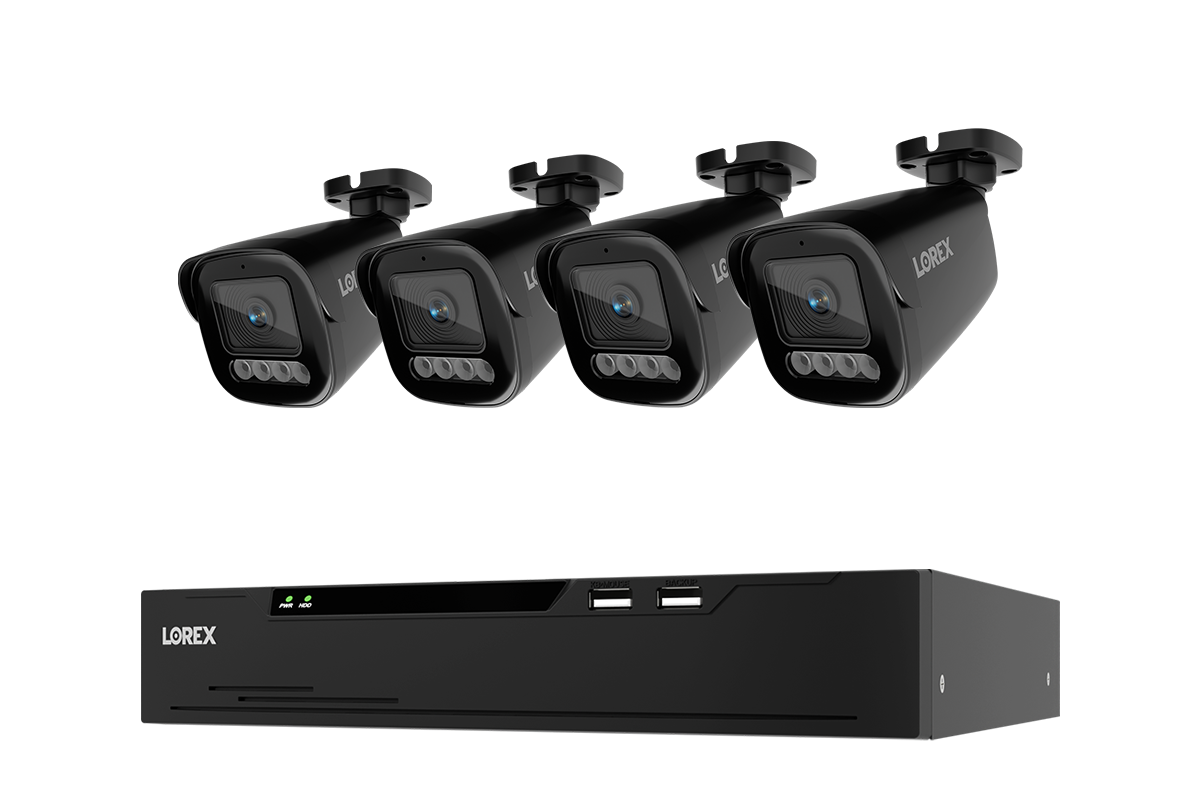

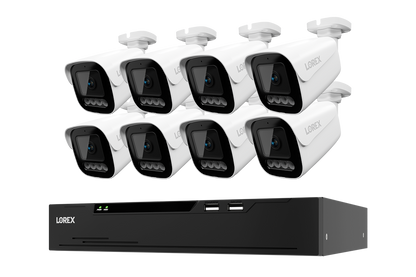

Lorex Connect X Series 4K 8-Channel Wired NVR System with X3 Motorized Varifocal Bullet Security Cameras - 2TB (Cable not included)

Lorex Connect X Series 4K 8-Channel Wired NVR System with X3 Motorized Varifocal Bullet Security Cameras - 2TB

SKU: SKU: CNX3-BB2-8CH2T

Color
Number of cameras

Key Features

  • Protect Around the Clock – Continuous 4K recording
  • Monitor Key Areas – Connect up to 8 cameras
  • See Every Detail – 4K clarity with 5× optical zoom
  • See More at Night – Color Night Vision and long-range IR
  • Deter Threats Proactively – Lights, sirens, and warning messages
  • Turn Video Into Insight – AI detection and business analytics
  • Keep More Video – 2TB included, expandable up to 12TB
  • Stay Connected – Remote viewing and alerts with Lorex Connect
Regular price $1,012.99
Sale price $1,012.99
Regular price $1,349.99 Save $337 (25%)

Pairs well with:

Join the Lorex for Business Partner Program for specialty pricing, volume discounts, exclusive offers, and more.

Become a partner  ›
No Monthly Fees Own it. No subscriptions required.
Lorex Connect App Icon

Stay connected to life’s moments with the new Lorex Connect App

Collapsible content

Product Compatibility

Product Specifications

In this bundle

Select a component to view its specifications.

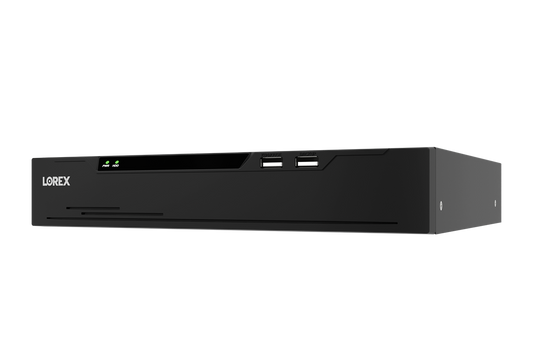

XC 4K 8 Channel NVR

Channels
8 Channels
Max Resolution
4K (3840 × 2160)

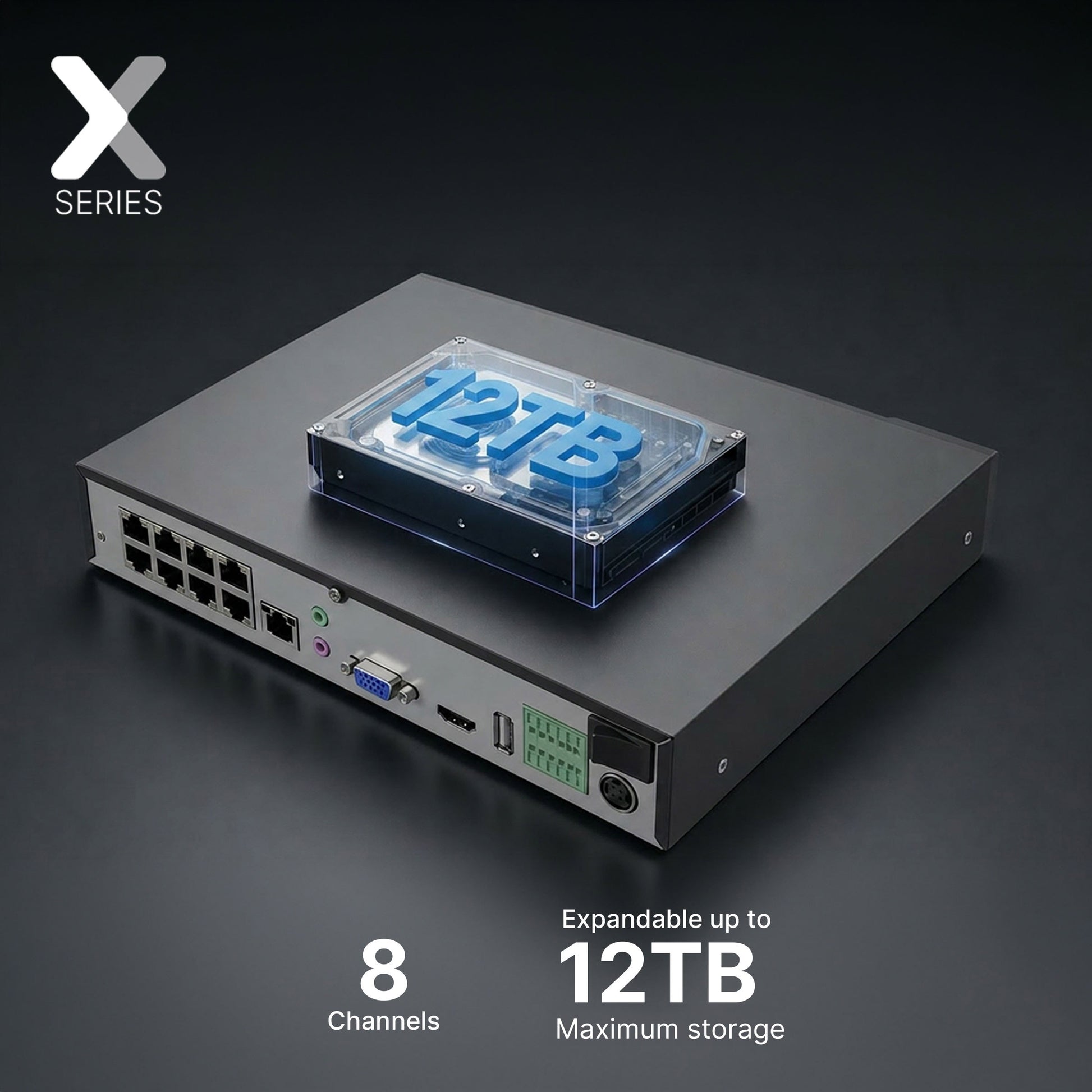

Max Storage
Up to 12TB

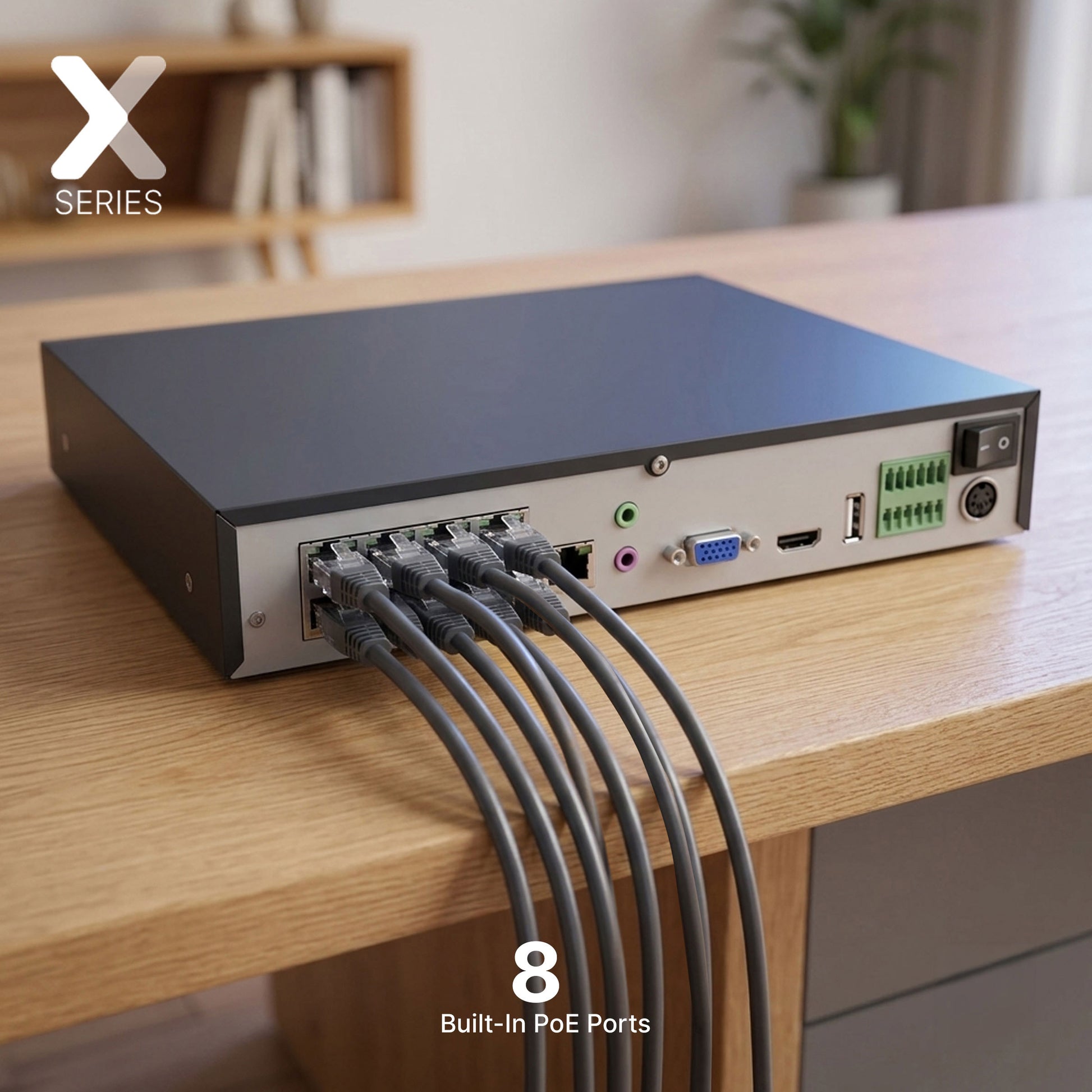

PoE Ports
8 × PoE
Max PoE Output
100 W
Outputs
1 × HDMI / 1 × VGA
Integration
ONVIF Profiles G/M/S/T, RTSP

General

2 specs
Video Transmission Technology
IP
Channels
8 Channels

Inputs / Outputs

6 specs
Video Inputs
8 × PoE
Network Interface
1 × RJ45 (10/100/1000 Mbps)
Video Outputs
1 × HDMI / 1 × VGA
USB Ports
Front: 2 × USB 2.0 / Rear: 1 × USB 2.0
Audio I/O
1 Input / 1 Output
Alarm I/O
8 Inputs / 1 Output

Display

6 specs
Max Display Resolution
4K (3840 × 2160)
HDMI Output Resolutions
  • 3840 × 2160
  • 1920 × 1080
  • 1280 × 1024
  • 1024 × 768
VGA Output Resolutions
1920 × 1080, 1280 × 1024, 1024 × 768
Different Source Output
Supported
Dual Stream
Supported
Live Display Modes
  • Default (Mirrored): 1/4/8/9
  • Auxiliary Mode: Main 1/4, Auxiliary 1/4

Recording

3 specs
Recording Resolutions
  • 12MP
  • 8MP
  • 6MP
  • 5MP
  • 4MP
  • 3MP
  • 1080P
  • 720P
Video Compression
  • Nano Codec (Enhanced H.265 Compression)
  • H.265
  • H.264
  • MJPEG
Recording Modes
Continuous, Motion Detection, and AI Motion Detection (Per Channel)

Playback

2 specs
Synchronized Playback
1, 4, 8
Search Options
By Time/Date, All Motion Events, or AI Motion Detection (Person and Vehicle)

Storage & Backup

4 specs
HDD Bays
1 × SATA¹
Max HDD Storage
Up to 12TB
ANR
Supported
Backup Media
USB Device, Network

AI Smart Features

6 specs
Detection
  • Person
  • Vehicle
  • Intrusion
  • Loitering
  • Wrong-Way
  • Unauthorized Parking
  • Smoke and Fire
Perimeter Protection
Line-Crossing, Dual-Line Crossing
Tracking & Monitoring
Smart Motion
Crowd Analytics
Heat Map, People Counting
Advanced Deterrence
Yes
Smart Search
Yes

Network & Connectivity

6 specs
Mobile App
Lorex Connect App (iOS and Android)
Event Notifications
  • Video Loss
  • Beep
  • Email
  • Push Notifications
Email Notifications
Text and Snapshot Alerts
Firmware Upgrade
Network, USB
Protocols / Integration
ONVIF Profiles G/M/S/T, RTSP
DDNS
Yes

Security

1 spec
Password Reset
Yes

Power

3 specs
Power Supply
54VDC/2.5A
Max PoE Power Output
100 W⁶
Power Consumption (Excluding HDD)
< 15 W

Physical & Environmental

5 specs
Color
Black
Product Dimensions (W × D × H)
10.04 × 9.25 × 1.78 in (255 × 235 × 45.2 mm)
Product Weight (Excluding HDD)
2.2 lb (1 kg)
Operating Temperature
14°F to 122°F (-10°C to 50°C)
Operating Humidity
≤ 90% RH

Package Information

6 specs
RNE01P-82B-AB1
  • SKU: RNE01P-82B-AB1
  • UPC: 6-95529-06633-2
Package Type
Brown Box
Package Dimensions (W × D × H)
14.17 × 12.01 × 3.74 in (360 × 305 × 95 mm)
Package Weight
5.48 lb (2.48 kg)
Package Volume
0.37 ft³ (0.0104 m³)
Package Contents
  • 1× XC 4K 8 Channel NVR
  • 1× Power Adapter & Cable
  • 1× HDMI Cable
  • 1× USB Mouse
  • 6× HDD Screws
  • 2× Alarm I/O Terminal Block Connectors
  • 4× Adhesive Foam Feet Pads

Model Information

3 specs
Series Family
X
Series Line
XC
SKU
RNE01P-82B-AB1
Notes & disclaimers
  • ¹ RNE01P-8ZB-AB1 does not include a pre-installed HDD. A compatible HDD is required for local recording and storage.
  • 4K (8MP) IP cameras are required to take advantage of 4K recording.
  • Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
  • Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 6Mbps is recommended for reasonable video performance.
  • HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
  • ⁶ All connected cameras do not typically draw maximum power at the same time. If the total power demand exceeds the NVR’s PoE power budget, recording performance may be temporarily affected.

Package Contents

RNE01P-82B-AB1

XC 4K NVR

HDMI Cable

Power Cable

Mouse

2 × Alarm I/O Terminal Block Connectors

6 × HDD Screws

4 × Adhesive Foam Feet Pads


CNE01P-2BB-AB1

X3 4K PoE Bullet Camera with Motorized Varifocal

Alarm I/O Terminal Block Connector

For special models

Allen Key

Mounting Hardware

Weather-Resistant RJ45 Cable Gland
