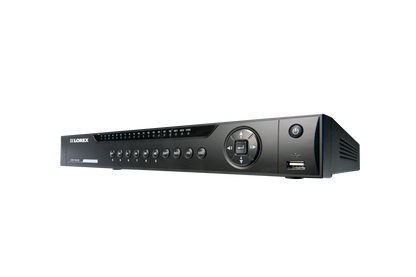

Weatherproof HD IP Camera system with 16-Channel HD NVR

LNR4163C6D33B
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payment

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

Experience the next generation of premium, do-it-yourself security with the LNR400 Series Network Video Recorder (NVR). This cutting-edge NVR is bundled with weatherproof HD IP cameras to provide you with stunning 1080p HD recording in real-time on all channels. Each camera requires just a single Ethernet cable connecting it to the NVR, which provides both power and video using Power over Ethernet (PoE) technology. Connect the cameras to the NVR's 8 integrated PoE ports for a truly plug-and-play surveillance experience that will have you up and running in no time. A high-capacity security-grade HDD is pre-installed, allowing you to record days of footage as lifelike as life itself. Maintain vigilance with the ultimate in recording resolution and picture quality in your corner.

LNR4163C6D33B

SPECIFICATIONS

16CHANNELS

HD NVR supports up to 16 cameras

9

CAMERAS

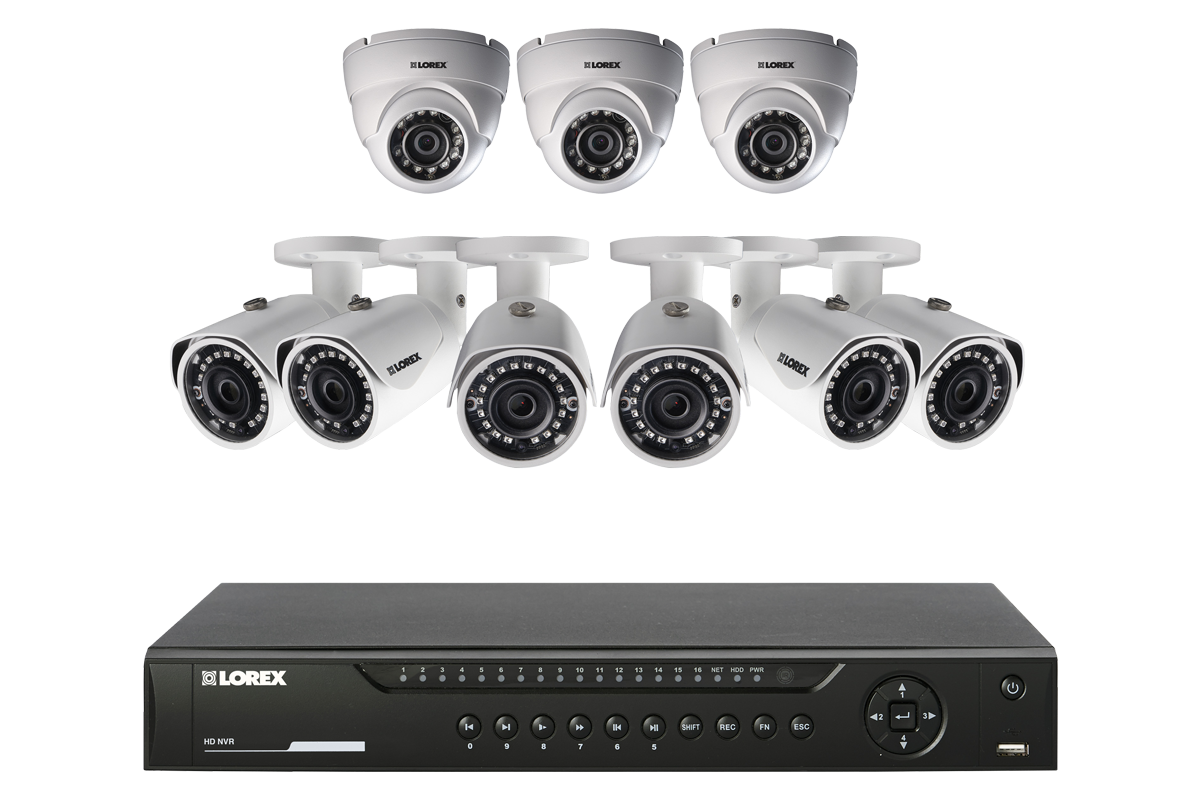

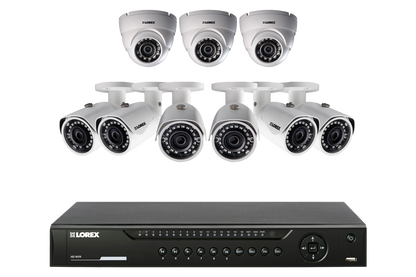

6 bullet & 3 dome 1080p HD Security Cameras

130FT

NIGHT VISION

Maximum night vision range

3TB

HARD DRIVE

Expandable up to 12TB

High definition IP camera

Compatibility Notice

This HD NVR is compatible with Lorex PoE IP cameras only. It is not compatible with third-party IP cameras. Click here for full camera compatibility list.

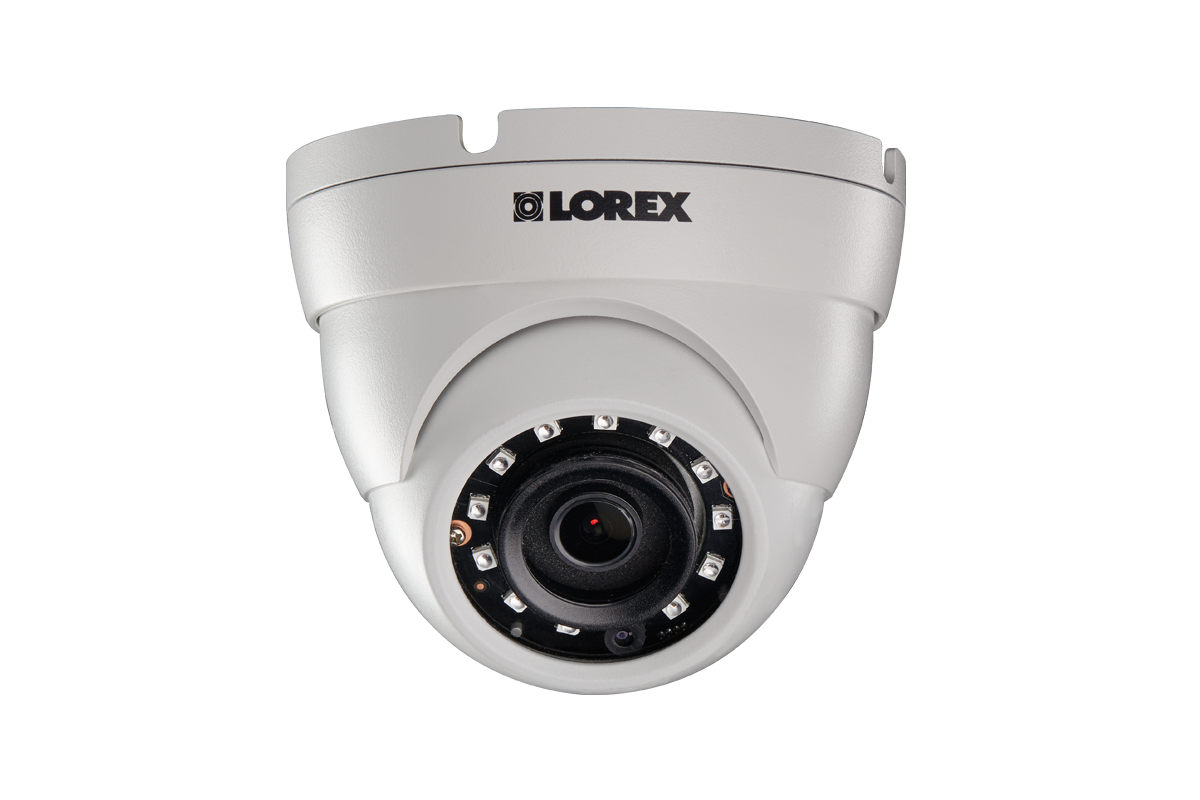

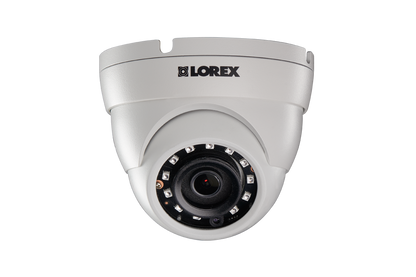

The system includes HD IP bullet cameras (LNB3163) and dome cameras (LNE3162) that boast smooth FULL HD 1080p video and outstanding night vision. The end result of stunning high definition video of your home or business provides you with that crucial peace-of-mind you need.

Lorex Cloud

Lorex Cloud connectivity for remote viewing

Introducing Lorex Cloud, our innovative hassle-free cloud connection service. Say goodbye to IP & router port forwarding issues – you can quickly and easily connect to your security system using a smartphone, tablet, PC or Mac. Lorex Cloud connects you to your system remotely within minutes on your iOS© or Android™ device. Simply download the free App, scan the QR code and start viewing your world securely online! Stay abreast of important developments with push notifications for motion events, and instant email alerts with snapshot attachments.

Security certified hard drive

Security grade hard drive

Record surveillance footage to the security grade 100% duty-cycle hard drive designed for surveillance, providing weeks or even months of reliable video. Customize the recording settings to fit your needs. Record at 1080p HD (1920x1080) for the highest resolution, or change the settings to a lower resolution for extended recording time.

The LNR400S Series features a simplified installation that saves time when setting up your cameras. The auto-detect function automatically discovers and configures compatible IP cameras on the same local network as the NVR. Simply connect your cameras to the built-in Power over Ethernet (PoE) ports using a single Cat5E Ethernet cable - no power supply required.

The Lorex LNR400S Series NVR with HD IP cameras delivers a truly unique surveillance experience, combining real-time HD video with first-class remote connectivity software that makes on-the-go monitoring a breeze! Start viewing your world in full HD and discover the ultimate way to stay connected.

What's Included?

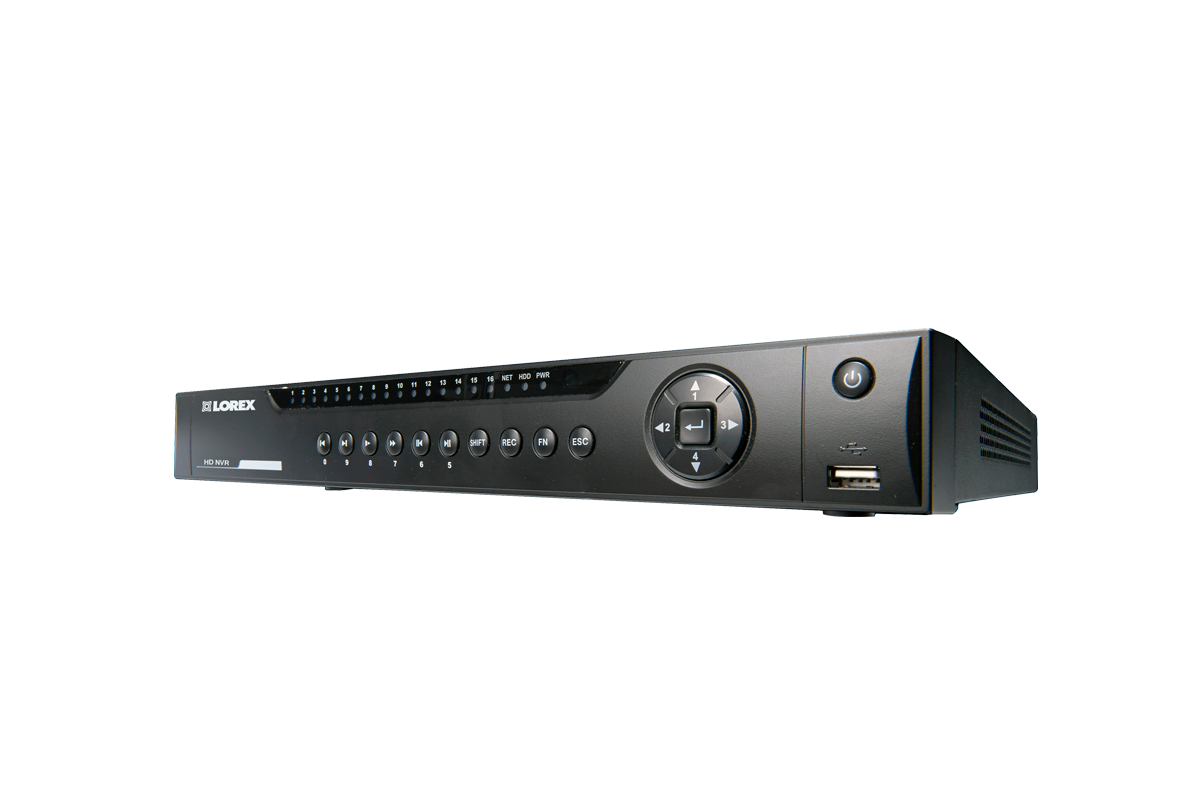

HD Network Video Recorder Features:

  • Real-time recording with cameras up to 4MP SUPER HD @ up to 30/25fps per channel

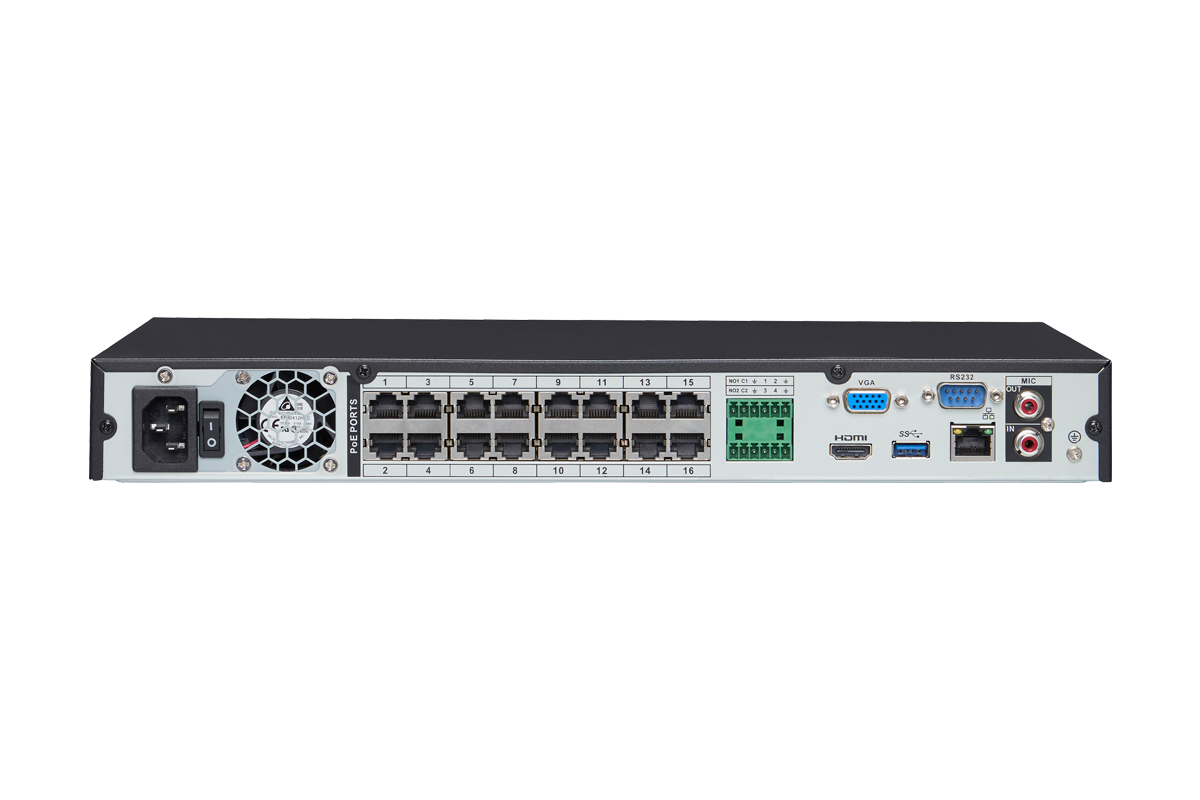

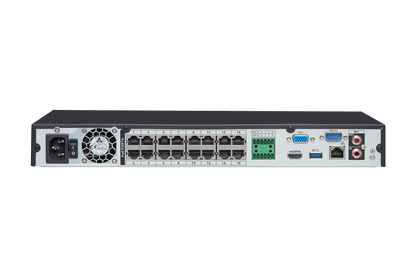

  • 16 built in PoE (Power over Ethernet) ports providing video and power on a single Ethernet cable
  • Automatically detects compatible IP cameras in the network 1
  • 24/7 security-grade hard drive 2
  • H.264 video compression 2
  • Expandable high capacity storage up to 12TB (max 2×6TB HDD)
  • Mirror hard drive recording-secure your recordings by backing up footage to an internal hard drive at the same time as recording to the primary hard drive 3
  • Pentaplex operation–view, record, playback, backup & remotely control the system simultaneously
  • Simultaneous playback and live view on the same screen 4
  • Selectable area digital zoom in live view and playback
  • Dynamic click-and-drag camera channel assignment
  • Flip and mirror camera view settings
  • Convenient front panel button controls
  • Accurate time stamps with NTP & daylight savings time
  • Instant USB backup of live video from selected camera
  • 2 video outputs (HDMI & VGA) to connect multiple monitors
  • HDMI cable included for simple connection to HD TVs
  • Keep up to date with automatic firmware upgrades 5
  • 3-step remote view with Lorex Cloud™ 6
  • PC and Mac compatible 7
  • Free iOS and Android compatible apps with live viewing, playback, video recording, and snap shot 7
  • Dedicated iPad app with multi-channel live viewing and playback 7
  • Push notifications of motion events
  • Instant email alerts with snap shot attachment
  • Dual streaming to conserve bandwidth
  • Continuous, scheduled and motion recording

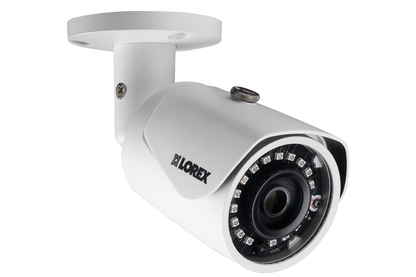

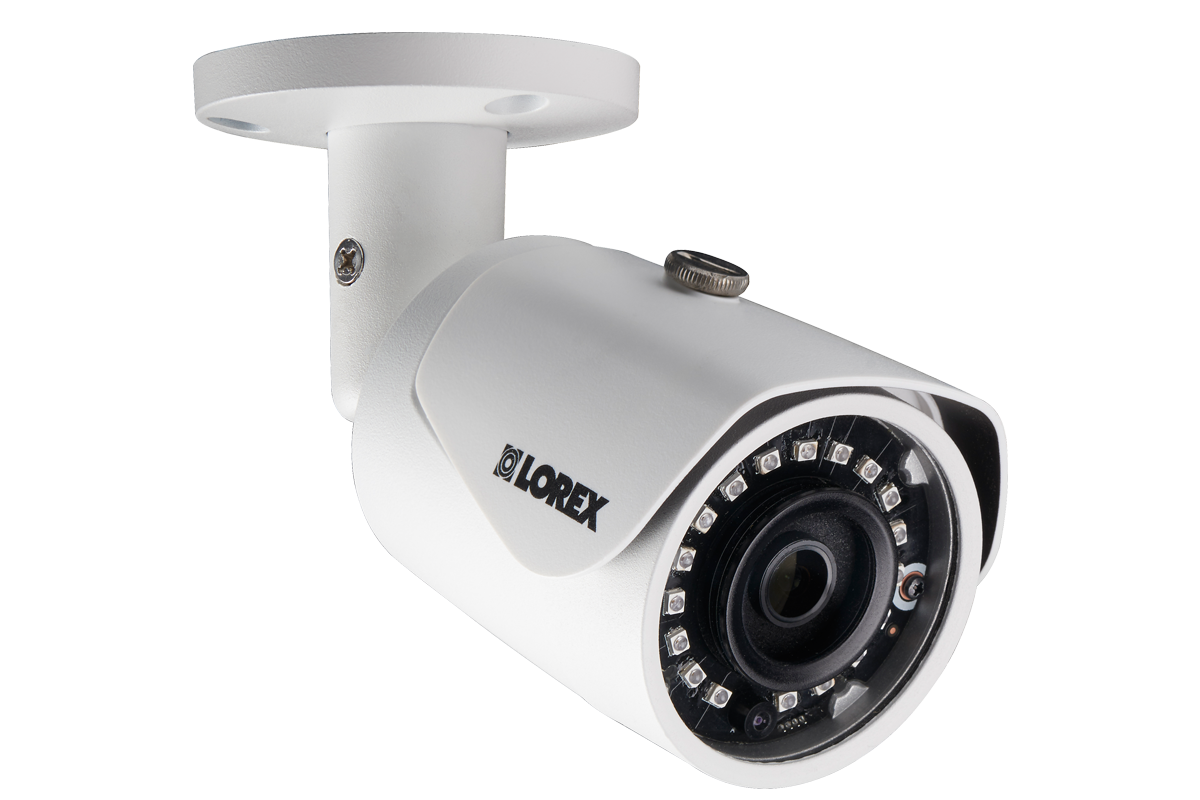

HD Bullet Security Camera with Long-Range Night Vision Features:

  • High definition 3MP image sensor delivers 50% more detail than 1080p 8
  • Infrared cut filter ensures accurate color representation
  • Night vision range up to 130ft (40m) in ambient lighting & 90ft (28m) in total darkness 9
  • Day/Night mode: picture automatically switches to B&W delivering better clarity in low light conditions
  • ClearNight imaging for improved low light performance and improved recording efficiency
  • 75° field of view (horizontal)
  • Ceiling / wall mountable
  • Simple camera installation using a single CAT5e cable with Power over Ethernet (PoE)
  • 60ft (18m) UL-compliant cable suitable for surface and in-wall installation
  • Extend the camera’s video and power with a single Ethernet cable up to 300ft (91m) from the recorder
  • Single-screw bracket adjustment for faster installation
  • Cold climate capability (-22°F / -30°C)
  • Weatherproof for outdoor & indoor installation (IP66 Rated) 10

HD Bullet Security Camera with Long-Range Night Vision Features:

  • High definition 3MP image sensor delivers 50% more detail than 1080p 8
  • Infrared cut filter ensures accurate color representation
  • Night vision range up to 115ft (35m) in ambient lighting & 75ft (23m) in total darkness 9
  • Day/Night mode: picture automatically switches to B&W delivering better clarity in low light conditions
  • ClearNight imaging for improved low light performance and improved recording efficiency
  • 75° field of view (horizontal)
  • Ceiling / wall mountable
  • Simple camera installation using a single CAT5e cable with Power over Ethernet (PoE)
  • 60ft (18m) UL-compliant cable suitable for surface and in-wall installation
  • Extend the camera’s video and power with a single Ethernet cable up to 300ft (91m) from the recorder
  • Cold climate capability (-22°F / -30°C)
  • Weatherproof for outdoor & indoor installation (IP66 Rated) 10

Disclaimers

1. Compatible with Lorex HD IP cameras only. For a list of compatible cameras, please visit lorextechnology.com/support
2. Recording time may vary based on recording resolution & quality, lighting conditions and movement in the scene.
3. Mirror recording requires a second hard drive (not included) to be installed in the NVR. Mirrored hard drive must be as large or larger than the primary hard drive to backup all recordings. Backup begins from when the mirrored hard drive is installed and configured.
4. Instant playback feature available on one camera at a time during live view (when in quad or multiple live camera viewing mode).
5. The NVR firmware and software must be upgraded to the latest version to use the Lorex Cloud™ service. When the system is connected to the Internet, it will automatically alert you if there is a firmware upgrade available.
6. Requires a high speed internet connection and a router (not included). A minimum upload speed of 3Mbps is required for the best video performance. Up to 3 devices may connect to the system at the same time.
7. For the latest list of supported apps and devices, please visit www.lorextechnology.com/support
8.Compatible with all Lorex HD NVRs except for LNR100 / LNR200 / LNR300 Series. For the most up-to-date list of compatible recorders, visit www.lorextechnology.com/support
9. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection / absorption level of object. In low light, the camera will switch to black and white.
10. Not intended for submersion in water. Installation in a sheltered location recommended.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown. Images are simulated.
