IP67 Water Rating
–40 °C / -40 °F Cold Rating
60 °C / 140 °F Heat Rating All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.
Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.
Key Features
- 4K @30 FPS Varifocal Lens
- Heat Mapping , People Counting
- Smart Detection (Person/Vehicle)
- Vandal Resistant (IK10 Rating)
- No Monthly Subscription Required
NOCTURNAL 4
SERIES SECURITY CAMERA
Empower your business with a top performing professional-grade monitoring solution –

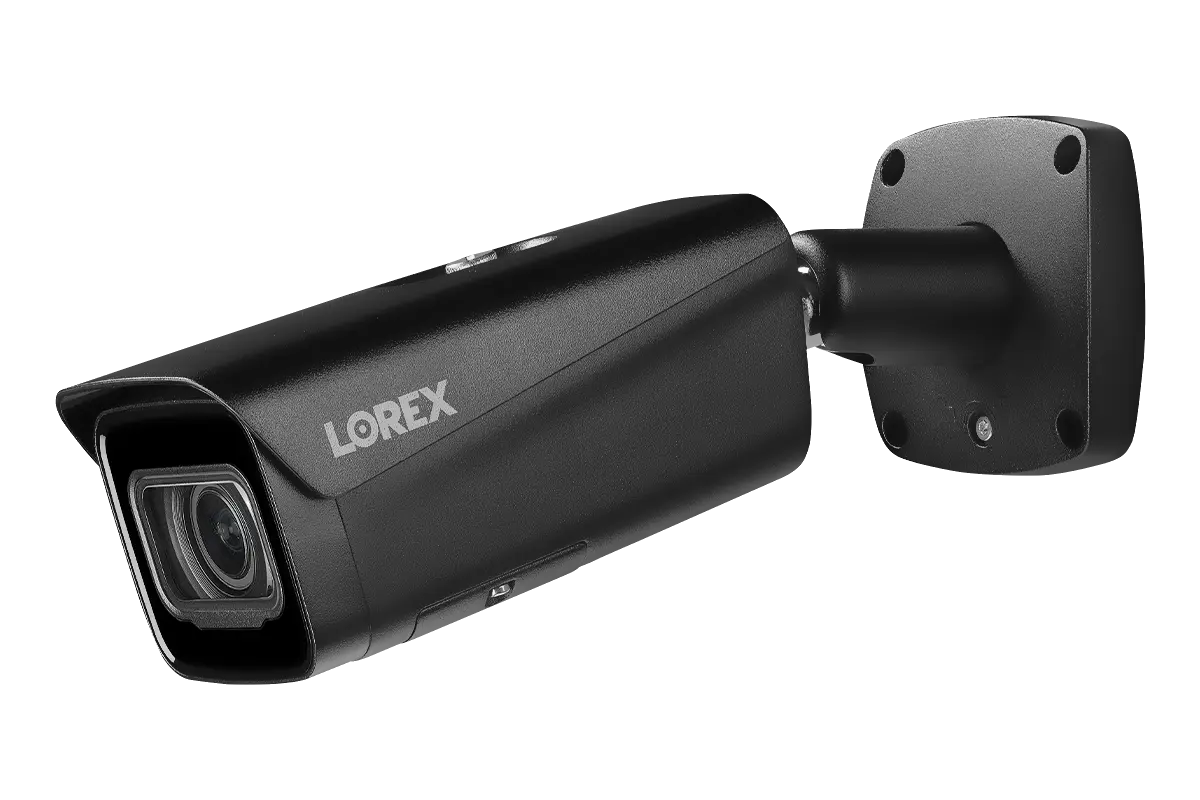

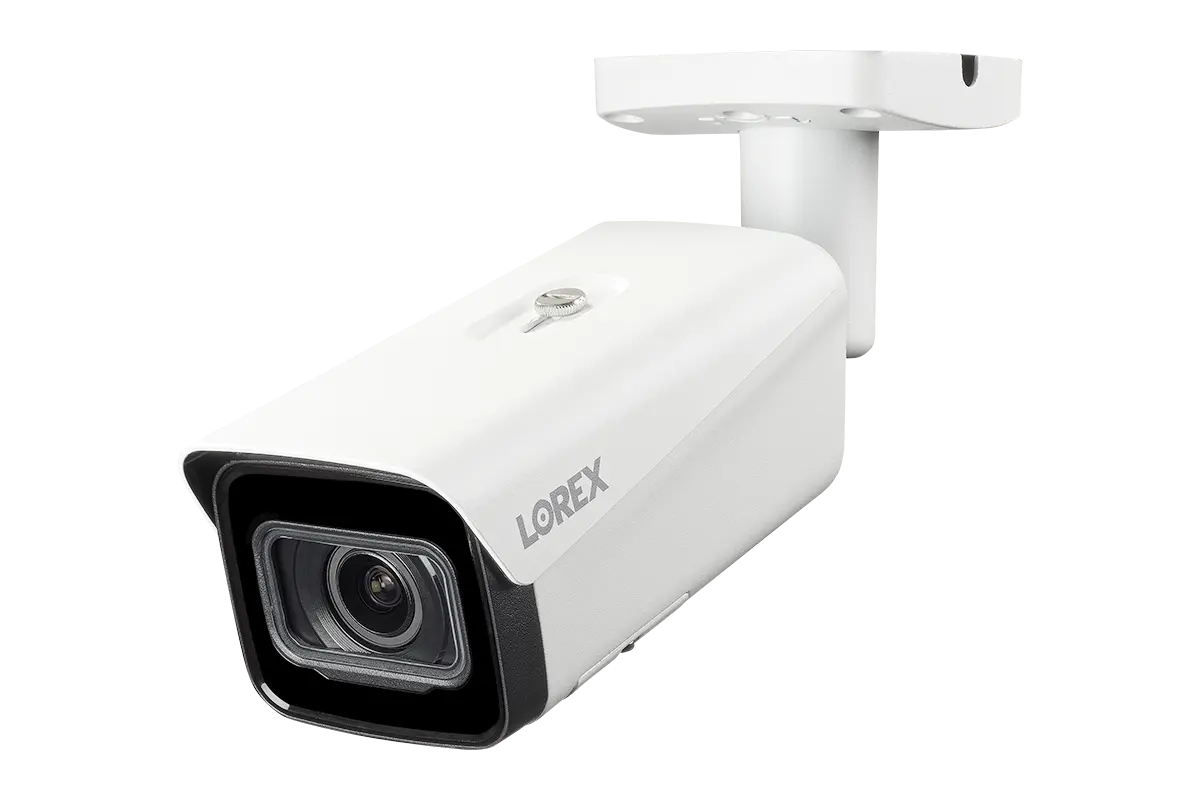

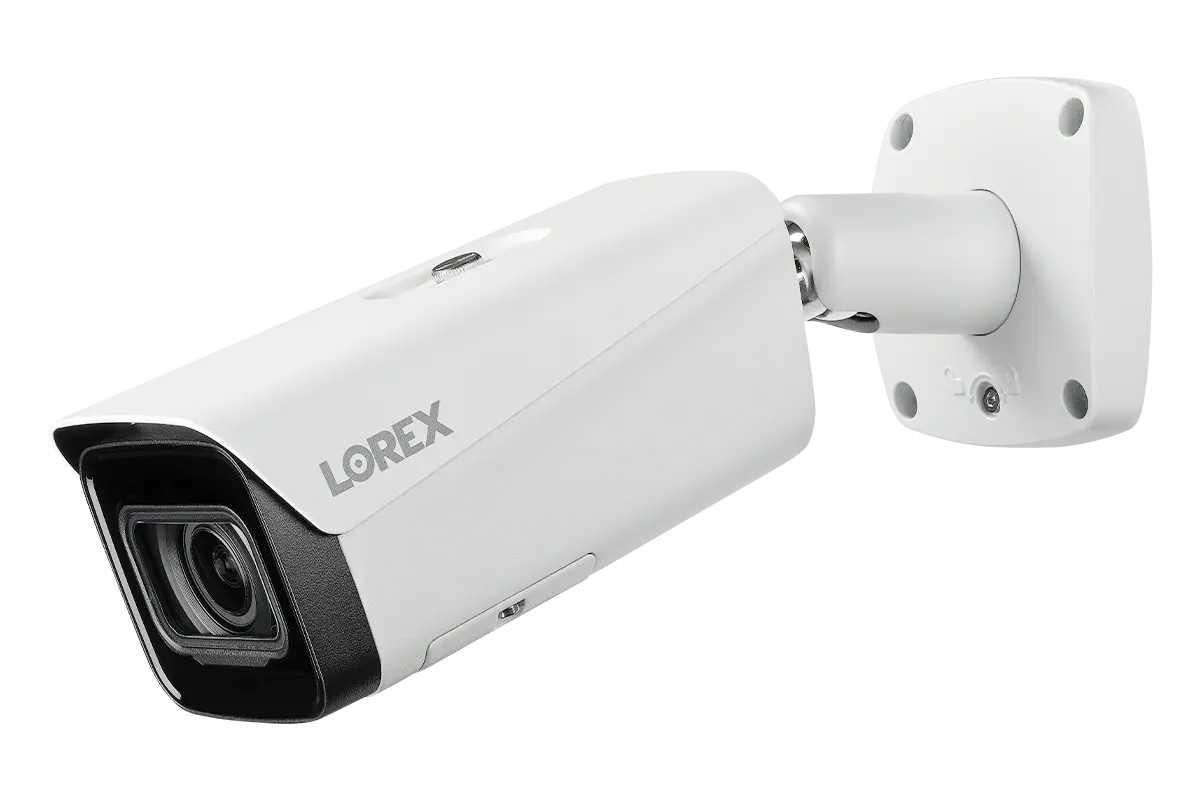

The Lorex 4K IP Nocturnal Motorized Varifocal Wired Camera.
See Clearly,
Day and Night
Ultra HD Resolution
Nocturnal security cameras use an 8MP image sensor that delivers exceptionally detailed 4K Ultra HD resolution video and incomparable low-light performance.
Color Night Vision
Nocturnal security cameras have the longest night vision ranges available. With the help of external lighting, these cameras will also record in full color all night long.
Real-time 30 FPS
Don't miss a moment with our Real-Time 4K Nocturnal Security Cameras. With 30 frames recorded within each second, the on-screen movement will look like you are witnessing events in real life.
Improve Service, Efficiency, and Profitability
People Counting
Advance people counting analytics provides valuable information about the number of people inside your premises at any point in time.
Heat Mapping
Heat Maps illustrate customer movement to better understand where the heaviest and lightest traffic areas are.
*People Counting and Heat Map functions are only supported by the N883 Series NVR.”
Vandal Resistant
Nocturnal 4 Cameras are rated IK10. This means their heavy-duty metal exteriors are built with additional protection to withstand direct impacts.
Go The Distance With ePoE Technology
Save on long distance cabling with Nocturnal 4 Cameras. They feature Enhanced PoE (ePoE) technology, which allows you to connect them up to 600m (2000 ft) away, compared to the standard 100m (328 ft), without the need for numerous PoE switches.
*N883/N882/N881 Series NVRs have 8 designated ePoE ports (CH 1-8) compatible with Nocturnal 4 Series Cameras.
Built to Last
Pro-Grade heavy-duty aluminum housings protect against weather and vandalism, extending the life-cycle of your camera so you can count on years of uninterrupted service.
Built for the
Outdoors
Nocturnal security cameras can endure anything from torrential downpours to freezing snowstorms. So go ahead and place these security cameras where you need them most.
Always Know What's Happening
Keep an eye on trespassers and vehicles with advance AI features like Smart Motion Detection, which detects motion from person/vehicle
Person/Vehicle Detection
360° Product View
What's Included?
Dimensions (LxWxH): 273.2mm × 95.0mm × 95.0mm (10.76" × 3.74" × 3.74")
Weight: 1.11lbs / 2.44kg
- Cable Notch
- Adjustment Screw
- Adjustment Knob
- Zoom (T) Wide Angle (W) Buttons
- MicroSD Card Slot
- Reset Button
- Camera Lens
- Infrared Lights
Package Contents:
4K Motorized Varifocal IP Camera
Mounting Kit*
Allen Key*
Nocturnal Comparison Chart
| Nocturnal 4 | Nocturnal 3 | |||||
|---|---|---|---|---|---|---|
| Camera Model |
LNB9383 / LNB9393 Bullet |
LNE9383 / LNE9393 Dome |
LNB9242 / LNB9252 Fixed Bullet |
LNE9242 / LNE9252 Fixed Dome |
LNB9282 / LNB9292 MVF Bullet |
LNE9282 / LNE9292 MVF Dome |
| Resolution | Real-Time 4K (30fps) | Real-Time 4K (30fps) | Real-Time 4K (30fps) | Real-Time 4K (30fps) | ||
| Color Night Vision | Yes | Yes | Yes | Yes | ||
| Night Vision Range | 60m (197ft) | 50m (164ft) | 30m (98ft) | 30m (98ft) | ||
| Field of View (H) | 110.4°–45° | 110.4°–45° | 107° | 113°–31° | ||
| Lens Type | Motorized Varifocal | Motorized Varifocal | Fixed | Motorized Varifocal | ||
| Audio | No | Yes (Listen-in Audio) | Yes (Listen-in Audio) | Bullet: No Dome: Yes (Listen-in Audio) |
||
| Smart Motion Detection | Person/Vehicle | Person/Vehicle | Person/Vehicle | Person/Vehicle | ||
| Person Counting | Yes | Yes | No | No | ||
| Heat Mapping | Yes | Yes | No | No | ||
| Power over Ethernet Type | ePoe: 600m (2000ft) | ePoe: 600m (2000ft) | PoE: 100m (328ft) | PoE: 100m (328ft) | ||
| Operating Temperature | -40ºF ~ 140ºF / -40ºC ~ 60ºC | -40ºF ~ 140ºF / -40ºC ~ 60ºC | -40ºF ~ 140ºF / -40ºC ~ 60ºC | -40ºF ~ 140ºF / -40ºC ~ 60ºC | ||
| Ingress Protection | IP67 | IP67 | IP67 | IP67 | ||
| Vandal Resistance | IK10 | N/A | N/A | N/A | ||
Product Compatibility
Product Support
LNB9383 & LNB9393 Series - Nocturnal 4 MVF IP Bullet Cameras
