16-Channel 4K Nocturnal IP NVR System with Eight Outdoor 4K (8MP) Metal Cameras with 4x Optical Zoom and Audio Recording

4KHDIP164i
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

bi-ecology

No Monthly Fees

Local recording protects privacy and saves money.

Features

4KHDIP164i-2 4K nocturnal security camera system

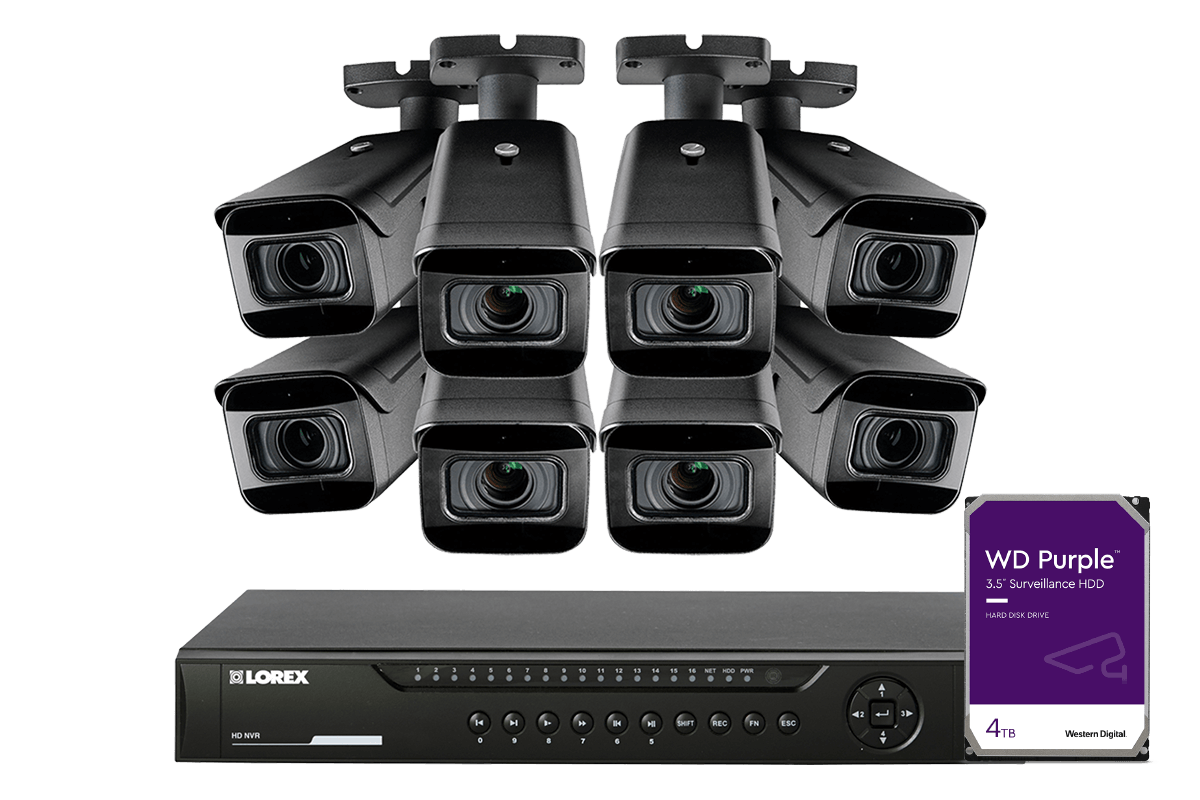

Lorex has you covered - day and night - with this powerful 4K IP security camera system. It includes eight bullet security cameras with motorized varifocal zoom lenses and a sixteen-channel, 4K capable Network Video Recorder (NVR). Designed in all-black heavy-duty metal housings, the Nocturnal cameras in this system offer real-time 30 frames-per-second 4K resolution recording, long-range color night vision, and extreme weather durability. Each of these cameras only require a single ethernet cable to connect them to the NVR, making for an easy and clutter-free installation. Ultimately, a eight-camera security system such as this is perfect for a residential home or small buisness. With 8 open channels on the NVR though, it can used for any type of property.


For a limited time, receive an additional 4TB Hard Drive and a Solar Powered Yard Sign FREE with the purchase of this 4K Nocturnal IP NVR system. The free hard drive is intended for the second hard drive bay in the NVR to provide additional storage space or backup. Please see our How to Upgrade the Hard Drive of Your NVR support page for installation instructions.

Nocturnal Security Cameras logo

4KHDIP164i

SPECIFICATIONS

16

CHANNELS

4K NVR can support up to 16 cameras

8

CAMERAS

8 × 4K bullet cameras

350FT

NIGHT VISION

Maximum night vision range

4TB

HARD DRIVE

Maximum Capacity 2 × 8TB hard drives

>                <div class=

Capture the details you need with 4K resolution

The cameras in this Nocturnal security system use an 8.51 MP image sensor. This sensor is the reason these cameras record crisp 4K video that is well-defined and highly detailed. They also use wide-angle lenses that provide expansive field-of-views.

4K resolution image vs 1080p

4× better than 1080p

The additional resolution provided by your 4K security cameras might turn out to be the difference you need. Should an incident ever occur on your property, you will be able to digitally zoom in further on distant objects when analyzing footage. This is because every frame contains 4× more pixels than you would receive with a 1080p HD security camera. So the details won't blur together as quickly when you zoom in, which means you have a much better chance to capture the specific evidence you require.

30 Frames Per Second real-time NVR recording

Smooth 30FPS recording

The cameras in this system are capable of recording at a real-time 30 frames per second (FPS) recording rate in 4K Ultra HD resolution. This high frame rate will provide you with exceptionally smooth on-screen movement and help capture the precise moment you need for evidence, simply because there are more frames available to choose from.

zoom lens security camera

4

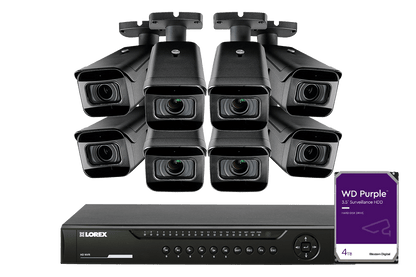

What's Included?

LNR600X

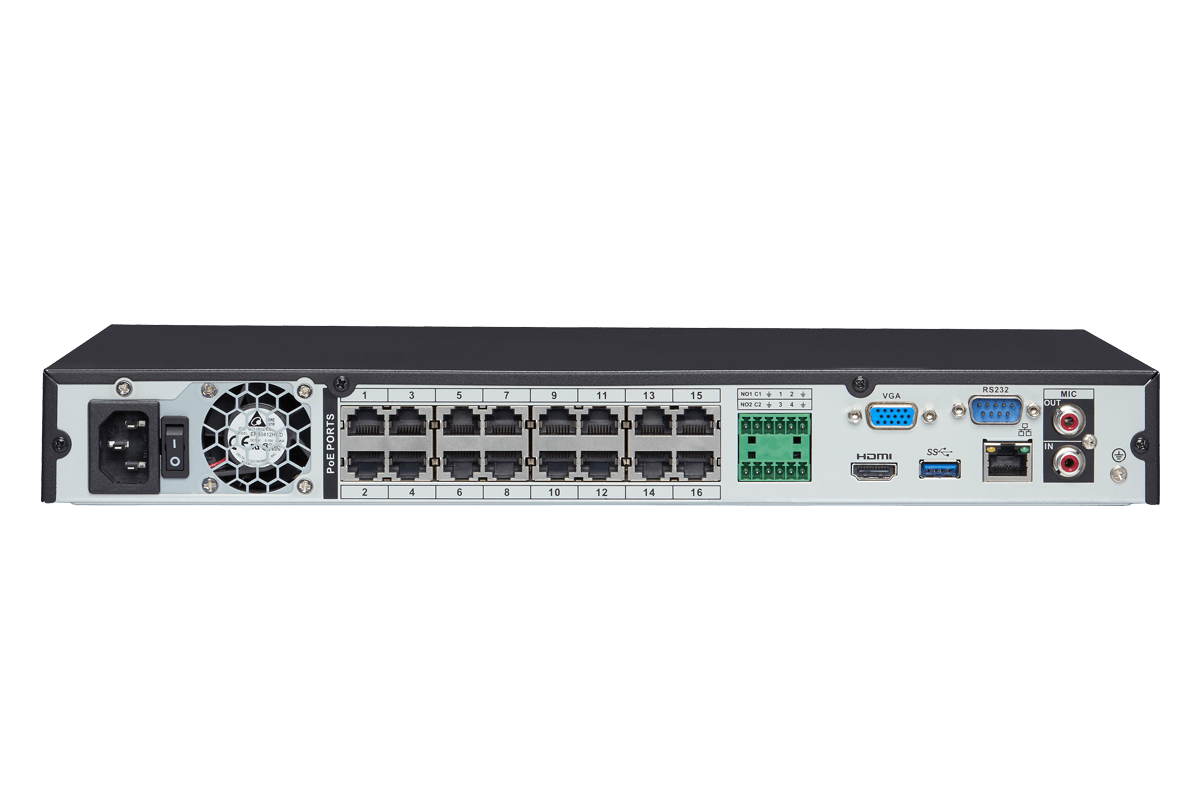

4K-Capable HD Network Video Recorder Features:

  • Real-time recording up to 8MP on all channels - 4× the detail of 1080p @ up to 25/30fps1
  • Support for select Lorex 4K Ultra HD Active Deterrence Network Security cameras4
  • 8/16 built in PoE (Power over Ethernet) ports providing video and power over a single Ethernet cable
  • Lorex Cloud™ apps for live viewing, playback, video recording & snapshots (iPhone® / iPad® / Android™)2
  • PC and Mac compatible – Lorex Cloud™ video management software gives you complete control over your security system from anywhere2
  • 24/7 security-grade pre-installed hard drive3
  • Expandable high capacity storage up to 16TB (max 2×8TB HDD)
  • Automatically detects compatible IP cameras in the network4
  • 4K video output – view multiple HD channels in full resolution on a 4K TV/Monitor
  • H.265 / H.264 video compression offers reduced file size and network strain for remote viewing3
  • Mirror hard drive recording - secure your recordings by backing up footage to an internal hard drive at the same time as recording to the primary hard drive5
  • Pentaplex Operation - view, record, playback, back up & remotely control the system simultaneously
  • Click-and-drag digital zoom in live view and playback
  • Convenient front panel button controls
  • Accurate time stamps with NTP & daylight savings time
  • Instant backup of live video to a USB flash drive
  • Automatic firmware upgrade over the Internet ensures your system is secure and up-to-date6
  • Push notifications of motion events
  • Instant email alerts with snapshot attachment
  • Multi-streaming to conserve bandwidth
  • Continuous, scheduled, and motion recording
  • Dual video outputs (HDMI and VGA) to connect multiple monitors
  • HDMI cable included for simple connection to HD & 4K TVs/Monitors

Each LNR600X Includes:

1 × NVR
1 × AC power cable
1 × Remote control
1 × USB mouse
1 × Ethernet cable
1 × HDMI cable
Quick start guides

1. 8MP IP cameras are required to take advantage of 4K recording.
2. Requires a high speed internet connection and a router (not included). A minimum upload speed of 3.5Mbps is required for the best video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/support
3. Recording time may vary based on recording resolution & quality, lighting conditions and movement in the scene.
4. Compatible with select Lorex PoE HD IP cameras. For a list of compatible cameras, please visit www.lorex.com/compatibility
5. Mirror recording requires a second hard drive (not included) to be installed in the NVR. Mirrored hard drive must be as large or larger than the primary hard drive to backup all recordings. Backup begins from when the mirrored hard drive is installed and configured.
6. Both firmware and software must be updated to latest version to ensure remote connectivity. Firmware updates are pushed to the NVR automatically over the Internet (available at www.lorex.com). Always update to the latest software after upgrading the NVR firmware.

LNB9272S

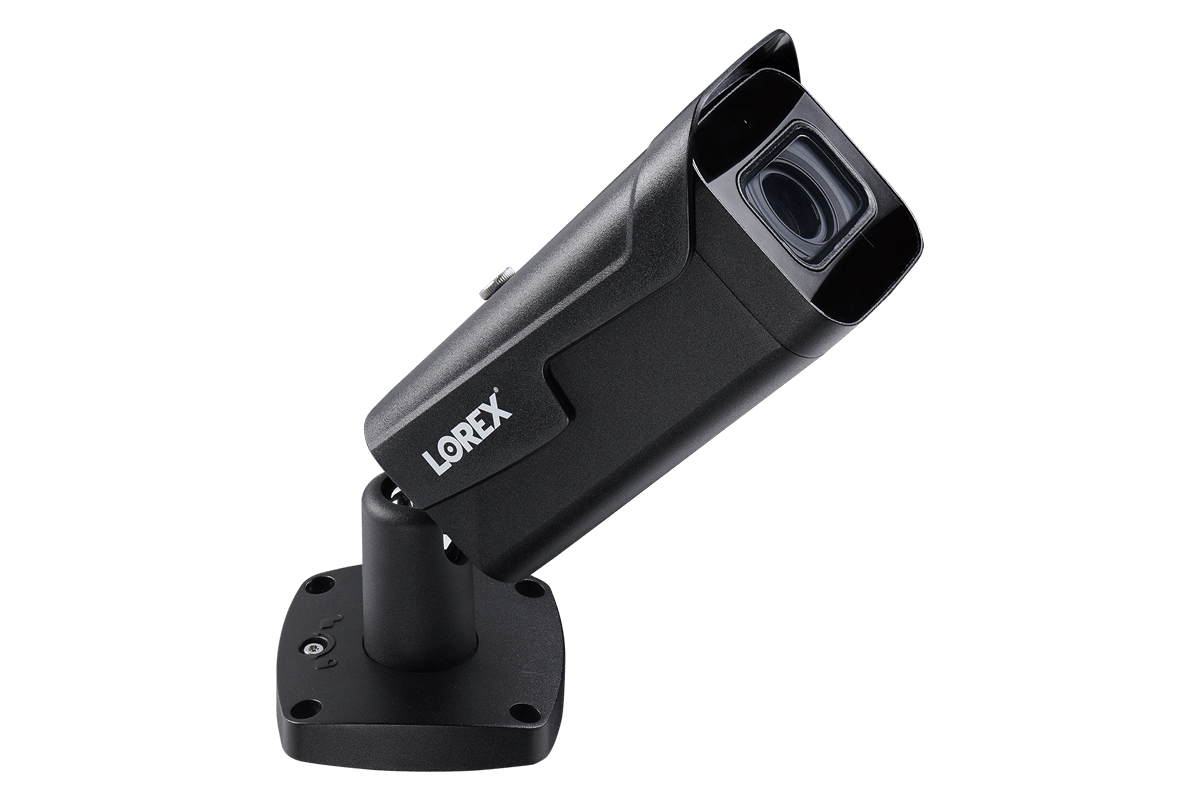

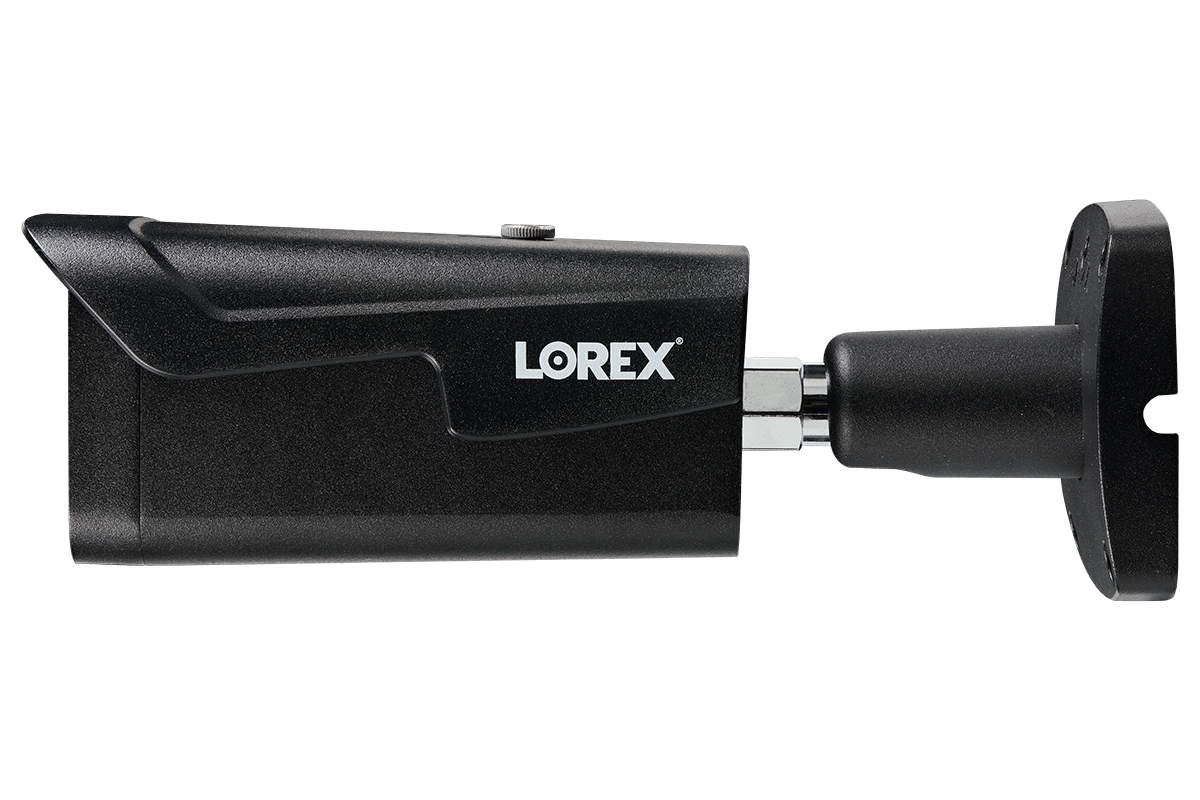

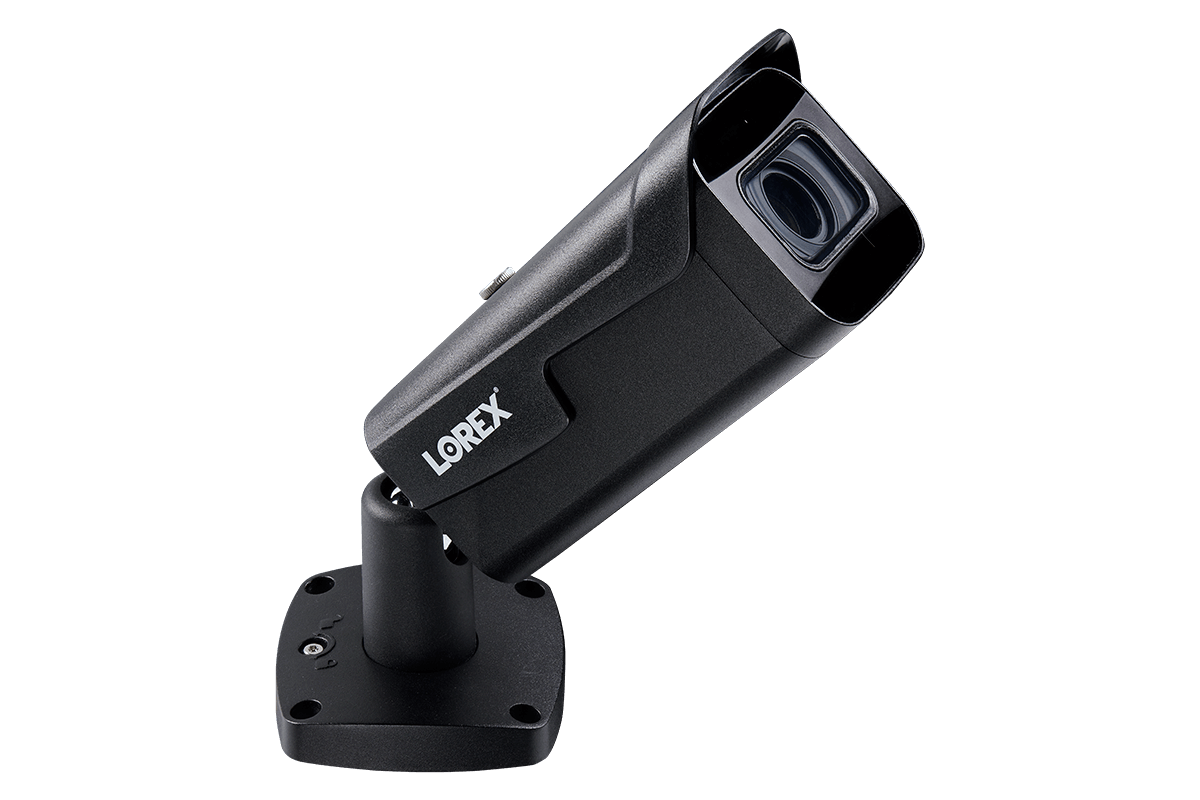

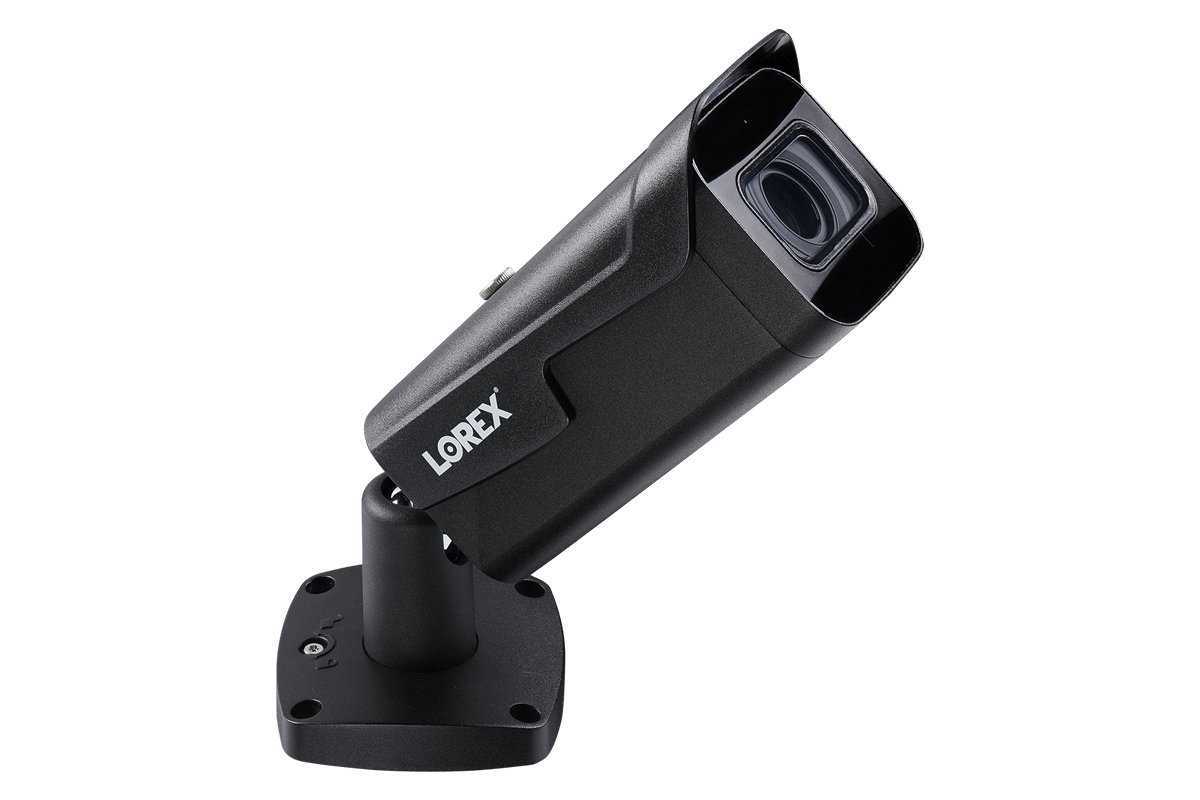

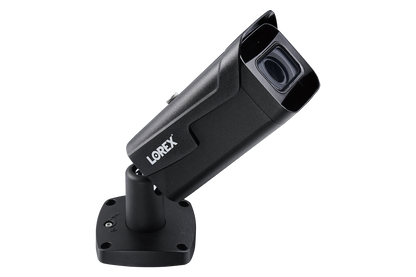

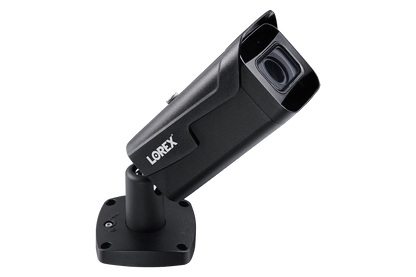

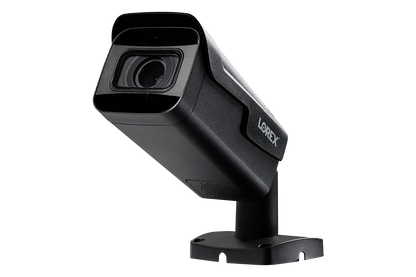

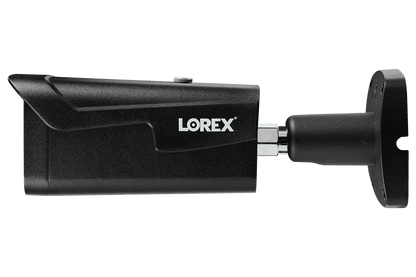

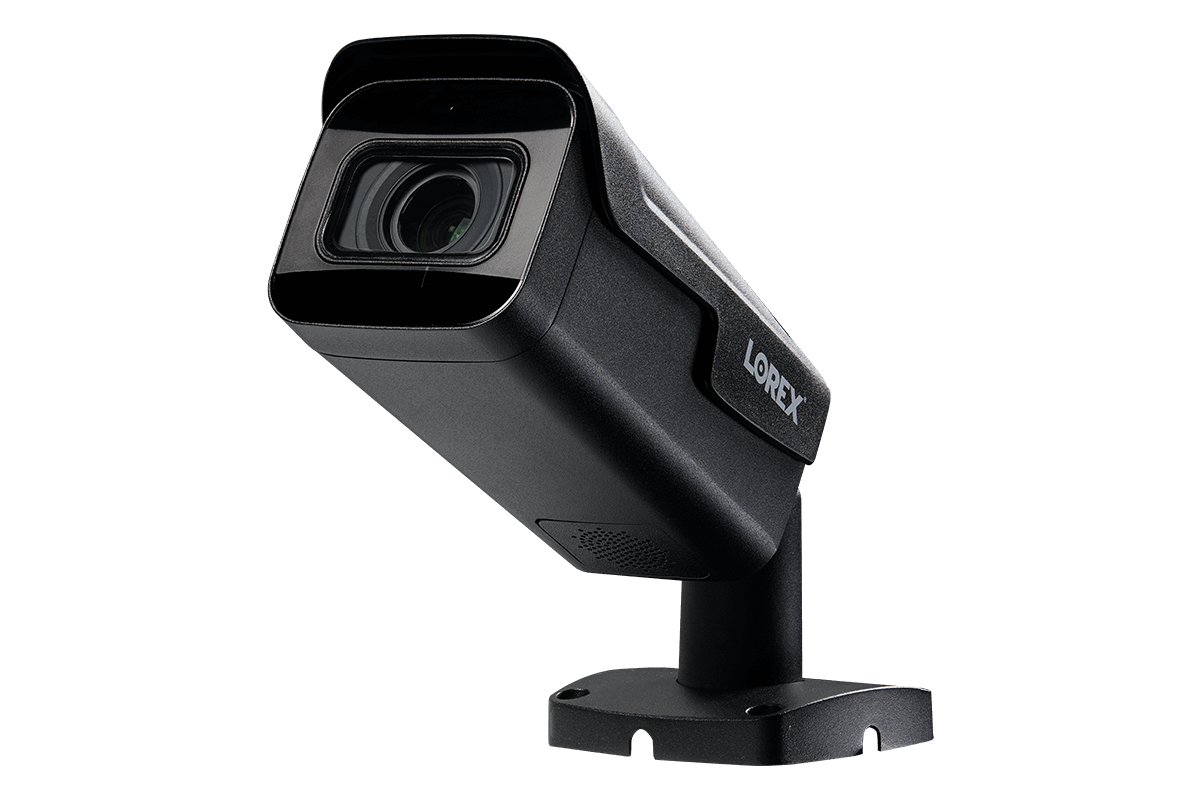

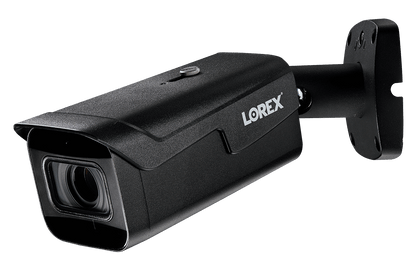

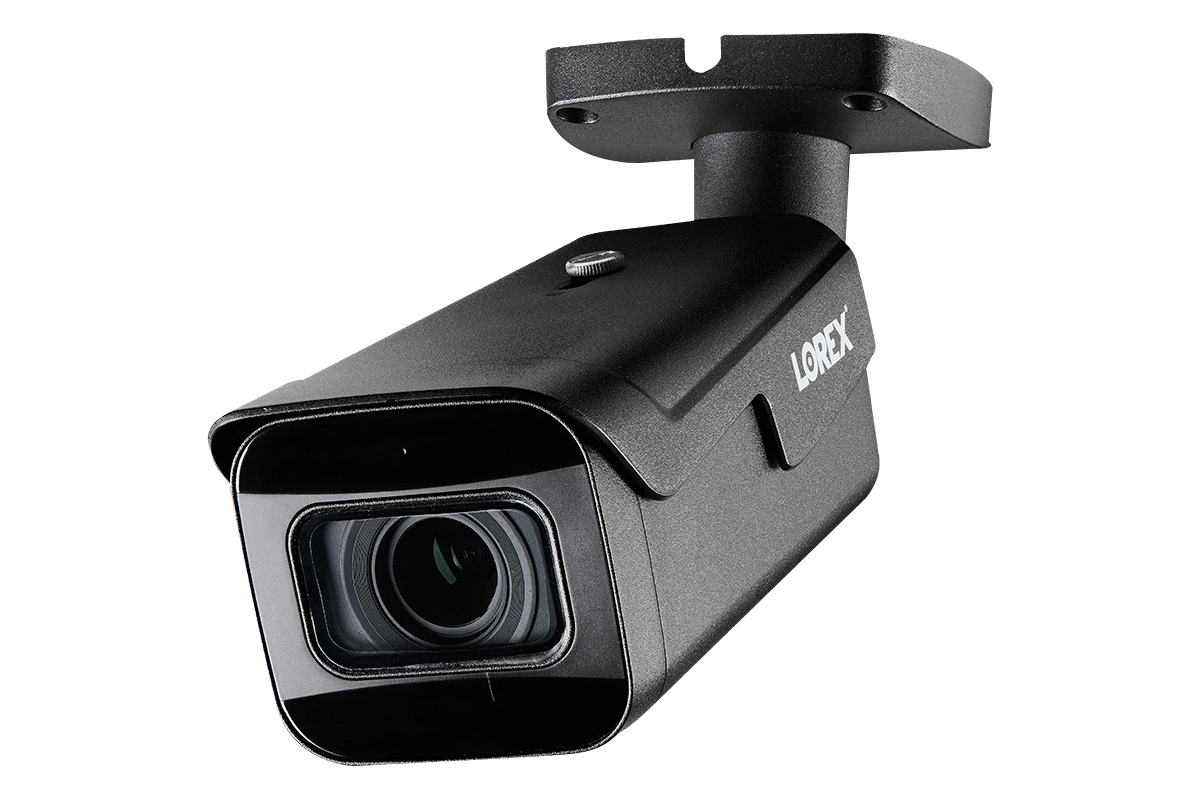

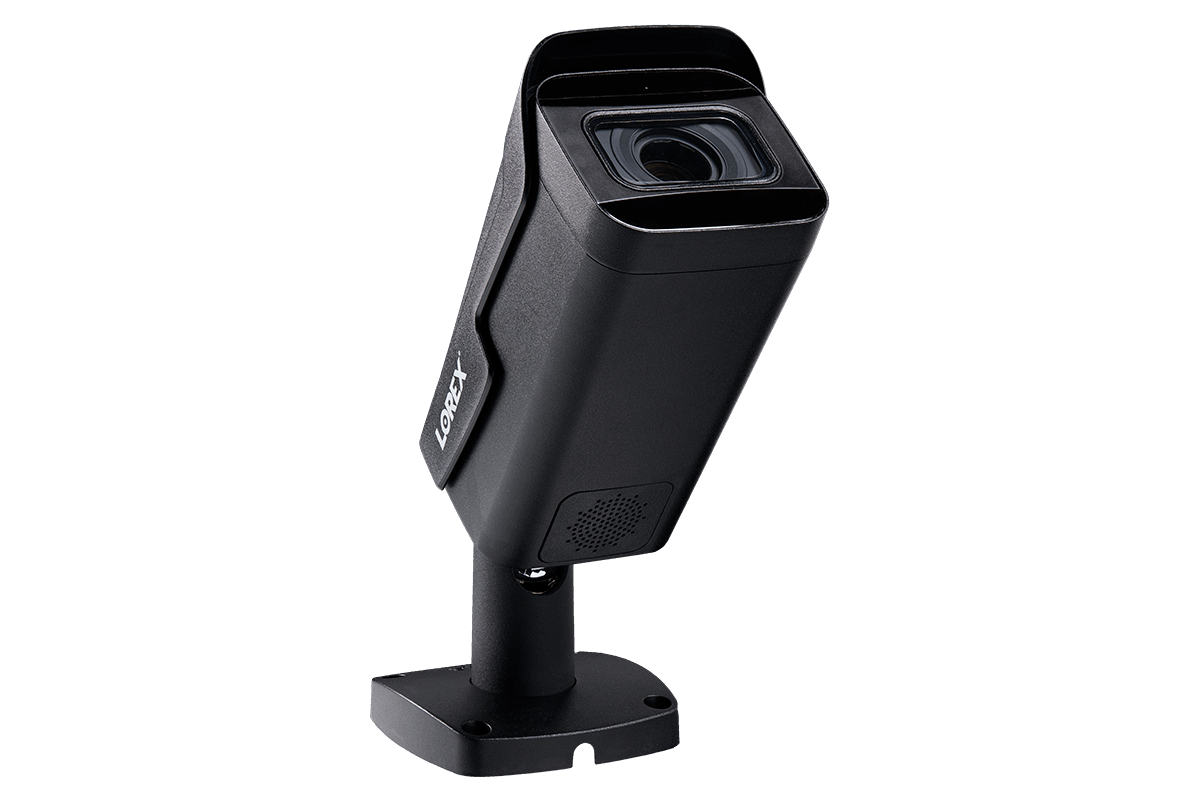

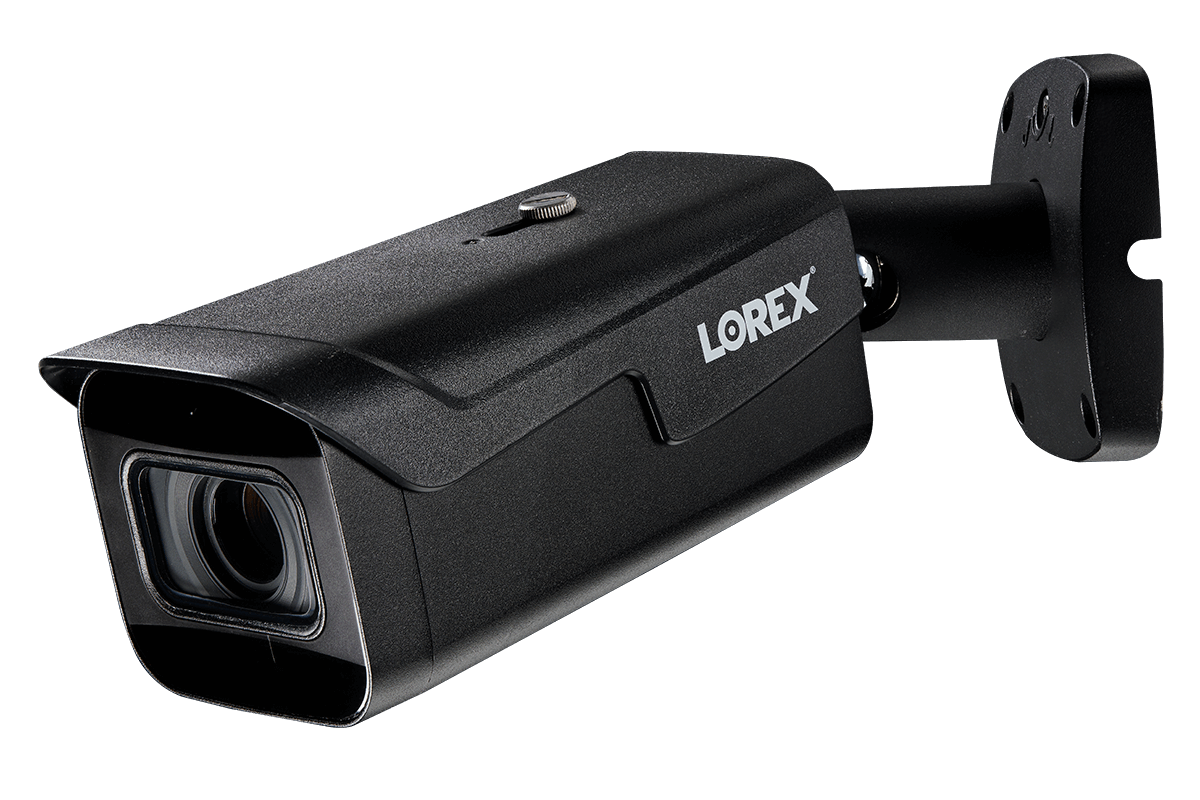

4K Motorized Varifocal HD IP Bullet Security Camera Features:

LNB9272
  • Ultra HD 4K image sensor delivers 4× the detail of 1080p1
  • 4K video recording provides ultra HD quality even when zoomed, offering clearer identification in video evidence
  • Color Night Vision™ delivers full color nighttime video for improved recognition of objects in low light conditions2
  • IR night vision range up to 350ft (107m) in ambient lighting3
  • 3D-DNR Digital Noise Reduction for clear, accurate images
  • HDR (High Dynamic Range) technology creates more detail in high-contrast scenes
  • H.265 offers significant bandwidth and video storage savings over older compression technologies, extending the amount of video stored on the hard drive4
  • Intelligent compression saves recording space by optimizing video performance based on available bandwidth
  • Remote zoom & focus, 2.7-12mm motorized varifocal AI lens, 102-39°(H) field of view

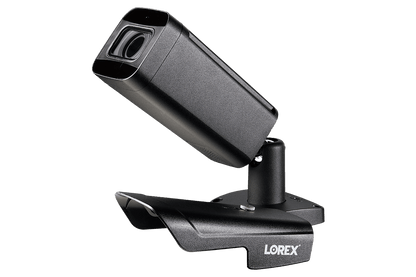

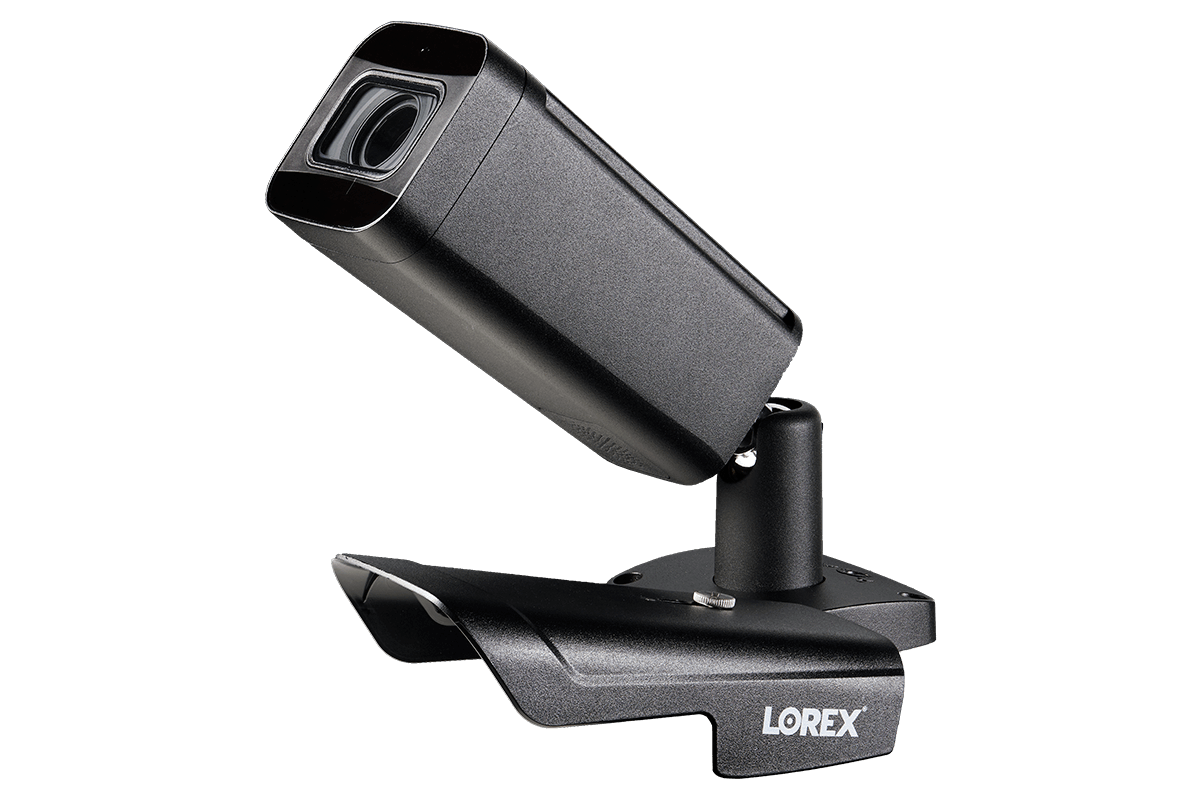

  • Ceiling / wall mountable
  • Simple camera installation using a single CAT5e cable with Power over Ethernet (PoE)
  • 60ft (18m) CAT5e cable included per camera
  • Extend the camera's video and power with a single Ethernet cable up to 300ft (91m) from the recorder
  • Cold climate capability (-22F / -30°C)
  • Weatherproof metal housing for outdoor & indoor installation (IP67 Rated)5
  • ONVIF profiles S & T approved
Effective pixel area 3840(H)x2160 (V) IR LED quantity 4pcs
IR LED viewing angle 2× 45°, 2 × 100° Camera FOV (H / V / D) H:102°~39°; V:55°~22° D:125°~42°
Imaging Device 4K, 1/2.5 Inch Effective Pixels 3840(H)x2160 (V)
Imager Type CMOS Image Readout Progressive Scan
Day/Night Auto(ICR)/Color/B/W Field of View (H) H:102°~39°
IR Illumination 76m Video Output RJ45
Electronic Shutter Range 1/3(4)~1/100000s Lens Type Motorized
Lens Mount Board-in Type Iris Type Fixed
Focal Length 2.8-12mm Aperture F1.8~2.88
Video Compression H.265 / H.264 / MJPEG Aspect Ratio 16 : 9
Frame rates (Maximum) 4K (8mp) @ 30fps Dynamic Range Up to 90dB
Optical Zoom Digital Zoom 16x
Camera Body Material Aluminum Alloy Power Input 12V DC
Power over Ethernet PoE (802.3af) Power Consumption (Max) 7.8 W
Storage Temperature -30°C~+60°C Operating Humidity Less then 95% RH
Operating Temperature -30°C~+60°C Cold Start Temperature -30°C

Each LNB9272S Includes:

1 × IP Bullet Camera
1 × 60ft Ethernet Cable
4 × Mounting Screws
4 × Drywall Anchors
1 × Allen Key
1 × Mounting Template

1. For the most up-to-date list of compatible recorders, visit www.lorextechnology.com/compatibility
2. Full color nighttime video typically switches to black & white IR night vision below 1 lux to ensure optimal low-light image quality.
3. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection / absorption level of object. In low light, the camera will switch to black and white.
4. You must connect the camera to a supporting H.265 NVR to take advantage of H.265 compression. For instructions on enabling H.265 compression, visit lorextechnology.com/support
5. Not intended for submersion in water. Installation in a sheltered location recommended.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown. Images are simulated.
