1. 4K (8MP) Ultra HD cameras are compatible with select Lorex 4K HD DVR recorders. For a full list of compatible recorders, visit www.lorextechnology.com/compatibility
2. Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
3. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection / absorption level of object. In low light, the camera will switch to black and white.
4. Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Corporation does not assume liability for any use of its products that fails to conform with local laws.
5. Not intended for submersion in water. Installation in a sheltered location recommended.
6. This camera should only be used with the supplied cable and power adapter, or an extension cable meeting the specifications listed in the Quick Setup Guide / Installation Guide. The use of any other power adapter or cablingwill adversely affect performance.
* Per camera in multi-camera packs.
** A multi-camera power adapter that provides power to multiple cameras or individual power adapters may be provided depending on product configuration.










Features

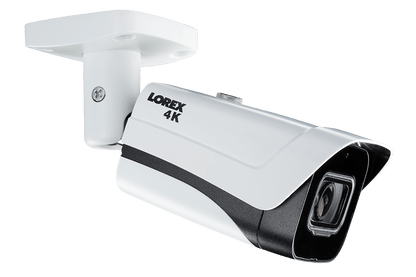

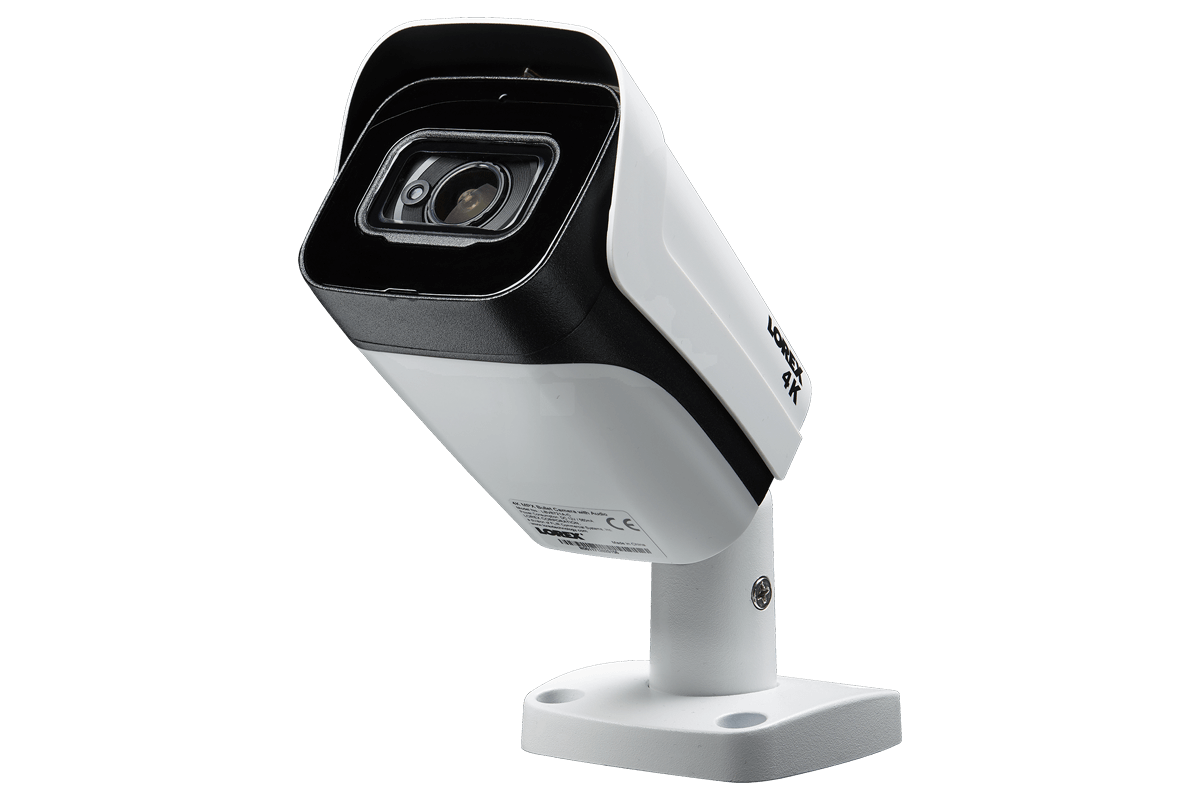

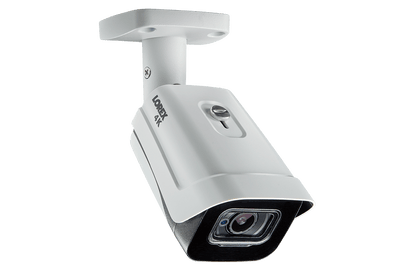

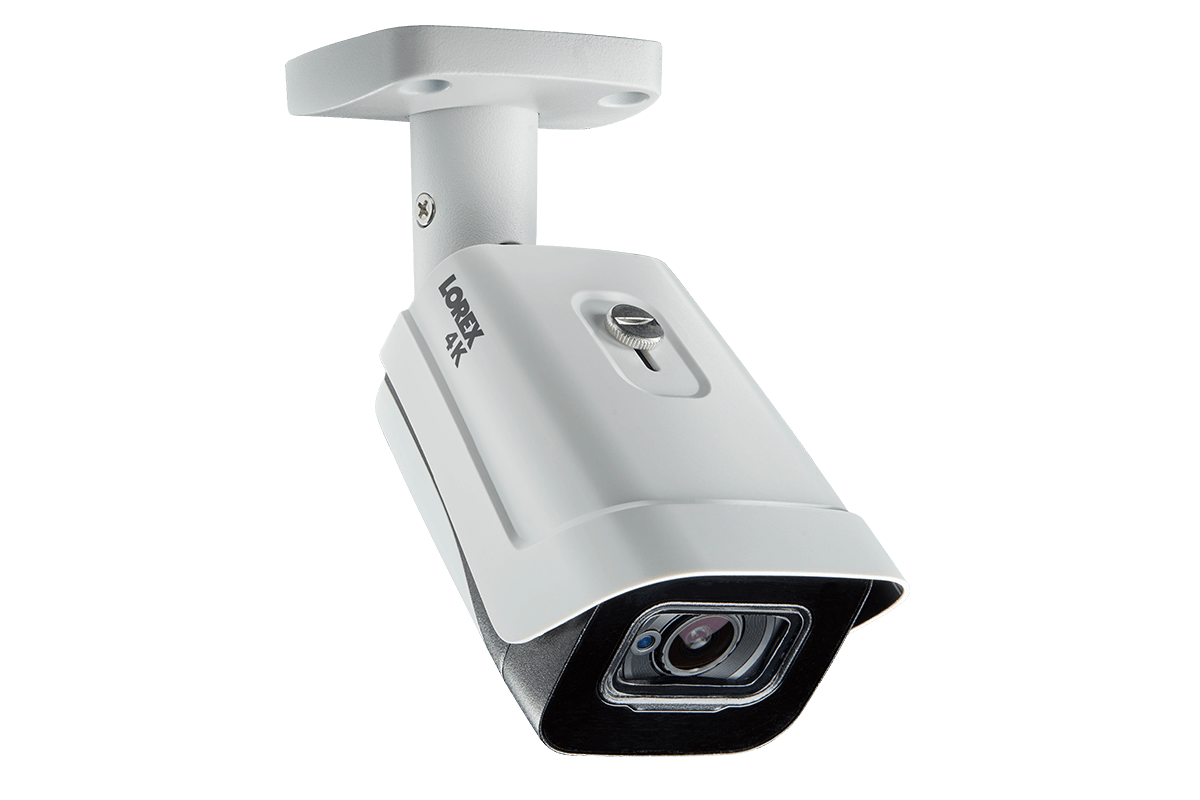

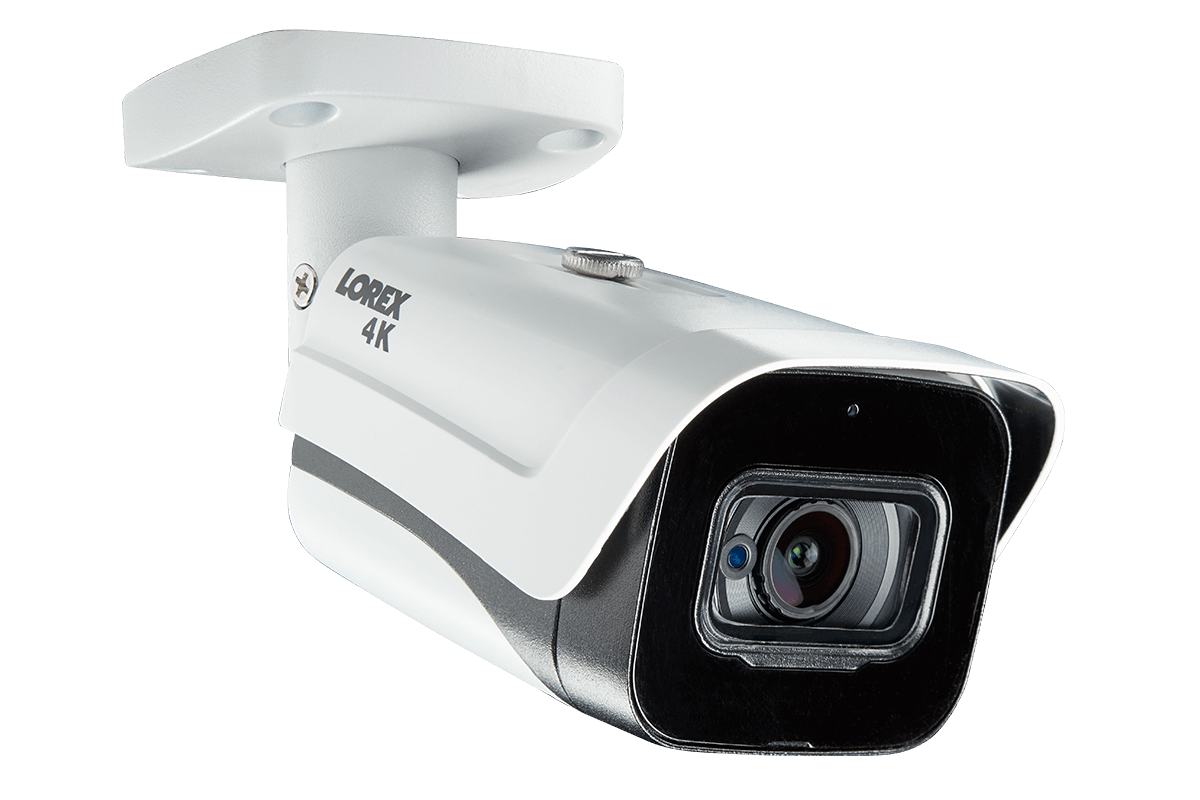

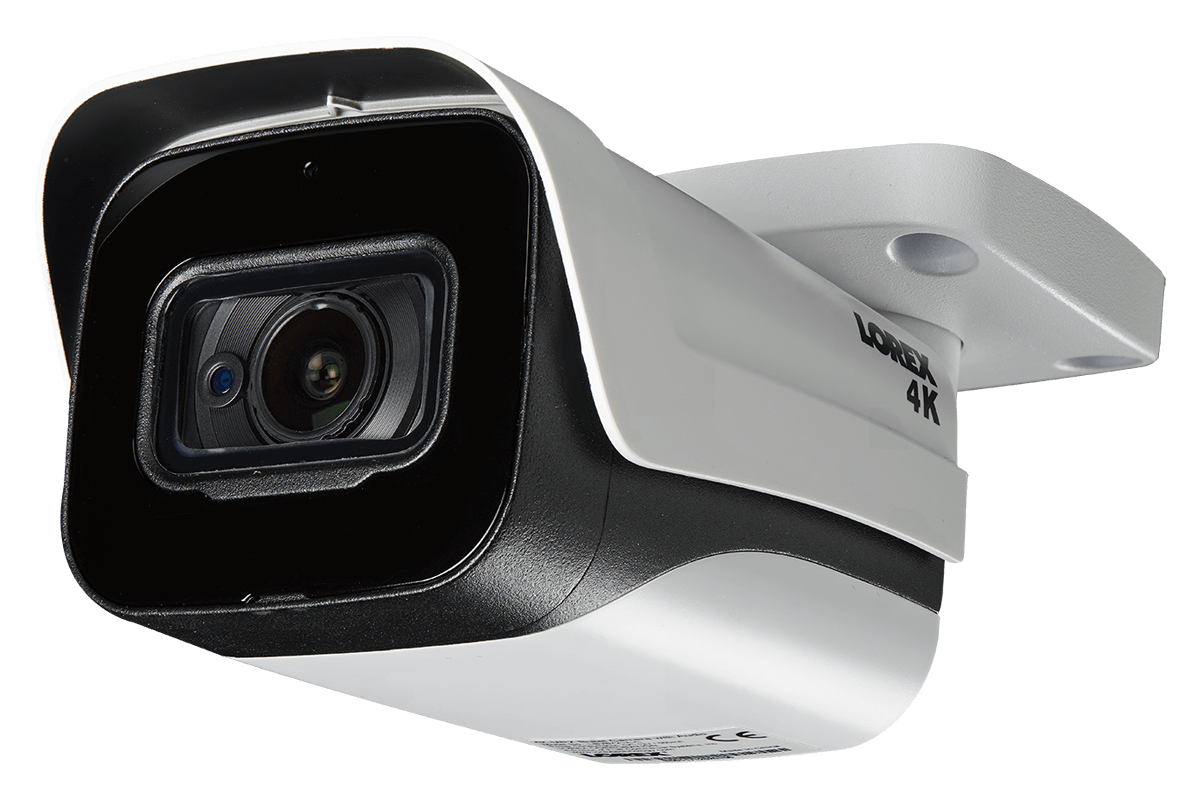

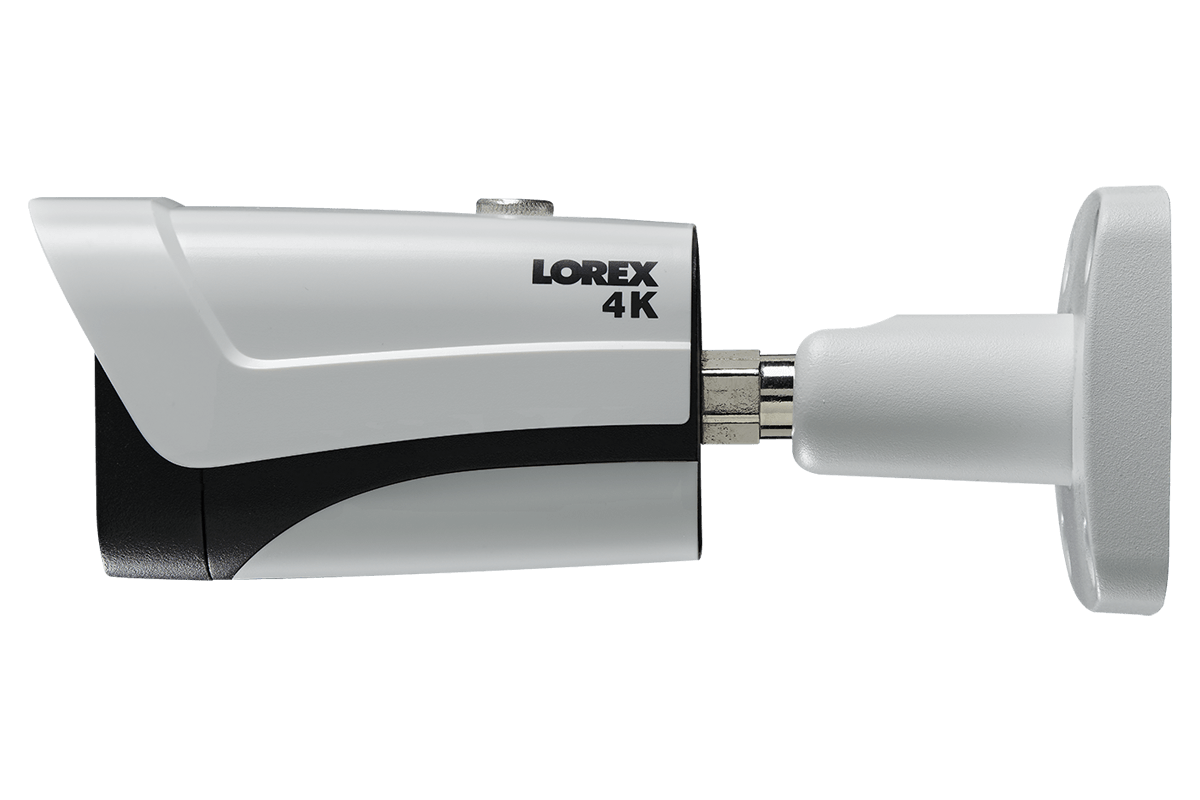

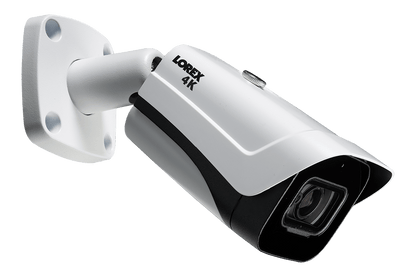

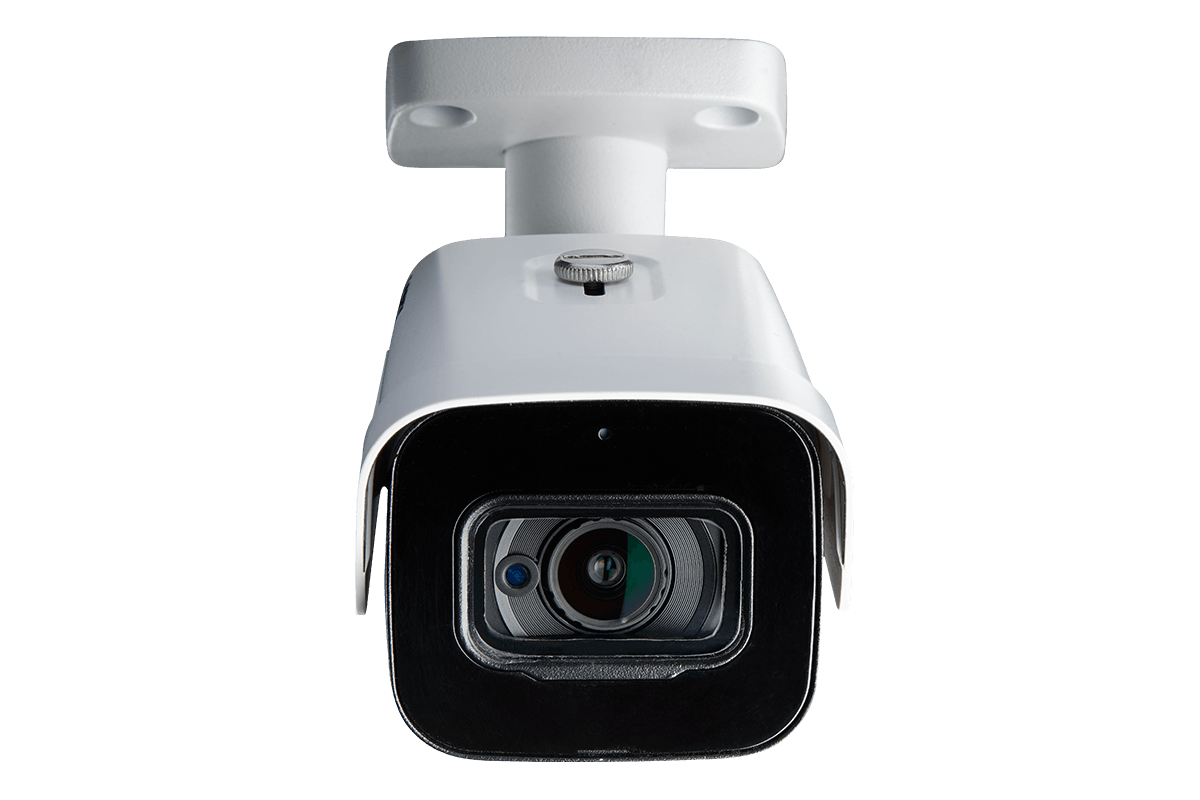

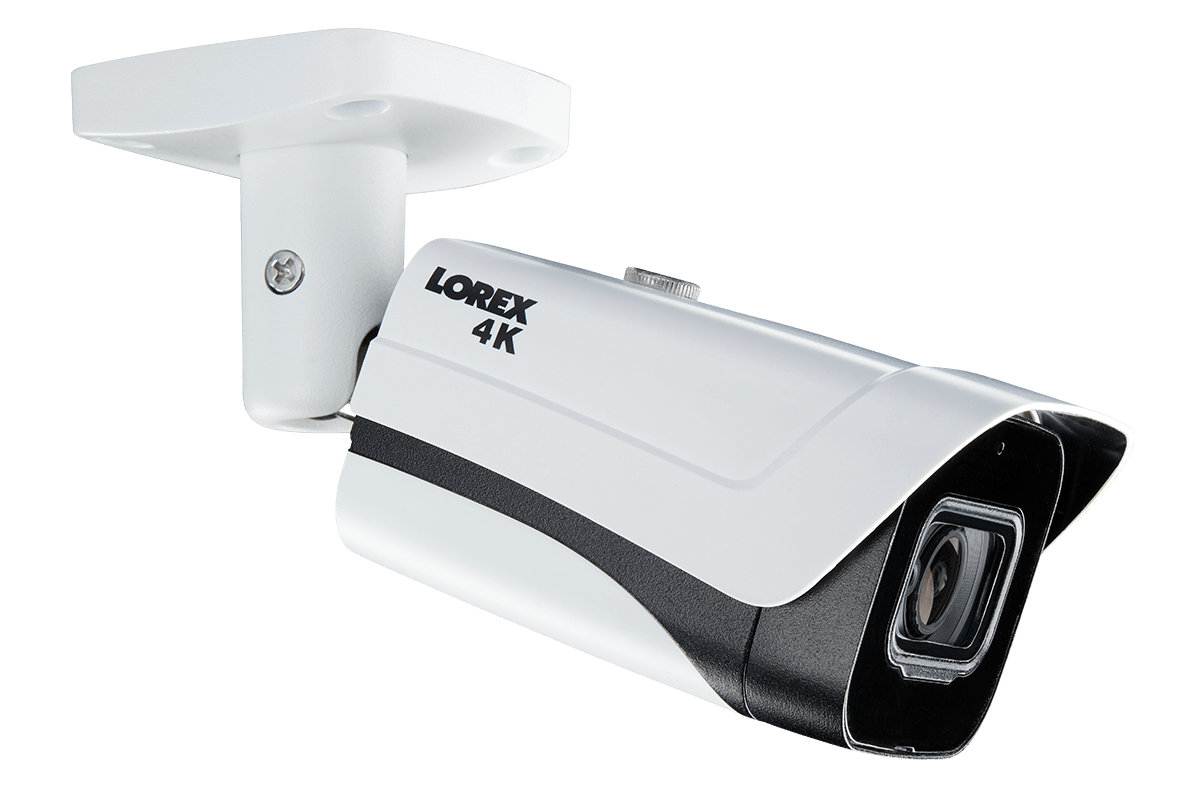

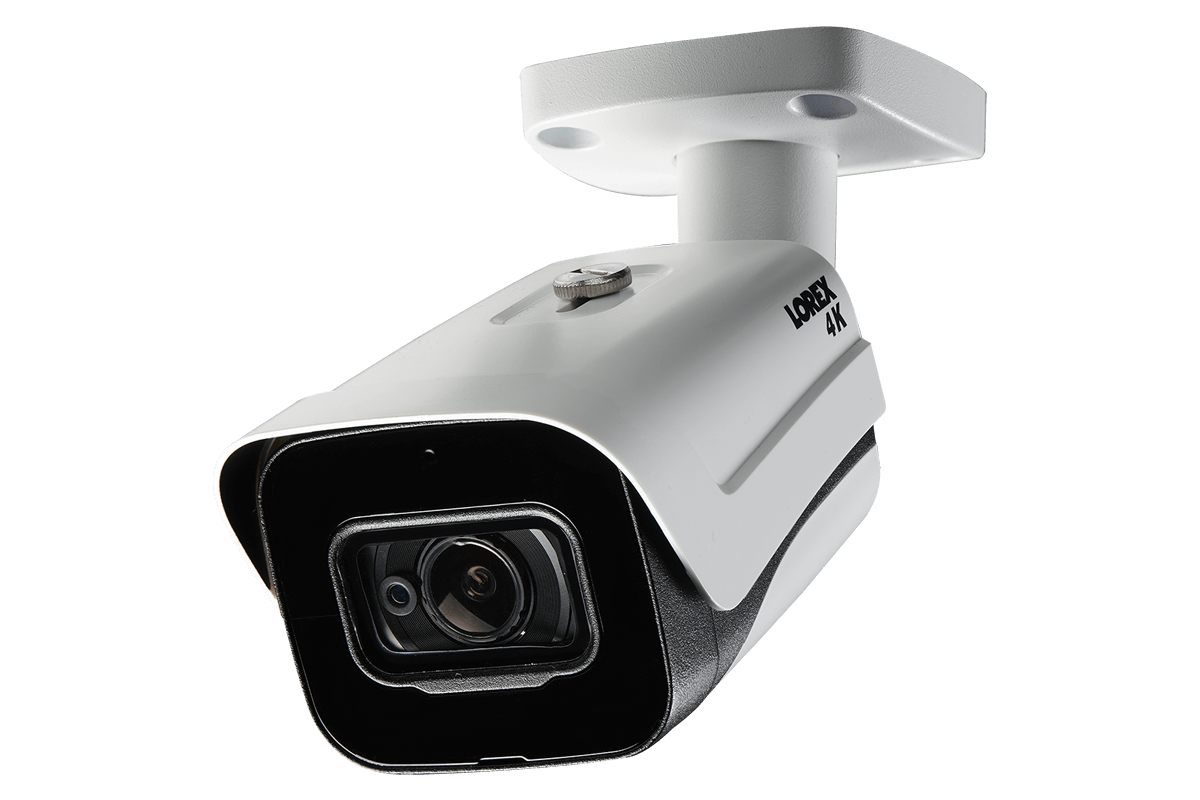

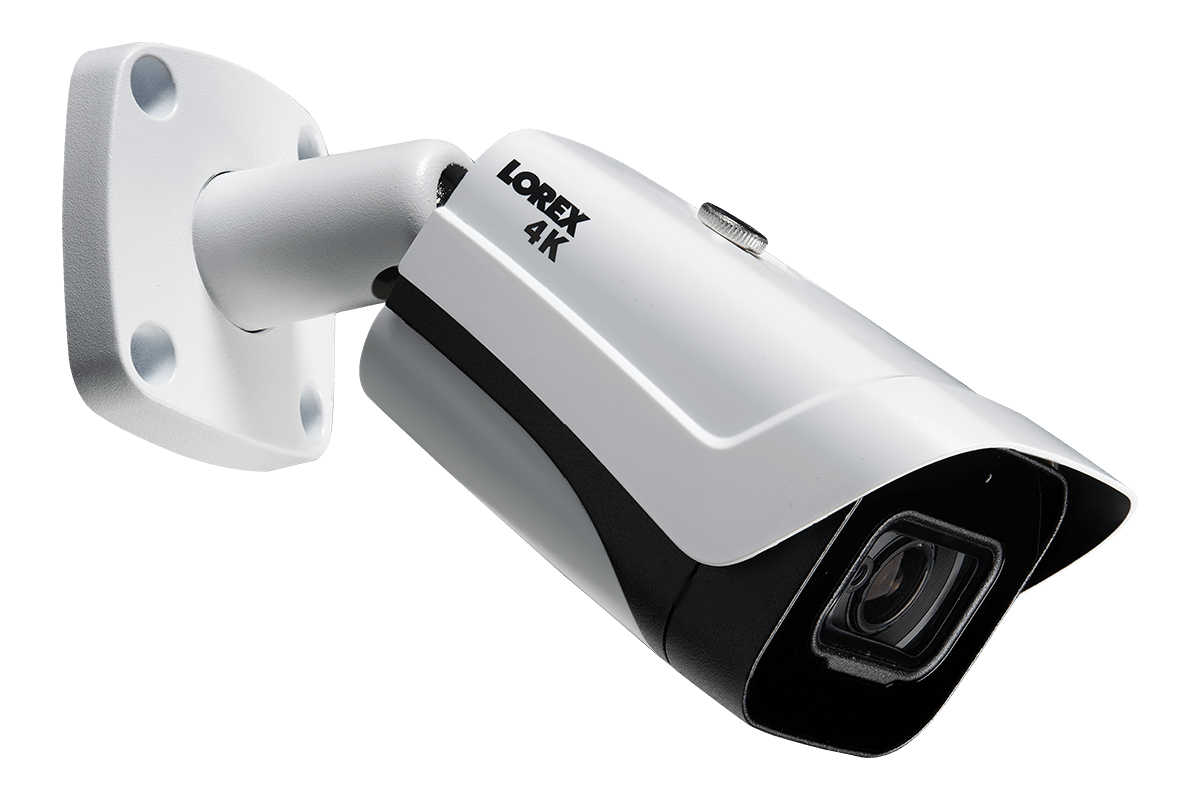

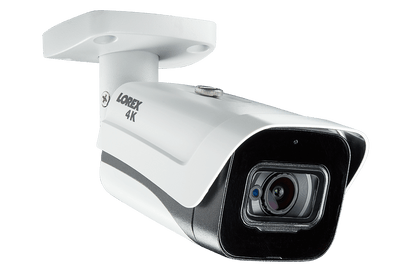

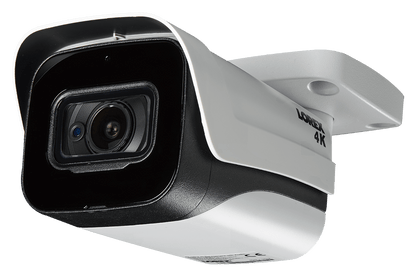

Monitor your property like never before with these outstanding 4K Ultra HD security cameras from Lorex. These top-of-the-line security cameras feature 4K (8MP) HD resolution and a built-in microphone for listen-in audio functionality. The weatherproof cameras (IP67-rated) deliver exceptional image quality day and night, with Color Night Vision in low light conditions and long-range IR night vision in complete darkness.
LBV8721AB-2PK
SPECIFICATIONS
8 MP camera
Indoor / outdoor security cameras
4K
RESOLUTION
4x the resolution of HD 1080p
150FT
NIGHT VISION
Maximum night vision range
87°
FIELD OF VIEW
Ideal for monitoring wide, open areas

Ultra HD security camera
The main reason to purchase a security camera is to capture useful evidence should an incident ever occur on your property. Well, your 4K camera will do just that. They are capable of recording a 4K pixel resolution of 3840 × 2160 - that's 4× the amount of pixels of 1080p resolution. A foremost benefit of this higher resolution is that it allows for greater digital zooms while reviewing video. This means that details in the distance of the video will remain visible for longer as the digital zoom is applied.

4K resolution is here
These powerful MPX security cameras are capable of 4K video. This ensures the highest level of detail in your recordings. The higher pixel count will not only provide you with a new level clarity, it will add an increased ability to digitally zoom in on distant objects. So if an incident occurs, 4K resolution will offer the best chance to capture distinct details for evidence.
See at night - in color!
With the help of some external lighting, your security cameras will automatically utilize our Color Night Vision™ (CNV) technology. CNV provides extra details for evidence, such as the color of clothes or the color of a car. Without any external lighting sources, the camera will automatically switch to infrared black and white night vision.


Long-range infrared night vision
Expect to see up to 150ft (46m) in ambient nighttime conditions and up to 100ft (31m) in total darkness thanks to the large 1/2" image sensor and two especially powerful 850nm infrared LEDs. These LEDs essentially flood the scene in front of the camera in infrared light, which, although invisible to the naked eye, can be detected by the camera's image sensor. Smart IR imaging also ensures that close-up objects or people will not be over-exposed by the infrared lights.

Expanded coverage with built in microphone
Not only will you receive 4K video footage with these security cameras, a built-in microphone will let you capture audio as well.* This feature can provide you with more information (such as voices) should an intrusion ever occur. It will also help you to interpret events (even if they occur off-screen).
*Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its products that fails to conform with local laws.
Image Sensor | 4K (8MP), 1/2" CMOS |
Video Format | NTSC / PAL |
Effective Pixels | H: 3840 V: 2160 |
Resolution | 4K (8MP) @7fps / 2K (5MP) @15fps |
Scan System | Progressive |
Sync System | Internal |
S/N Ratio | >65dB (AGC Off) |
Iris | AES |
AES Shutter Speed | 1/30 ~ 1/100,000 sec. |
Min. Illumination | 0.01 Lux without IR LED, 0 Lux with IR LED |
Video Output | MPX |
Lens / Lens Type | 3.6mm F1.6 / Fixed |
Field of view (Horizontal) | 87° |
Termination | BNC Type |
IR LED Qty / Type | 2 pieces (High Power) / 850nm |
Night Vision Range | 150ft (46m) / 100ft (31m) |
Power Requirement | 12V DC ±10% |
Power Consumption | Max. 585mA (w/IR), 7.0W |
Operating Temp. Range | -22°F ~ 140°F / -30° ~ 60°C |
Operating Humidity Range | <90% RH |
Environmental Rating | Weatherproof (IP67) |
Weight (including stand) | 0.7lbs / 0.3kg |
Each LBV8721AB Includes:
