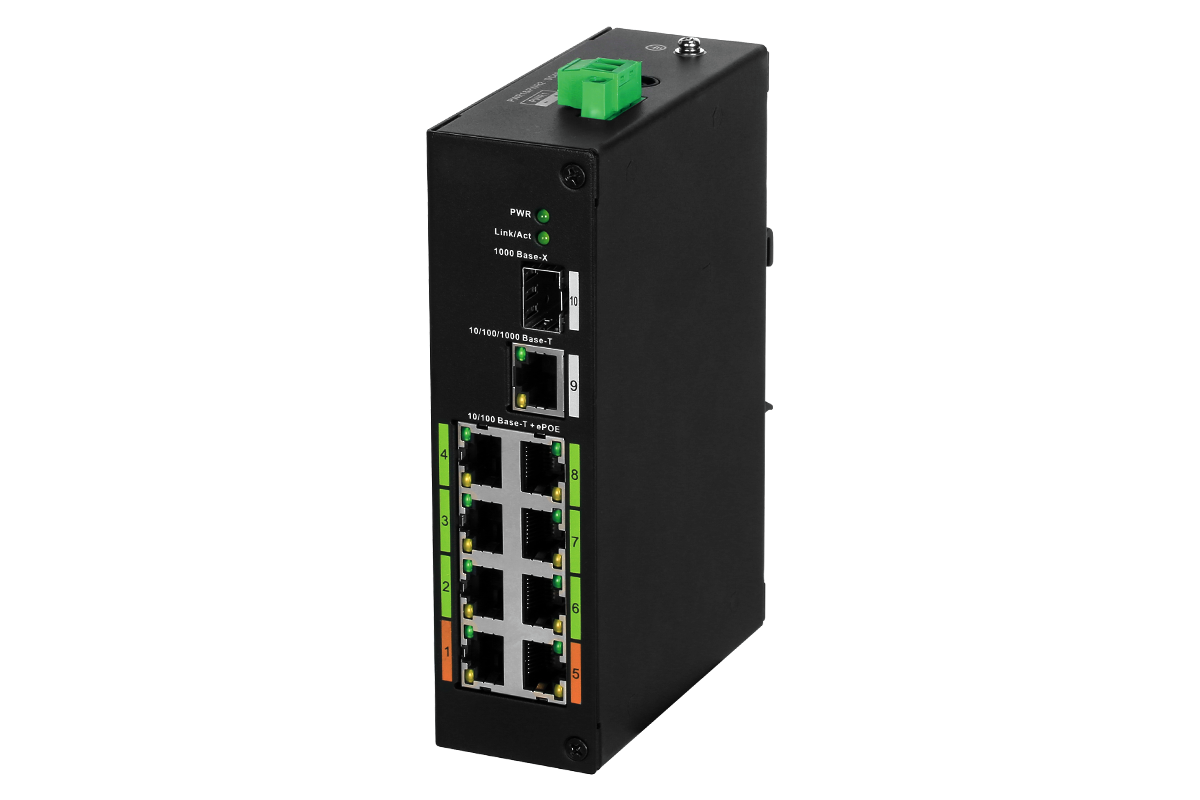

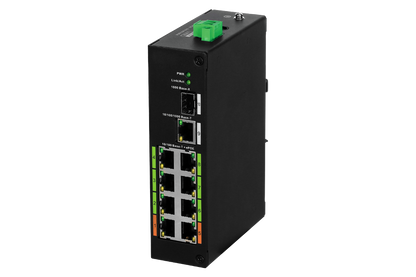

Lorex 8-Port ePoE Switch

AEX8
Lorex for business badge

bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

bi-ecology

No Monthly Fees

Local recording protects privacy and saves money.

Features

Expand the reach and simplify the installation of your NVR security camera system with this 8-Port ePoE switch. This switch can provide PoE (Power-over-Ethernet) transmission 800 meters at the speed of 10Mpbs or 300 meters at the speed of 100Mbps.



ECO-FRIENDLY

ECONOMIC

EXTENDED

ETHERNET OVER COAX*


*Coaxial-To-Ethernet Converter is needed (sold separately)




Save on Power Consumption

Power consumption per switch is 3 Watts. In total, you can save 21 Watts when using this ePoE switch with your ePoE IP Camera.


One day saves
0.5kWh
One month saves
15kWh
One year saves
182.5kWh
Reduce carbon emission
143kg per year

Eco-Friendly ePoe

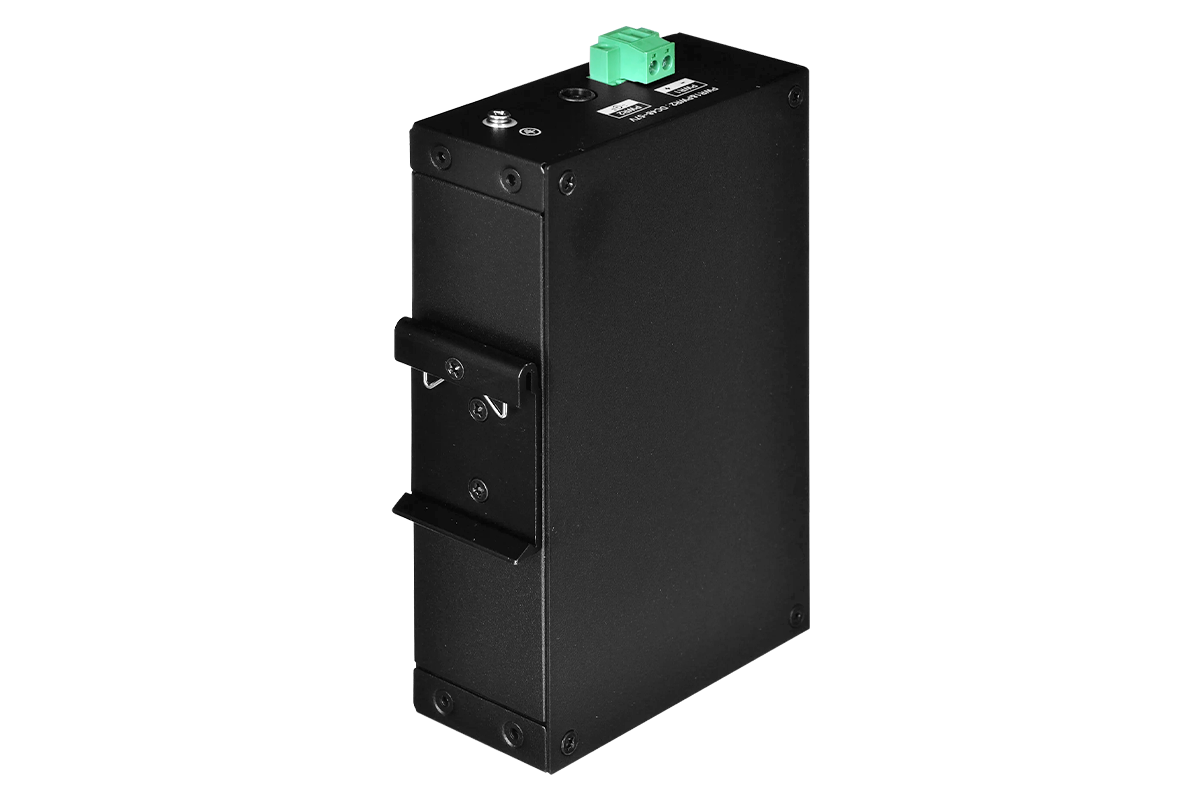

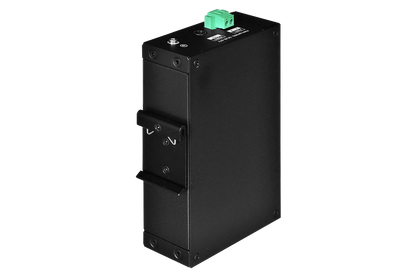

din rail mounting

Quick and Easy Mounting

Easily mount this ePoE Switch using the DIN rail mounting. Simply lay the switch hook on the rail then press in to secure the buckle into the slide.


Note: The AEX8 ePoE switch supports the slide width of 28mm (1.1").



Flexible Surveillance System Design

Use this PoE switch to extend the distance of your cameras from your recorder. With ePoE support up to 800m, this switch allows for more flexible surveillance system design, improves reliability, and saves on construction and wiring costs.



Typical Application:

Option 1: Data + Power Hi-PoE
100m / 328ft
Option 2: Data + Power IEEE
200m / 626ft
Option 3: Data + Power E100 (Max. bandwidth: 100Mbps)
300m / 984ft
Option 4: Data + Power E10 (Max. bandwidth: 10Mbps)
800m / 2624ft


Product Specifications

AEX8 Dimensions
  • Supports long distance PoE transmission up to 800m with ePoE technology
  • Layer-two ePoE switch
  • MAC auto study and aging, MAC address list capacity is 8K
  • Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
  • Supports IEEE802.3af, IEEE802.3at, Hi-PoE standard
  • Industrial wide temperature design
  • Port indicator light is to display the status of current transmission mode for the port, which includes IEEE, E100 and E10
Ethernet Port 1*1000 Base-X
1*10/100/1000 Base-T
8*10/100 Base-T(PoE power supply)
PoE Power Consumption Port1,5≤60W, Port2,3,4,6,7,8≤30W, Total≤120W
PoE Protocol IEEE802.3af, IEEE802.3at, Hi-PoE
Switching Capacity 8.8Gbps
Packet Forwarding Rate 4.17Mpps
Packet Buffer Memory 2.75Mb
MAC Table Size 8K
Application Humidity 10%~90%
Power DC48~57V power adapter
Lightning Protection Common Mode 4KV
Differential Mode 2KV
Working Temperature -30°C~65°C
Weight 0.59kg
Dimensions (H×D×W) 5.9 × 3.9 × 1.6"
150 × 100 × 42mm
Working Mode LED Indicator
IEEE mode Normally on
E100 On for 3 seconds, off for 1 second
E10 On for 1 second, off for 1 second

What's Included?

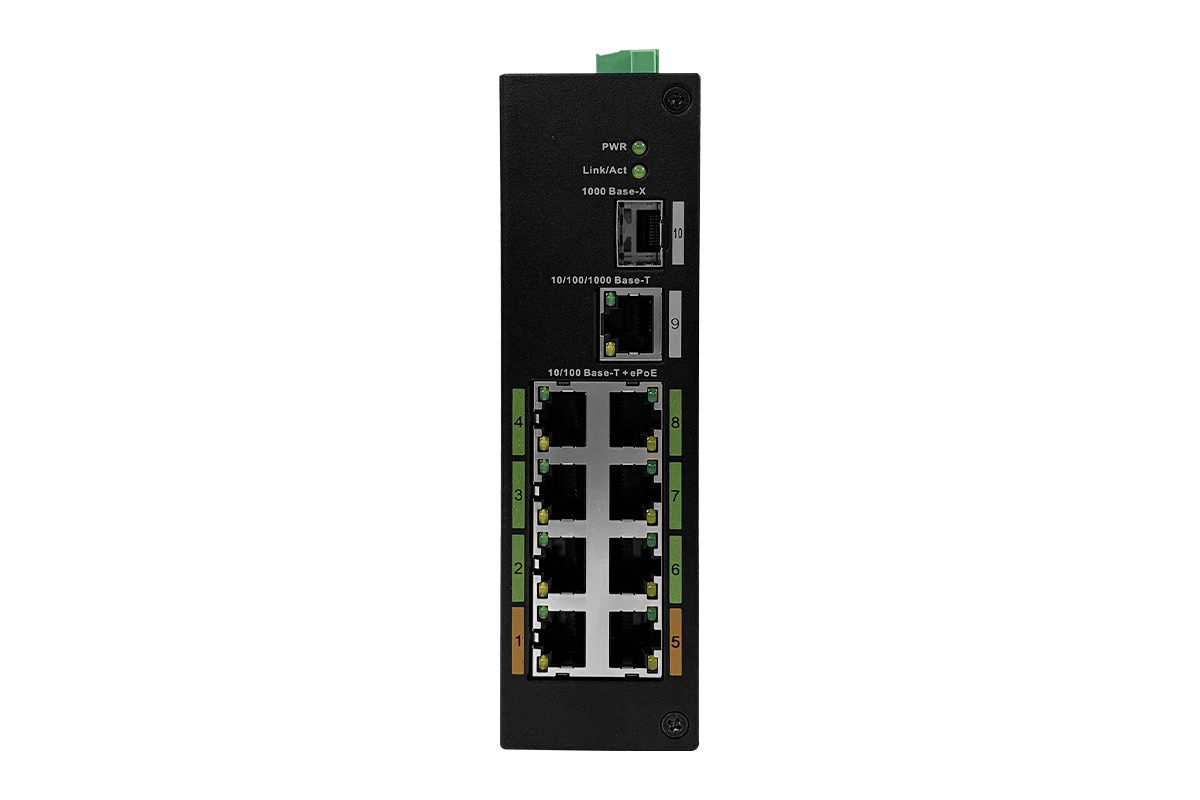

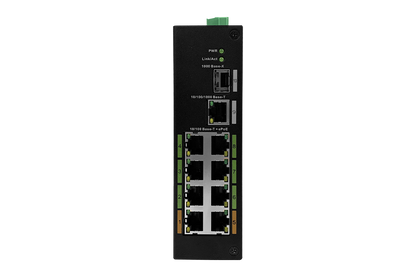

AEX8 Front Panel AEX8 Top Panel
  1. 10/100 Base-T + ePOE
  2. 100/1000 Base-X
  3. 10/100/1000 Base-T
  4. Fiber Port Status Indicator
  5. Power Status Indicator
  6. PWR1
  7. PWR2
  8. Ground Wire Terminal

Package Contents:

AEX8 Switch × 1

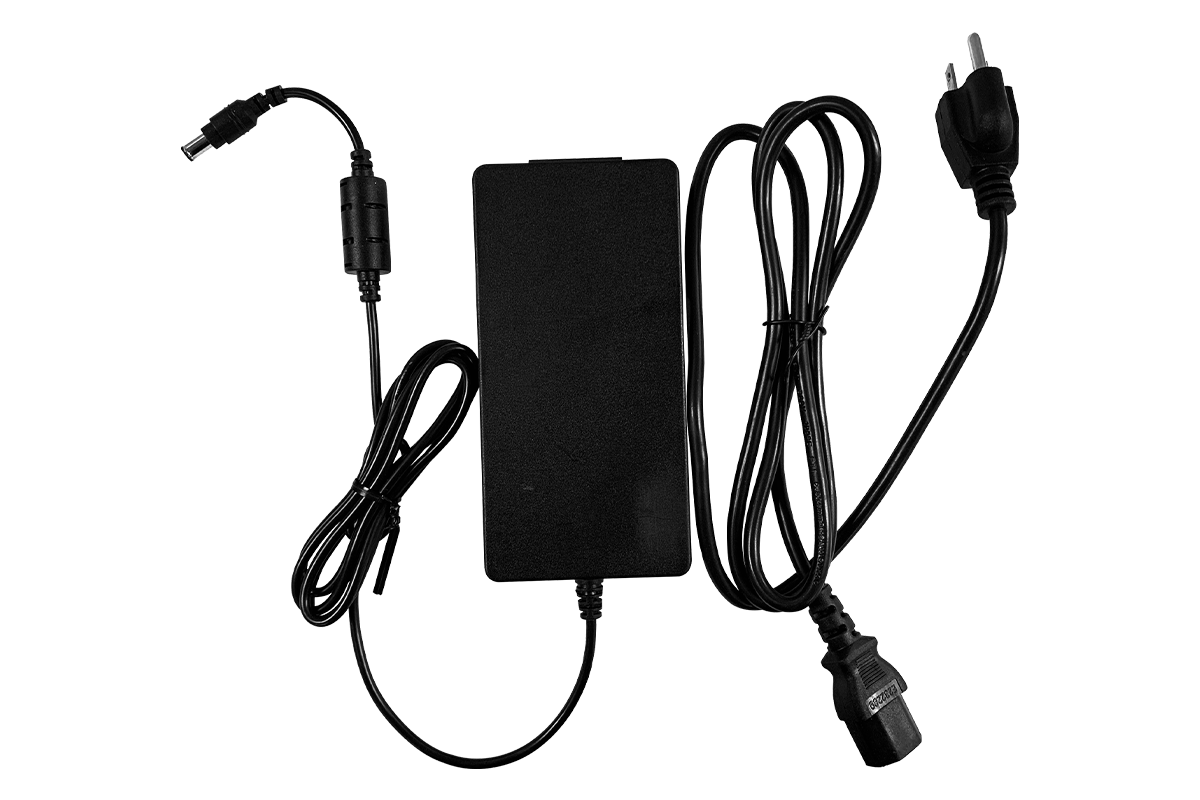

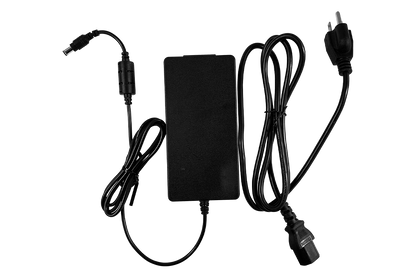

Power Adapter and Cable × 1
