Features

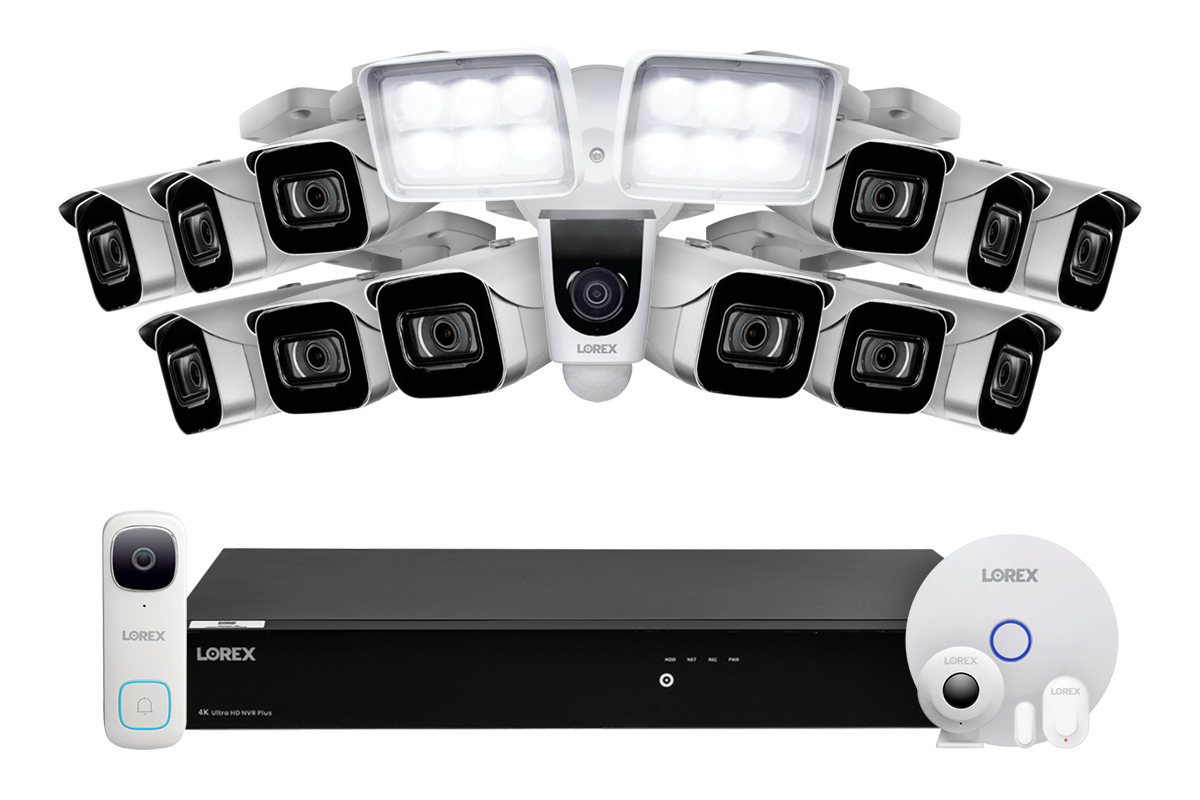

Protect your property like never before with this revolutionary Fusion NVR system from Lorex. At the heart of this system is our latest 16-channel Fusion NVR, which can connect to both wired and wireless cameras. This bundle also comes with twelve 4K weatherproof IP cameras, a 2K Video Doorbell, and a 1080p floodlight camera. Thanks to this wired and wireless Fusion, all cameras can now record around-the-clock to the NVRs 3TB hard drive and can easily be monitored all in one place thanks to the Lorex app.
See Clearly,
Day and Night
Ultra HD Resolution
At the core of this camera is an 8MP image sensor. 8MP means there are more than 8 million pixels, which results in exceptionally sharp 4K video, realistic color representation, and superior digital zoom capabilities.
Color Night Vision
Experience the best night vision on the market. This camera features our revolutionary Color Night Vision (CNV), which produces our most vivid and longest range full-color nighttime video yet.
Built for the outdoors
Mother Nature is no match for this security camera. Rated IP67, it can endure anything from torrential downpours to freezing snowstorms. So go ahead and place this security camera where you need it most.

140°F | 60°C Heat Rating

-22°F | -30°C Cold Rating

IP67 Weatherproof

2K Wired Video Doorbell
See who's at the door, greet guests with a nightlight, answer the door from anywhere, play pre-recorded messages when someone rings, and talk to those on the other side with the 2K QHD Doorbell.
Learn MoreThanks to a pre-motion recording feature, the doorbell will automatically start recording 5 seconds before the event starts so you don't miss any action.
Automatically receive notifications to your phone telling you that there is someone at the door.
Use 1 of 3 quick responses to greet visitors who ring your doorbell. You can even record your own custom message to add your personal touch or speak directly through the doorbell using 2-Way Talk.
See more with a 164° viewing angle and 4:3 aspect ratio showing you the full picture.
HDR automatically corrects exposure when lighting is not ideal.

1080P Video Floodlight
Combine security and lighting with this powerful Floodlight Camera.
Learn MoreCapture important details with real-time 30 fps (frames-per-second) full 1080p HD resolution recording. A wide-angle lens also provides you with more security coverage and helps with earlier detections.
The camera is equipped with dual LED floodlights, two-way talk, and a deterrence siren to stop potential events before they happen.
The Passive Infrared (PIR) motion detector has a 270° horizontal field of view and is designed to sense the infrared energy that eminates from people, animals, or vehicles.
Conveniently use the existing wiring from your previous floodlight or outdoor house light. It can also connect to your pre-existing standard junction box.
The Floodlight Camera works 24/7. It contains infrared LEDs that allows the camera to see up to 50ft (15m) in the dark.

Smart Sensor Starter Kit
Add some vital security to your house without the video.
Learn MoreConnect the Lorex Sensor Hub to the Lorex App - No NVR channel required.
Simply stick the sensors on any door or window frame in your home.
Peel and stick to locations around your house, including ceilings, walls, or the top of any flat surface.
Smart Home Compatibility
Get faster access to your security system by connecting it to other Smart Home devices; use simple voice commands to activate camera features with Amazon Alexa™ and Google Assistant™, use it with Chromecast or Firestick to monitor your security camera footage on a larger screen. For more information about current smart home integrations, visit our Smart Home Guide.


Same Look - Home or Away
Enjoy a seamless monitoring experience whether you are accessing your system locally through the recorder or remotely through the app. The Recorder User Interface now uses the same look and feel as the Lorex app, making it easier than ever to navigate and find events as you switch platforms.
Customize Your Security With Fusion
Create a personalized Lorex Smart Home ecosystem by pairing your system with up to 16 wired or Wi-Fi devices. This allows you to record continuous video from all Wired and Wi-Fi cameras to the recorder's hard drive. This can also provide invaluable back-up of events should a Wi-Fi camera's local storage become disabled.
All-In-One Security
Get the most out of your system by connecting wired and wireless cameras, doorbells, and sensors to your recorder.
Continuous Recording
24/7 continuous recording directly to your hard drive with expandable storage and no monthly fees.*
Lorex App
Access all of your Lorex devices from one place, allowing for easy control and monitoring of your property.
*To conserve battery life, Lorex Battery-Operated Doorbells and Cameras cannot record 24/7 continuously to the Fusion Recorder’s local hard drive.

Free Local Storage, No Monthly Fees
Local storage means no monthly fees and with the built-in 2TB hard drive, you will have ample storage, while your recordings stay safe and private.
What's Included?
Dimensions (WxDxH): 2.9" x 6.9" x 2.9" (73mm x 175mm x70mm)
Weight: 1.15lbs / 0.52kg
Package Contents:

4K IP Security Camera

Mounting Kit

60ft Cat5e Cable

Quick Start Guide
- 4K (8MP) Ultra HD, ensuring clear and detailed footage, every time1
- See more with a wide-angle 105° field of view
- HDR (High Dynamic Range) provides improved video clarity in high-contrast lighting, revealing details in extremely bright and darks areas of the footage
- Weatherproof rated (IP67)2
- Operates in temperatures as low as -22°F (-30°C) and high as 140°F (60°C)
- Aluminum Alloy housing, designed to withstand harsh weather conditions
- Experience enhanced nighttime clarity and better video evidence with Color Night Vision™ (ambient lighting required)3
- Up to 130ft (40m) IR night vision in low light and 90ft (27m) in total darkness4
Dimensions (WxDxH): 5.1" x 1.8" (130mm x 45mm)
Weight: 1.17lbs / 0.53kg
Package Contents:

2K Video Doorbell

Pre-inserted microSD Card

USB Cable

Electrical Wiring

Mounting Kit

Quick Start Guide

15° Horizontal Bracket

5° Vertical Bracket
- Impressive 2K Resolution for clear video quality.
- See more with the doorbell's 4:3 aspect ratio and 164° diagonal field-of-view.
- Get the best picture always with HDR imaging.
- Use pre-recorded messages or 2-way talk1 to greet visitors.
- Motion-activated LED warning light can be manually enabled or customized to only be triggered when a person detected.
- Deter unwanted guests with the remote-activated siren.
- Be aware of activity around your doorstep with built-in Person Detection feature.
- Receive notifications from the Lorex Home™ app when motion is detection2.
- Local microSD storage, expandable up to 256GB.
- Adjust the viewing angle of your Video Doorbell with the included set of mounting bracket wedges.
- Pair with additional wired and wireless Fusion products to enhance your Lorex security experience.
- Be notified when someone rings the doorbell, as well as answer it without using your phone with Amazon Alexa™.
- Compatible with existing doorbell wiring (16V-24V) and traditional mechanical and electronic digital chimes.3
Smart Sensor
AY41TR-KTK1-MTK1
AY41TR Sensor Hub | |
---|---|
Color | White |
Power | Power adapter input: 100-240V AC, Power adapter output: 5V DC |
Connectivity | BLE5.0 |
Lights | Status Indicator Light |
Installation Type | Tabletop or wall mount |
Setup Requirements | Lorex Home APP |
Compatibility | Lorex DVR's or NVR's using Lorex Home APP |
Operating Conditions | Indoor Use |
Warranty | 1 year limited warranty |
AM41TK PIR Motion Sensor | |
---|---|
Color | White |
Power | Battery: CR2450, included |
Connectivity | BLE5.0 |
Detection Range | 26ft Max.* |
Detection Angle | 110° Max. |
Installation Type | Tabletop, wall or ceiling |
Lights | Status Indicator Light |
Setup Requirements / Compatibility | Lorex Sensor Hub, Lorex Home Center |
Mounting | Adhesive, included |
Operating Conditions | Indoor Use |
Operating Temperature | 14°F ~ 113°F / -10°C ~ 45°C |
Operating Humidity | 0 ~ 95% RH |
Warranty | 1 year limited warranty |
AK41TK Door / Window Sensors | |
---|---|
Color | White |
Power | Battery: CR1632, included |
Connectivity | BLE5.0 |
Lights | Status Indicator Light |
Installation Type | Tabletop or wall mount |
Setup Requirements / Compatibility | Lorex Sensor Hub, Lorex Home Center |
Mounting | Adhesive, included |
Operating Conditions | Indoor Use |
Operating Temperature | 14°F ~ 113°F / -10°C ~ 45°C |
Operating Humidity | 0 ~ 95% RH |
Warranty | 1 year limited warranty |
Package Contents:

Sensor Hub

1 × PIR Motion Sensor

1 × Door / Window Sensors

Sensor Hub Power Accessory

Sensor Hub Bracket

PIR Motion Sensor Bracket

Mounting Adhesives

Pin

Sensor Pre-Inserted Batteries
Dimensions (WxDxH): 12.5" x 9.3" x 6.8" (318mm x 236mm x 173mm)
Weight: 3.97lbs / 1.8kg
Package Contents:

1080P Floodlight

Mounting Kit

MicroSD Card

Quick Start Guide
- 2 × 2000 lumens light arrays for optimal light coverage
- LED floodlight can activate when motion is detected, manually, or on a schedule
- See more with 1080p resolution and a wide 137° Field of View (diagonal)
- PIR Motion 270° Field of View (diagonal)
- IR night vision up to 50ft (15m)1
- No monthly fee for video recording, storage and photo capturing
- Includes a 32 GB microSD card. Supports up to 256 GB microSD storage
- Built-in mic and speaker for 2-way talk. Listen or talk directly to anyone on your property using the Lorex Home App2
- Conveniently use the existing wiring from your previous floodlight or outdoor house light


Dimensions (W×D×H): 12.9 x 9.6 x 2.1” (328 x 245 x 53 mm)
Weight: 2.75 lbs. / 1.26 kg (excl. HDD)
- Info / Panic Button
- Hard Drive, Network, Recorder & Power LEDs
- USB
- Power Button
- Power Input
- Power Switch
- PoE Ports
- Alarm
- HDMI
- VGA Port
- RS232
- LAN
- Audio In / Out
Package Contents:

4K Fusion NVR

Ethernet Cable

USB Mouse

HDMI Cable

Power Adapter
- 4K (8MP) IP cameras are required to take advantage of 4K recording.
- Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
- Fusion™ capabilities are limited to 2 wireless devices per system. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
- Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com/smarthome
- Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
- Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
- HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
