Pre-recording is available only when using Motion Detection and can be viewed exclusively during local playback. This feature is not supported for Smart Motion Detection (SMD), continuous recording, or through the Lorex app or cloud services. The duration of the pre-recorded footage may vary based on the recorder available cache memory at the time the event was detected, up to a maximum time set by the user.
All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.
Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.

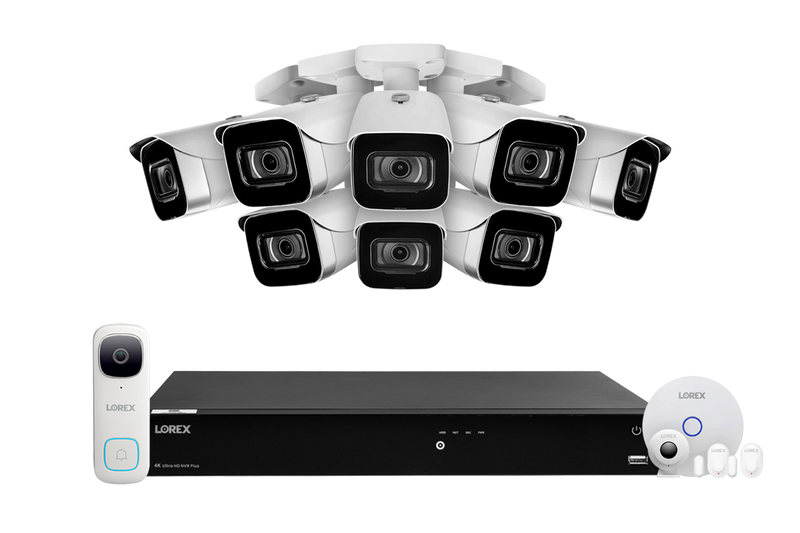

Welcome to the next generation of Fusion. This revolutionary 16-channel Fusion NVR can connect and continuously record any combination of wired and wireless cameras. For a start, this system includes eight 4K wired IP bullet security cameras and a 2K Wired Video Doorbell. This leaves you with seven open channels to perfectly tailor your security system to your property. This system also includes a Lorex Smart Sensor Kit with two add-on sensors (one motion and one door/window), to add some easy video-free indoor security. All cameras and sensors are easily monitored right from the palm of your hand thanks to the Lorex app, which will keep you connected no matter where life takes you.
See Clearly,
Day and Night
Ultra HD Resolution
At the core of the included 4K Wired Cameras is an 8MP image sensor. 8MP means there are more than 8 million pixels, which results in exceptionally sharp 4K video, realistic color representation, and superior digital zoom capabilities.
Color Night Vision
Experience the best night vision on the market. This camera features our revolutionary Color Night Vision (CNV), which produces exceptionally vivid and long range full-color nighttime video.
Built for the outdoors
Mother Nature is no match for this security camera. Rated IP67, it can endure anything from torrential downpours to freezing snowstorms. So go ahead and place this security camera where you need it most.

140°F | 60°C Heat Rating

-22°F | -30°C Cold Rating

IP67 Weatherproof

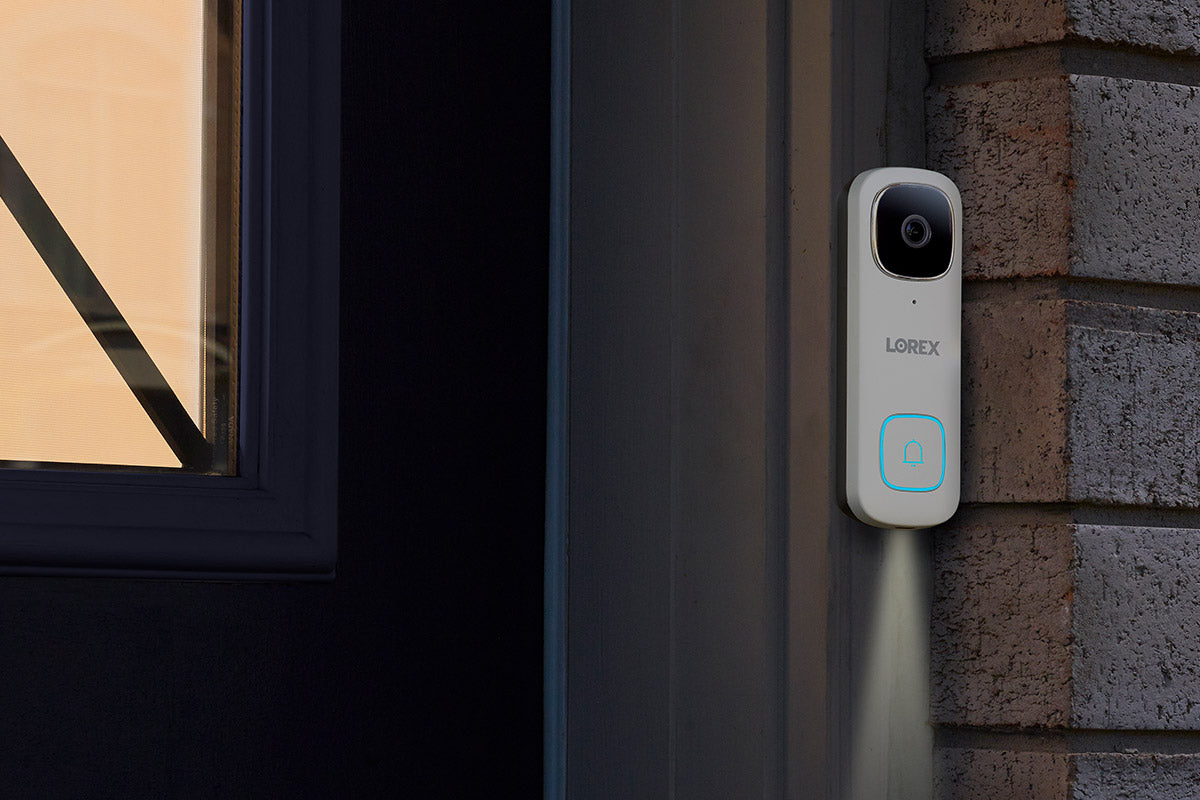

2K Wired Video Doorbell
See who's at the door, greet guests with a nightlight, answer the door from anywhere, play pre-recorded messages when someone rings, and talk to those on the other side with the 2K Doorbell.
Learn MoreThanks to a pre-motion recording feature, the doorbell will automatically start recording 5 seconds before the event starts so you don't miss any action.
Automatically receive notifications to your phone telling you that there is someone at the door.
Use 1 of 3 quick responses to greet visitors who ring your doorbell. You can even record your own custom message to add your personal touch or speak directly through the doorbell using 2-Way Talk.
See more with a 164° viewing angle and 4:3 aspect ratio showing you the full picture.
HDR automatically corrects exposure when lighting is not ideal.

Smart Sensor Starter Kit
Add some vital security to your house without the video.
Learn MoreConnect the Lorex Sensor Hub to the Lorex App - No NVR channel required.
Simply stick the sensors on any door or window frame in your home.
Peel and stick to locations around your house, including ceilings, walls, or the top of any flat surface.

Free Local Storage, No Monthly Fees
Local storage means no monthly fees and with the built-in 2TB hard drive, you will have ample storage, while your recordings stay safe and private.
What's Included?
Dimensions (WxDxH): 2.8" x 7.1" x 2.8" (70mm x 180mm x 70mm)
Weight: 1.15lbs / 0.52kg
Package Contents:

4K IP Bullet Camera

Mounting Kit

Cat5e Ethernet Cable

Quick Start Guide
- 4K (8MP) Ultra HD, ensuring clear and detailed footage, every time1
- See more with a wide-angle 105° field of view
- HDR (High Dynamic Range) provides improved video clarity in high-contrast lighting, revealing details in extremely bright and darks areas of the footage
- Weatherproof rated (IP67)2
- Operates in temperatures as low as -22°F (-30°C) and high as 140°F (60°C)
- Aluminum Alloy housing, designed to withstand harsh weather conditions
- Experience enhanced nighttime clarity and better video evidence with Color Night Vision™ (ambient lighting required)3
- Up to 130ft (40m) IR night vision in low light and 90ft (27m) in total darkness4
- A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing.


- Info / Panic Button
- Hard Drive, Network, Recorder & Power LEDs
- USB
- Power Button
- Power Input
- Power Switch
- PoE Ports
- Alarm
- HDMI
- VGA Port
- RS232
- LAN
- Audio In / Out
Package Contents:

4K Fusion NVR

Ethernet Cable

USB Mouse

HDMI Cable
- 4K (8MP) IP cameras are required to take advantage of 4K recording.
- Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
- This Fusion NVR can connect to 16 wireless devices per system. The NVR must be connected to the your Wi-Fi Router via network cable. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
- Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com/smarthome
- Accuracy of Smart Motion Detection will be influenced by multiple factors, such as the object’s distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection. Compatible with certain Lorex IP cameras only.
- Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
- Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
- HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
- NVR has a total PoE power output of 130w. Different IP cameras have different wattage specifications. Please double check your camera specifications for power consumption (Wattage) requirements in order to not exceed the NVRs power output availability of the recorder when adding cameras. To learn more, please visit www.lorex.com/compatibility
