*Not intended for submersion in water.

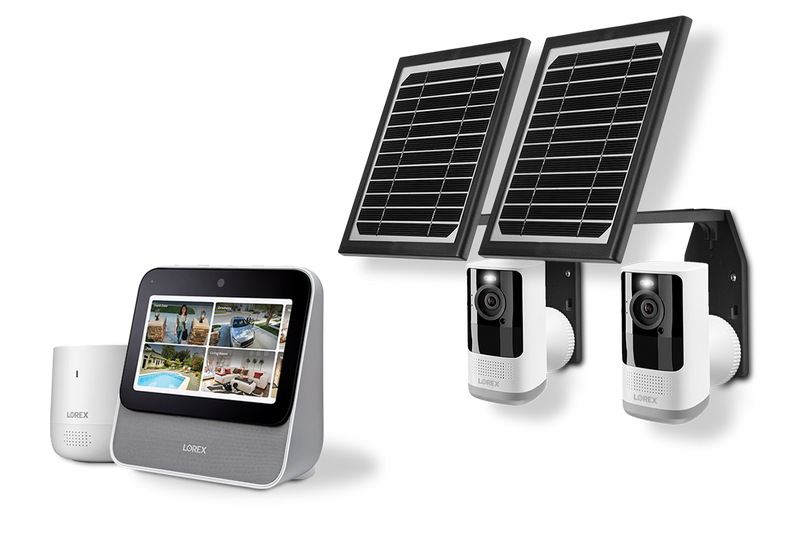

Enjoy the convenience, reliability, and quality surveillance of this complete home security system featuring the Lorex Smart Home Security Center, two 2K Battery-Operated Cameras with Solar Panels, and a Range Extender. Designed to protect your privacy and save you from monthly fees, all footage is stored locally within the Lorex Smart Home Security Center on a 64GB microSD card.
Resolution
140° FOV
Weatherproof
2-Way Talk
64GB MicroSD
2K Resolution Recording
A 4MP image sensor provides 2X the resolution as 1080p. This creates exceptionally sharp and detailed video.
Color Night Vision
See clearly around-the-clock thanks to Color Night Vision (with ambient lighting) or IR Night Vision (without ambient lighting).
Built-in Person Detection
Know the moment a person is detected on your property with notification alerts sent directly to your smartphone.
Built-in Person Detection
Know the moment a person is detected on your property with notification alerts sent directly to your smartphone.

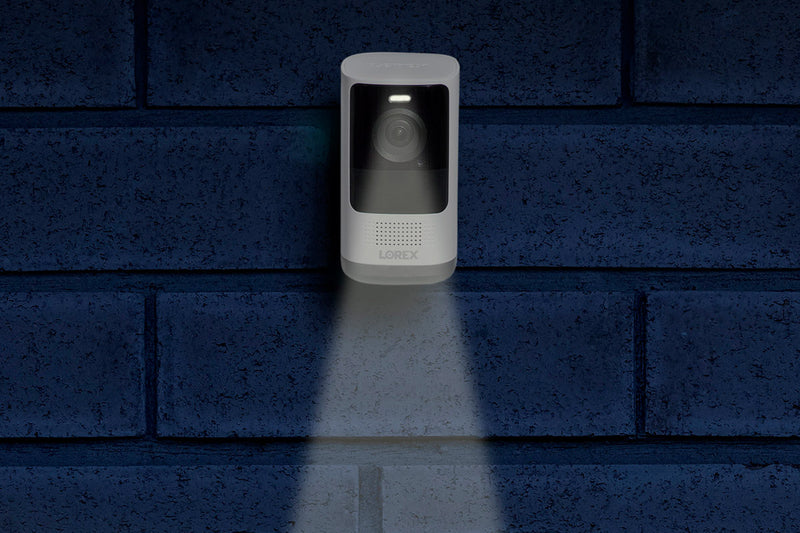

Smart Deterrence
Easily deter any unwanted guests with a motion-activated LED warning light on your wire-free cameras and doorbell.
Smart Deterrence
Easily deter any unwanted guests with a motion-activated LED warning light on your wire-free cameras.

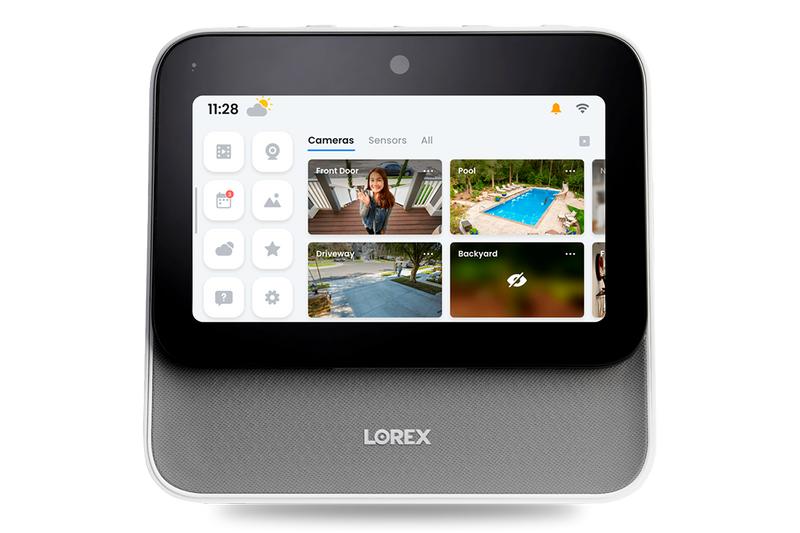

The center of your home
The all-in-one LSHSC simplifies your home monitoring experience with its intuitive touch smart display.
Control and access all compatible Lorex devices with the intuitive 7-inch touch display.
There are several built-in features to ensure your privacy. Log in to the LSHSC quickly with the Face Unlock feature. Select privacy mode for compatible cameras to turn off streaming and recording for those private moments. You also have the option to disable the built-in microphone and cover the front camera lens.
Pair a variety of Lorex wireless devices and control them from the LSHSC to build the perfect security system for your home. Adding new devices is simple with a built-in step by step setup guide.
View all compatible devices
Use the Lorex Voice™ Assistant to access your cameras and view footage with simple voice commands. This voice assistant is hosted entirely on the LSHSC and is not connected to the internet for ultimate privacy.
The LSHSC includes a surveillance-grade class 10 64GB microSD card, upgradable to a maximum of 256GB microSD and/or a 1TB M.2 2280 SATA SSD M.
Wire-Free, worry-free
Have the coverage that you need to keep everyone and everything safe and secure.
The quick-release battery packs make it easy to re-charge your battery-operated cameras.
IP65 Weather resistant rating for indoor or outdoor application.
The built-in microphone and speaker allows you to use your smartphone to communicate to anyone at the other end of the camera. This is perfect for meeting people at doors or deterring any unwanted guests.
The remote-triggered siren is activated directly from your smartphone. So when a motion alert is sent to your phone, you can turn on the siren to deter unwanted guests from your property.
HEVC (also known as H.265) encoding technology efficiently compresses file sizes up to 50% more than files using the previous encoding technology (H.264), without any noticeable degradation in quality.

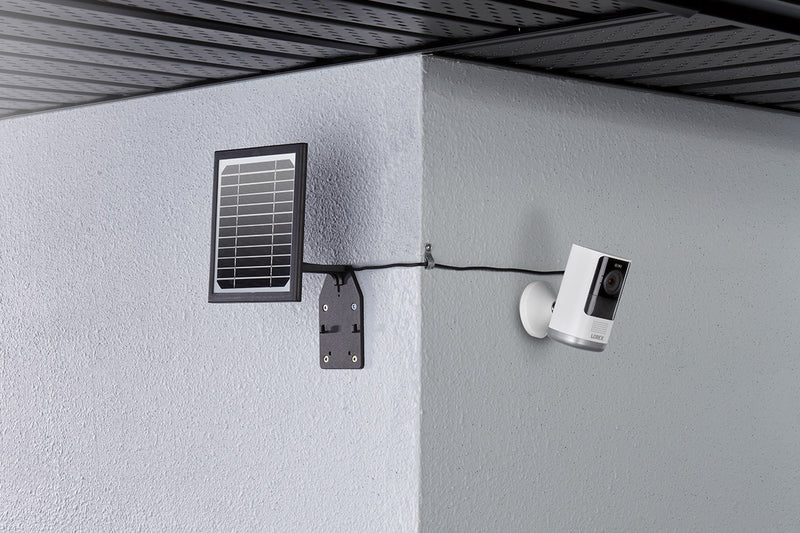

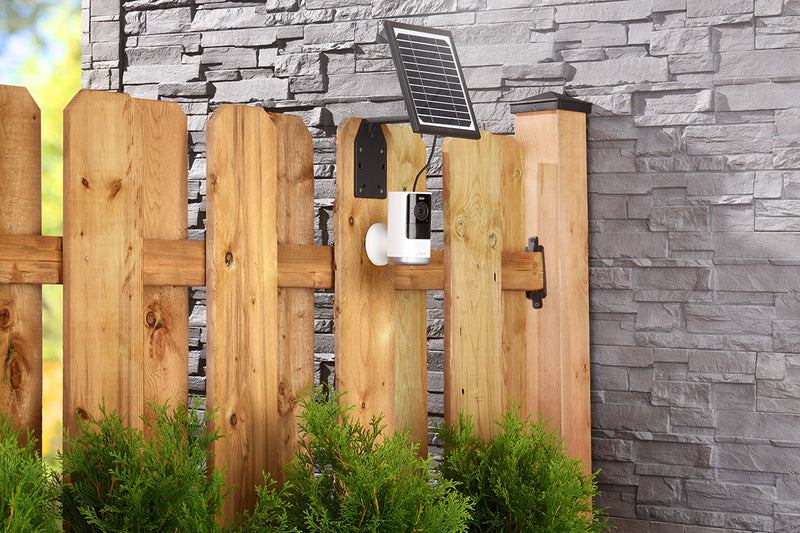

Easy and flexible solar panel installation
Solar Panels can be set up in minutes and will prolong the battery-life of a battery-operated camera. They can be installed alongside a camera using the existing camera screw holes or in another location where there is plenty of direct sunlight.
Weatherproof camera and panel
Whether it's heavy rain, snow or wind, the camera (IP65) and the solar panel (IP66) are built to persevere.

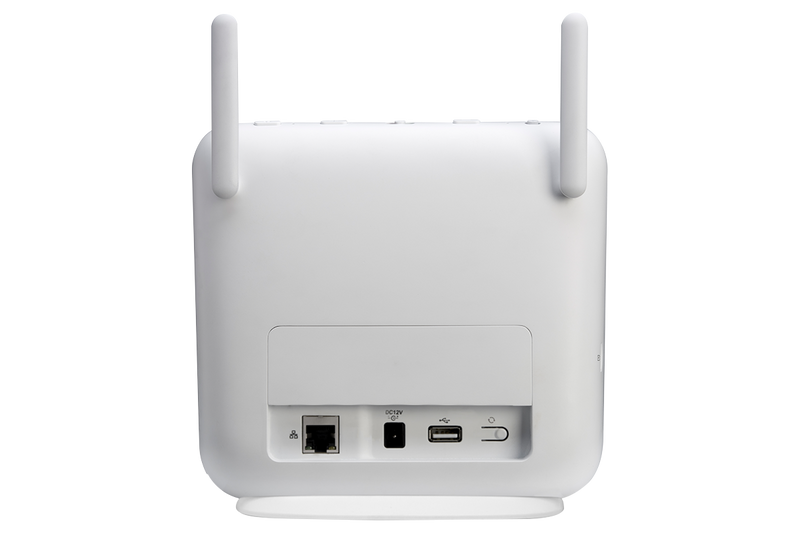

Extend the range of your cameras
Use the included Range Extender with your LSHSC to amplify the wireless signal to all connected devices. This will create a stronger link to distant cameras or doorbells and increase their performance to help maintain a constant connection.
What's Included?
- LED indicator on the underside of the panel to check if it is receiving sufficient light to power your camera.
- Includes adjustment ring for optimal angle.
- Weather proof (IP66-rated)* with operating temperature from -30°C to 50°C
- DC Voltage: 5V / Max 5.2V
- Minimum Current to Illuminate LED: 20mA
- Current: 400mA / Average 215mA
- Power: 3W
- Compatible with U471AA 2K Wire-Free
Each ACSOL2B Includes:
1 × Solar Panel
1 × Wall Mounting Bracket
1 × 1/4" (6mm) Drillbit
3 × Cable Guides, screws and anchors
1 × Mounting Kit
1 × 10ft (3m) Power Cable
1 × Quick Start Guide
- Light status indicator
- Built-in speaker and chime
- Compact and modern design
- Quick and easy setup
- Works with the LSHSC
Each AX62TR Series Includes:
1 × Range extender
1 × Power adapter
1 × Power cable
- This product requires a Lorex Smart Home Security Center and is not a stand-alone device.
| Screen Size | 7" Diagonal |
|---|---|
| Screen Type | LCD Touch Screen |
| Audio | Full Duplex 2-way Audio |
| Microphone | 2 × Noise Cancelling Microphones |
| Built-in front camera | 1080p, support physical cover |
| Speakers | 3 × Speakers |
| Camera | Built-in |
| Wireless Camera Support | Up to 8×1080p or 4×2K |
| Wireless Sensor Support | Up to 32 |
| Simultanous Camera Viewing | Up to 4 channels |
| Voice Assistant | Lorex Voice Assistant |
| Privacy Features | Local Voice Assistant, Microphone Disconnect Switch, Camera Cover |
| Digital Zoom | Camera Dependent |
| Log-in Options | Password or Face Unlock |
| Status LED | Multi-color LED status bar indicator |
| Sensors | Ambient Light |
| Storage | microSD (up to 256GB) or M.2 2280 SATA SSD M (up to 1TB)* |
| Internet Recommendation | 2 cameras ~4Mbps / 4 cameras ~10Mbps @1080p upload speed** |
| Home Router Connectivity | 100Mbps Ethernet or 5GHz Wi-Fi |
| Device Connectivity | 2.4/5GHz Wi-Fi / BLE 5.0 |
| Ports | Power, Ethernet, 1 × USB |
| Weather Rating | Indoor only |
| Operating Temp. Range | 32~104°F / 0~40? |
| Languages | English |
| Power | 12V DC / 2A |
| Available Color | White |
| Dimensions | 7.5 x 3.6 x 7.0" / 19.0 x 9.1 x 17.7cm |
| Weight | 1.81lb / 0.92kg |
Each LSHSC-E Camera Includes:
Lorex Smart Home Security Center
1 × Power Adapter
1 × Ethernet cable
Quick setup guide
64GB microSD card (pre-inserted)
- Playback screen is HD resolution. Footage can be exported at full resolution, or can be zoomed into on the device.
- Compatible with certain Lorex wireless cameras only. For a list of compatible cameras please visit lorex.com/compatibility
- Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit: lorex.com/smarthome
- Accessing your security system remotely requires a high-speed Internet connection. Ensure your recorder has a connection to a router (not included). An upload speed of at least 5 Mbps is recommended for remote video viewing.
- For the latest list of supported apps and devices, please visit lorex.com/compatibility
