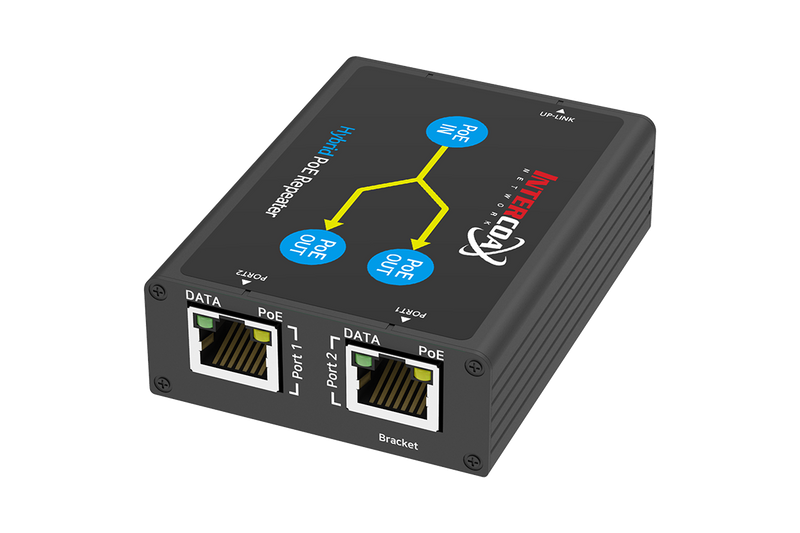

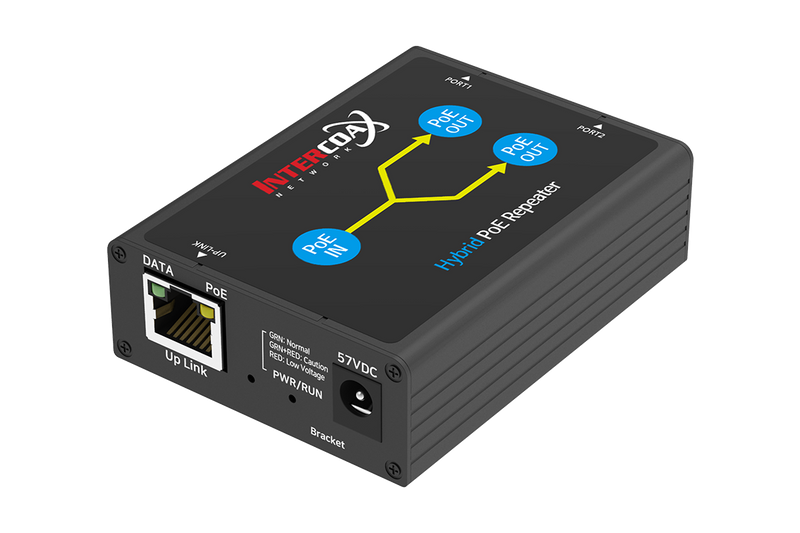

2 Port PoE+ Repeater (100m/300ft 1-in 2-out Daisy Chain PoE Repeater)

2 Port PoE+ Repeater (100m/300ft 1-in 2-out Daisy Chain PoE Repeater)

SKU: SKU: ALP-HPS-01New Arrival

Regular price $174.99
Regular price Sale price $174.99
$174.99/ea
Volume Pricing
  • 1 Buy 1 $174.99/ea
  • 2 Buy 2, get 5% off $166.24/ea
  • 4 Buy 4, get 10% off $157.49/ea
  • 8 Buy 8, get 15% off $148.74/ea
2 Port PoE+ Repeater (100m/300ft 1-in 2-out Daisy Chain PoE Repeater)
2 Port PoE+ Repeater (100m/300ft 1-in 2-out Daisy Chain PoE Repeater)
$174.99

1 Input → 2 Output PoE

Daisy Chain Connection

PoE from NVR to IP Camera

8K High-Quality Video Stream

Surge / Short Protection

Professional CCTV Quality

Simplified Installation

Cost Saving

Worldwide Certification

The HPS-01 is a 2-port Hybrid PoE Switch that transmits both network signals and PoE+ power up to 200 meters between devices. Its 1-input, 2-output design simplifies the installation of two network devices onto a single LAN cable and enables the connection of multiple devices in a cascade configuration. Equipped with a built-in standard PD, the device provides a secure PoE+ power supply and supports PoE output up to 25.5W (up to 30W with a DC 57V power supply).

Connection Diagram

Connection Diagram

*Transmission distance may vary depending on the type and quality of cable.

Product Specifications

Model HPS-01: 2 Port Hybrid PoE Switch
Interface
EoDownlink 2 x RJ-45
Uplink 1 x RJ-45 – 10/100 Base-T with Auto-detect MDIX
Transmission Rate 100 Mbps Full Duplex
Transmission distance Ethernet / PoE Up to 100m - 1000 Base-T
Up to 200m between devices – 10/100 Base-T
LED Indication
Data 3 x Data Link (Green)
PoE 3 x PoE Link (Amber)
PWR 1 x Input Power Quality
(Green: Normal/48VDC and more, Green+Red: Caution,
Red : Power Shortage/38VDC and below
Power Input
PoE IEEE802.3af, IEEE802.3at
DC DC48V ~ 57V
Power Output PoE IEEE802.3af, IEEE802.3at
Model HPS-01: 2 Port Hybrid PoE Switch
Mechanical
Dimension 80.4(L) x 61.6(W) x 24(H) mm
Weight 102g
Environment
Operating Temp -20 ~ 60°C
Storage Temp -30 ~ 80°C
Relative Humidity 10% ~ 90%
Compliance
Certification FCC, CE, KC, RoHS
Surge Protection IEC 61000-4-5 4kV(1.2 / 50us), 2kV(8 / 20us)

What's Included?

HPS-01 Overview

Package Contents:

HPS-01

Bracket x 2

Screw x 4

Manual
