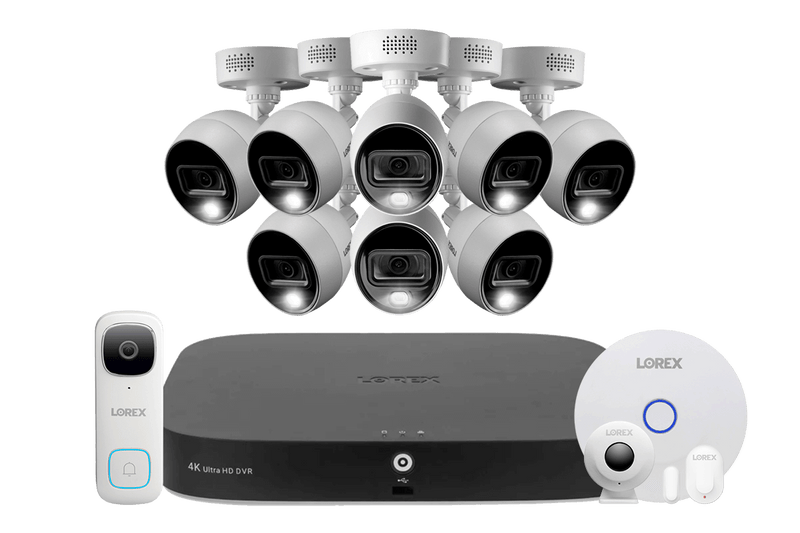

Lorex Fusion 4K 20 Camera Capable (16 Wired and 4 Wi-Fi) 2TB DVR System with 8 Analog Active Deterrence Cameras, 2K Video Doorbell and Smart Sensor Kit

D4K2AD-168-DSC
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

bi-ecology

No Monthly Fees

Local recording protects privacy and saves money.

Features

Combine the reliability of wired Analog security cameras and the versatility of Smart Home Wi-Fi cameras with this Fusion DVR system. Included in this system is a 20-Channel (16 wired and 4 Wi-Fi) Fusion DVR, 4K Active Deterrence wired Analog Security Cameras, a 2K Video Doorbell, and a Smart Sensor Kit for some easy video-free indoor security. Thanks to this wired and wireless Fusion, all cameras (including the Video Doorbell and up to three more Wi-Fi Cameras) can now record around-the-clock to the DVR’s security grade hard drive and can easily be monitored all in one place thanks to the Lorex app.

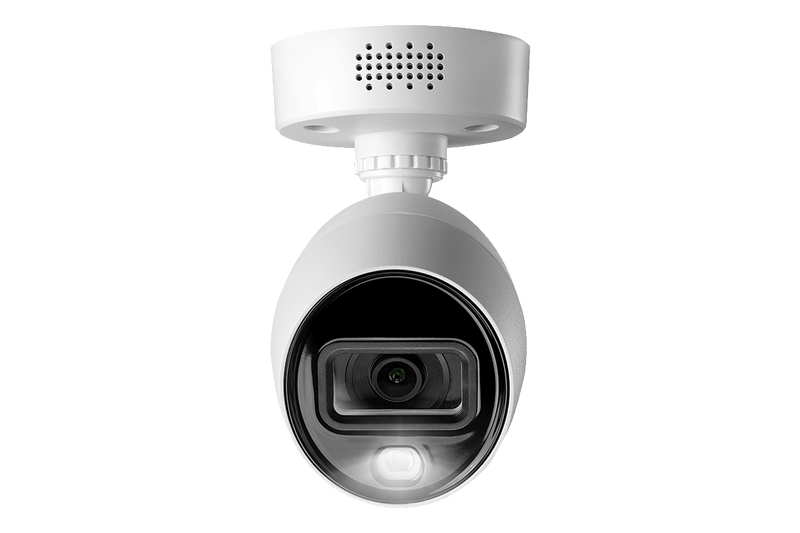

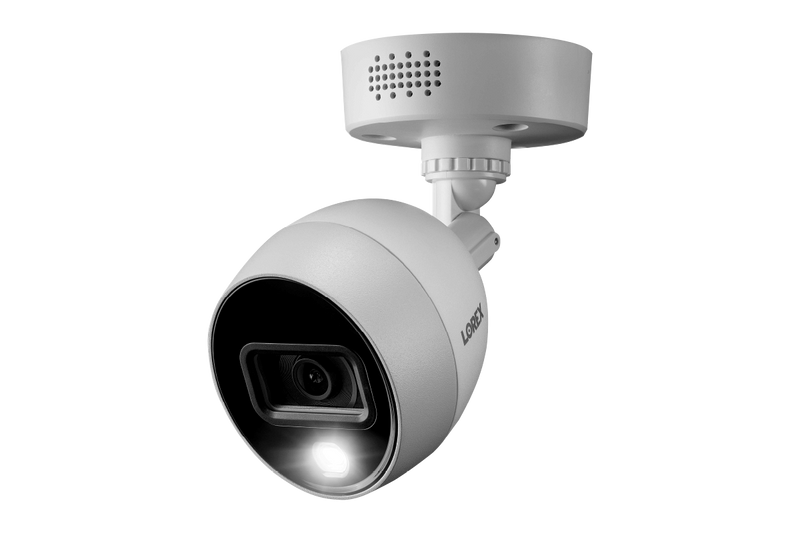

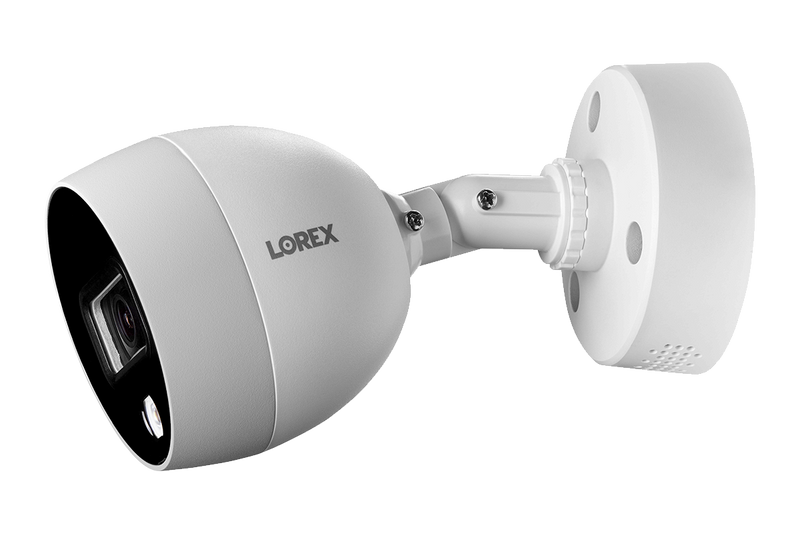

4K Analog Active Deterrence Security Cameras

Record 4K security video and experience the latest in smart innovations to provide the highest level of security for your property.

Learn More

4K means there are more than 8 million pixels, and that results in sharper video and realistic color representation

See full color with the help of ambient lighting or long-range infrared night vision in low-light settings.

Metal exteriors provide year-round protection from the elements.

There is a bright LED that can be customized to always be on or triggered by motion. Using the Lorex app or the DVR, you can customize the LED light to be always on, manually activated or triggered by motion. Also deter unwanted guests with the remote-activated siren.

4K 4K 20-Channel (16 Wired and 4 Wi-Fi) Digital Video Recorder

Record 4K security video and experience the latest in smart innovations to provide the highest level of security for your property.

Learn More

A 2TB security-grade hard drive keeps your data safe and local. This DVR can be upgraded to 8TB of space.

This DVR is able to receive HEVC (High Efficiency Video Encoding) or H.265 video compression files. This type of encoding can save up to 40% more space when compared to H.264 Advanced Video Coding.

Stop events before they happen. An easy-to-use panic button located on the front of the recorder will activate all lights and sirens on your compatible Active Deterrence cameras to deter potential intruders.

Smart Motion Detection (person, vehicle and face detection) will deliver mobile push notifications to tell you exactly what kind of motion the camera has detected.

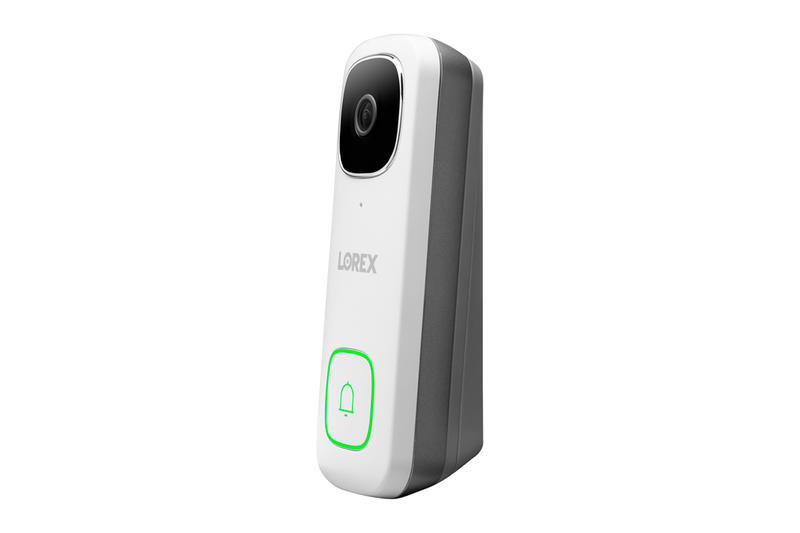

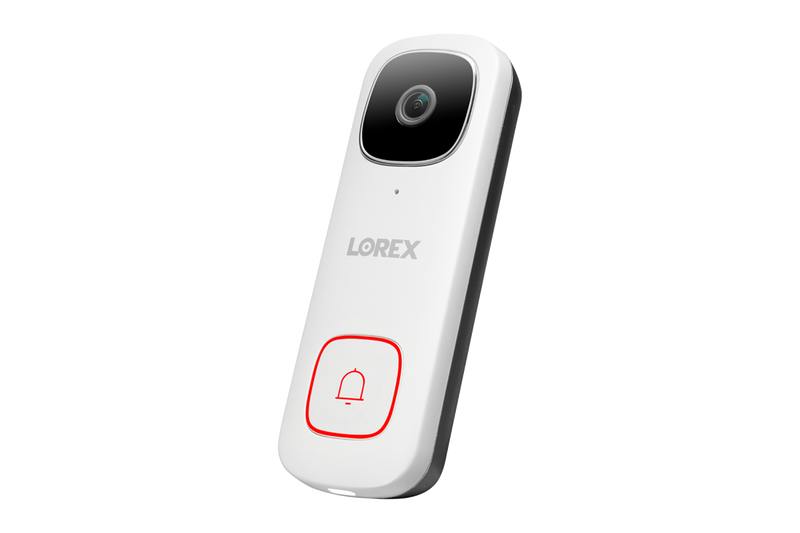

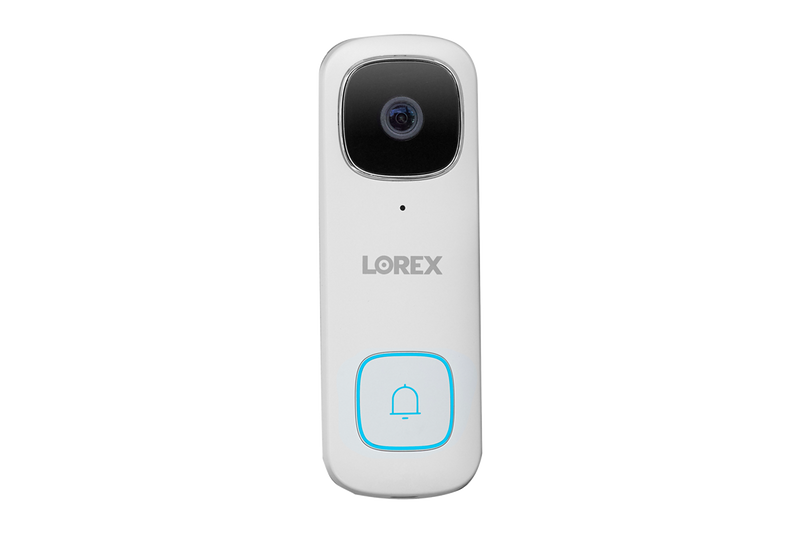

2K Wired Video Doorbell

See who's at the door, greet guests with a nightlight, answer the door from anywhere, play pre-recorded messages when someone rings, and talk to those on the other side with the 2K QHD Doorbell.

Learn More

Thanks to a pre-motion recording feature, the doorbell will automatically start recording 5 seconds before the event starts so you don't miss any action.

Automatically receive notifications to your phone telling you that there is someone at the door.

Use 1 of 3 quick responses to greet visitors who ring your doorbell. You can even record your own custom message to add your personal touch or speak directly through the doorbell using 2-Way Talk.

See more with a 164° viewing angle and 4:3 aspect ratio showing you the full picture.

HDR automatically corrects exposure when lighting is not ideal.

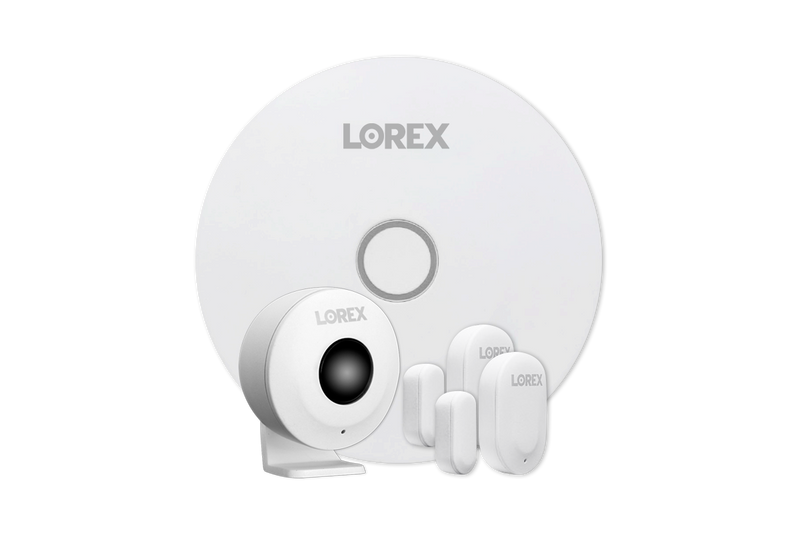

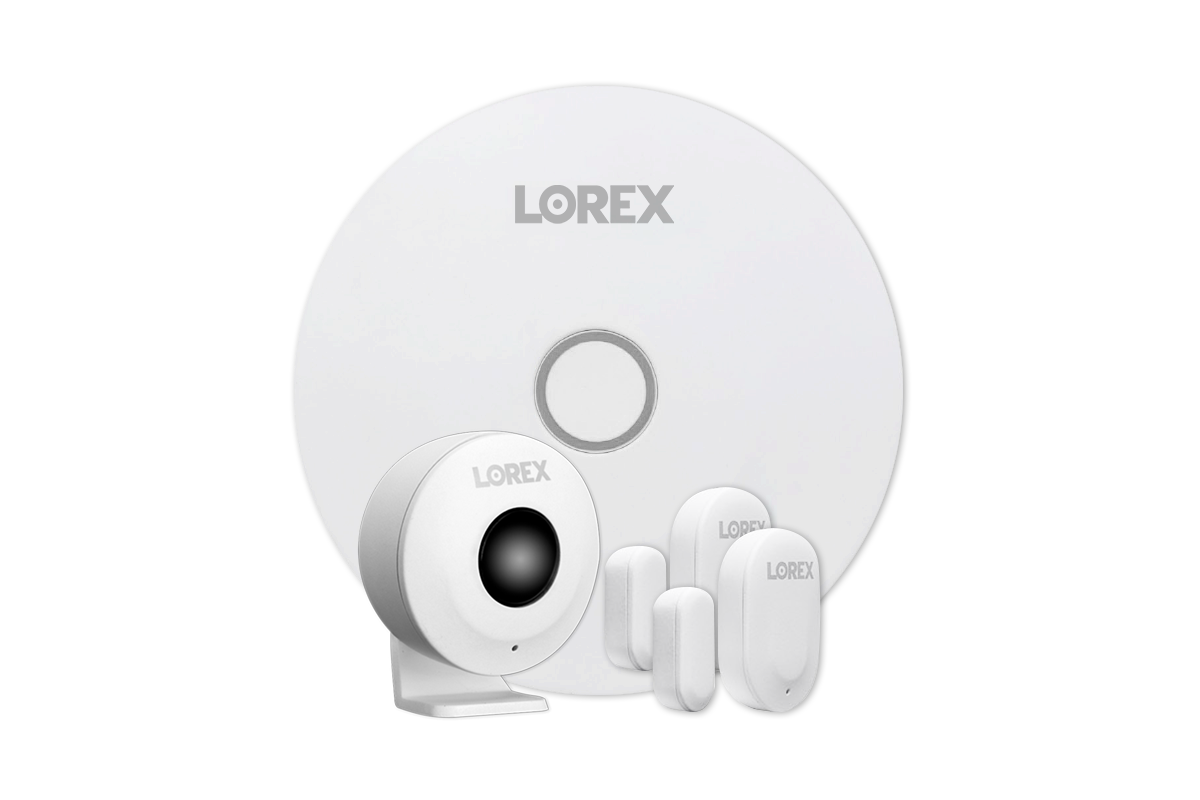

Smart Sensor Starter Kit

Add some vital security to your house without the video.

Learn More

Connect the Lorex Sensor Hub to the Lorex App - No NVR channel required.

Simply stick the sensors on any door or window frame in your home.

Peel and stick to locations around your house, including ceilings, walls, or the top of any flat surface.

Same Look - Home or Away

Enjoy a seamless monitoring experience whether you are accessing your system locally through the recorder or remotely through the app. The Recorder User Interface now uses the same look and feel as the Lorex app, making it easier than ever to navigate and find events as you switch platforms.




Smart Home Compatibility

Get faster access to your security system by connecting it to other Smart Home devices; use simple voice commands to activate camera features with Amazon Alexa™ and Google Assistant™, use it with Chromecast or Firestick to monitor your security camera footage on a larger screen. For more information about current smart home integrations, visit our Smart Home Guide.

works with Google works with Alexa

What's Included?

C883 front dimensions

Dimensions (WxDxH): 2.9" x 6.4" x 3.3" (73mm x 164mm x 83mm)
Weight: 0.55lbs / 0.25kg



Package Contents:

4K IP Security Camera

Mounting Kit

60FT Extnesion Cat5e Cable

Power Adapter

Quick Start Guide

  1. 4K Ultra HD, ensuring clear and detailed footage, every time1
  2. See more with an 105° Field of View (horizontal)
  3. Experience enhanced nighttime clarity and better video evidence with Color Night Vision™2
  4. Up to 135ft (41m) IR night vision in low light and 90ft (28m) in total darkness3
  5. Motion-activated LED warning light
  6. Deter unwanted guests with the remote-activated siren Weatherproof rated (IP67)
  7. Operates in temperatures low as -40°F (-40°C) and high as 131°F (55 °C)
  8. Durable camera housing, designed to withstand harsh weather conditions
B451AJ wall mount dimensions

Dimensions (WxDxH): 5.1" x 1.8" (130mm x 45mm)
Weight: 1.17lbs / 0.53kg

Package Contents:

2K Video Doorbell

Pre-inserted microSD Card

USB Cable

Electrical Wiring

Mounting Kit

Quick Start Guide

15° Horizontal Bracket

5° Vertical Bracket

  1. Impressive 2K Resolution for clear video quality.
  2. See more with the doorbell's 4:3 aspect ratio and 164° diagonal field-of-view.
  3. Get the best picture always with HDR imaging.
  4. Use pre-recorded messages or 2-way talk1 to greet visitors.
  5. Motion-activated LED warning light can be manually enabled or customized to only be triggered when a person detected.
  6. Deter unwanted guests with the remote-activated siren.
  7. Be aware of activity around your doorstep with built-in Person Detection feature.
  8. Receive notifications from the Lorex App™ app when motion is detection2.
  9. Local microSD storage, expandable up to 256GB.
  10. Adjust the viewing angle of your Video Doorbell with the included set of mounting bracket wedges.
  11. Pair with additional wired and wireless Fusion products to enhance your Lorex security experience.
  12. Be notified when someone rings the doorbell, as well as answer it without using your phone with Amazon Alexa™.
  13. Compatible with existing doorbell wiring (16V-24V) and traditional mechanical and electronic digital chimes.3

Smart Sensor

AY41TR-KTK1-MTK1

AY41TR Sensor Hub
AY41TR Sensor Hub
Color White
Power Power adapter input: 100-240V AC, Power adapter output: 5V DC
Connectivity BLE5.0
Lights Status Indicator Light
Installation Type Tabletop or wall mount
Setup Requirements Lorex App
Compatibility Lorex DVR's or NVR's using Lorex App
Operating Conditions Indoor Use
Warranty 1 year limited warranty
AM41TK PIR Motion Sensor
AM41TK PIR Motion Sensor
Color White
Power Battery: CR2450, included
Connectivity BLE5.0
Detection Range 26ft Max.*
Detection Angle 110° Max.
Installation Type Tabletop, wall or ceiling
Lights Status Indicator Light
Setup Requirements / Compatibility Lorex Sensor Hub, Lorex App Center
Mounting Adhesive, included
Operating Conditions Indoor Use
Operating Temperature 14°F ~ 113°F / -10°C ~ 45°C
Operating Humidity 0 ~ 95% RH
Warranty 1 year limited warranty
AK41TK Door and Window Sensors
AK41TK Door / Window Sensors
Color White
Power Battery: CR1632, included
Connectivity BLE5.0
Lights Status Indicator Light
Installation Type Tabletop or wall mount
Setup Requirements / Compatibility Lorex Sensor Hub, Lorex App Center
Mounting Adhesive, included
Operating Conditions Indoor Use
Operating Temperature 14°F ~ 113°F / -10°C ~ 45°C
Operating Humidity 0 ~ 95% RH
Warranty 1 year limited warranty

Package Contents:

Sensor Hub

1 × PIR Motion Sensor

1 × Door / Window Sensors

Sensor Hub Power Accessory

Sensor Hub Bracket

PIR Motion Sensor Bracket

Mounting Adhesives

Pin

Sensor Pre-Inserted Batteries

D863 Front Overview
D863 Back Overview

Dimensions (W×D×H): 12.9 × 9.6 × 2.1" (328 × 245 × 53mm)
Weight: 2.75 lbs. / 1.26 kg (excl. HDD)

  1. Hard Drive, Power & Network Statuses
  2. USB Ports
  3. Info / Panic Button
  4. Wired Camera Connection
  5. Audio Connection (In / Out)
  6. Monitor Connection (VGA)
  7. Power Switch (On/Off)
  8. Monitor Connection (HDMI)
  9. Network Connection (LAN)
  10. PTZ Connection (RS-485)
  11. Power Connection

Package Contents:

4K Fusion DVR

Ethernet Cable

USB Mouse

HDMI Cable

Power Adapter

  1. Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
  2. Accuracy of Smart Motion Detection or Person and Vehicle Detection will be influenced by multiple factors, such as the object’s distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection.
  3. Accuracy of Face Detection and Face Recognition will be influenced by the distance of the face from the camera. Partially or fully covered faces will not be detected. Night vision will impact the accuracy of Face Detection. Facial recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws.
  4. Face Detection and Face Recognition are available on up to 2 channels only. Smart Motion Detection can not be enabled on all channels while Face Detection or Face Recognition is enabled.
  5. Virtual Fence is available on up to 2 channels only. Smart Motion Detection can not be enabled on the same channel when a single channel is enabled. To enabled Virtual Fence on 2 channels, Smart Motion Detection must be disabled on all channels.
  6. Compatible with select Lorex cameras only. For a list of compatible cameras, please visit www.lorex.com/compatibility
  7. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available.
  8. Requires a high-speed internet connection and a router (not included) for remote access. A minimum upload speed of 7.5Mbps is required for the best video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit: www.lorex.com/support
  9. Both firmware and software must be updated to latest version to ensure remote connectivity in all areas or networks. For compatibility, features, instructions visit: www.lorex.com/smarthome
  10. HDMI output supports up to 4K for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the DVR, as well as TV/ monitor resolution.
  11. AppleTV™ or Chromecast™ need to be connected to the same network as your recorder. Requires AppleTV Gen 4 or newer with Lorex Apple TV APP or Chromecast ™ device connected to the TV that you want to view the system on.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.
