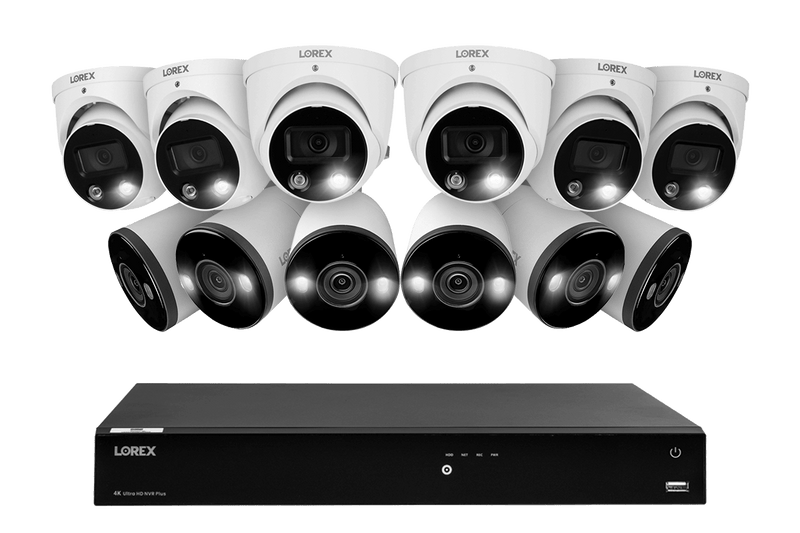

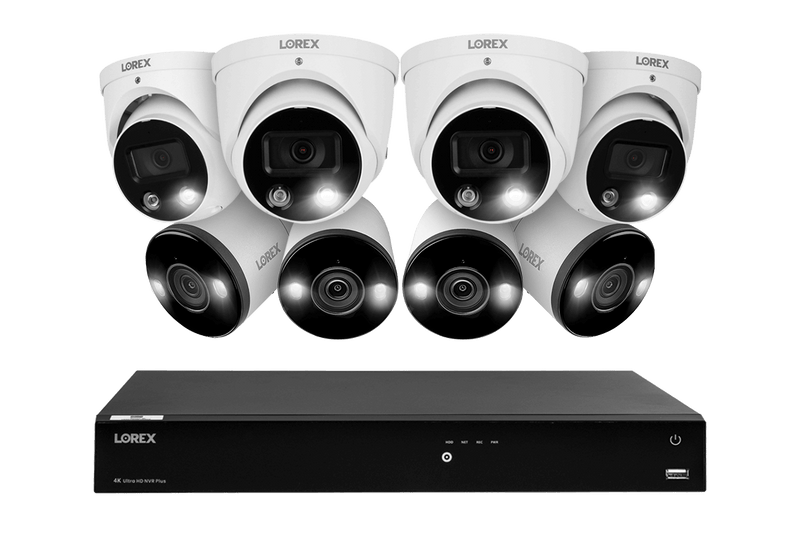

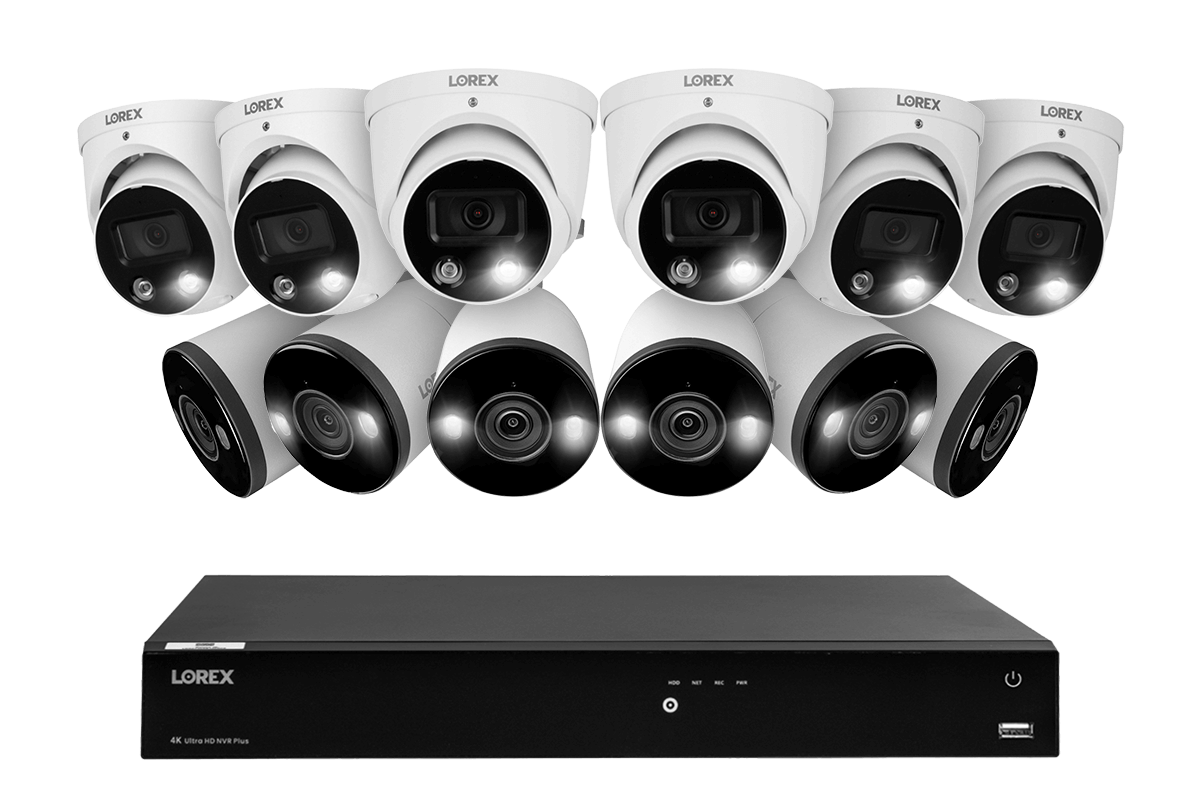

Lorex Fusion 4K 16-Channel 3TB Wired NVR System with Dome and Bullet Smart Deterrence Cameras

N4K3SD-168WBD-2
Number of cameras:
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

bi-ecology

No Monthly Fees

Local recording protects privacy and saves money.

Features

With our latest 16-channel Fusion Series NVR and 4K Smart Deterrence cameras, this security camera system will provide you with high quality recordings and the smartest features to protect your property. Features such as Smart Motion Detection Plus, Active Deterrence LED lights and siren, and two-way talk audio are designed to stop potential events before they happen. The NVR also includes a 3TB hard drive for private local recording with no monthly fees and is easily connected to our Lorex App for easy remote viewing and motion notifications. As part of the Lorex Fusion™ collection, the NVR can accommodate up to two Wi-Fi cameras on open channels.

16

CHANNELS

4K NVR can support up to 16 cameras

4K

RESOLUTION

4× the resolution of HD 1080p

150FT

NIGHT VISION

Maximum nightvision range

3TB

HARD DRIVE

Maximum Capacity 2 ×8TB hard drives




Expand your system with the Fusion Collection

The Lorex Fusion Collection is a set of Network Video Recorders (NVRs) and Wi-Fi devices that are united by our Lorex Home App. Working together, the NVR can essentially "fuse" together Wired and Wi-Fi systems!


Network Video Recorders


Wi-Fi Devices


Lorex Home App

For more information, please visit our Fusion Collection Guide.



Experience the 4K difference

Thanks to the camera's powerful 8MP image sensor, you'll experience the difference that 4K resolution makes when it comes to your security. 4K means there are more than 8 million pixels, and that results in sharper video, realistic color representation and superior digital zoom capabilities.

Smart Motion Detection Plus

Limit motion detection notifications with Smart Motion Detection Plus. This feature offers the option of either Face Detection or Person and Vehicle Detection.

face detection security cameras

Face Detection

Perfect for front doors and entranceways, Face Detection will only notify you of motion events when a face has been detected. This prevents motion notifications from people or vehicles simply passing by and not coming towards the camera4. You can also easily preview all the different faces that the camera has captured for quick reference. You can also review and filter only face detection events in Smart Search.

smart motion detection security cameras

Person and Vehicle Detection

Smart Person and Vehicle Detection helps identify more important objects that enter the camera's field of view. Thanks to this innovative feature, you will only get a push notification whenever a person or vehicle is detected on your property. This effectively reduces the number of unwanted false alerts caused by moving branches or animals. Recorded motion alerts can easily be reviewed by using the Smart Search function.

Smart active deterrence security camera 4K IP

Take an active stance against uninvited guests

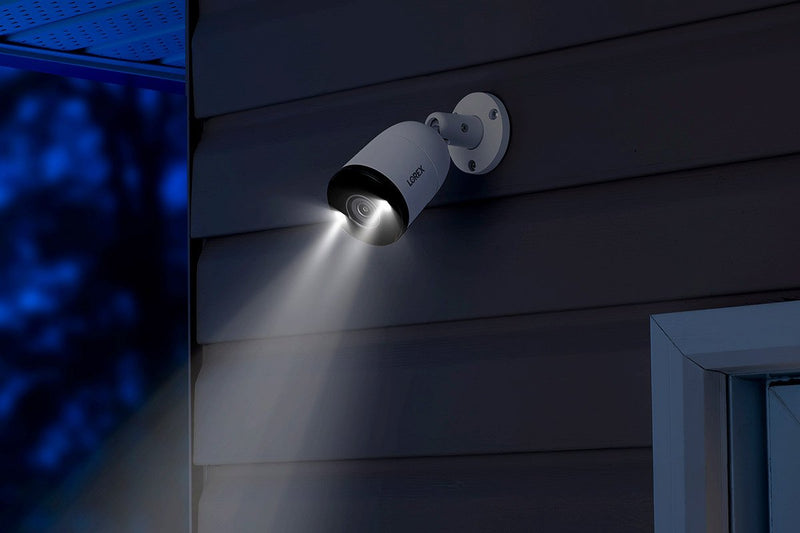

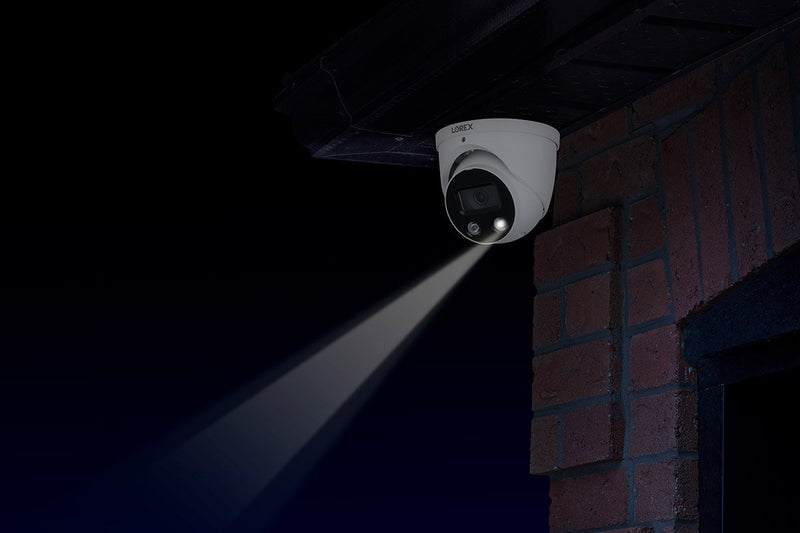

A motion-activated warning light and remotely activated siren will help ward off any uninvited guests. When the camera sensors detect motion, the system will send a notification directly to your phone, allowing you to remotely access the camera and set off a warning alert.

Listen-in Audio and Two-Way Talk

A built-in speaker and microphone allows for crystal-clear audio functionality. Listen-in audio recording will add a whole new dimension to your overall security monitoring, as it can provide additional details (like a voice) should an incident occur. This camera also has enhanced two-way talk with Quick Response Messages that lets you pre-record specific messages with your own voice using the Lorex app.*


*Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its products that fails to conform with local laws.

4K IP security camera with two-way talk audio microphone speaker

See in color through the night

This camera features our revolutionary Color Night Vision™ (CNV) technology, which will produce full-color video with the help of external lighting around the camera. CNV also adds a further level of detail (the color of clothes or cars, for example), and increases contrast for easier detection and recognition of people and objects. In regular nighttime conditions that are too dark for CNV to render full-color images, this camera will use it's infrared LEDs to record crisp black and white video footage up to 150ft (46m) away and up to 98ft (30m) in complete darkness.

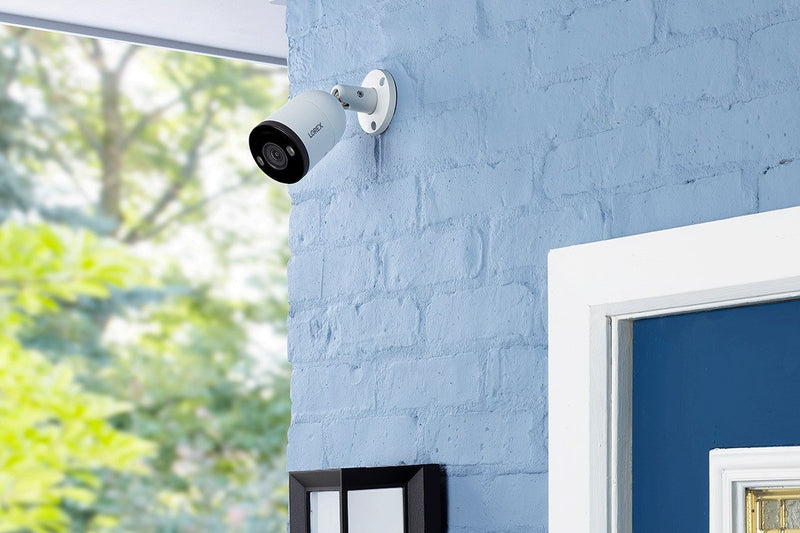

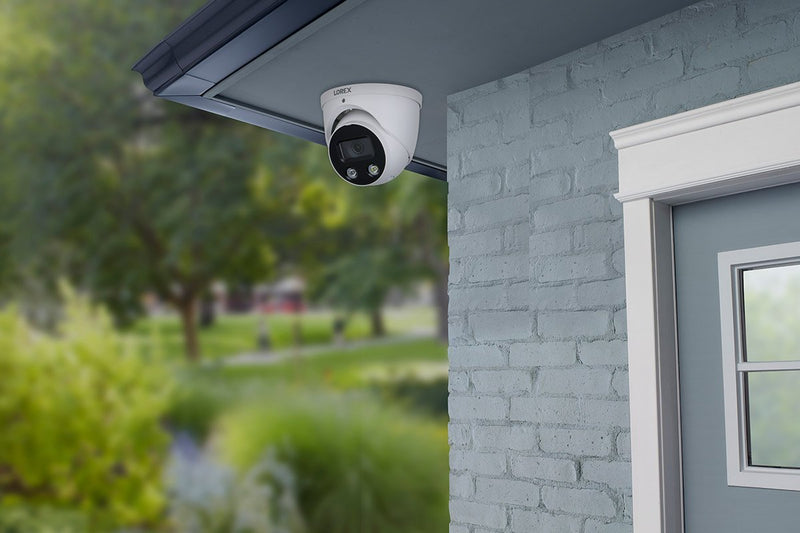

Built for the outdoors

While this camera is suitable for both indoor and outdoor use, it has been especially designed to withstand the harsh impacts of nature. It has an IP67 rating, meaning it can tolerate extreme temperatures ranging from -22°F to 140°F (-30°C to 60°C). It also has a durable, all-metal housing for added protection.

E892DD

E893DD

Heat Rating

140°F | 60°C

Heat Rating

Cold Rating

-22°F | -30°C

Cold Rating

E892AB

E893AB

Heat Rating

140°F | 60°C

Heat Rating

Cold Rating

-22°F | -30°C

Cold Rating

Remote viewing from your mobile with Lorex™

This NVR is designed for use with our innovative Lorex™ app. Using this app, you can quickly view your security system remotely and control camera features from your smartphone. The app will also send you motion-activated push notifications straight to your phone to keep you connected to your property at all times.

Works With


works with Apple iPhone
Apple iPhone
works with Apple iPad
Apple iPad
works with Android phones
Android Phone
works with android tablets
Android Tablet
works with AppleTV
Apple TV


iphone icon
Apple iPhone
ipad icon
Apple iPad
android phone icon
Android Phone

android tablet icon
Android Tablet
appleTV
Apple TV



Lorex Sensor Kit and Lorex Home App



Add A Sensor Kit!

The Lorex Sensor Hub also uses the Lorex Home App, allowing you to seamlessly integrate Add-On Sensors into your home security.

Motion Sensor

Video-Free

Real-time sensor alerts

Instant Alerts

link sensors with wifi cameras

Sensor Linking*





*Link individual sensors to another Wi-Fi camera connected to the Lorex Home App. N842, N843, N844, N862, N863, D861, D862, D871 Series recorders also support sensor linking to a wired camera through the Lorex Home App. Lorex Sensor Hub Compatibility




Smart home compatibility

Get faster access to your security system by connecting it to your other Smart Home devices. Use simple voice commands to activate camera features with Amazon Alexa™ and Google Assistant™. Use it with Chromecast or Firestick to monitor your security camera footage on a larger screen. Or download the Lorex app on your Apple TV* to view live video in single or multiple feeds. For more information about current smart home integrations, visit our Smart Home Guide.


*Requires Gen 4 or newer Apple TV with support for App Store



Experience the 4K difference

With 4K resolution, nothing is left to the imagination. The higher number of pixels (3840 × 2160 as opposed to 1920 × 1080) gives your video footage superior detail and definition, and clearly outlines the distinct features of objects that appear on camera while maintaining realistic color representation. Having more than 8 million pixels also prevents the distortion or blurring of the image when using the digital zoom.

Smart Motion Detection Plus

This NVR supports cameras that feature smart person, vehicle, and face detection. Thanks to this innovative feature, a motion event and notification will only be created whenever a person or vehicle is detected. This effectively reduces the number of unwanted false alerts.



*Camera models that include Smart Person and Vehicle Detection are required to utilize this feature.

Protect the things that matter with Safeguard

Lorex's Safeguard™ technology is perfect if you have very specific objects or areas that you need to to monitor. The feature allows you to set-up to three "Missing" areas and one "Left Behind" area. The Missing feature allows you to select important objects of value that you would want to be notified if they are removed from the area. Conversely, the Left Behind feature allows you to select an area to be notified if something is left behind on that area, such as a package.

Panic button

Stop events before they happen. An easy-to-use panic button located on the front of the recorder will activate all lights and sirens on your compatible Active Deterrence cameras to deter potential intruders.

Area search

Find what you are looking for quickly with Lorex's Area Search. Select an area of interest and automatically playback any video footage showing scene changes in that area. Ideal for doorways, drive ways, etc.

HEVC / H.265 video compression

This NVR is able to receive HEVC (High Efficiency Video Encoding) or H.265 video compression files. This type of encoding can save up to 40% more space when compared to H.264 Advanced Video Coding.

Reliable security grade hard drive with no hidden storage fees

Included in the NVR is a built-in security-grade hard drive that has been designed to meet the demands of 24/7 surveillance recording. With the possibility of increasing storage space up to 8TB, there is more than enough room to safely store all motion events that only you can access.

Two storage bays

This NVR comes with two separate hard drive bays. Each of which can be upgraded with a hard drive up to 8TB, giving you the potential for a total of 16TB's of storage space. You can also use the second hard drive to record videos in parallel with the primary hard drive. This way, the footage is automatically backed up if the recording hard drive fails.

What's Included?

U471AA front dimensions
  • 4K (8MP) Ultra HD, ensuring clear and detailed footage, every time1
  • See more with a wide-angle 108° field of view
  • Superior nighttime clarity with Color Night Vision2
  • Up to 150ft (46m) IR night vision in low light and 98ft (30m) in total darkness3
  • Warning light can be programmed to illuminate when a person or vehicle is detected
  • Using 1 of 3 selectable, remote activated sirens to deter unwanted guests
  • Built-in mic and speaker allows you to listen and speak to visitors with Two-way talk4
  • Enhanced Two-way Talk with Quick Response Messages lets you pre-record specific messages with your own voice
  • Deter unwanted guests with the remote-activated siren
  • Smart motion detection plus offers the option of either Face detection or Person and Vehicle Detection5
  • By activating Face Detection with Mask Detection Technology, get notifications when a person is not wearing mask. When automatic voice prompts enabled, the system will ask visitors to "Please wear a face mask" when masks are not detected
  • Receive notifications when a person, vehicle or face is detected on your property from your Lorex Home™ app5
  • Set up to 3 areas to keep track of items left behind or removed, such as packages or other items of value

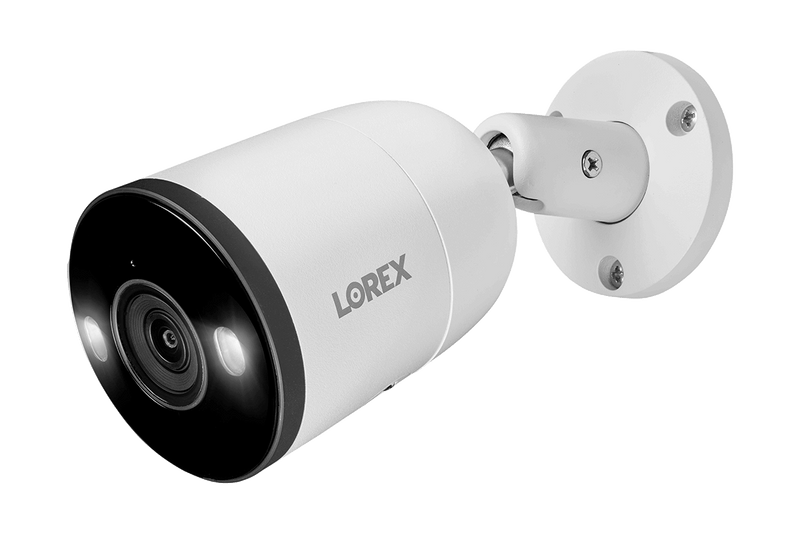

Each E893AB Includes:

1 × 4K IP Security Camera
1 × Mounting Kit
1 × 100ft Cat5e Ethernet Cable
1 × Quick Start Guide
  1. Compatible with select Lorex Network Video Recorders HD recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility
  2. Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
  3. Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 98ft/30m in total darkness). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
  4. Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws
  5. For Face Detection to operate, this camera requires a connection to a compatible Lorex Network Video Recorder with smart face detection technology. For a list of compatible recorders please visit: www.lorex.com/compatibility
  6. Not intended for submersion in water. Installation in a sheltered location recommended.
  7. Cable length is dependent on product configuration. See product packaging for details.
  8. Mask Detection is compatible with select Lorex Network Video Recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility
W461ASC-E
  • 4K (8MP) Ultra HD resolution1
  • 108° horizontal field of view
  • Color Night Vision2
  • Up to 150ft (46m) IR night vision in low light condition. Up to 98ft (30m) in total darkness3
  • Smart Motion Detection Plus - Face, Person and Vehicle Detection
  • Face Recognition and Mask Detection technology with automatic voice prompts4
  • Get notifications from your Lorex Home™ app
  • Automatic warning light during person or vehicle detection
  • Remote-activated siren
  • Built-in microphone and speaker for 2-Way Talk5
  • Enhanced 2-Way Talk with Quick Response Messages
  • Safeguard - object missing or left behind
  • IP67 (Indoor/Outdoor) Environmental Rating6

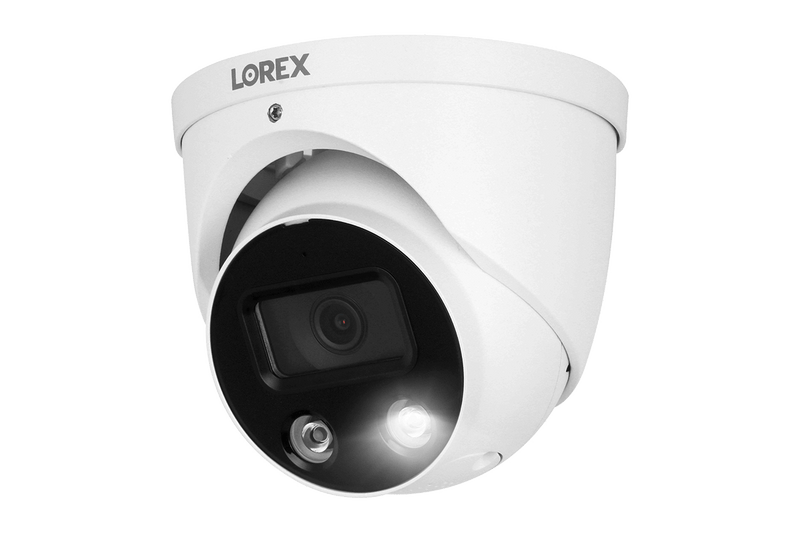

Each E893DD Includes:

1 × 4K IP Security Camera
1 × Mounting Kit
1 × 100ft Cat5e Ethernet Cable*
1 × Quick Start Guides
  1. Compatible with select Lorex Network Video Recorders HD recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility
  2. Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
  3. Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 98ft/30m in total darkness). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
  4. For Face Detection and Mask Detection to operate, this camera requires a connection to a compatible Lorex Network Video Recorder with smart face detection technology. For a list of compatible recorders please visit: www.lorex.com/compatibility
  5. Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws
  6. Not intended for submersion in water. Installation in a sheltered location recommended.
N843 N863B side
  • Record and view video in up to 4K (8MP) Ultra HD Resolution on all cameras1
  • View live footage in up to 15fps and digitally zoom in on distant objects for better clarity2
  • Reduce unnecessary alerts and false alarms with Smart Motion Detection3
  • Get push notifications when motion from a person or vehicle is detected4
  • A choice of four different siren sounds are available including a Police siren or a house alarm sound5
  • Use Smart Search to filter motion events for reviewing footage quickly and easily
  • Set up to 3 areas to keep track of items left behind or removed, such as packages or other items of value. Auto-voice messages can be activated when an event takes place.
  • Quickly access your live footage with simple voice commands (compatible with Amazon Alexa and Google Assistant)6
  • View live or recorded video directly on your TV with smart home compatibility (Compatible with: Apple TV and Chromecast)
  • 2 bay hard drive with up to 2 × 8TB of storage space with no hidden monthly fees
  • Local built-in security-grade hard drive
  • Heavy-duty hard drive designed for advanced processing and the workload of 24/7 monitoring
  • For improved security simply use the Lorex Home app to set a notification for when someone enters your business without a proper face mask
  • The voice prompt is another benefit that can be used to alert and remind non-mask wearers: "Please wear your face mask"
  • Expand your system with up to two Lorex Fusion™ compatible Wi-Fi products such as Wi-Fi cameras, Doorbells, Floodlights, and more7
  • Stream and record continuous video from your Wi-Fi cameras on your recorder with Lorex Fusion™
  • Increase the limited Wi-Fi SD-Card storage capacity of pair cameras by taking advantage of recording directly to the NVRs built-in HDD

Each N863A63B Includes:

1 × NVR
1 × AC power adapter
1 × USB mouse
1 × Ethernet cable
1 × HDMI cable
Quick Setup Guide
  1. 4K (8MP) IP cameras are required to take advantage of 4K recording.
  2. Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
  3. Accuracy of Smart Motion Detection will be influenced by multiple factors, such as the object's distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection. Compatible with certain Lorex IP cameras only.
  4. Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
  5. Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
  6. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visitwww.lorex.com/smarthome
  7. Fusion™ capabilities are limited to 2 wireless devices per system. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
  8. HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
  9. NVR has a total PoE power output of 130w. Different IP cameras have different wattage specifications. Please double check your camera specifications for power consumption (Wattage) requirements in order to not exceed the NVRs power output availability of the recorder when adding cameras. To learn more, please visit www.lorex.com/compatibility
