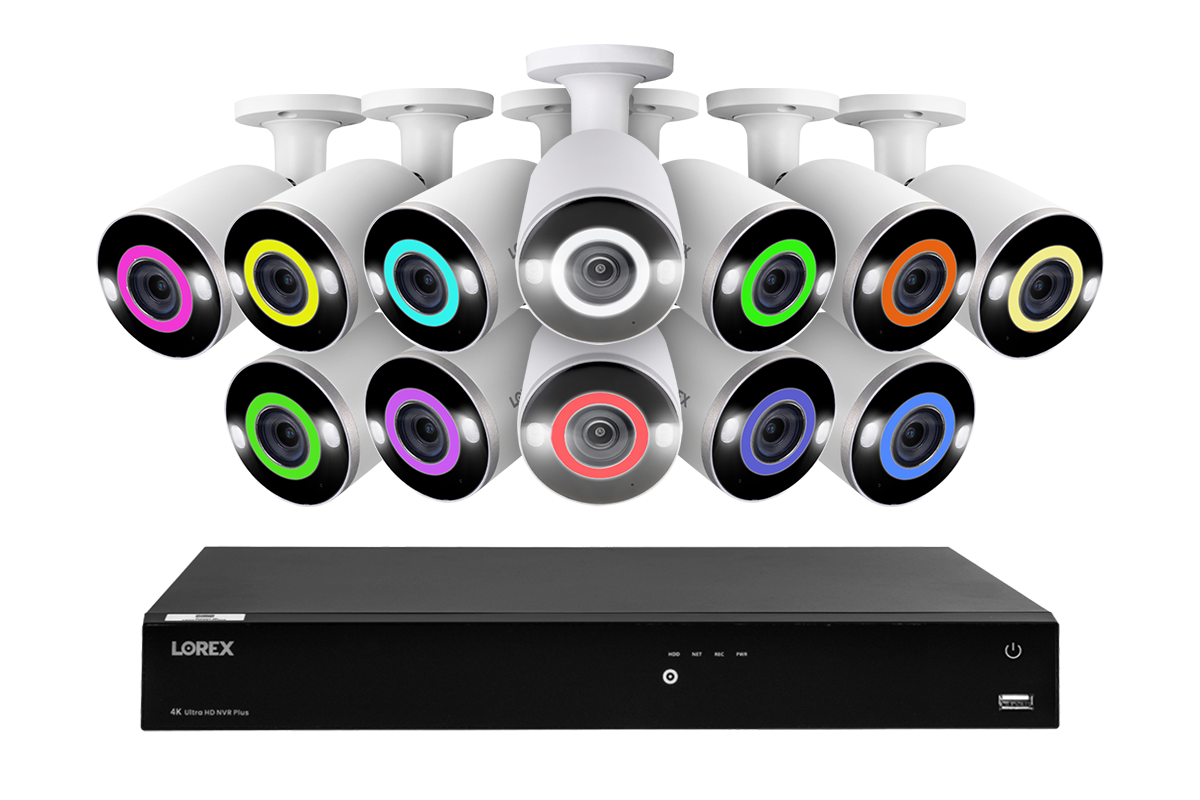

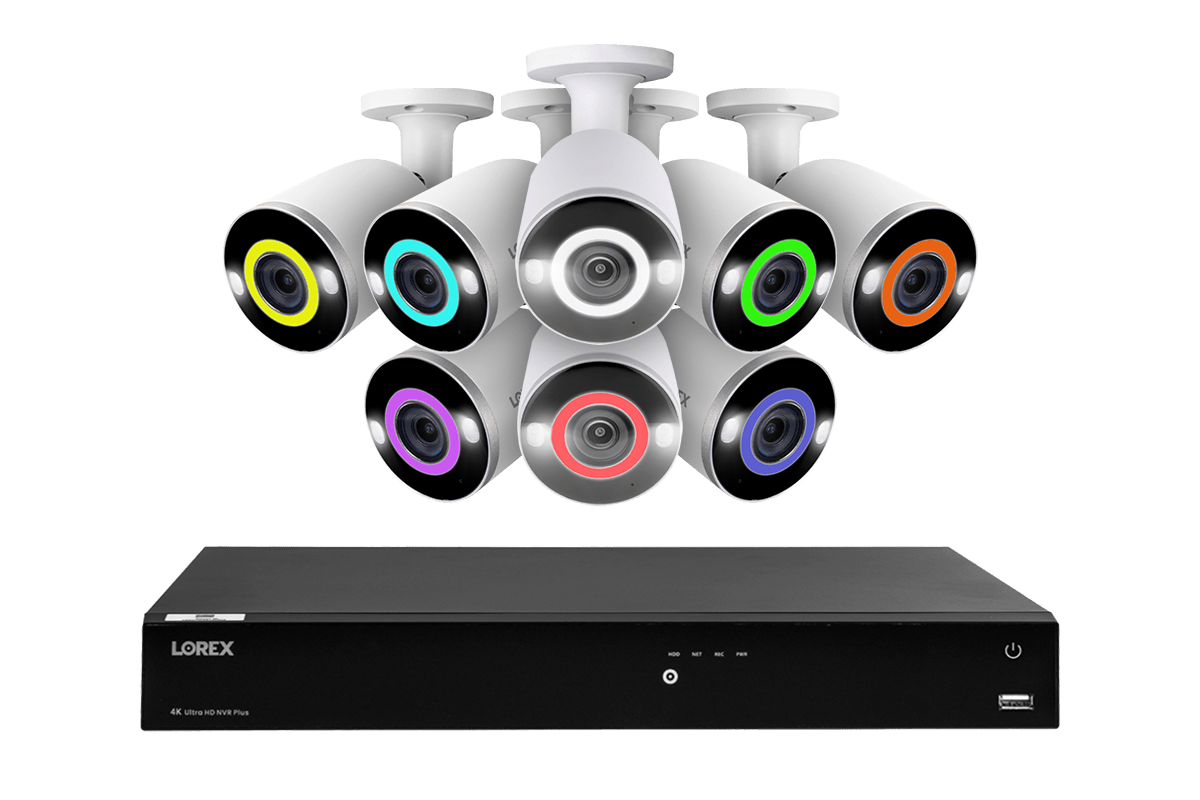

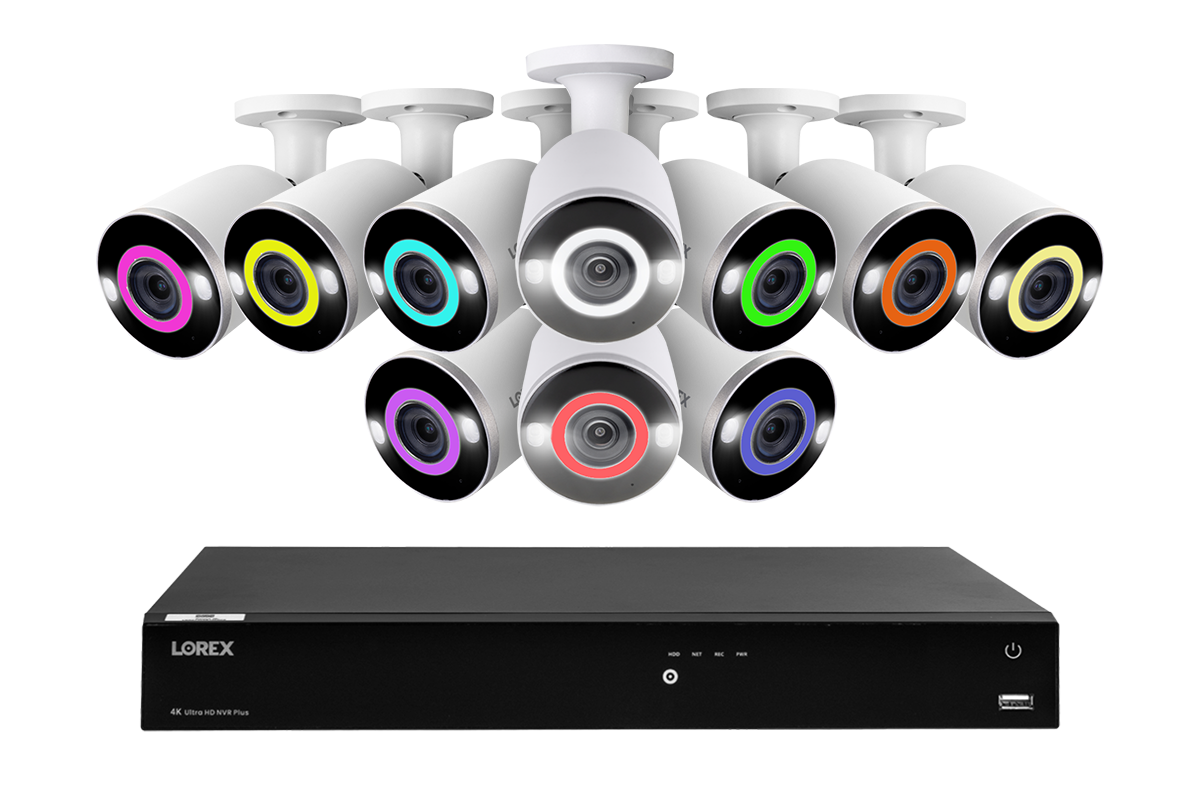

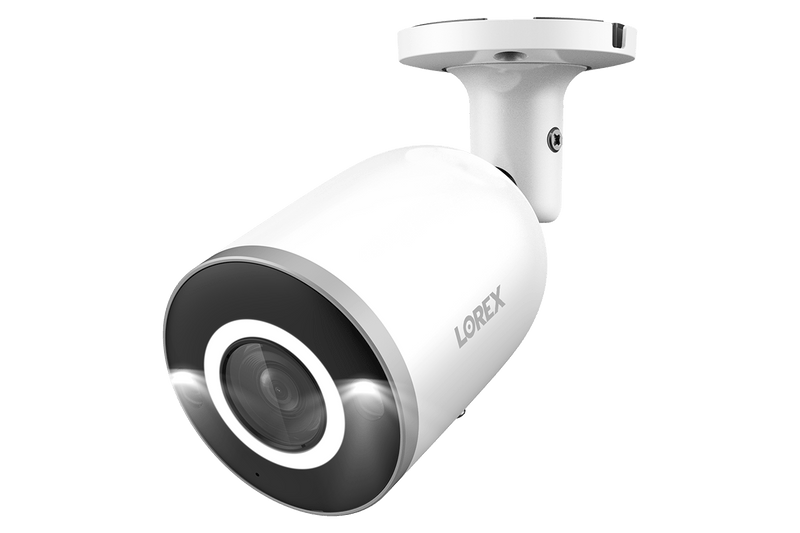

Lorex Fusion 4K 16-Channel 3TB Wired NVR System with Bullet Camera Featuring Smart Security Lighting and 2-Way Audio

N4K3SL-168WBNew Arrival
Number of cameras:
Sale price$1,949.99

Receive an exclusive 10% discount with Lorex Upgrade Program. Click here to learn more.
$1,949.99
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

bi-ecology

No Monthly Fees

Local recording protects privacy and saves money.

Features

Choose your favorite colors to welcome (or deter) guests with Smart Security Lighting. This system, featuring our colorful new 4K IP security cameras will add a personal touch to your security. Along with stunning 4K recording and deterrence features (motion spotlights, warning siren, and two-way audio), these cameras also feature Smart Detection Plus (person, vehicle, face, animal, and package) to help you stay-in-the-know of events happening at your home or business. The included Fusion NVR is also unlike any other recorder on the market. It can connect a total of 16 wired IP cameras and Smart Home wireless cameras (like Wi-Fi cameras and video doorbells), giving you unprecedented versatility in creating a perfectly tailored security ecosystem for your property.




Customize light colors with



The customizable smart LED light band comes with 16.7 million color options to choose from. Colors can be assigned to pre-set camera modes, ssuch as a "Welcome" or "Panic" mode.

Select Color



Get alerts that matter

Smart Motion Detection will deliver mobile push notifications to tell you exactly what kind of motion the camera has detected.


Person Detection Person Detection

Vehicle Detection Vehicle Detection

Face Detection Face Detection

Animal Detection Animal Detection

Package Detection Package Detection




Impressive clarity and wider coverage



Get the best view of your property around-the-clock with stunning 4K clarity and vivid Color Night Vision.


drag left and right to see product in 360 view


Wide field of view in full 4K

At the core of this camera is an 8MP image sensor. 8MP means there are more than 8 million pixels, which results in exceptionally sharp 4K video, realistic color representation, and superior digital zoom capabilities. The 108° field-of-view also allows your camera to monitor a broader area so you see more and detect motion earlier.

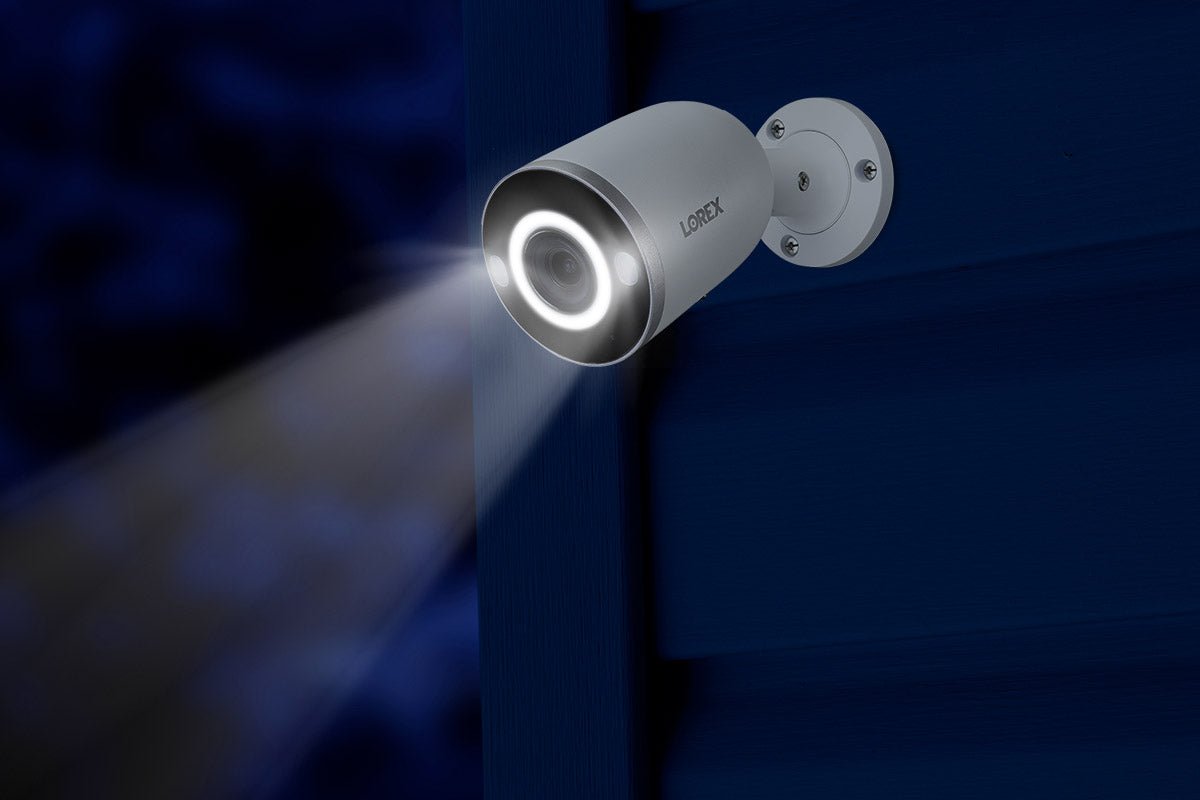

Boost Your Color Night Vision

Experience the best night vision on the market. This camera features our revolutionary Color Night Vision (CNV) Booster, which produces our most vivid and longest range full-color nighttime video yet. CNV works best with the help of ambient lighting, however, in conditions that are too dark, this camera will use its infrared LEDs to record crisp black and white video footage.



IR Night Vision



Color Night Vision



Color Night Vision Booster




Built to Last

Pro-Grade heavy-duty aluminum housings protect against weather and vandalism, extending the life-cycle of your camera so you can count on years of uninterrupted service.





Smart home compatibility

Get faster access to your security system by connecting it to other Smart Home devices; use simple voice commands to activate camera features with Amazon Alexa™ and Google Assistant™, use it with Chromecast or Firestick to monitor your security camera footage on a larger screen, or download the Lorex Home app on your Apple TV* to view live video in single or multiple feeds. For more information about current smart home integrations, visit our Smart Home Guide.


*Requires Gen 4 or newer Apple TV with support for App Store

works with Google works with Alexa


Same Look - Home or Away

Enjoy a seamless monitoring experience whether you are accessing your system locally through the recorder or remotely through the app. The Recorder User Interface now uses the same look and feel as the Lorex Home app, making it easier than ever to navigate and find events as you switch platforms.




Customize Your Security With Fusion

Create a personalized Lorex Smart Home ecosystem by pairing your system with up to 16 wired or Wi-Fi devices. This allows you to record continuous video from all Wired and Wi-Fi cameras to the NVRs hard drive. This can also provide invaluable back-up of events should a Wi-Fi camera's local storage become disabled.




All-In-One Security

Get the most out of your system by connecting wired and wireless cameras, doorbells, and sensors to your recorder.

Continuous Recording

24/7 continuous recording directly to your hard drive with expandable storage and no monthly fees.

Lorex Home App

Access all of your Lorex devices from one place, allowing for easy control and monitoring of your property.


Fusion Devices


Free Local Storage, No Monthly Fees

Local storage means no monthly fees and with the built-in 3TB hard drive, you will have ample storage, while your recordings stay safe and private.




Fusion Series NVR Comparison Chart

  N845 Series Lorex Fusion 4K 16-Channel NVR N843 Series Lorex Fusion 4K 8-Channel NVR N864 Series Lorex Fusion 4K 16-Channel NVR N863 Series Lorex Fusion 4K 8-Channel NVR
Channels (Wired / Wi-Fi Fusion) 16 Total (8 Wired and 8 Wi-Fi) 8 Total (up to two Wi-Fi) 16 Total (Wired and Wi-Fi) 16 Total (up to two Wi-Fi)
Resolution 4K @ 15fps 4K @ 15fps 4K @ 15fps 4K @ 15fps
Storage / Capacity 1 Bay / Up to 8TB 1 Bay / Up to 8TB 2 Bay / Up to 2 x 8TB 2 Bay / Up to 2 x 8TB
Video Compression H.265/H.264 H.265/H.264 H.265/H.264 H.265/H.264
PoE Output Max 25.5W for single port, 72W total Max 25.5W for single port, 72W total PoE: Max 25.5W for single port, 130W total PoE: Max 25.5W for single port, 130W total
Power Consumption Approx. 8.3W Approx. 8.3W Approx. 13.2W Approx. 13.2W
Smart Motion Detection Person / Vehicle / Face / Animal / Package Person / Vehicle / Face / Package Person / Vehicle / Face / Animal / Package Person / Vehicle / Face / Package
Special Features Active Deterrence / Panic Button / Smart Search Active Deterrence / Panic Button / Smart Search Active Deterrence / Panic Button / Smart Search Active Deterrence / Panic Button / Smart Search
Lorex Sensor Compatible Yes Yes Yes Yes
Mobile Viewing Lorex Home™ Lorex Home™ Lorex Home™ Lorex Home™
Smart Home Amazon Alexa™, Google Assistant™ Amazon Alexa™, Google Assistant™ Amazon Alexa™, Google Assistant™ Amazon Alexa™, Google Assistant™
Streaming Options Chromecast™, Apple TV™, Amazon Echo Show™, Google Home Hub™ Chromecast™, Apple TV™, Amazon Echo Show™, Google Home Hub™ Chromecast™, Apple TV™, Amazon Echo Show™, Google Home Hub™, Lenovo Smart Display™ Chromecast™, Apple TV™, Amazon Echo Show™, Google Home Hub™, Lenovo Smart Display™
PC/Mac Remote Viewing Yes - Lorex Cloud Client Yes - Lorex Cloud Client Yes - Lorex Cloud Client Yes - Lorex Cloud Client

Video

What's Included?

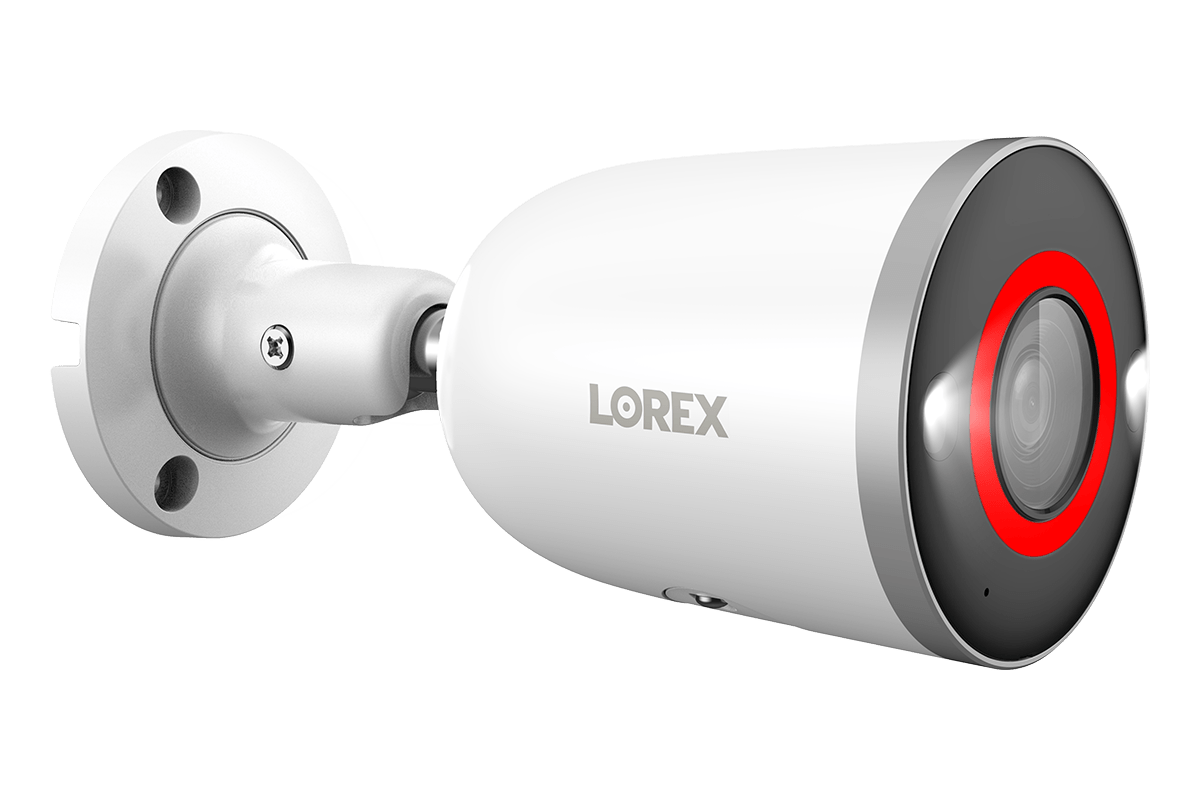

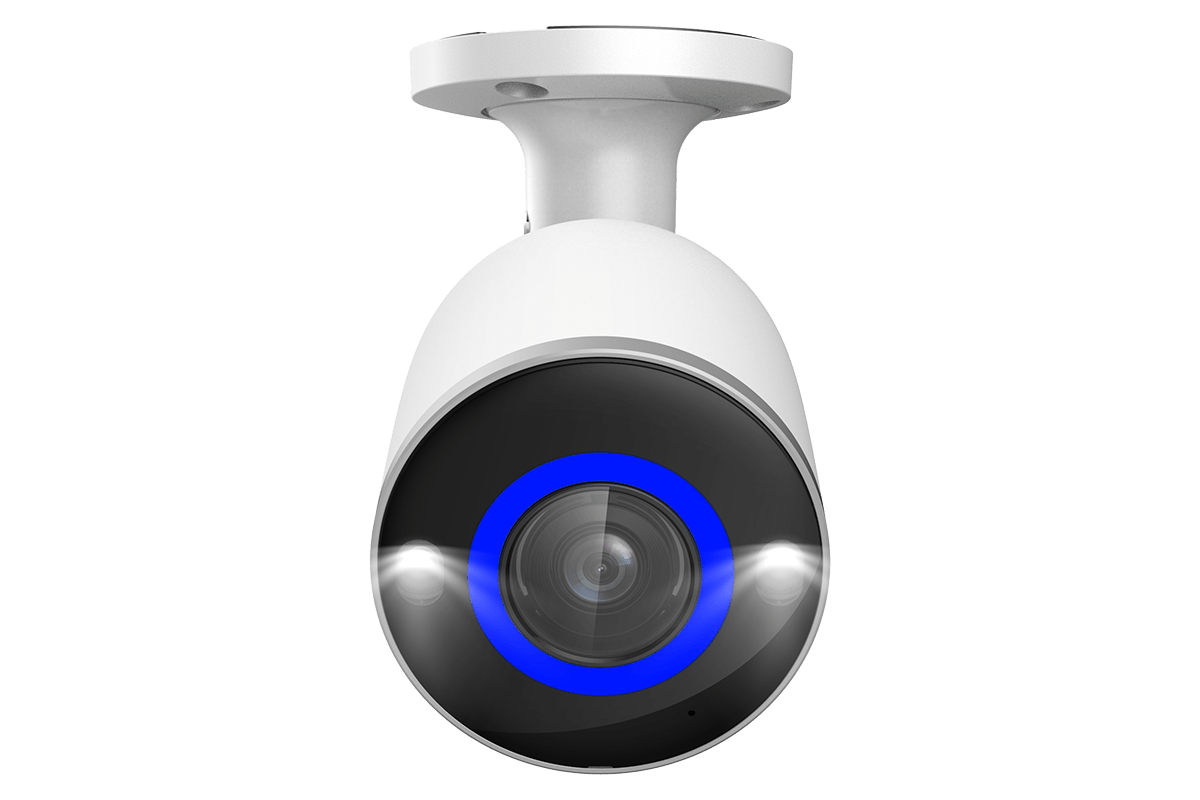

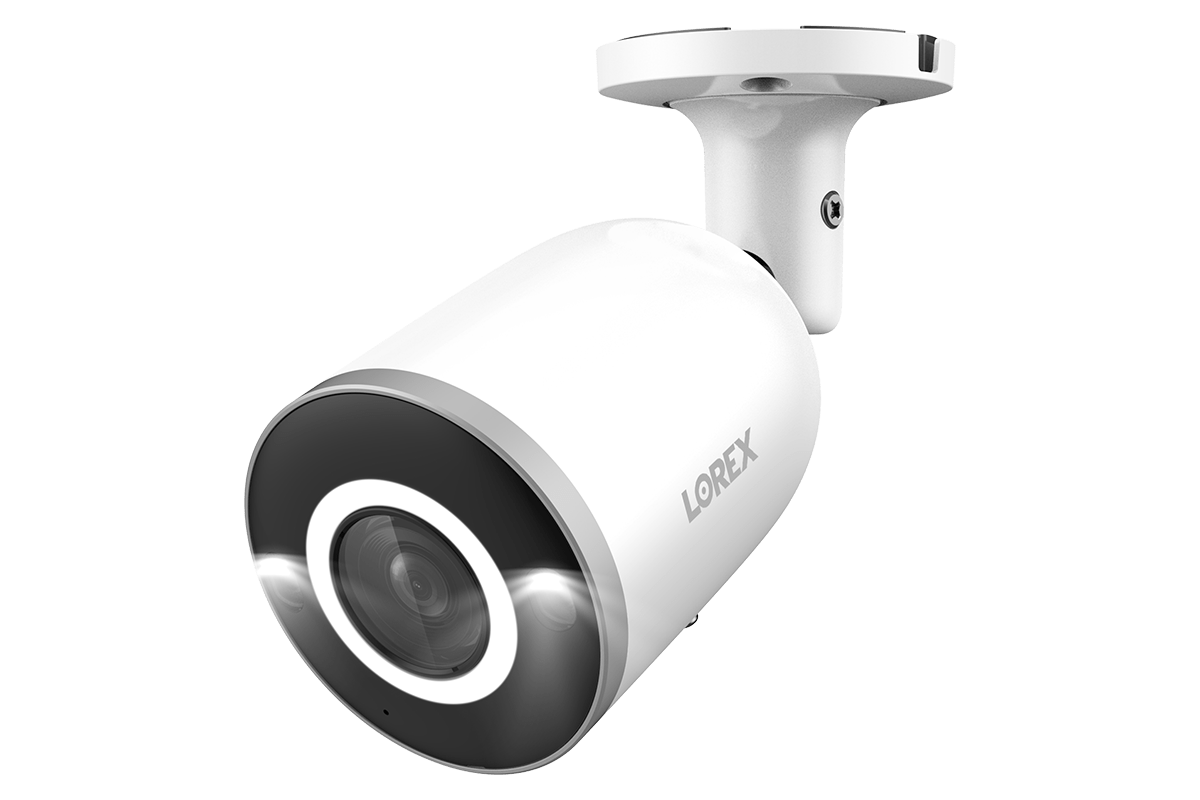

E896AB Overview

Dimensions (WxDxH): 2.9" x 6.9" x 2.9" (73mm x 175mm x70mm)
Weight: 1.15lbs / 0.52kg

  1. Cable Notch
  2. Adjustment Screw
  3. Speaker and Siren
  4. MicroSD Card Slot
  5. Reset Button
  6. Warning Lights
  7. Smart Security Lighting
  8. Microphone


Package Contents:

4K Deterrence IP Camera

Mounting Kit

Ethernet Extension Cable*

*With pre-attached weather-resistant cap.
  1. Compatible with select Lorex Network Video Recorders HD recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility
  2. Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
  3. Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 98ft/30m in total darkness). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
  4. For Face Detection to operate, this camera requires a connection to a compatible Lorex Network Video Recorder with smart face detection technology. For a list of compatible recorders please visit: www.lorex.com/compatibility
  5. Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws
  6. Not intended for submersion in water. Installation in a sheltered location recommended.
  7. Cable length is dependent on product configuration. See product packaging for details.
  8. Mask Detection is compatible with select Lorex Network Video Recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility
  9. Color Night Vision Booster can be enabled using the Lorex Home app and will light for 3 minutes when turned on.
  10. A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing.
N864 Front Overview

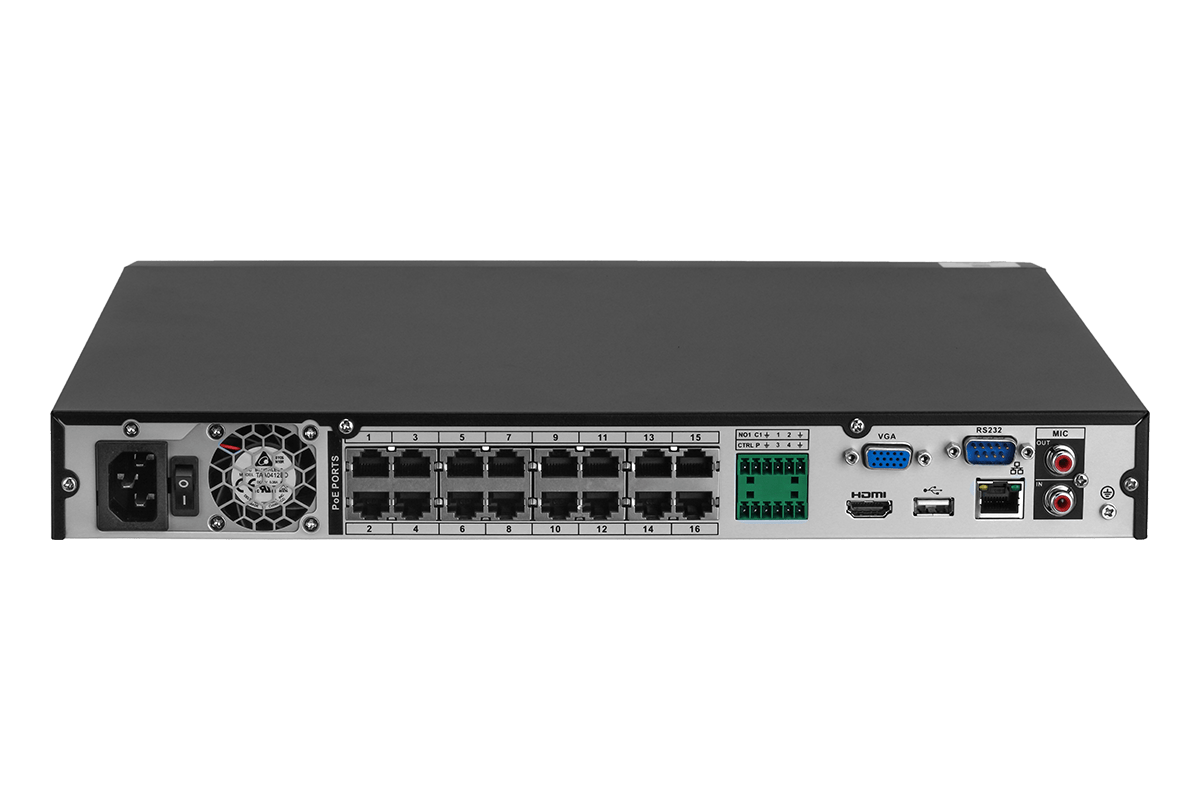

N864 Back Overview

Dimensions (W×D×H): 12.9 x 9.6 x 2.1” (328 x 245 x 53 mm)
Weight: 2.75 lbs. / 1.26 kg (excl. HDD)

  1. Info / Panic Button
  2. Hard Drive, Network, Recorder & Power LEDs
  3. USB
  4. Power Button
  5. Power Input
  6. Power Switch
  7. PoE Ports
  8. Alarm
  9. HDMI
  10. VGA Port
  11. RS232
  12. LAN
  13. Audio In / Out

Package Contents:

4K Fusion NVR

Ethernet Cable

USB Mouse

HDMI Cable

Power Adapter

  1. 4K (8MP) IP cameras are required to take advantage of 4K recording.
  2. Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
  3. Fusion™ capabilities are limited to 2 wireless devices per system. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
  4. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com/smarthome
  5. Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
  6. Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
  7. HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
