250FT high performance BNC Video/Power Cable & 12V Power Adapter for Lorex security camera systems (4-pack)


Safe & Secure

Apps are protected with end-to-end data encryption.


Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.


No Monthly Fees

Local recording protects privacy and saves money.

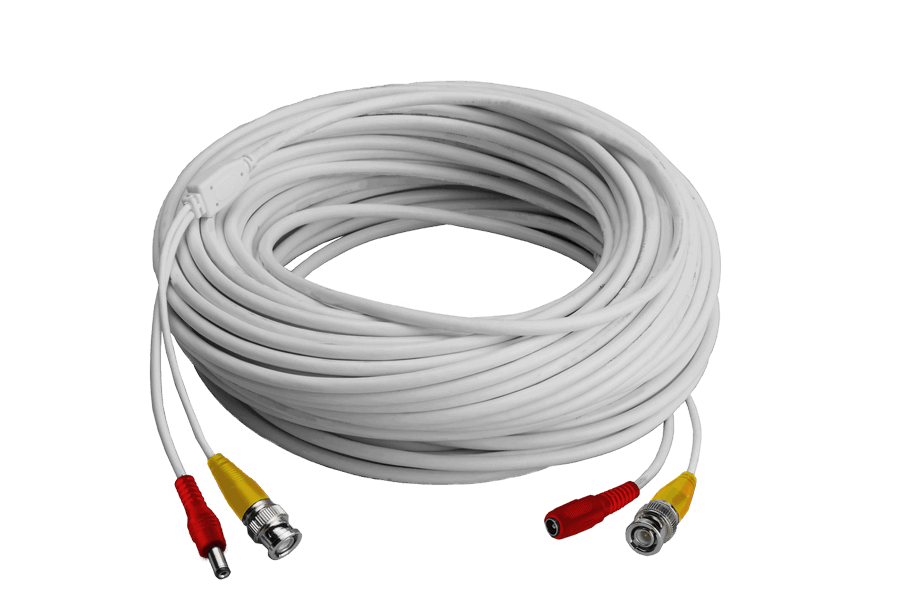

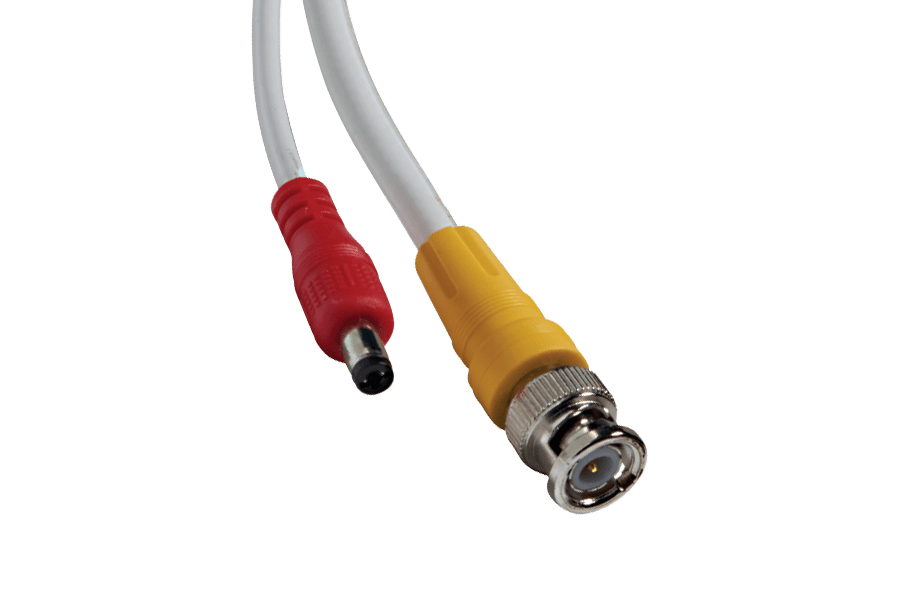

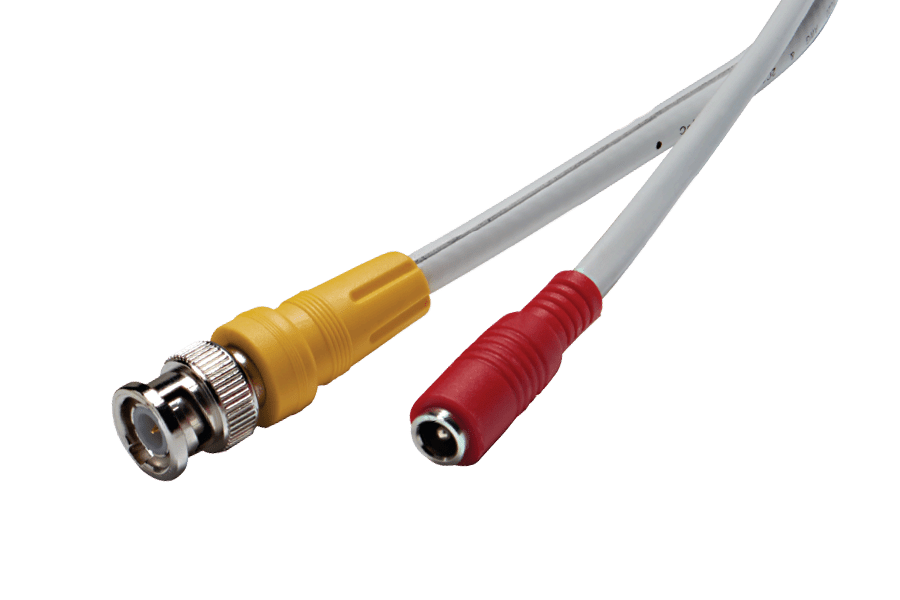

Extend the distance of your Analog HD / MPX security cameras with this 250ft high-performance siamese BNC camera cable. This cable is compatible with all Lorex MPX / analog security cameras up to 4K (8MP) resolution. It is called a Siamese cable because it has two ends - one for power and one for analog video transmission. This cable also includes a 12-volt power adapter compatible with all Lorex wired security cameras with a power consumption rating below 1.0A.


IMPORTANT: Only needed for the following cameras with a higher power requirement being; LBV8541X/ LBV8543X/ LBV8721A/ LEV8532/ LBV8531. Please see CB250URB if you do not have any of the cameras listed above.


In-Wall, Between Floors

This cable meets or exceeds the cETLus communication cable standards, as well as the National Electric Code (NEC) and Canadian Electric Code (CEC) standards, for CMR (Riser) type cabling. This means that it is safe to run this cable through walls and between floors that do not circulate heating or air conditioning systems.

Fire Resistant Cable

Fire Resistant

The cable jacket material of this cable has also passed a vertical burn test to ensure that flames will not move along the cable.

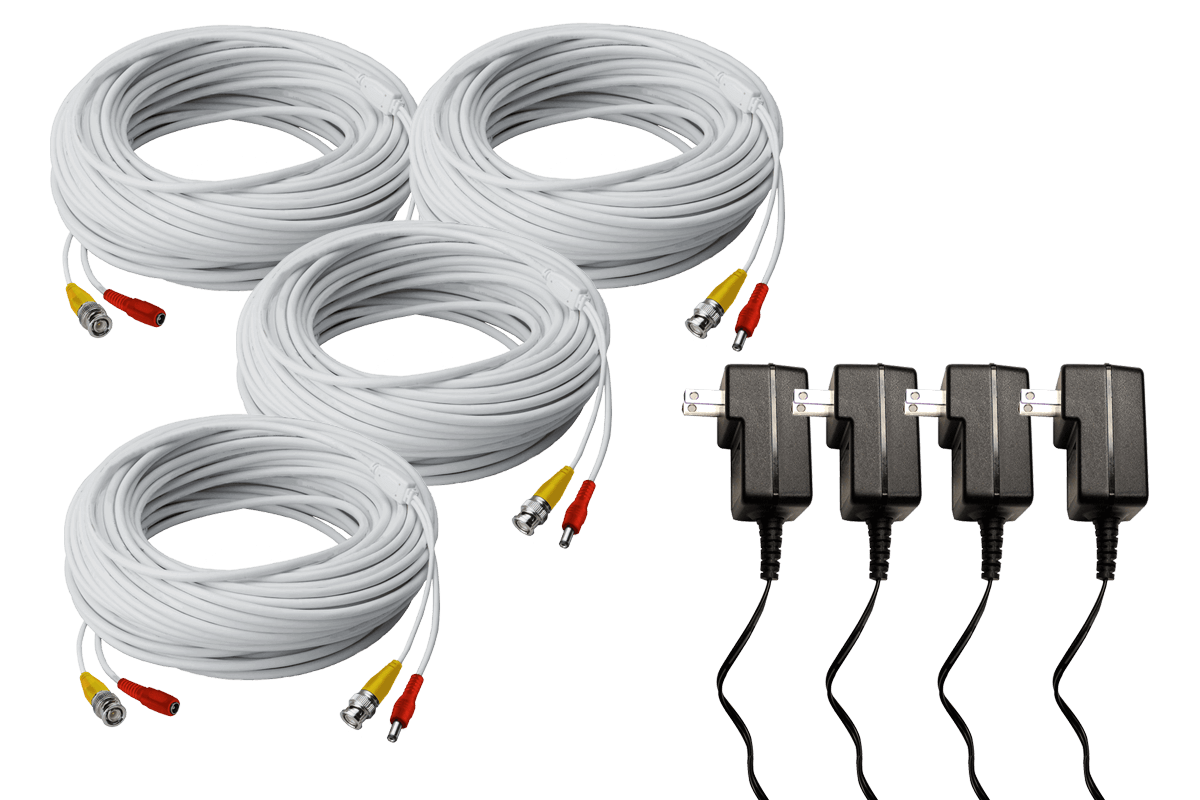

What's Included?


High performance video/power cables for security cameras Features:

  • Connect or extend analog and HD cameras
  • Ideal for running along walls, inside walls and between floors*
  • Meets or exceeds UL / cUL communication cable standards - CMR type (Riser).
  • Meets or exceeds National Electric Code (NEC) and Canadian Electric Code (CEC) standards for CMR type cabling.
  • Tested and certified to work with Lorex branded 4K resolution analog HD cameras.

* Cabling run in Plenum areas require a Plenum rating. Check your local building code for location specific cable requirements.

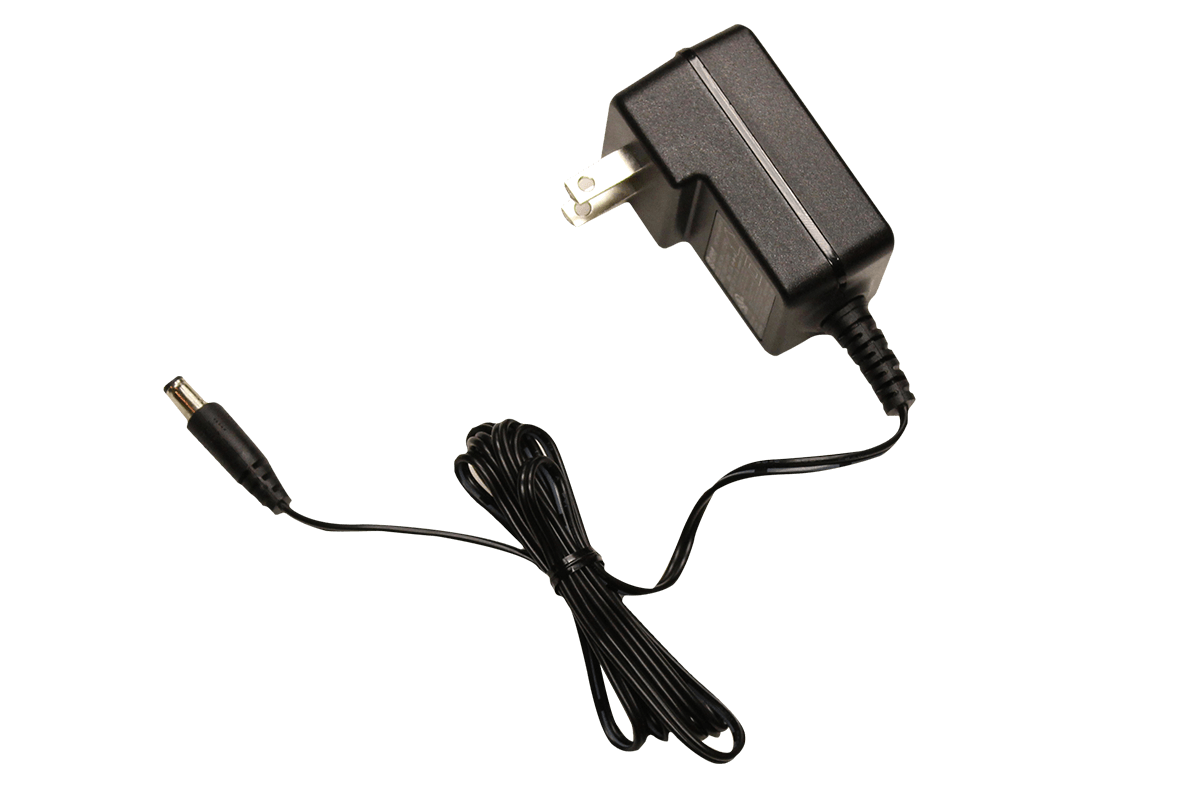

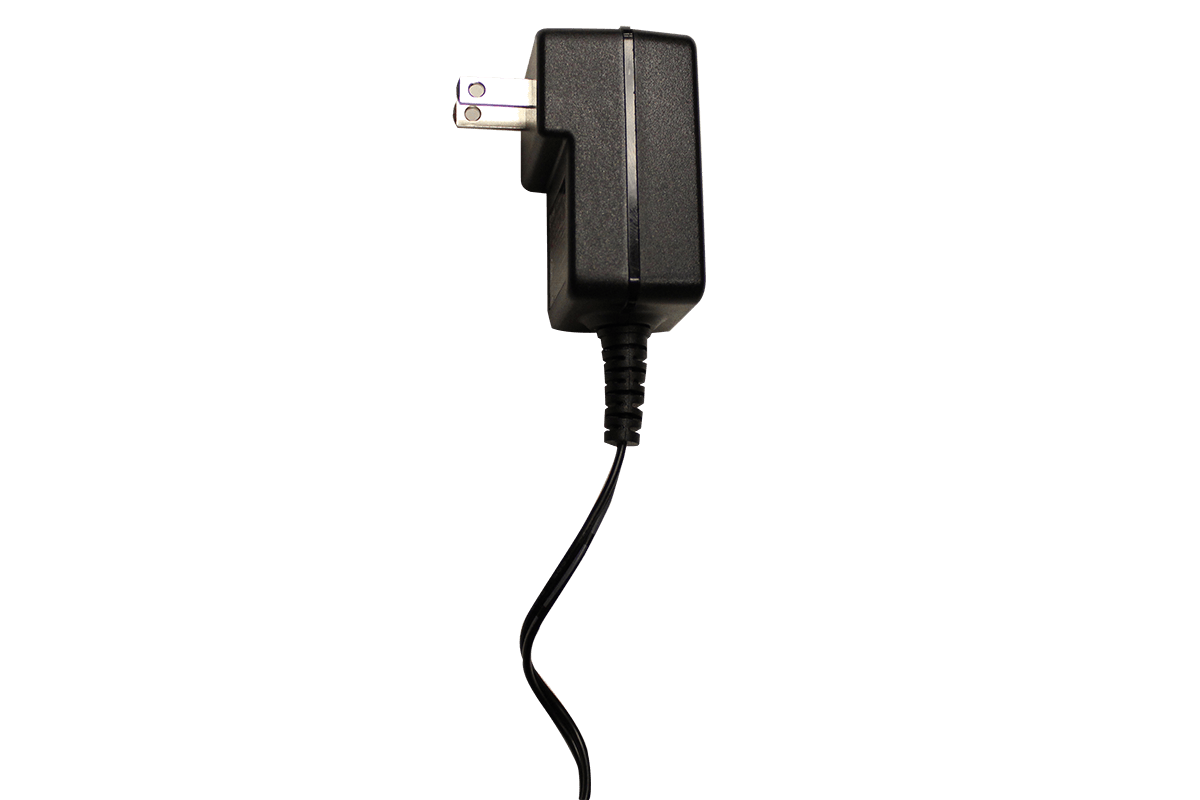

12V Regulated DC Security Power Adapter 1A Features:

  • Regulated DC Adapter
  • Output: 12V DC Regulated
  • Current: 1A
  • Compatible will all Lorex wired security cameras with a power consumption rating of below 1.0A

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown. Images are simulated.
