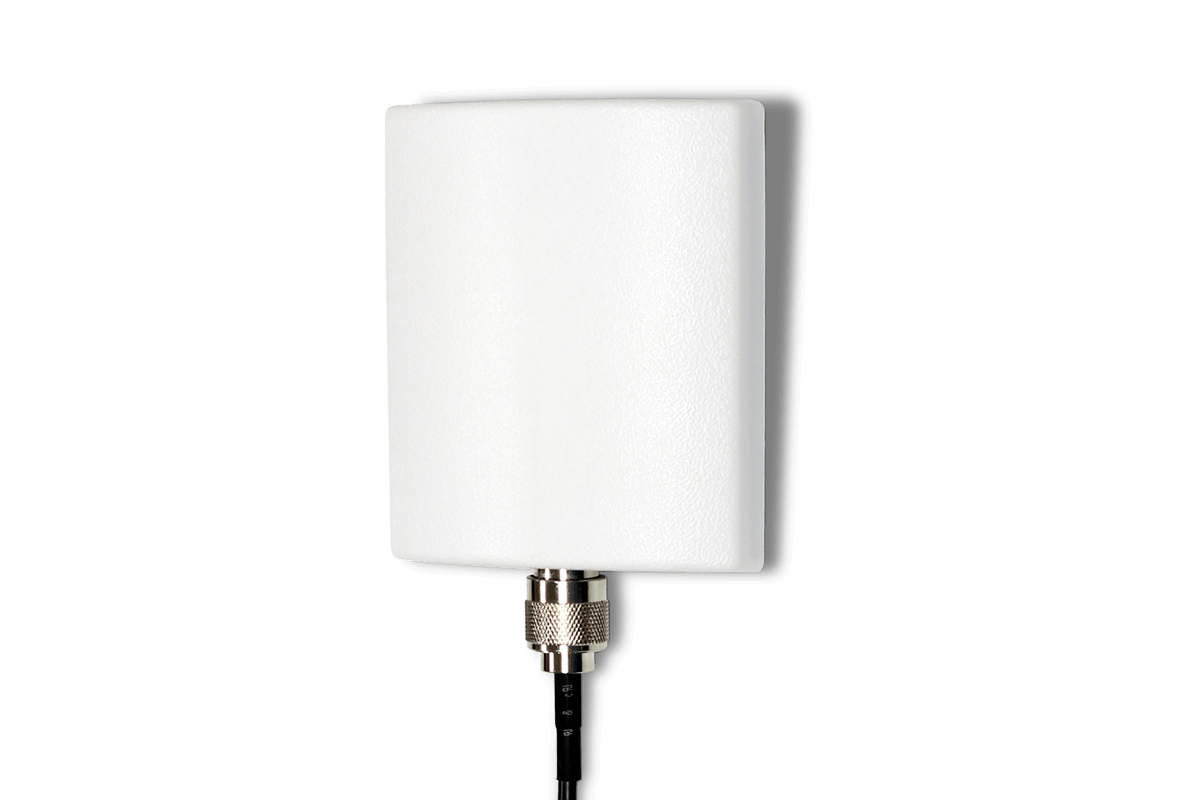

Use the ACCANTD9, 2.4GHz Directional Wireless Panel Antenna, to focus a wireless signal onto one specific camera in order to increase the range of transmission (clear line-of-sight between the camera and the antenna is required). Please refer to this compatibility chart to see if your wireless camera is compatible with this antenna.
A clear line of sight between the antenna and wireless camera is highly recommended to ensure maximum signal strength. It is important to note that concrete, trees, or other large objects can greatly reduce the strength of your signal.
This antenna is designed to be used with a single wireless security camera. The spread of the signal emanating from this antenna is quite narrow, which means that you need to point the antenna directly at your wireless camera.
The ACCANTD9 directional wireless security camera signal booster can be installed in many different locations, such as a roof, fence, deck, or the side of your house. Just make sure that you can safely drill into your selected location.

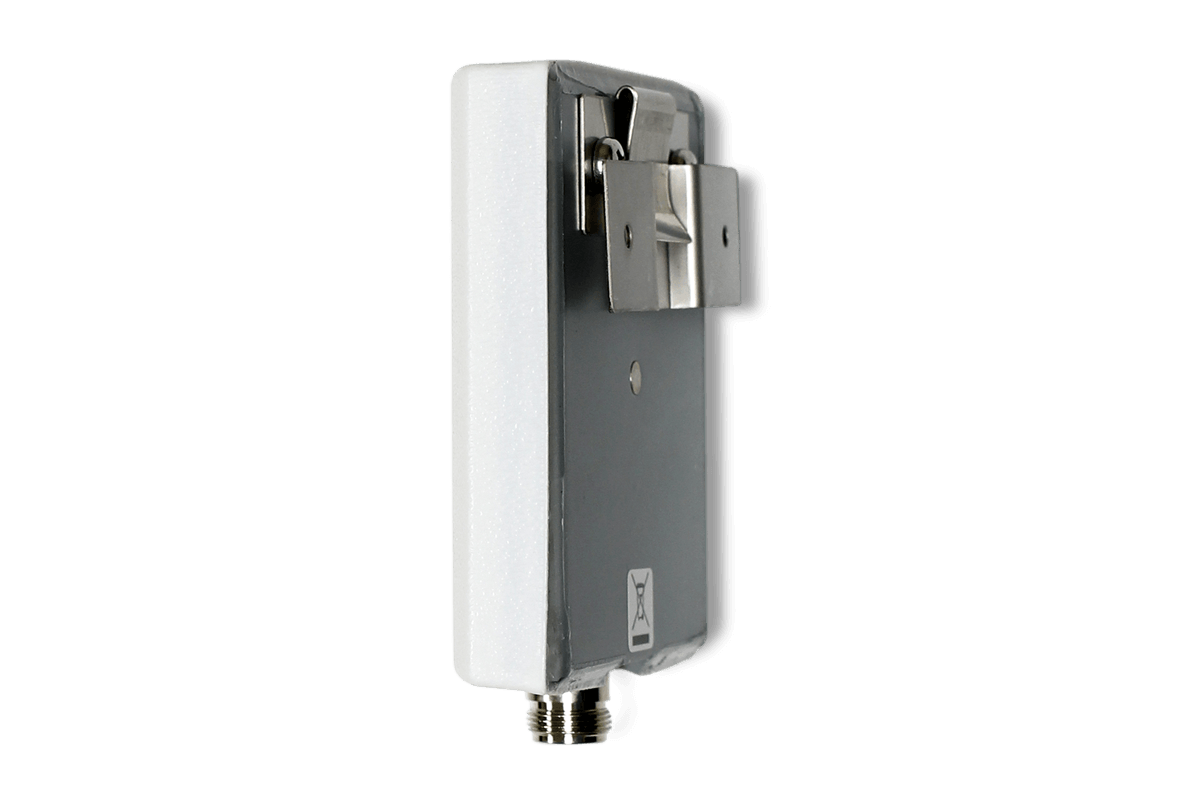

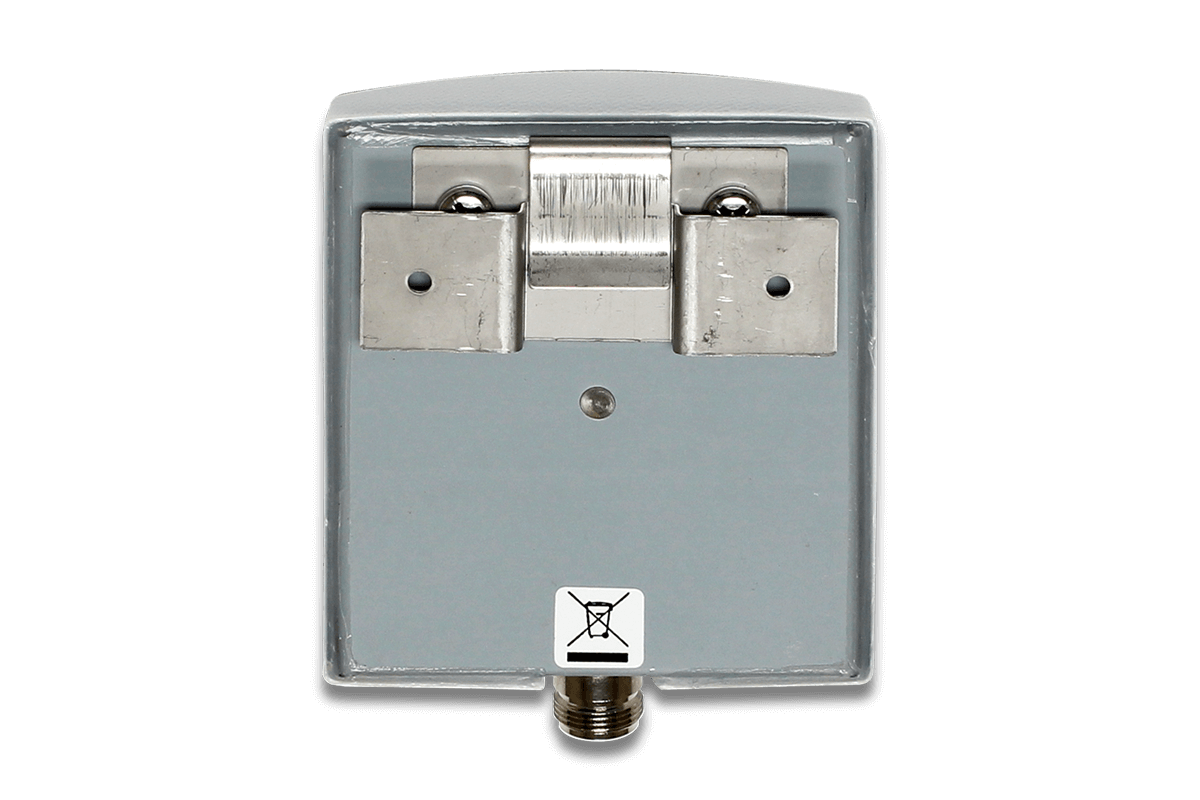

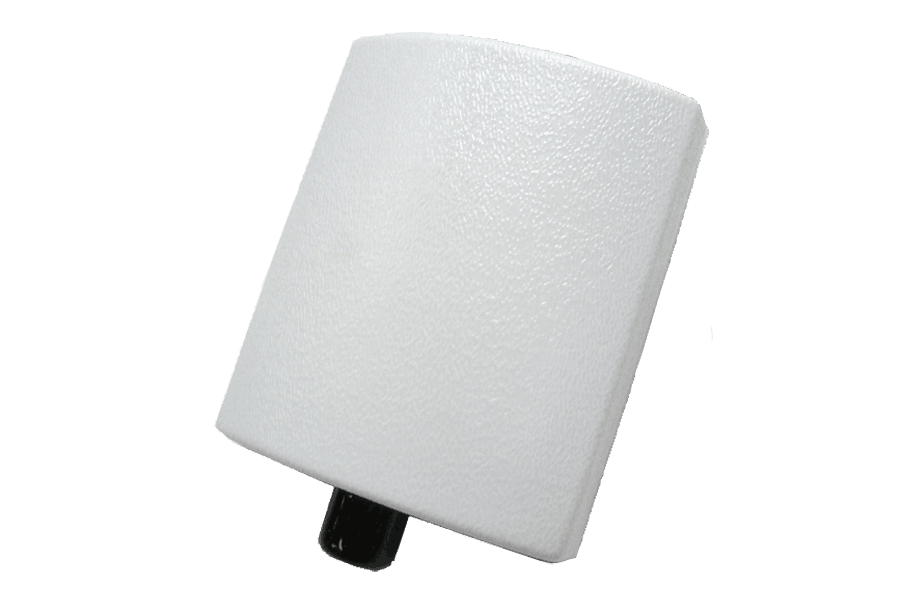

To install this antenna you will need to first secure the mounting plate to the location of your choosing. Next, remove the rubber cap from the bottom of the antenna and connect the included Antenna Extension Cable. Then slide the antenna onto the mounting plate and run the extension cable to your wireless camera's receiver.
Combine with another directional antenna

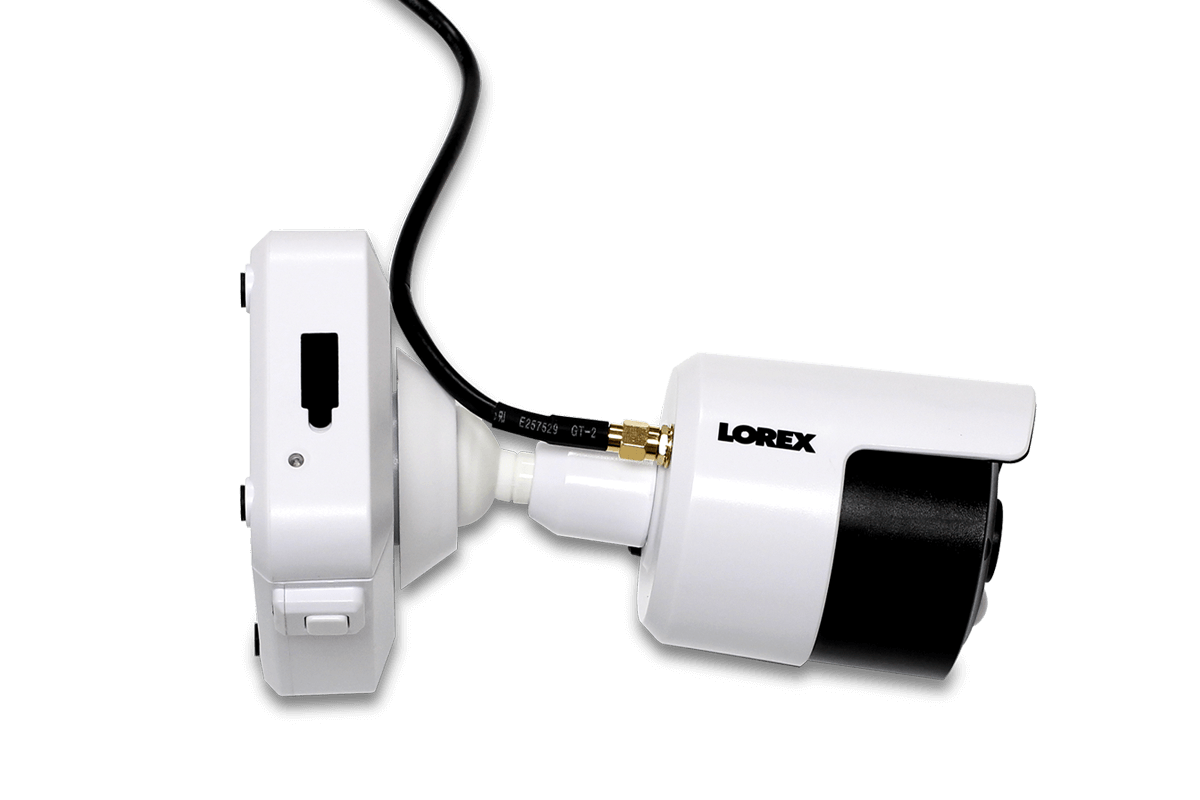

To boost the wireless signal even further, you can add a secondary directional antenna to the wireless camera itself. Simply connect the second directional panel antenna using an SMA extension cable. A clear line-of-sight between the two directional antennas is highly recommended in order to maximize signal strength.
- 1 x Panel Antenna
- 1 x Mount
- 2 x Screws
- 2 x Anchors

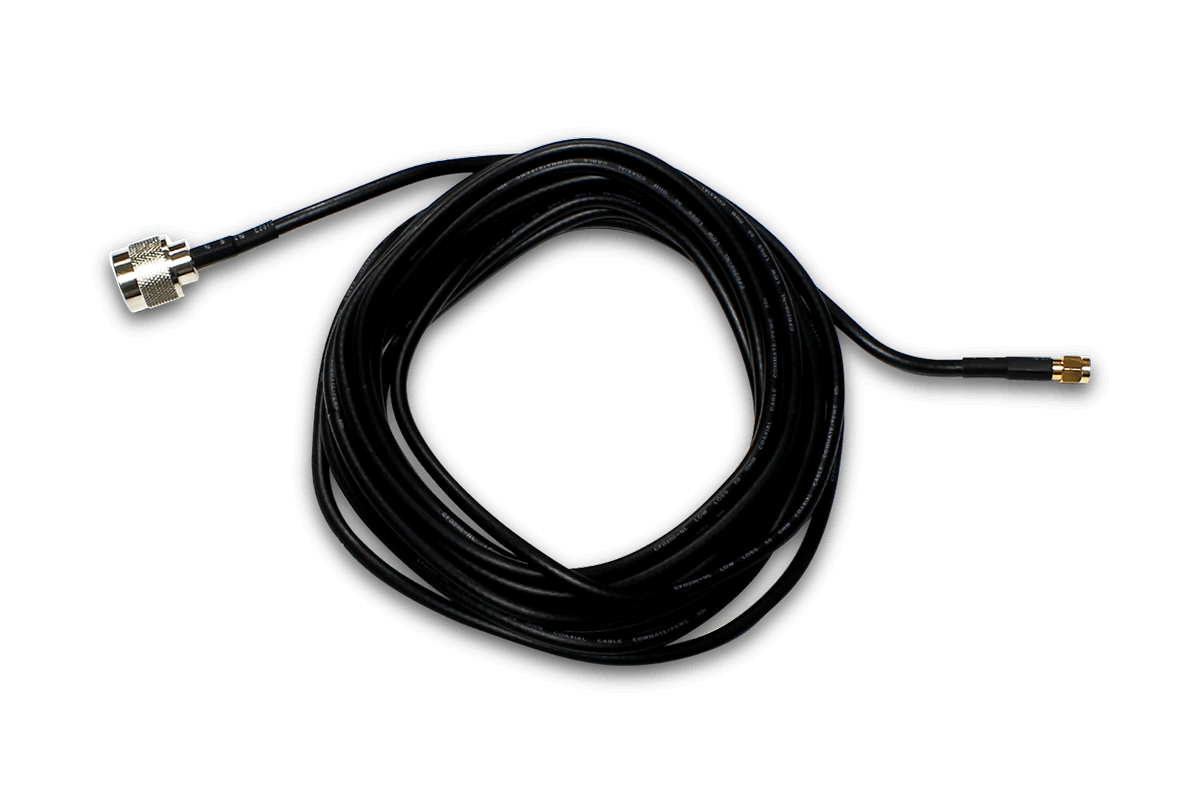

- 1 x 20 ft. (6 m) Antenna Extension Cable
