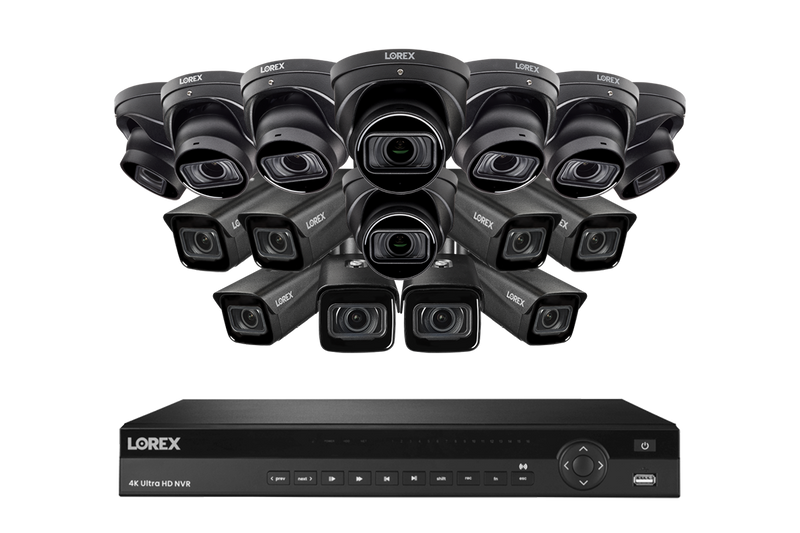

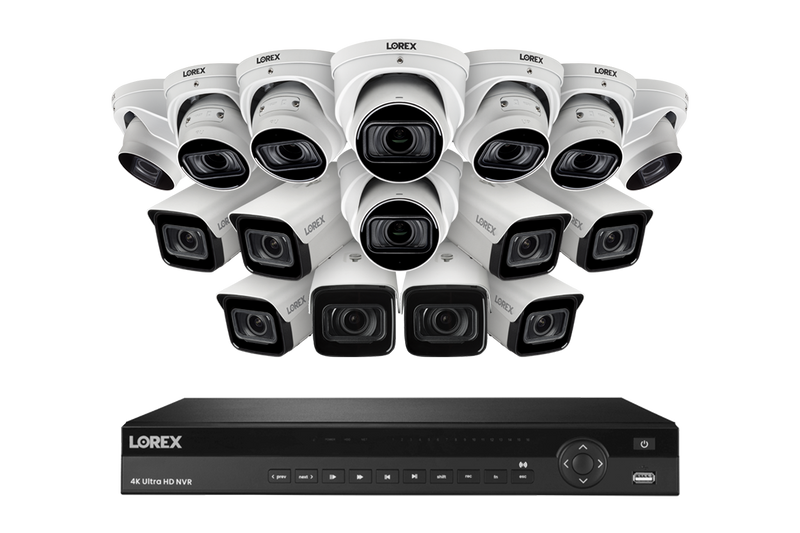

Lorex 4K (16 Camera Capable) Nocturnal 4 Pro Series NVR System with 8 Bullet and 8 Dome Cameras with Motorized Varifocal Lens

NC4K4MV-1688BDB-2
Color:
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

bi-ecology

No Monthly Fees

Local recording protects privacy and saves money.

Features



NOCTURNAL 4
SERIES SECURITY CAMERA

Empower your business with a top performing professional-grade monitoring solution – The Lorex 4K IP Nocturnal Motorized Varifocal Wired Camera.

LNB9393 and LNB9383 Bullet Nocturnal Cameras



See Clearly,
Day and Night




Ultra HD Resolution

Color Night Vision

Real-time 30 FPS

Motorized Varifocal Lens

Improve Service, Efficiency, and Profitability

People Counting

Advance people counting analytics provides valuable information about the number of people inside your premises at any point in time.

Heat Mapping

Heat Maps illustrate customer movement to better understand where the heaviest and lightest traffic areas are.



*People Counting and Heat Map functions are only supported by the N883 Series NVR.”

Vandal Resistant

Nocturnal 4 Bullet Cameras (LNB9383 and LB9393) are rated IK10. This means their heavy-duty metal exteriors are built with additional protection to withstand direct impacts.


Learn More About IK10


Audio Recording

A built in microphone on the dome cameras will add another layer of security coverage. Listen-in audio can add valuable information (such as voices) or analysis to the scene*.


*Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its products that fails to conform with local laws.


Go The Distance With ePoE Technology

PoE vs ePoE System


Save on long distance cabling with Nocturnal 4 Cameras. They feature Enhanced PoE (ePoE) technology, which allows you to connect them up to 600m (2000 ft) away, compared to the standard 100m (328 ft), without the need for numerous PoE switches.


*N883/N882/N881 Series NVRs have 8 designated ePoE ports (CH 1-8) compatible with Nocturnal 4 Series Cameras.



Built for the
Outdoors

Nocturnal security cameras can endure anything from torrential downpours to freezing snowstorms. So go ahead and place these security cameras where you need them most.



The IP67 durable camera exterior ensures protection against harsh weather conditions
These cameras are engineered to withstand extremely cold climates and will continue to operate in temperatures as low as –40 °C / –40 °F.
These cameras are also built to tolerate blistering hot temperatures and will continue to operate in temperatures as high as 60 °C / 140 °F.


360° Product View




360° Product View



What's Included?

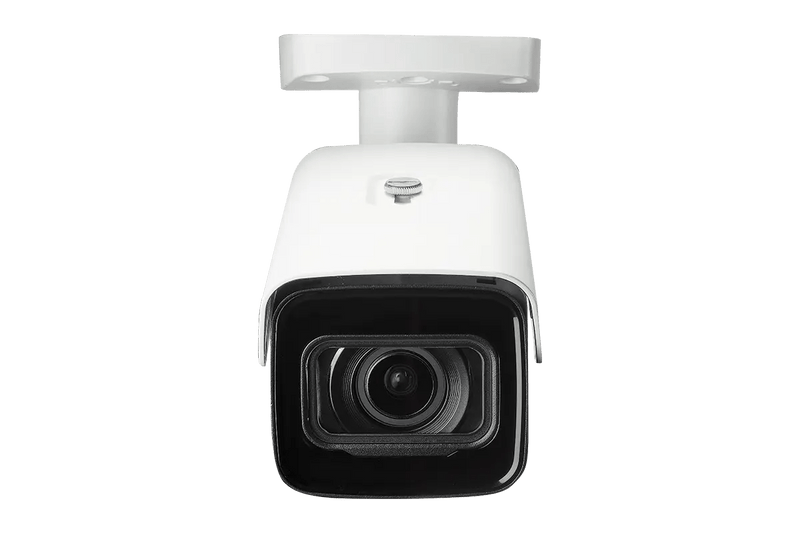

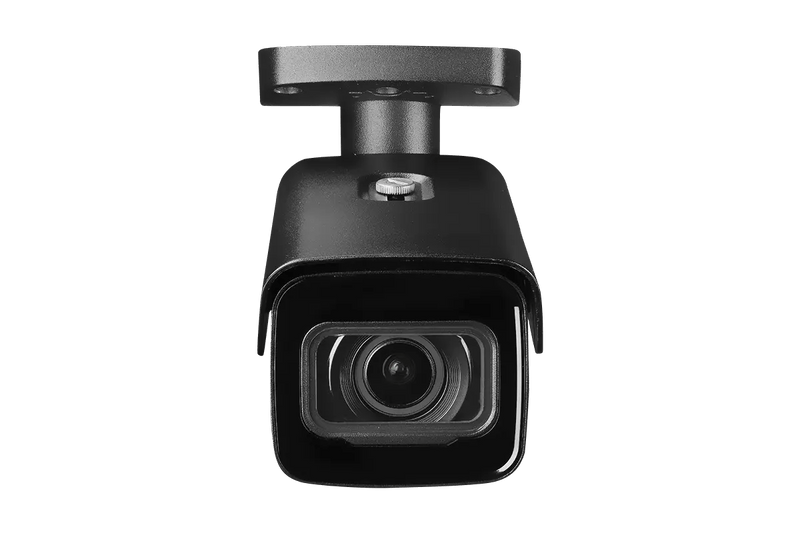

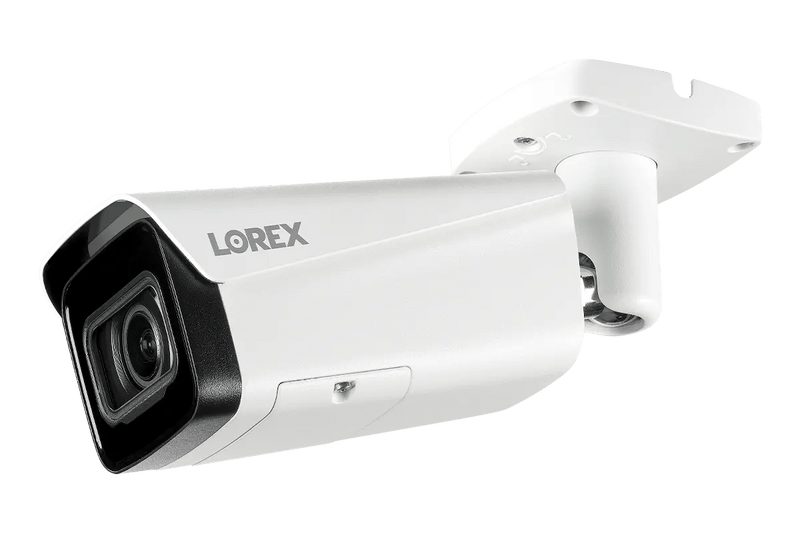

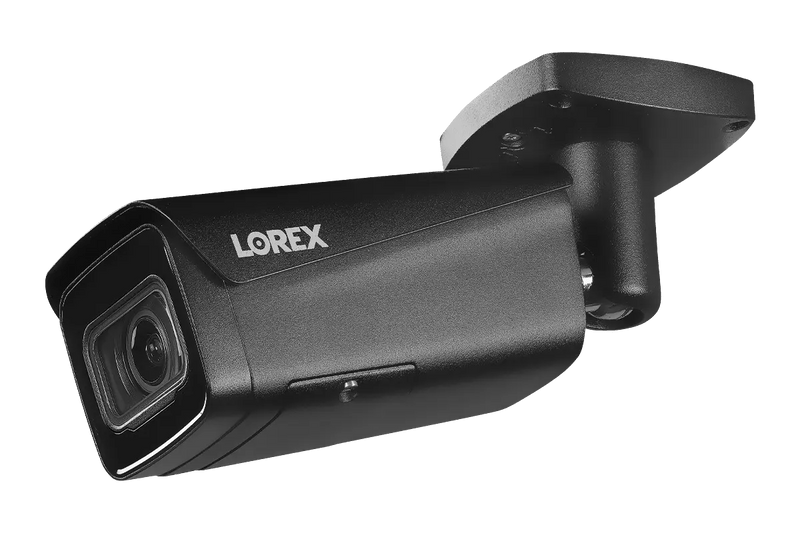

LNB9383 / LNB9393 Overview

Dimensions (LxWxH): 273.2mm × 95.0mm × 95.0mm (10.76" × 3.74" × 3.74")
Weight: 1.11lbs / 2.44kg

  1. Cable Notch
  2. Adjustment Screw
  3. Adjustment Knob
  4. Zoom (T) Wide Angle (W) Buttons
  5. MicroSD Card Slot
  6. Reset Button
  7. Camera Lens
  8. Infrared Lights


Package Contents:

4K Motorized Varifocal IP Camera

Mounting Kit*

Allen Key*

*Per camera in multi-camera packs.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.

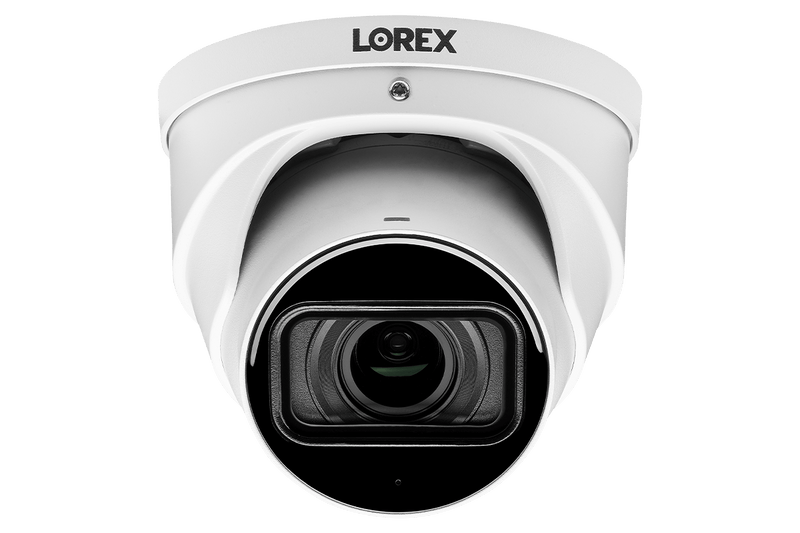

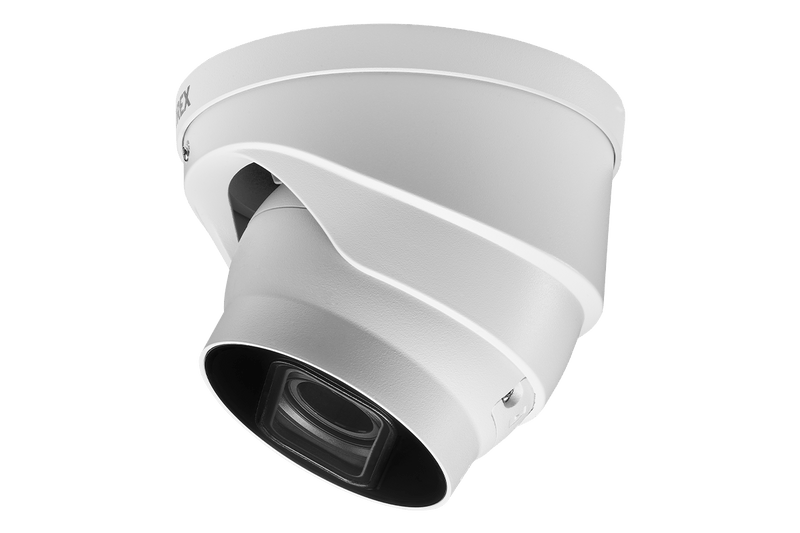

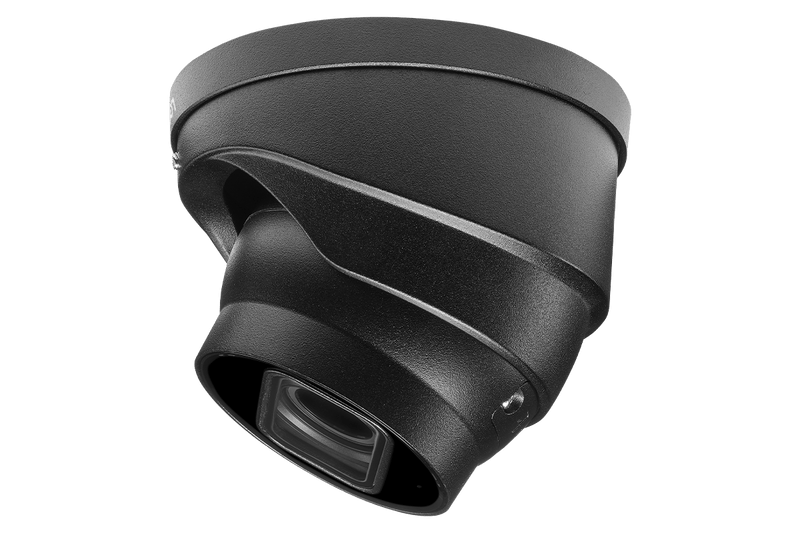

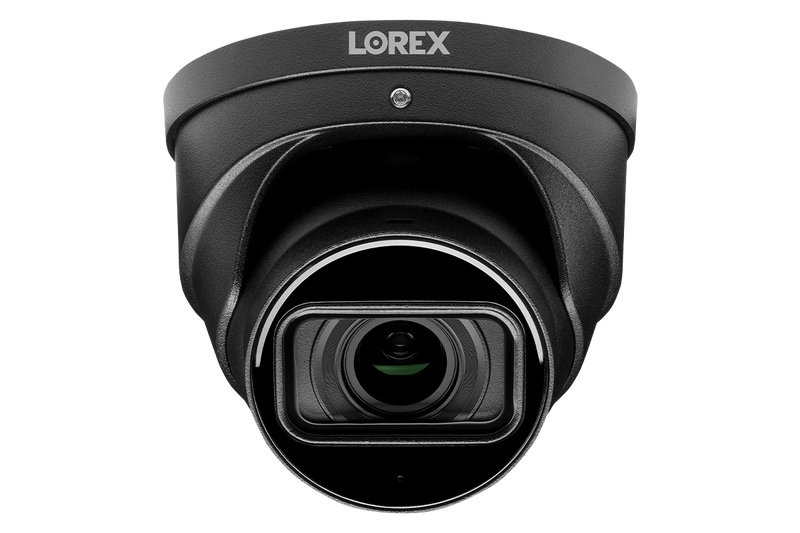

LNE9383 / LNE9393 Overview

Dimensions (LxWxH): 108.3 mm × Φ122 mm (4.3" × Φ4.8")
Weight: 1.5lbs / 685g

  1. Rear Cable Notch
  2. Camera Base
  3. Adjustment Screw
  4. Camera Lens
  5. Infrared Lights
  6. Camera Dome Cover
  7. Ball Camera
  8. MicroSD Card Slot
  9. Reset Button


Package Contents:

4K Motorized Varifocal IP Camera

Mounting Kit*

Allen Key*


*Per camera in multi-camera packs.
  1. 4K capable recorder (not included) is required to record video in 4K resolution. 4K TV (not included) is required to view live or pre-recorded 4K video.
  2. Smart Motion Detection is enabled by default. When enabled, the camera's recording frame rate is reduced from 30 frames per second to 20 frames per second. To obtain the maximum of 30 frames per second, the camera must be connected to a recorder that supports the maximum frame rate. For a list of compatible recorders, please visit lorextechnology.com/compatibility
  3. In order for Person and Vehicle detection to operate, this camera requires a connection to a compatible Lorex Network Video Recorder with smart motion detection technology. For a list of compatible recorders please visit lorextechnology.com/compatibility
  4. Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
  5. Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 98ft/30m in total darkness). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
  6. Not intended for submersion in water. Installation in a sheltered area recommended.



All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.

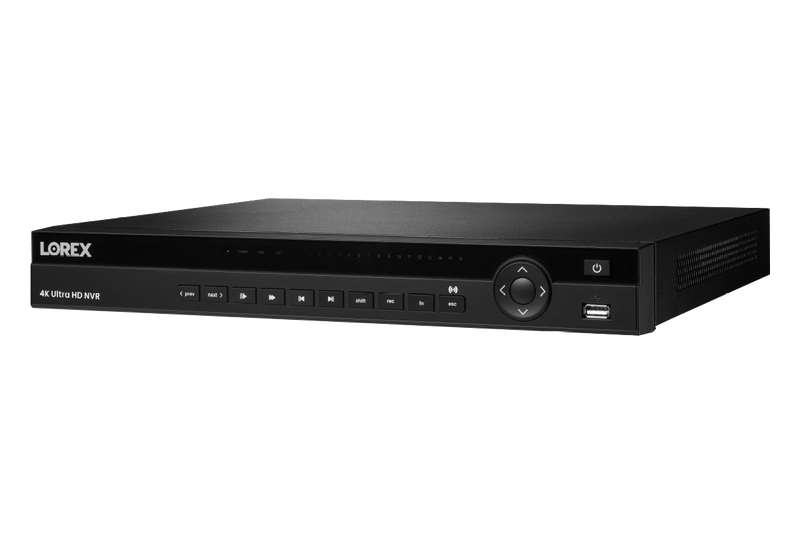

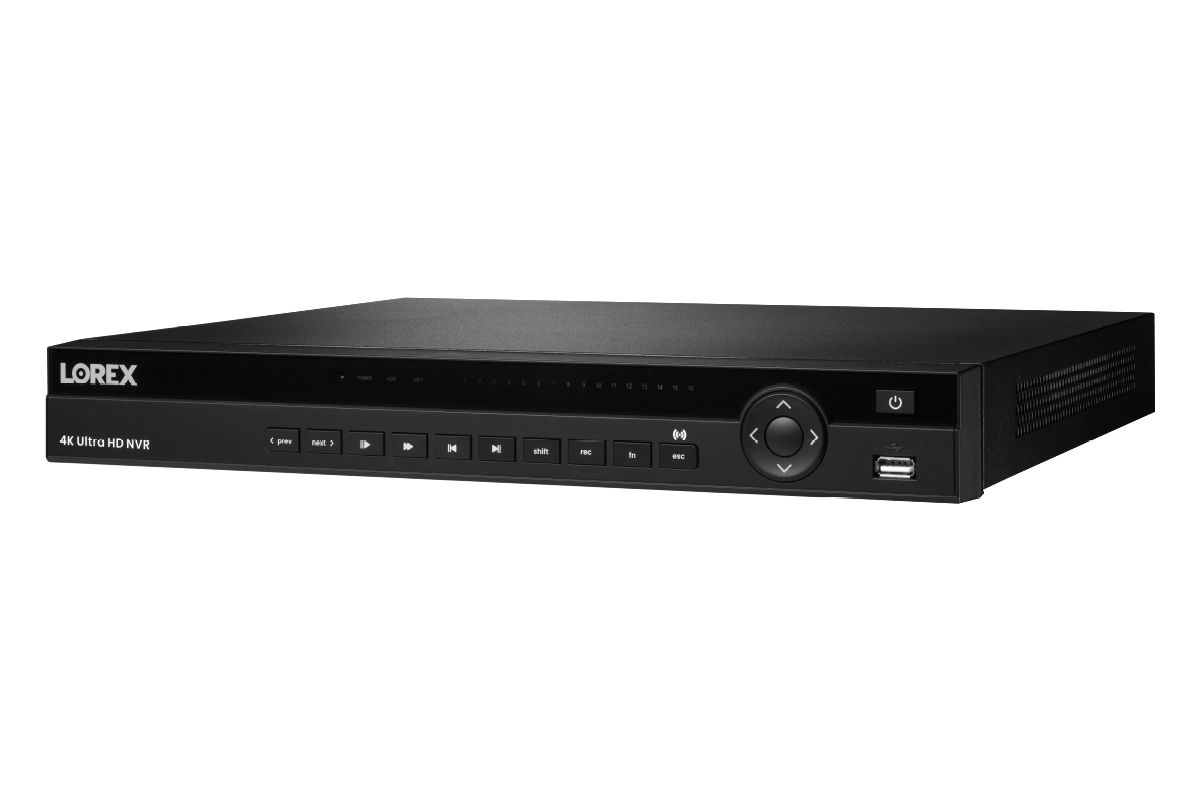

N883 Front Overview
  1. Power, Hard Drive & Network Statuses
  2. Channel Statuses
  3. Navigation Controls
  4. Power Button
  5. Playback Controls
  6. Switch Keyboards (shift)
  7. Start/Stop Recording (rec)
  8. Special Functions (fn)
  9. Back/Cancel (esc)
  10. Info Button
  11. USB Port

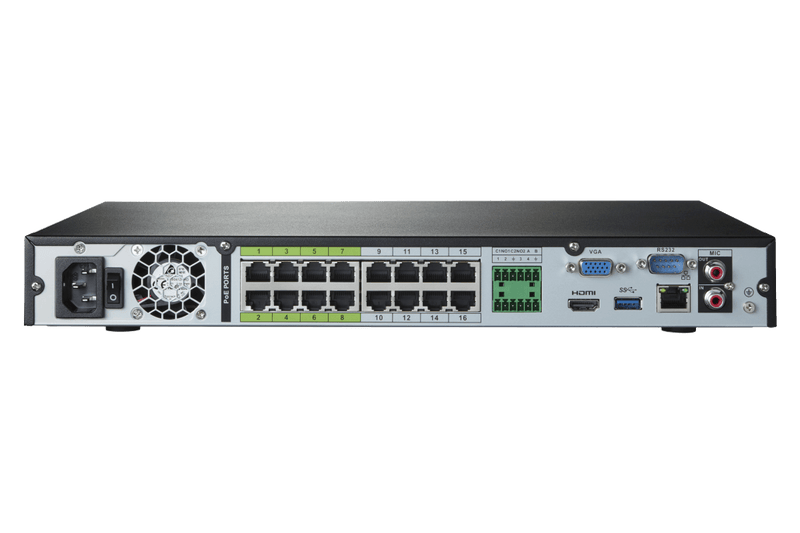

N883 Back Overview
  1. Power Connection
  2. Power Switch
  3. Camera Connection (ePoE)
  4. Camera Connection (PoE)
  5. RS485 Alarm
  6. Monitor Connection (VGA)
  7. RS232
  8. Audio In/Out
  9. Monitor Connection (HDMI)
  10. USB Port
  11. Network Connection (LAN)

Package Contents:

4K NVR

Ethernet Cable

USB Mouse

HDMI Cable

Power Cord

  • 4K (8MP) IP cameras are required to take advantage of 4K recording.
  • Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
  • Accuracy of Advanced Person and Vehicle Motion Detection will be influenced by multiple factors, such as the object’s distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection.
  • Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 6 Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
  • Compatible with certain Lorex IP cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
  • HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
  • Both firmware and software must be updated to latest version to ensure remote connectivity.
