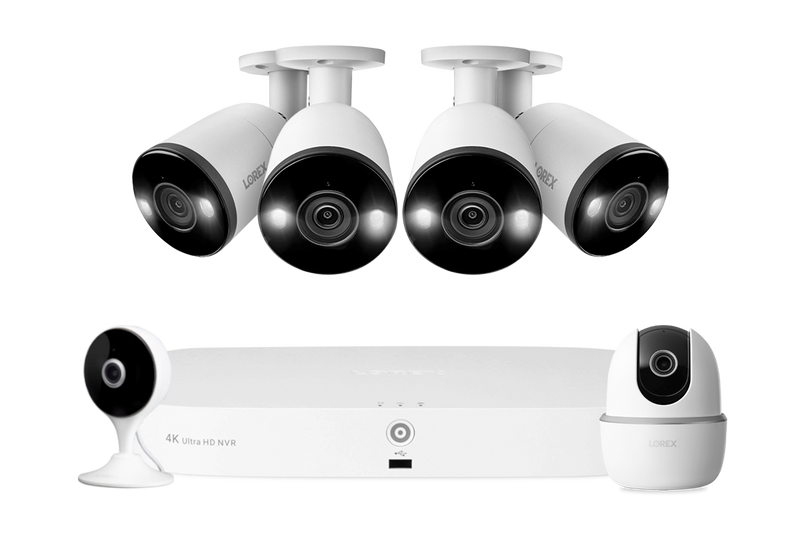

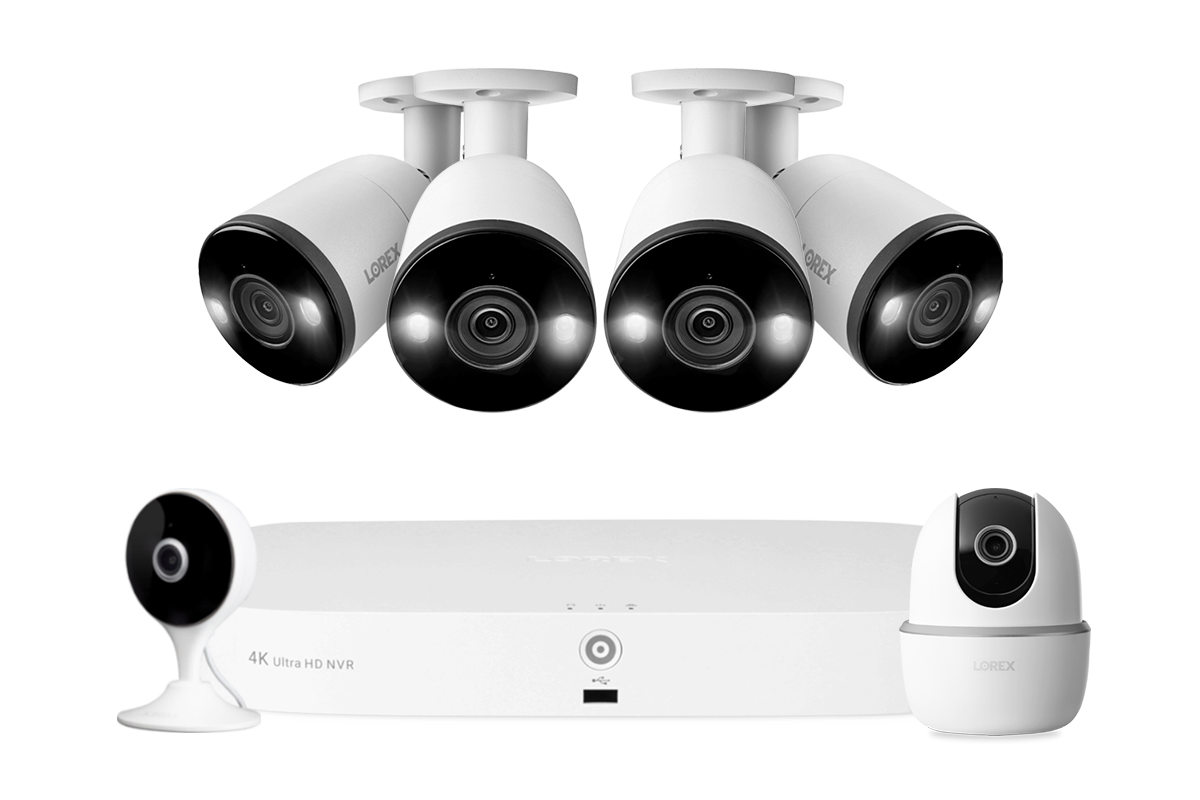

Lorex Fusion Series 4K 16 Camera Capable (8 Wired + 8 Fusion Wi-Fi) 2TB NVR System with Four H13 IP Cameras, One 2K Pan-Tilt Camera, and One 2K Indoor Wi-Fi Camera

Save $169.00 (15%)
FN4K2SD-84WB-JP-2
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

bi-ecology

No Monthly Fees

Local recording protects privacy and saves money.

Features

Welcome to the next generation of Fusion. This revolutionary NVR has 8 wired channels and 8 Wi-Fi channels. This allows you to combine the reliability and performance of the included 4K IP Security Cameras with the versatility and convenience of Smart Home Wi-Fi Cameras, Video Doorbells, and Floodlights to create a tailored security system perfect for your property.



See Clearly,
Day and Night




Ultra HD Resolution

Color Night Vision



Speak with Ease

Easily communicate through the camera’s built-in microphone and speaker using the Lorex App. You can also choose pre-set or personalized voice messages to welcome or instruct visitors.


microphone

Built-In Microphone

speaker

Speaker



*Please note, audio recording without consent is illegal in certain jurisdictions. Lorex assumes no liability for the use of its products that do not conform with local laws.

Built for the outdoors

Mother Nature is no match for this security camera. Rated IP67, it can endure anything from torrential downpours to freezing snowstorms. So go ahead and place this security camera where you need it most.



140°F | 60°C Heat Rating

-22°F | -30°C Cold Rating

IP67 Weatherproof

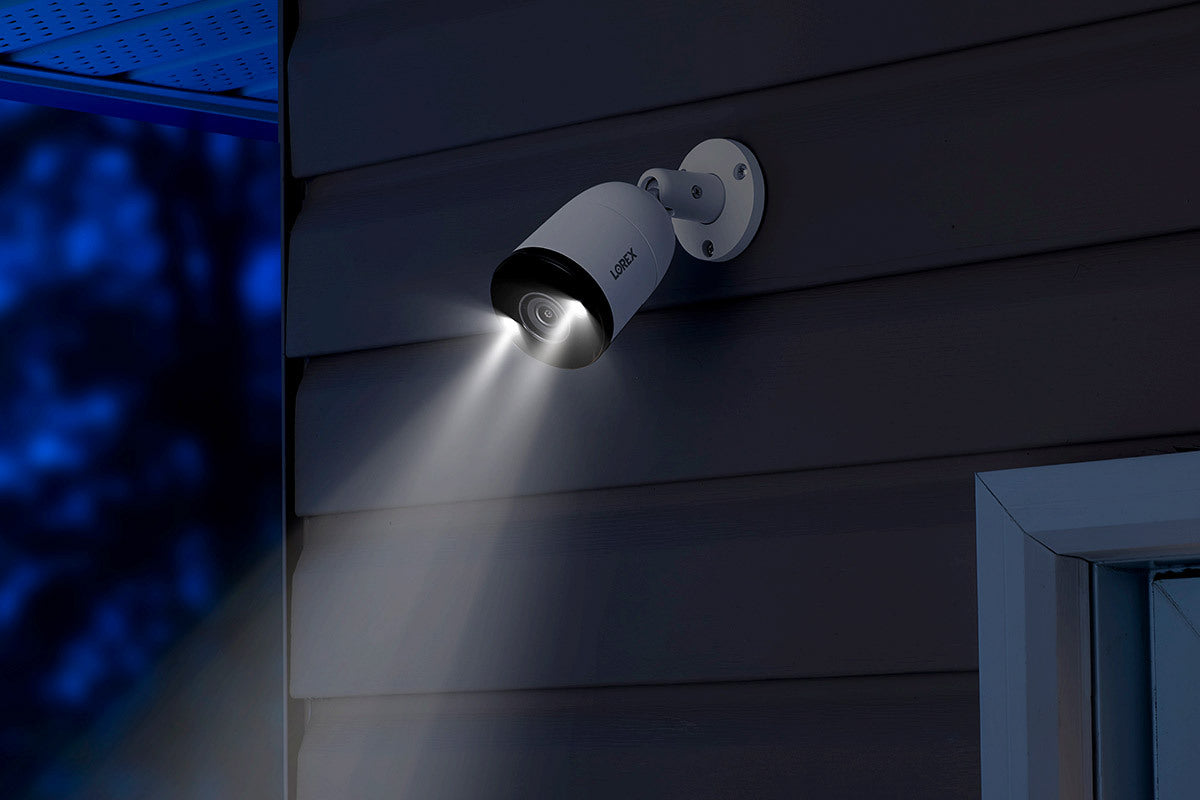

Proactive Security

Get an added layer of security with the motion-activated LED warning lights and remote-triggered siren to deter uninvited visitors.



Motion-activated LED lights

Remote-activated siren

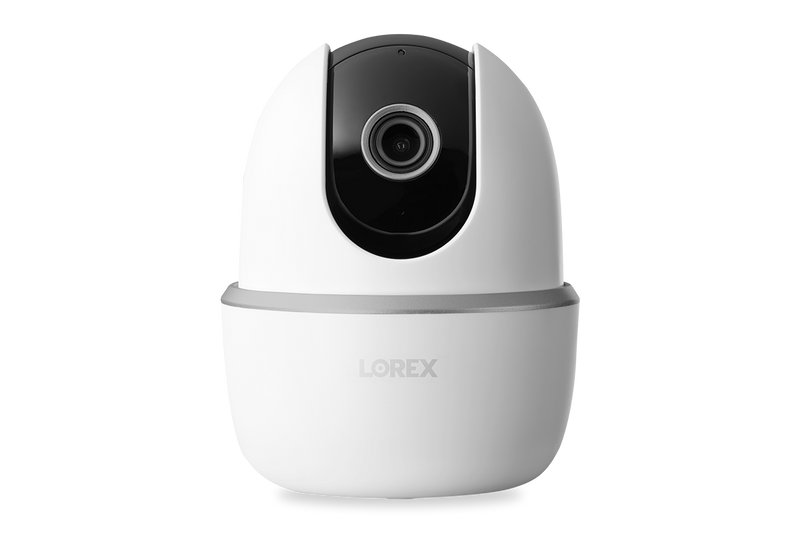

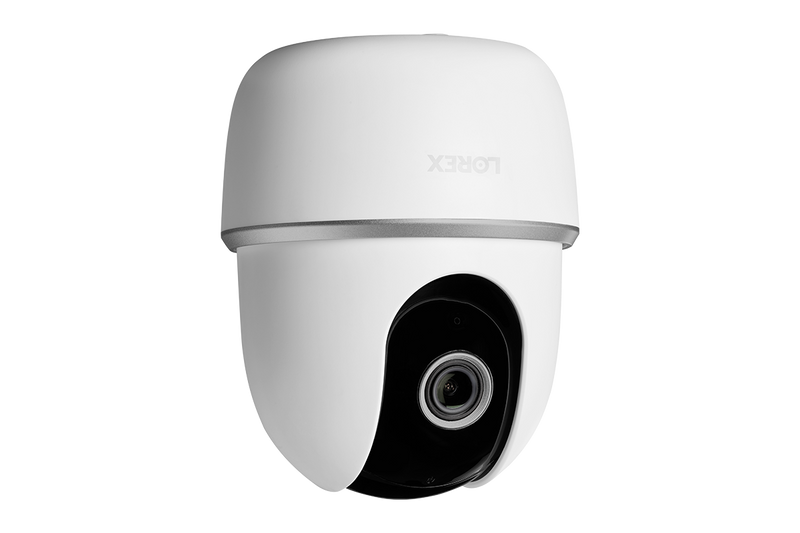

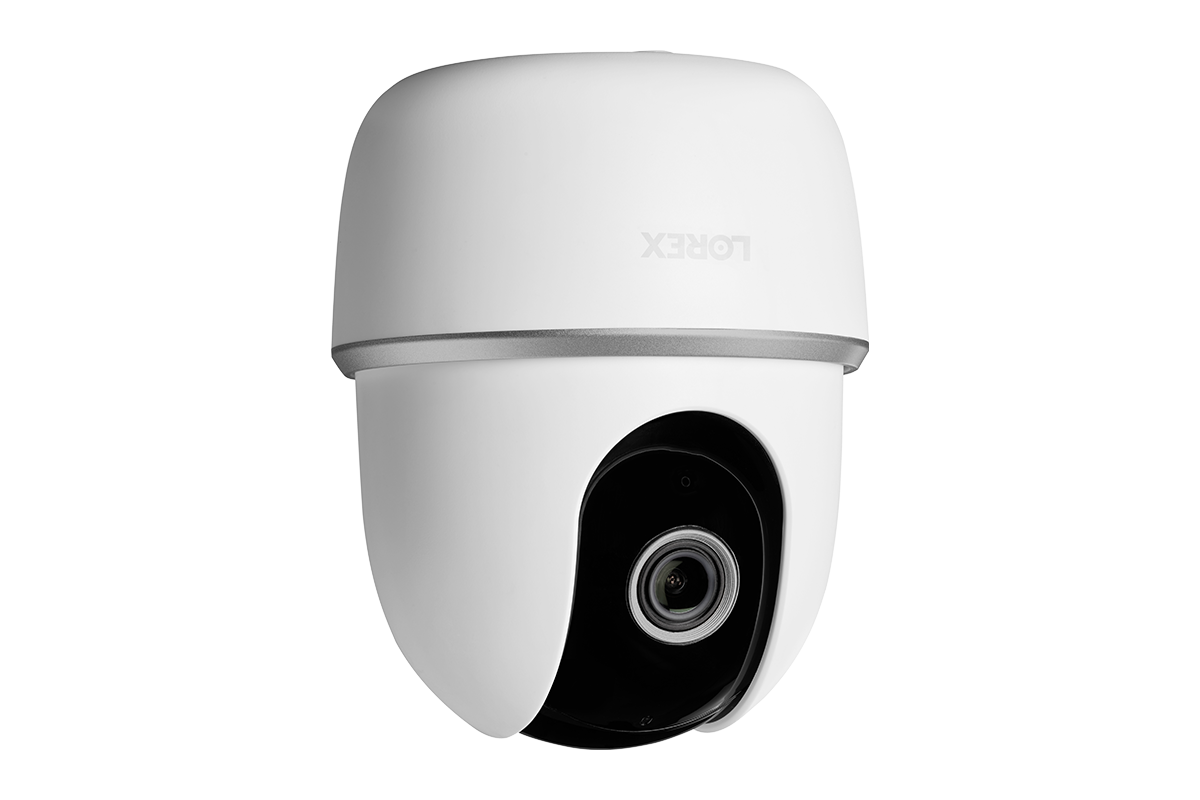

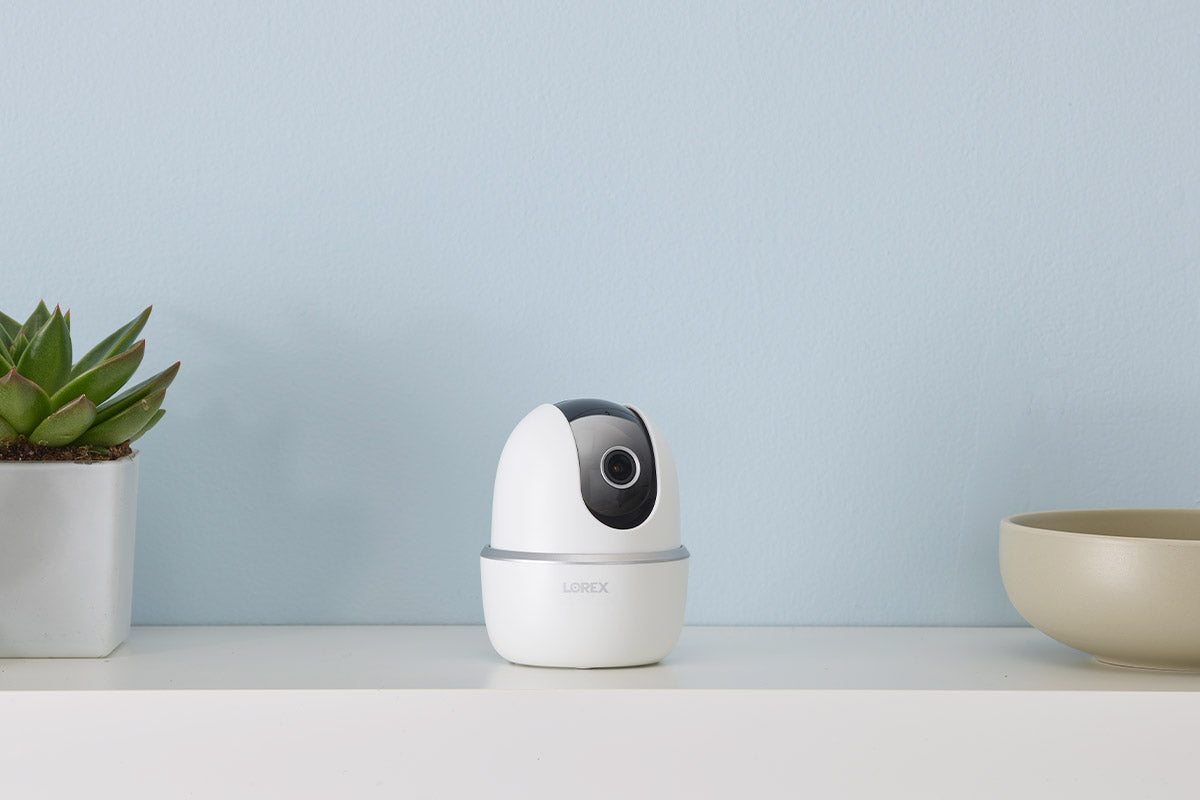

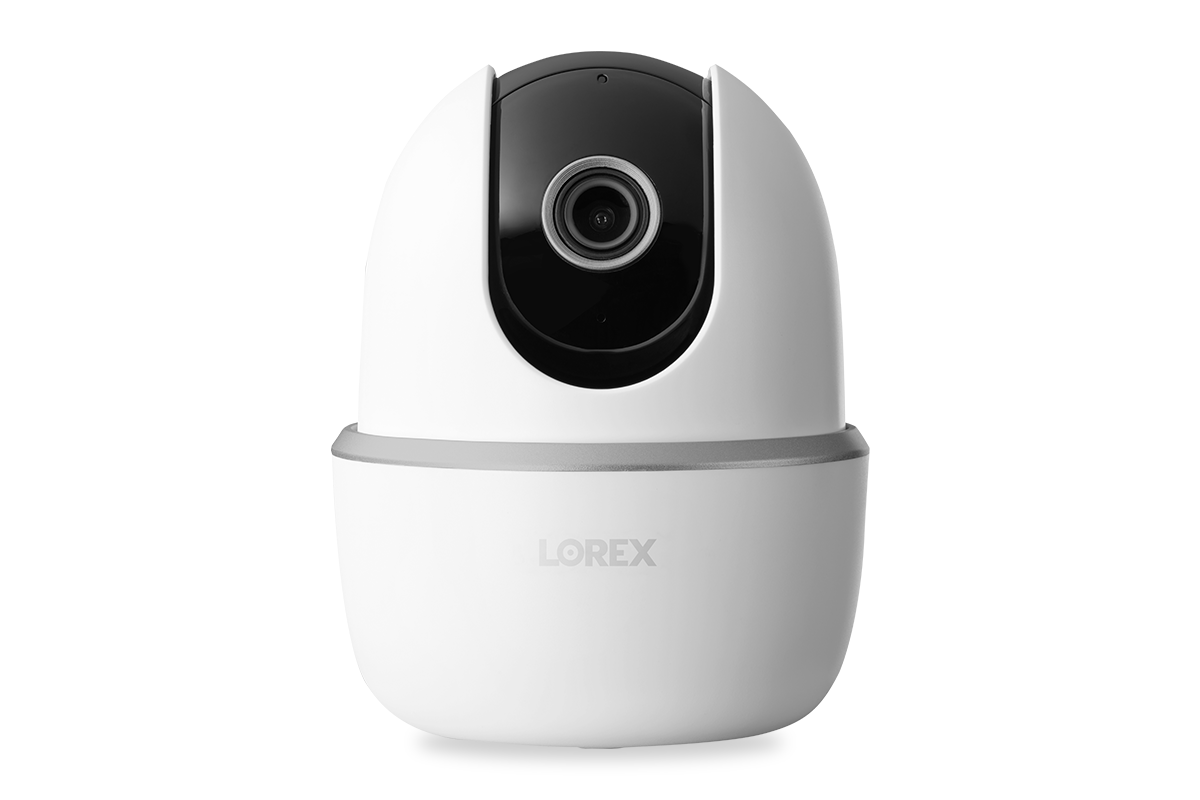

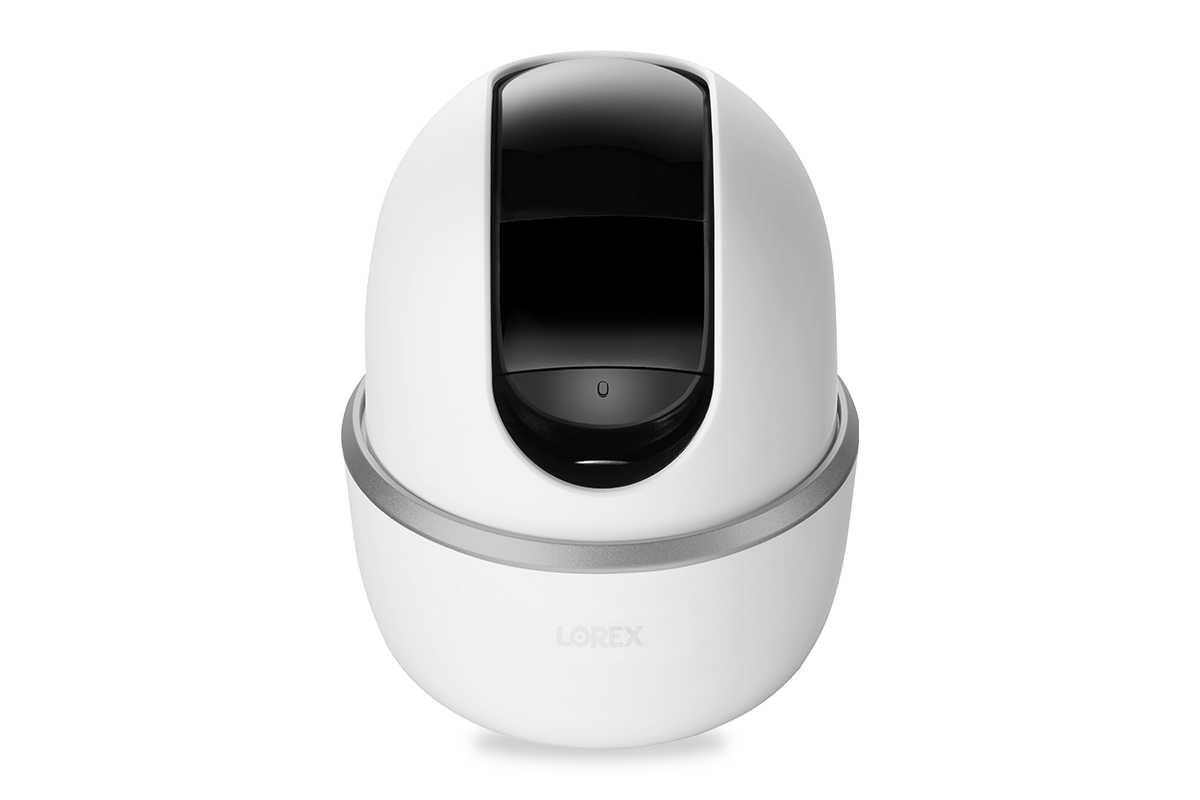

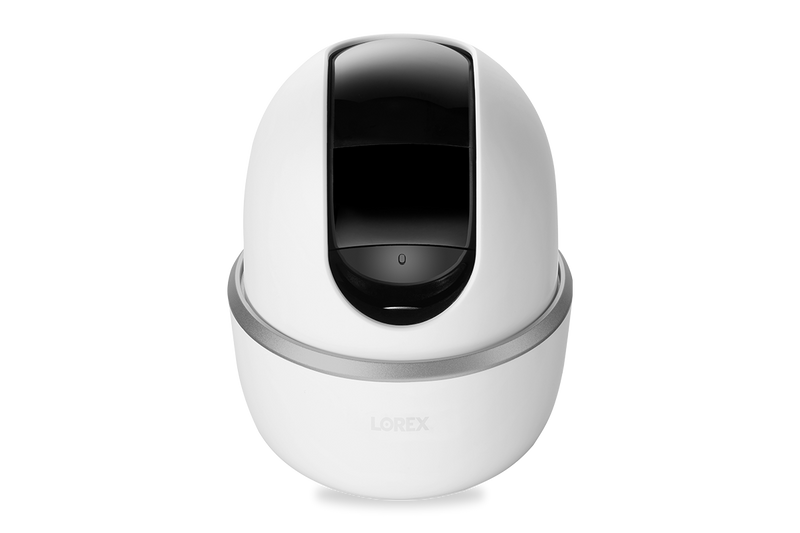

2K Pan-Tilt Indoor Wi-Fi Security Camera

This camera's Pan and Tilt feature allows you to view an entire room with just one camera, while the Privacy Mode ensures that the camera lens is hidden.

Learn More

The Pan and Tilt feature allows the camera to swivel left and right and tilt up and down for expanded coverage. The digital zoom feature on the Lorex app will also help you get closer to the action.

Avoid false alerts and unnecessary notifications with person detection, which is designed to recognize when a person enters the camera's field of view.

Use the 2-Way Talk feature to speak and listen to the person on the other end of the camera.

Enable Privacy Mode using the Lorex app to temporarily disable your camera. This may be useful while you're at home and don't need the camera to record or send notifications.

The camera will automatically switch to infrared night vision when light is limited. With a Night Vision Range up to 32ft (10m), you won't miss a thing.

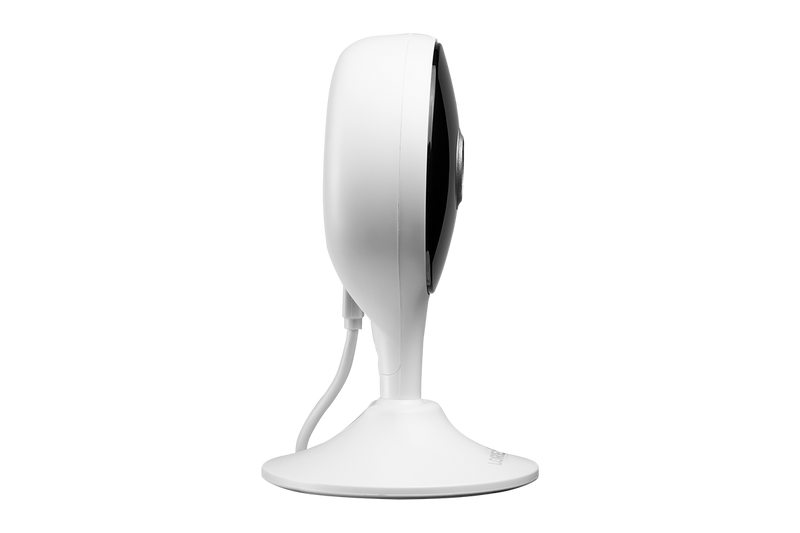

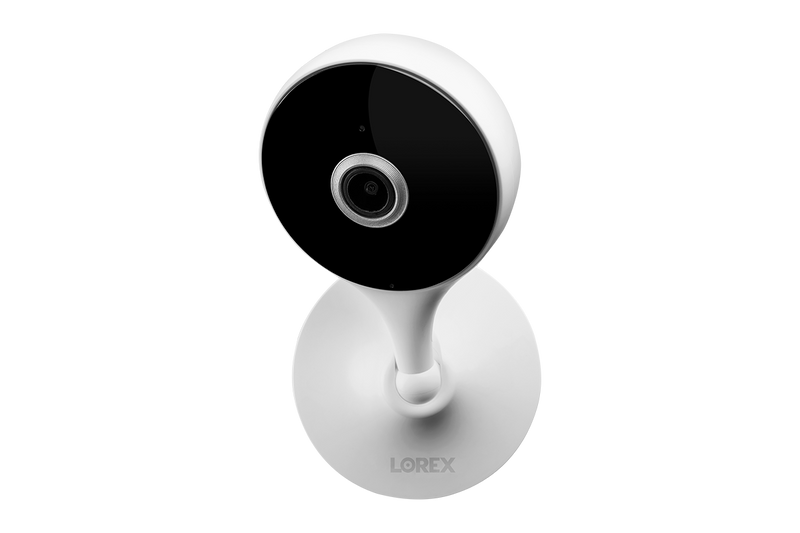

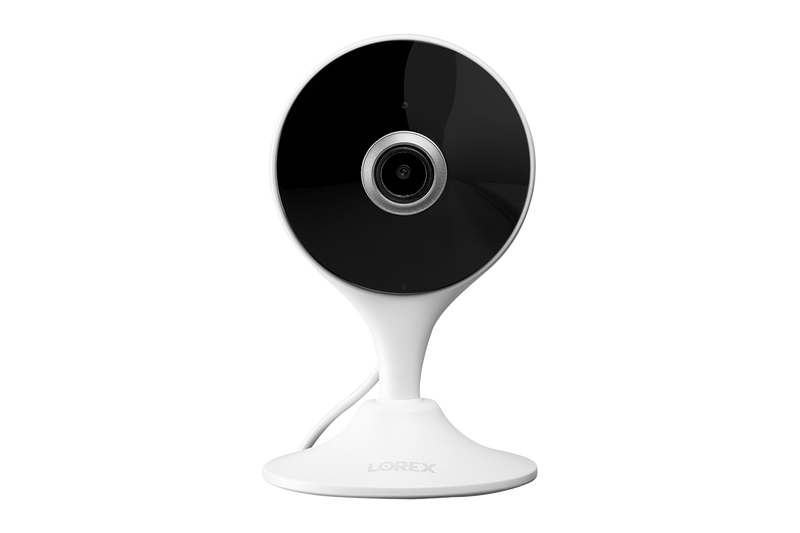

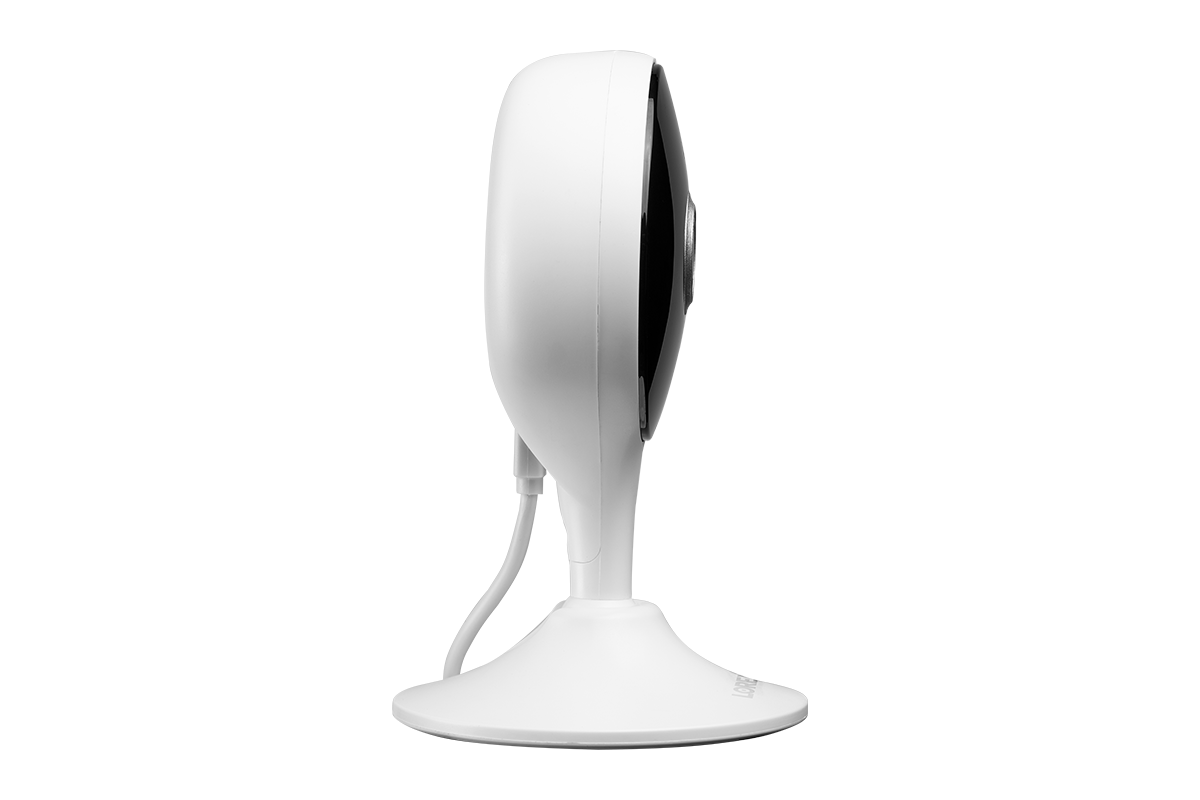

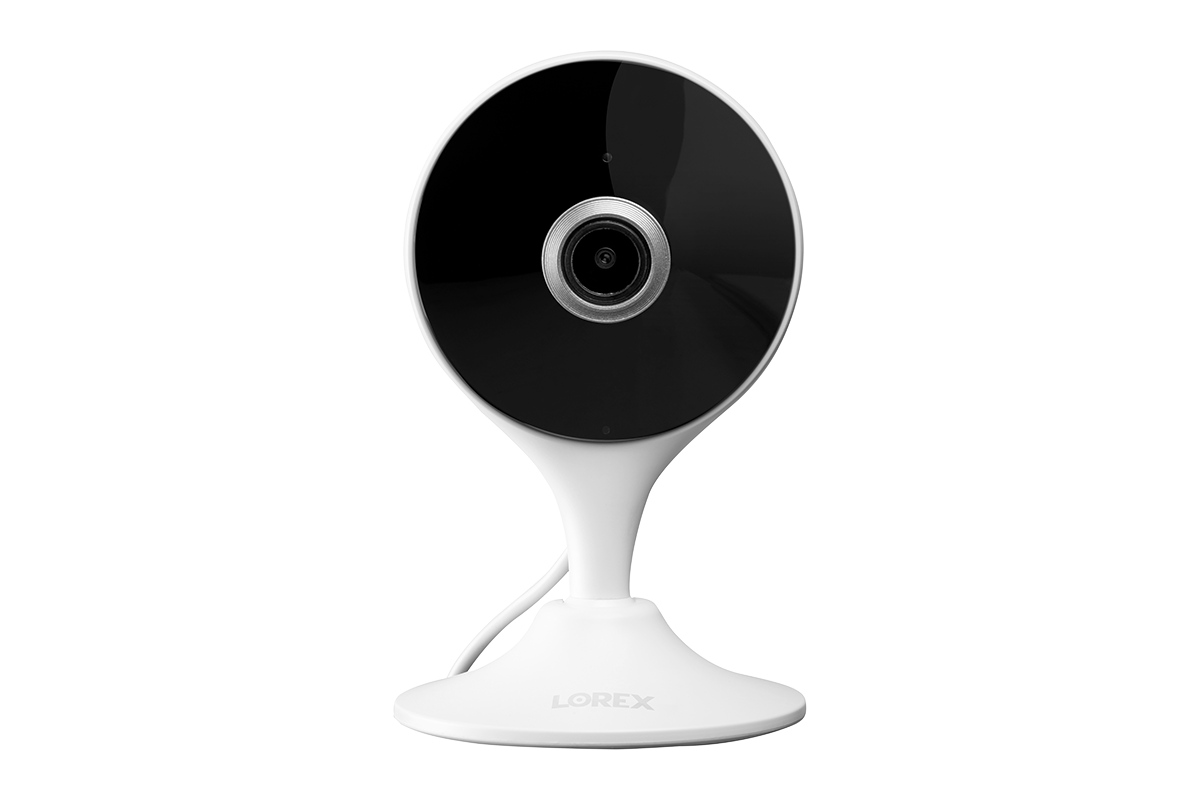

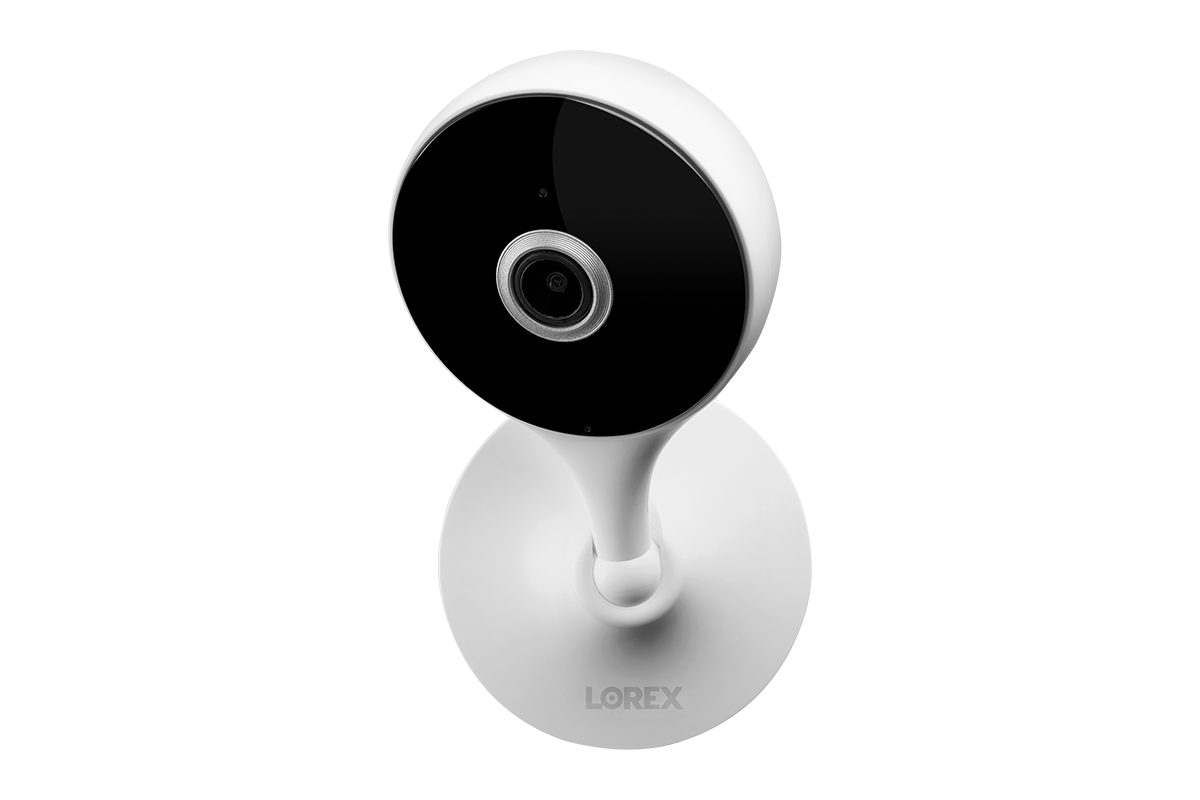

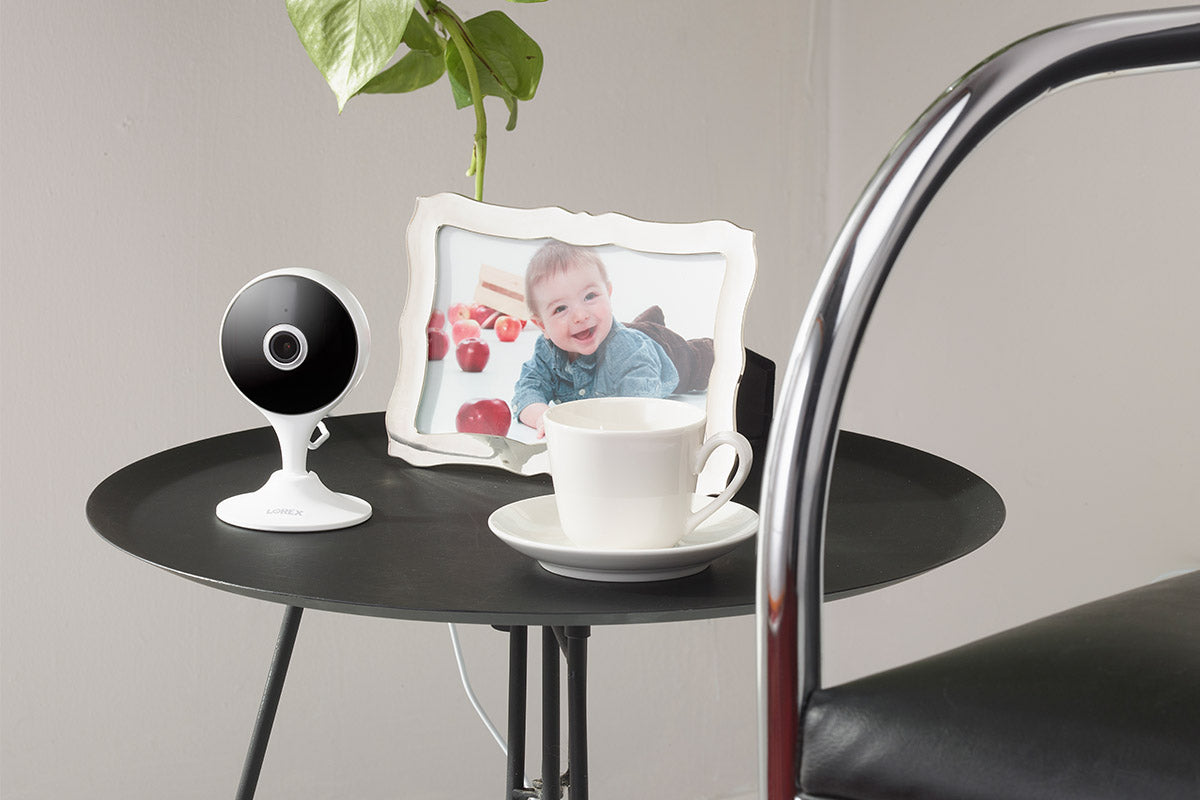

2K Indoor Wi-Fi Security Camera

The compact, lightweight design and magnetic base promise flexibility in placement, while the included mounting kit allows for ceiling or wall installation.

Learn More

A 4MP image sensor provides 2× the resolution as 1080p. This creates exceptionally sharp and detailed video.

Avoid false alerts and unnecessary notifications with person detection, which is designed to recognize when a person enters the camera's field of view.

Use the 2-Way Talk via the Lorex app to talk and listen to the person on the other end of the camera.

Keep your footage private and secure with the camera's built-in local storage or use the NVR's included hard drive storage.

When light is limited, the camera will automatically switch to infrared night vision so you won't miss a thing.




Smart Home Compatibility

Get faster access to your security system by connecting it to other Smart Home devices; use simple voice commands to activate camera features with Amazon Alexa™ and Google Assistant™, use it with Chromecast or Firestick to monitor your security camera footage on a larger screen. For more information about current smart home integrations, visit our Smart Home Guide.

works with Google works with Alexa

Same Look - Home or Away

Enjoy a seamless monitoring experience whether you are accessing your system locally through the recorder or remotely through the app. The Recorder User Interface now uses the same look and feel as the Lorex app, making it easier than ever to navigate and find events as you switch platforms.




Customize Your Security With Fusion

Create a personalized Lorex Smart Home ecosystem by pairing your system with up to 8 wired and 8 Wi-Fi devices. This allows you to record continuous video from all Wired and Wi-Fi cameras to the recorder's hard drive. This can also provide invaluable back-up of events should a Wi-Fi camera's local storage become disabled.




All-In-One Security

Get the most out of your system by connecting wired and wireless cameras, doorbells, and sensors to your recorder.

Continuous Recording

24/7 continuous recording directly to your hard drive with expandable storage and no monthly fees.*

Lorex App

Access all of your Lorex devices from one place, allowing for easy control and monitoring of your property.



*To conserve battery life, Lorex Battery-Operated Doorbells and Cameras cannot record 24/7 continuously to the Fusion Recorder’s local hard drive.




Free Local Storage, No Monthly Fees

Local storage means no monthly fees and with the built-in 2TB hard drive, you will have ample storage, while your recordings stay safe and private.



What's Included?

W462 Overview

Dimensions:
Height: 4.2" (107mm)
Width: 3.4" (86mm)

  1. Status indicator
  2. Microphone
  3. Device QR code
  4. microSD slot
  5. Reset button
  6. Speaker
  7. Ethernet port
  8. Power port

Package Contents:

Camera

USB power adapter

USB power cable

Mounting tape

Mounting bracket

3 × Anchors and screws

W461ASC dimensions

Dimensions (WxDxH): 2.7" x 2.7" x 4.3" (68mm x 68mm x 109mm)
Weight: 0.53lbs / 0.24kg

Package Contents:

2K Wi-Fi
Camera

16GB MicroSD
Card

Universal
Mount

Power
Adapter

Mounting
Kit

Quick Start
Guide

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.

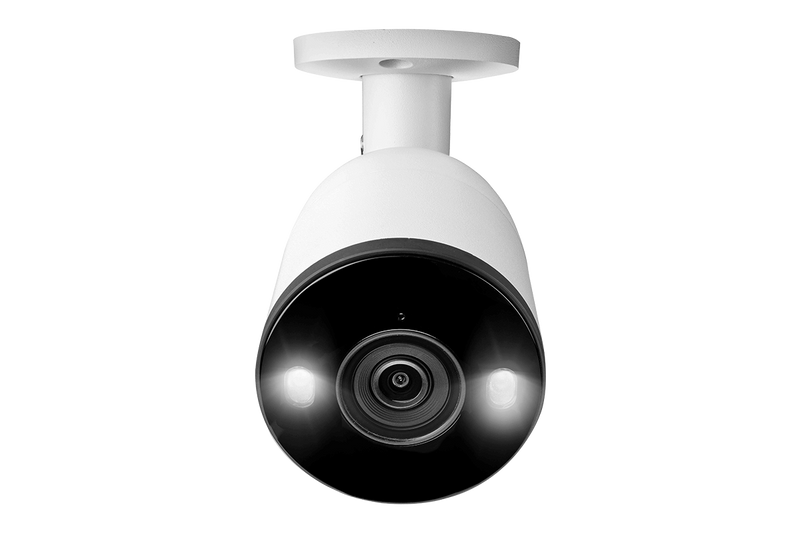

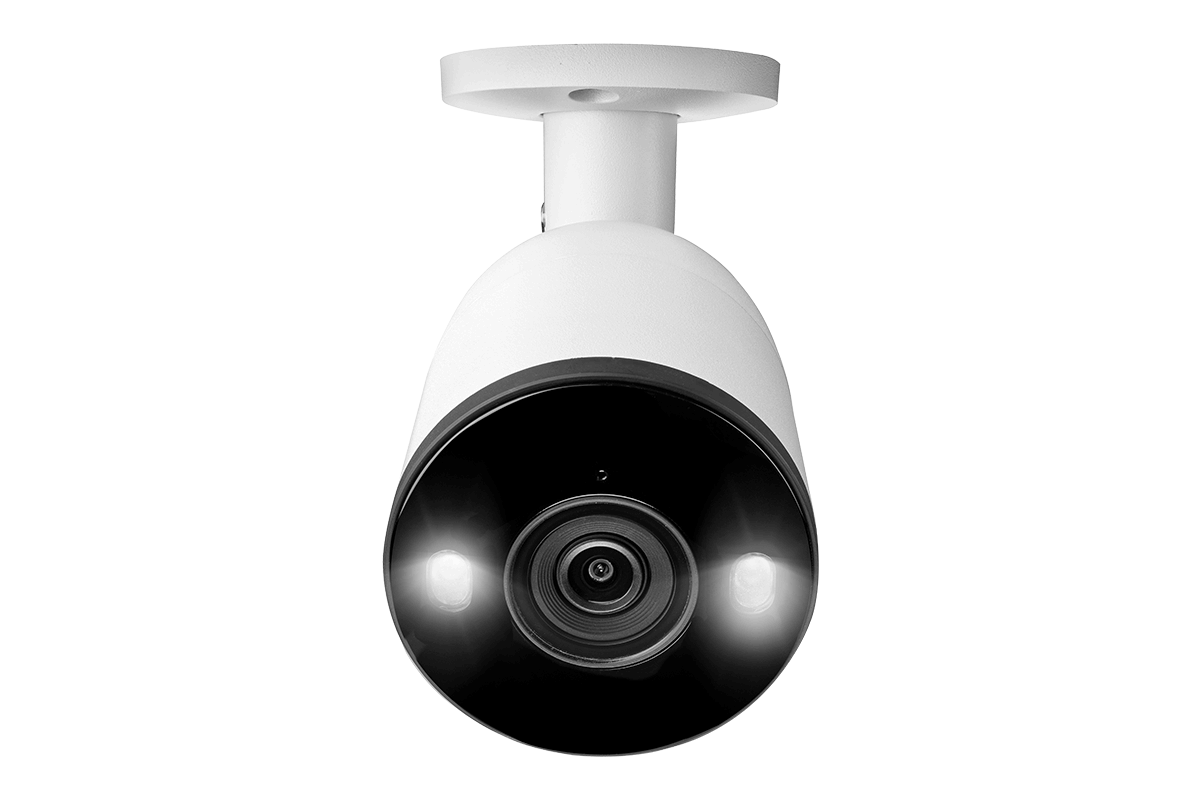

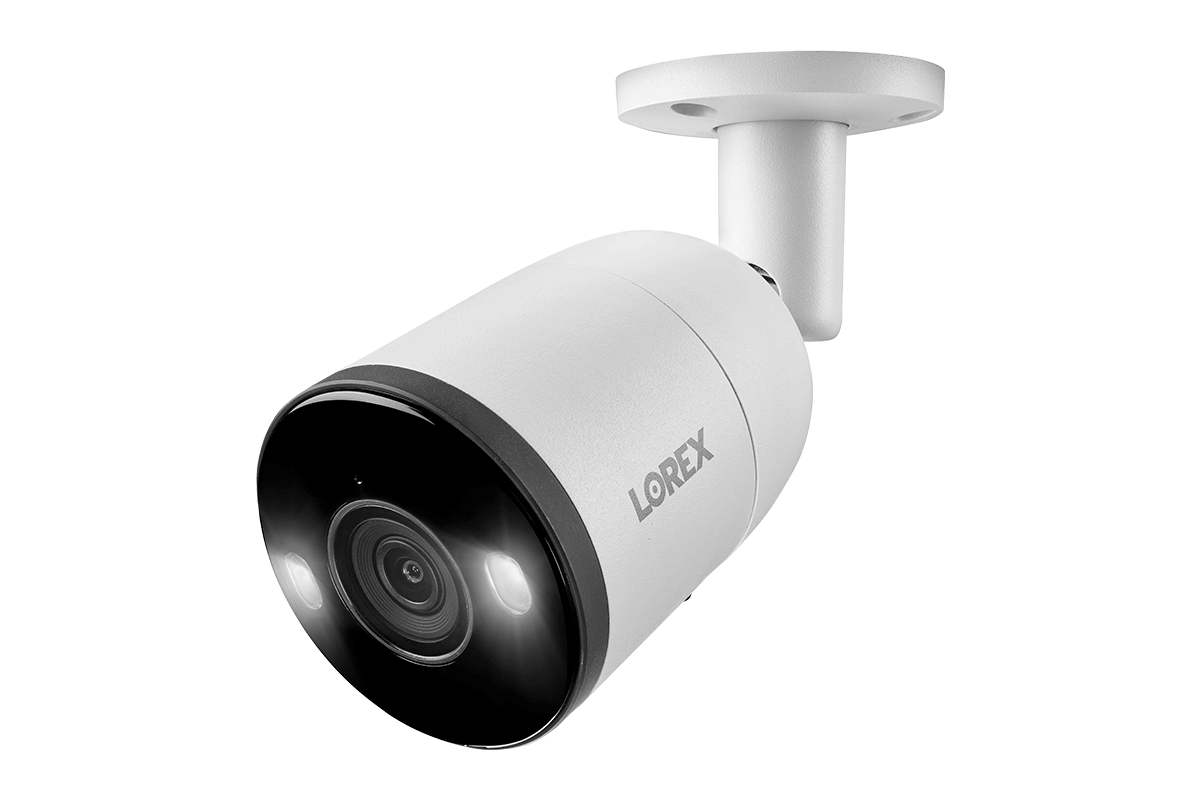

V261LCD Overview

Dimensions (WxDxH): 2.9" x 6.9" x 2.9" (73mm x 175mm x 70mm)
Weight: 1.15lbs / 0.52kg

Package Contents:

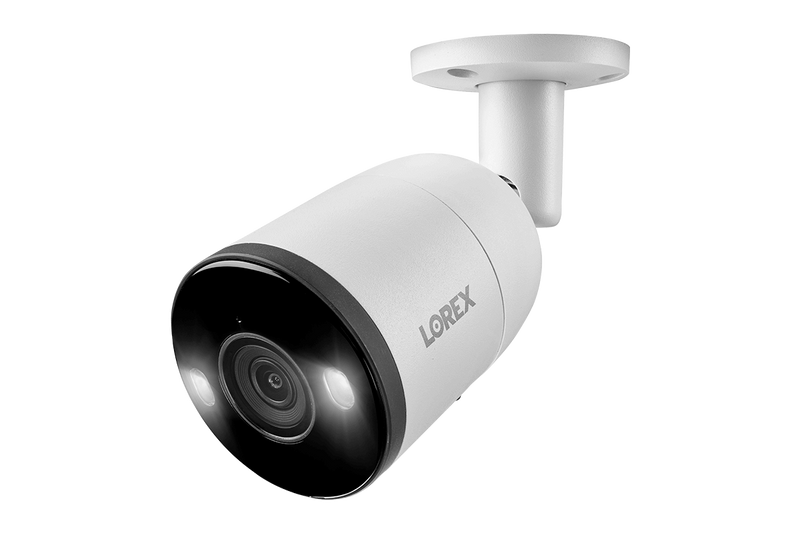

4K Deterrence IP Camera

Mounting
Kit

Extension Cable*

Quick Start
Guide


  • *Cables are included unless specified otherwise in the product options.
  • 4K (8MP) Ultra HD, ensuring clear and detailed footage, every time1
  • See more with a wide-angle 108° field of view
  • Superior nighttime clarity with Color Night Vision2
  • Up to 150ft (46m) IR night vision in low light and 98ft (30m) in total darkness3
  • Warning light can be programmed to illuminate when a person or vehicle is detected
  • Using 1 of 3 selectable, remote activated sirens to deter unwanted guests
  • Built-in mic and speaker allows you to listen and speak to visitors with Two-way talk4
  • Enhanced Two-way Talk with Quick Response Messages lets you pre-record specific messages with your own voice
  • Deter unwanted guests with the remote-activated siren
  • Smart motion detection plus offers the option of either Face detection or Person and Vehicle Detection5
  • By activating Face Detection with Mask Detection Technology, get notifications when a person is not wearing mask. When automatic voice prompts enabled, the system will ask visitors to "Please wear a face mask" when masks are not detected
  • Receive notifications when a person, vehicle or face is detected on your property from your Lorex App™ app5
  • Set up to 3 areas to keep track of items left behind or removed, such as packages or other items of value
N845 Front Overview

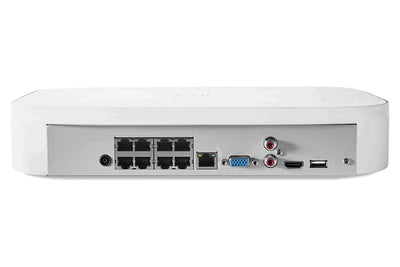

N845 Back Overview

Dimensions (W×D×H): 12.9 x 9.6 x 2.1” (328 x 245 x 53 mm)
Weight: 2.75 lbs. / 1.26 kg (excl. HDD)

  1. Hard Drive LED
  2. Power LED
  3. Network LED
  4. USB Ports
  5. Info / Panic Button
  6. Power Port
  7. PoE Ports
  8. LAN Port
  9. VGA Port
  10. Audio In / Out
  11. HDMI Port

Package Contents:

4K Fusion NVR

Ethernet Cable

USB Mouse

HDMI Cable

Power Adapter

  1. 4K (8MP) IP cameras are required to take advantage of 4K recording.
  2. Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
  3. Fusion™ capabilities are limited to 8 wireless devices per system. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
  4. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com/smarthome
  5. Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
  6. Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
  7. HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.

Pre-recording is available only when using Motion Detection and can be viewed exclusively during local playback. This feature is not supported for Smart Motion Detection (SMD), continuous recording, or through the Lorex app or cloud services. The duration of the pre-recorded footage may vary based on the recorder available cache memory at the time the event was detected, up to a maximum time set by the user.
