Lorex 4K 16 Camera Capable (8 Wired and 8 Wi-Fi) 2TB NVR System with Four 2K Pan Tilt Zoom IP Cameras

N4K2-84MPTZ
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

bi-ecology

No Monthly Fees

Local recording protects privacy and saves money.

Features

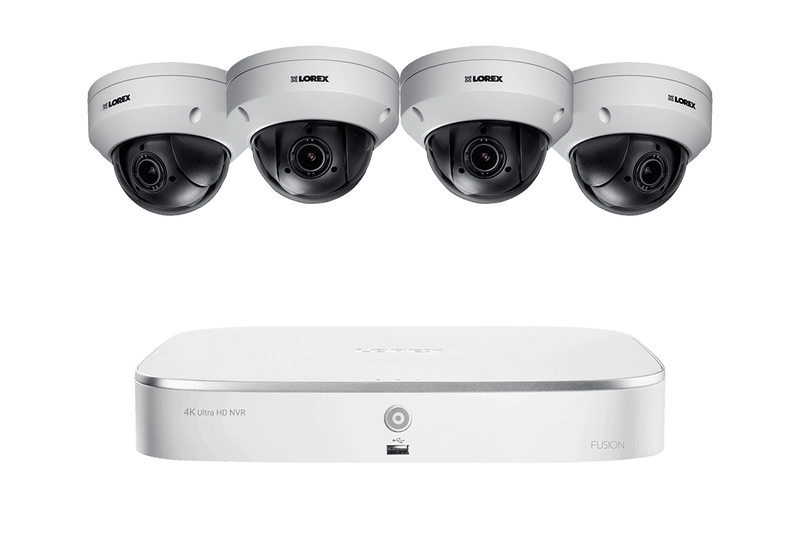

Start your security here. This system includes a 4K 16-camera capable Fusion Network Video Recorder (NVR) and four 2K 4× optical zoom Pan-Tilt-Zoom security cameras (each PTZ camera also includes a weatherproof wall mount). The Fusion NVR can accommodate 8 wired cameras and 8 Wi-Fi cameras, allowing you to expand this system to your liking with further wired cameras or wireless smart home cameras such as Wi-Fi Cameras, Video Doorbells, or Floodlights Cameras.



4

CAMERAS

4× PTZ camera

2K

RESOLUTION

2× the resolution of HD 1080p

355°

ROTATION

Fast 100° per second panning speed

2TB

HARD DRIVE

Expandable up to 8TB




2K Resolution Recording

The cameras can record 2K video, providing vibrant picture quality and higher clarity even with limited or overexposed lighting.



See the entire scene with Pan/Tilt/Zoom capability

Monitoring a large area has now become easier. PTZ cameras include 355° rotation, 90° tilt range, rapid 100° per second panning speed, and a 4× optical zoom.

Powerful 4× optical zoom

The camera's 4× optical zoom and 16× digital zoom will help you capture even the smallest of details. The 4× optical zoom will not compromise the quality of your video, either. You can use the zoom as part of a preset viewing pattern or use it on-the-go. Either way, this feature is highly effective in gaining evidence if an event occurs on your property.





Weatherproof security camera

Don't limit the range of your coverage because of the weather. Whether it's heavy rain, snow or wind, this PTZ camera is rated IP66 which means it's fully waterproof. Extreme hot or freezing temperatures won't affect its ability, as it was designed to withstand temperatures ranging from -22°F up to 140°F (-30°C up to 60°C). Even the wall mount bracket is fully waterproof.

Heat Rating

140°F | 60°C

Heat Rating

Cold Rating

-22°F | -30°C

Cold Rating



Same Look - Home or Away

Enjoy a seamless monitoring experience whether you are accessing your system locally through the recorder or remotely through the app. The Recorder User Interface now uses the same look and feel as the Lorex app, making it easier than ever to navigate and find events as you switch platforms.




Customize Your Security With Fusion

Create a personalized Lorex Smart Home ecosystem by pairing your system with up to 8 wired and 8 Wi-Fi devices. This allows you to record continuous video from all Wired and Wi-Fi cameras to the recorder's hard drive. This can also provide invaluable back-up of events should a Wi-Fi camera's local storage become disabled.




All-In-One Security

Get the most out of your system by connecting wired and wireless cameras, doorbells, and sensors to your recorder.

Continuous Recording

24/7 continuous recording directly to your hard drive with expandable storage and no monthly fees.*

Lorex App

Access all of your Lorex devices from one place, allowing for easy control and monitoring of your property.



*To conserve battery life, Lorex Battery-Operated Doorbells and Cameras cannot record 24/7 continuously to the Fusion Recorder’s local hard drive.




detection zones

Regional
Motion Zones

The NVR can program specific motion zones for heightened sensitivity (the amount of motion needed to register that movement) and threshold (how much motion is needed before creating a motion "event").

Privacy Mask

Privacy
Masking

In the event that the camera is facing areas that you do not want recorded, simply activate the privacy masking option. Use the NVR to draw a square around the spot(s) you don't want the camera to record.

Area Search

Easy Area
Search

Find what you are looking for quickly with Lorex's Area Search. Using the NVR, select an area of interest to automatically playback any video footage showing scene changes in that area.



Free Local Storage, No Monthly Fees

Local storage means no monthly fees and with the built-in 2TB hard drive, you will have ample storage, while your recordings stay safe and private.



What's Included?

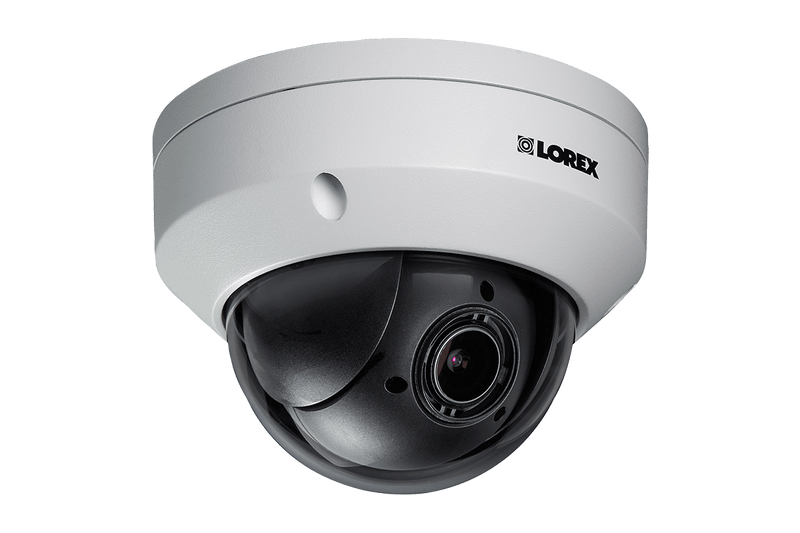

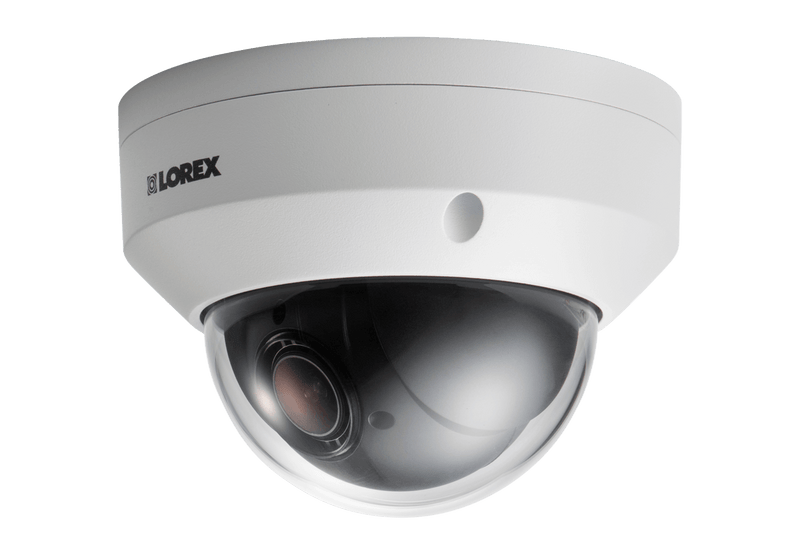

  • High definition 4MP image sensor1
  • Powerful 4× optical zoom and 16× digital zoom to focus in on even the finest details
  • ClearNight imaging for improved low light performance and improved recording efficiency2
  • 355° pan rotation for complete area coverage. Fast 100° per second panning speed
  • Control PTZ camera movement and transmit video over a single network cable
  • Program preset viewing points and tours when connected to a NVR
  • Remote control of the PTZ camera using a smartphone when connected to a NVR
  • Infrared cut filter ensures accurate color representation
  • Weatherproof (IP66-rated) camera with extreme temperature performance (-22° ~ 140°F / -30° ~ 60°C)3

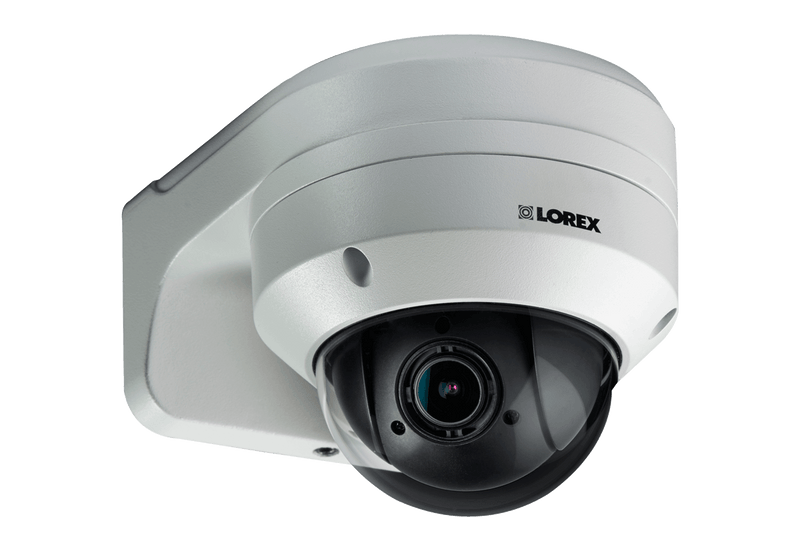

  • Wall mount bracket & 100ft (30m) extension cable included for installation flexibility
  • H.265 offers significant bandwidth and video storage savings over older compression technologies, extending the amount of video stored on the hard drive4

Each LNZ44P4B Includes:

1 × HD PTZ Camera
1 × Mounting Kit
1 × Wall Mount Bracket
1 × 100ft Ethernet Cable
Instruction Manuals
  1. Compatible with all Lorex HD NVRs except for LNR200 & LNR300 Series. For the most up-to-date list of compatible recorders, visit www.lorextechnology.com/support
  2. This camera features an ultra-low light sensitive image sensor and therefore does not feature Infra-Red LEDs. The camera requires ambient lighting (for example, street/ building lighting, star or moon light) to render a night time image. In total darkness (zero Lux), the camera will not produce a night time image and therefore the camera should not be installed in completely dark areas.
  3. Not intended for submersion in water. Installation in a sheltered location recommended.
  4. You must connect the camera to a supporting H.265 NVR to take advantage of H.265 compression. For instructions on enabling H.265 compression, visit lorextechnology.com/support

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown. Images are simulated.

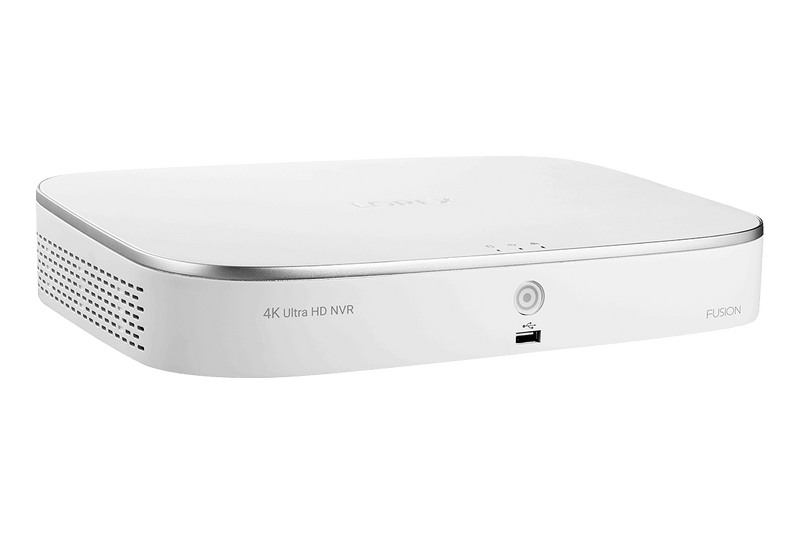

N845 Front Overview

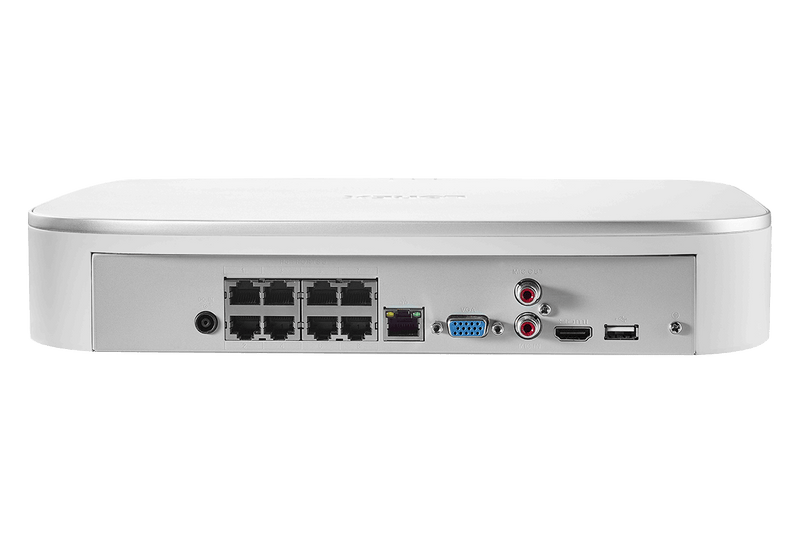

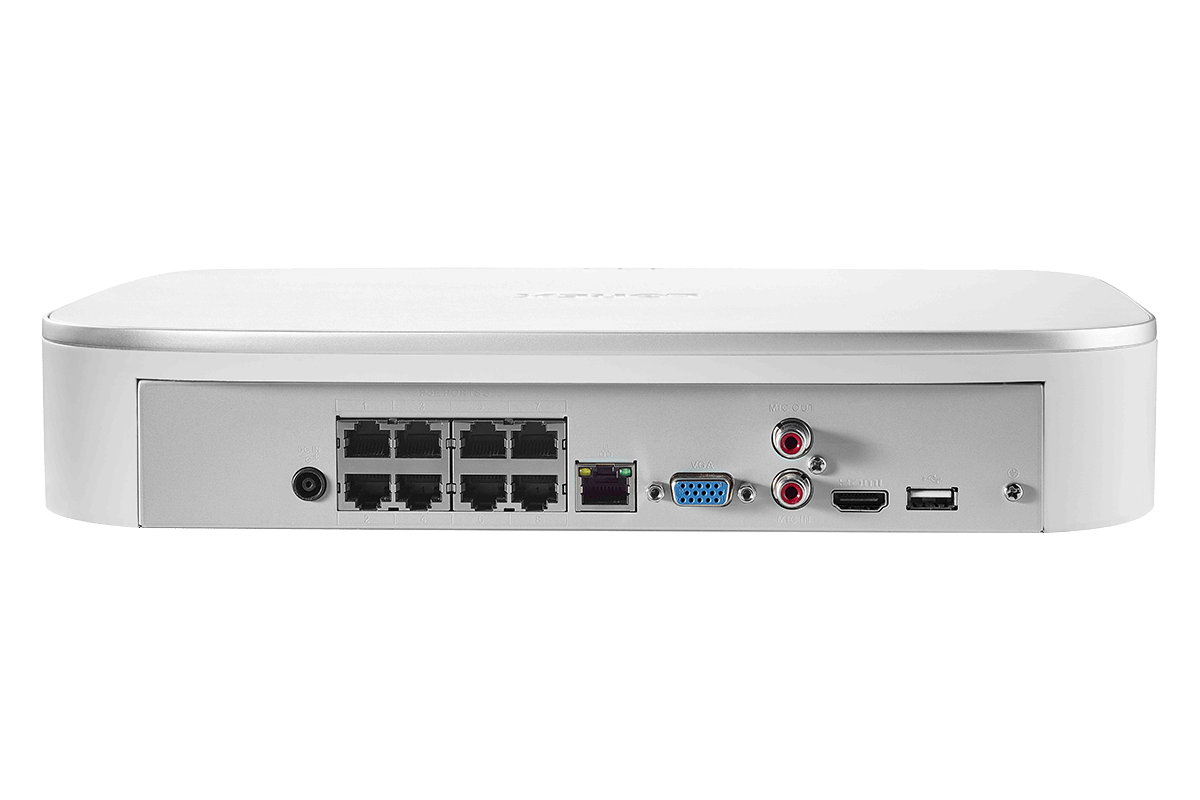

N845 Back Overview

Dimensions (W×D×H): 12.9 x 9.6 x 2.1” (328 x 245 x 53 mm)
Weight: 2.75 lbs. / 1.26 kg (excl. HDD)

  1. Hard Drive LED
  2. Power LED
  3. Network LED
  4. USB Ports
  5. Info / Panic Button
  6. Power Port
  7. PoE Ports
  8. LAN Port
  9. VGA Port
  10. Audio In / Out
  11. HDMI Port

Package Contents:

4K Fusion NVR

Ethernet Cable

USB Mouse

HDMI Cable

Power Adapter

  1. 4K (8MP) IP cameras are required to take advantage of 4K recording.
  2. Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
  3. Fusion™ capabilities are limited to 8 wireless devices per system. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
  4. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com/smarthome
  5. Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
  6. Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
  7. HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.
