Lorex 4K (16 Camera Capable) 4TB NVR System with Eight 2K Pan Tilt Zoom IP Cameras

Lorex 4K (16 Camera Capable) 4TB NVR System with Eight 2K Pan Tilt Zoom IP Cameras - Lorex Technology Inc.

Roll over image to zoom in Click on image to zoom

Lorex 4K (16 Camera Capable) 4TB NVR System with Eight 2K Pan Tilt Zoom IP Cameras

Name: Lorex 4K (16 Camera Capable) 4TB NVR System with Eight 2K Pan Tilt Zoom IP Cameras
Brand: Lorex Discontinued
SKU: N4K4-168MPTZ
Price: 3509.99 CAD
Availability: OutOfStock

N4K4-168MPTZ

Share this product

Safe & Secure

Apps are protected with end-to-end data encryption.

Risk Free

Return for any reason within 30 days of delivery.

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

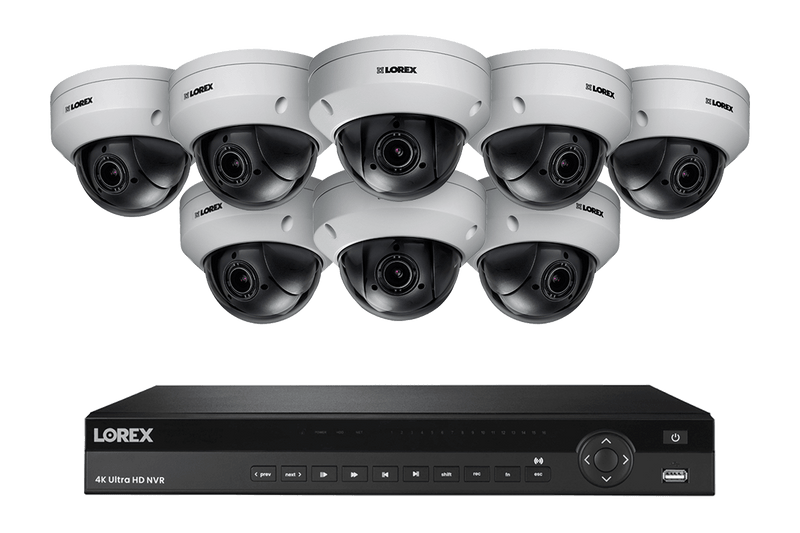

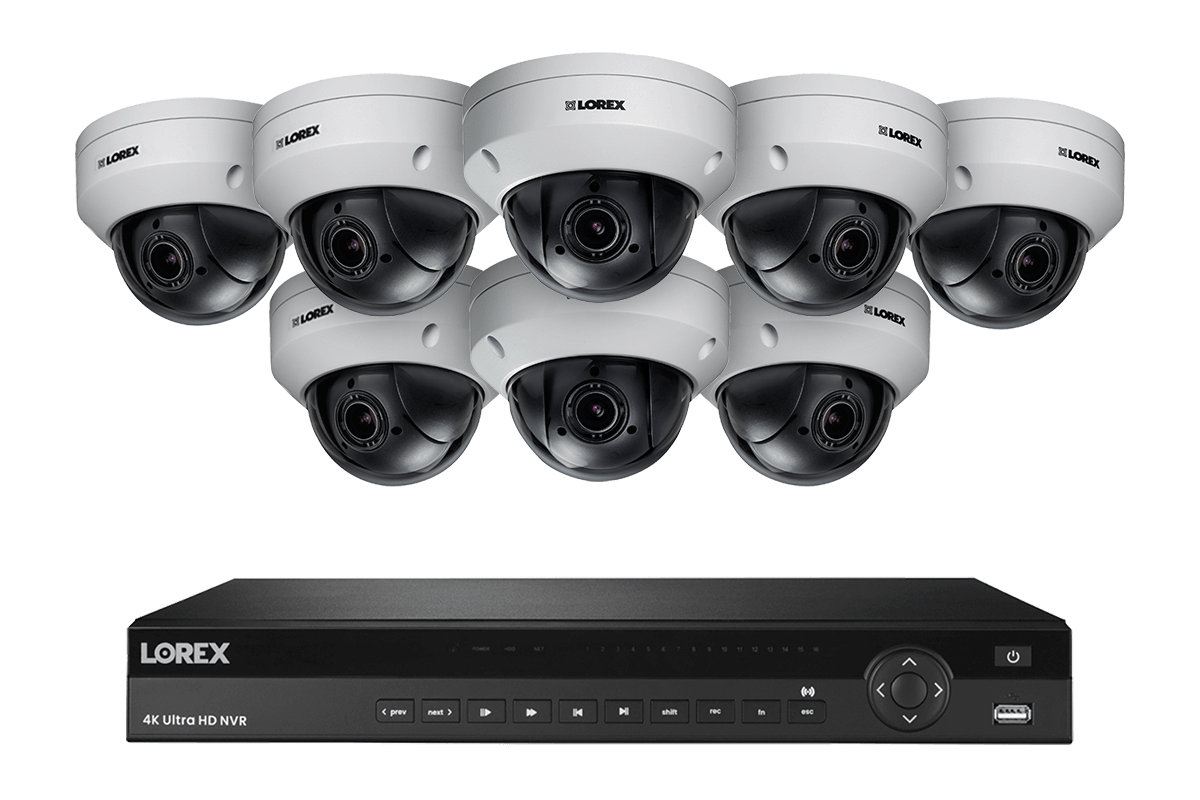

Confidently protect your home or business with this security system featuring a 16 camera capable Network Video Recorder (NVR) and eight 2K 4× optical zoom Pan-Tilt-Zoom security cameras. Each PTZ camera also includes a weatherproof wall mount.

8

CAMERAS

8× PTZ camera

2K

RESOLUTION

2× the resolution of HD 1080p

355°

ROTATION

Fast 100° per second panning speed

4^TB

HARD DRIVE

Expandable up to 2× 10TB

2K Resolution Recording

The cameras can record 2K video, providing vibrant picture quality and higher clarity even with limited or overexposed lighting.

See the entire scene with Pan/Tilt/Zoom capability

Monitoring a large area has now become easier. PTZ cameras include 355° rotation, 90° tilt range, rapid 100° per second panning speed, and a 4× optical zoom.

Powerful 4× optical zoom

The camera's 4× optical zoom and 16× digital zoom will help you capture even the smallest of details. The 4× optical zoom will not compromise the quality of your video, either. You can use the zoom as part of a preset viewing pattern or use it on-the-go. Either way, this feature is highly effective in gaining evidence if an event occurs on your property.

Customize unlimited PTZ preset tours

Advanced PTZ options allow you to automate the camera's field of view. The first option is a simple "preset." Use the NVR to move the camera's viewpoint to the location you desire and create a preset. This will allow you to quickly move the camera's viewpoint to this location with a simple click. The second option is a fully automated PTZ tour. This is when you set up a number of presets and have the camera cycle between them endlessly. Feel free to use all of the camera's pan, tilt, and zoom features in these tours to maximize your security coverage. The final option is a simple "pattern." This setting will automatically cycle between two positions.

Customize unlimited PTZ preset tours

Advanced PTZ options allow you to automate the camera's field of view. The first option is a simple "preset." Use the NVR to move the camera's viewpoint to the location you desire and create a preset. This will allow you to quickly move the camera's viewpoint to this location with a simple click. The second option is a fully automated PTZ tour. This is when you set up a number of presets and have the camera cycle between them endlessly. Feel free to use all of the camera's pan, tilt, and zoom features in these tours to maximize your security coverage. The final option is a simple "pattern." This setting will automatically cycle between two positions.

Customize unlimited PTZ preset tours

Advanced PTZ options allow you to automate the camera's field of view. The first option is a simple "preset." Use the NVR to move the camera's viewpoint to the location you desire and create a preset. This will allow you to quickly move the camera's viewpoint to this location with a simple click. The second option is a fully automated PTZ tour. This is when you set up a number of presets and have the camera cycle between them endlessly. Feel free to use all of the camera's pan, tilt, and zoom features in these tours to maximize your security coverage. The final option is a simple "pattern." This setting will automatically cycle between two positions.

Weatherproof security camera

Don't limit the range of your coverage because of the weather. Whether it's heavy rain, snow or wind, this PTZ camera is rated IP66 which means it's fully waterproof. Extreme hot or freezing temperatures won't affect its ability, as it was designed to withstand temperatures ranging from -22°F up to 140°F (-30°C up to 60°C). Even the wall mount bracket is fully waterproof.

140°F | 60°C

Heat Rating

-22°F | -30°C

Cold Rating

IP66

Water Rating

HEVC / H.265 compression

Compress your video data files without reducing the 2K quality footage. The camera's HEVC compression technology (or High Efficiency Video Compression), will save you both bandwidth and video storage space. HEVC compressed videos files will retain their 2K quality, ensuring you don't lose important details in the process.

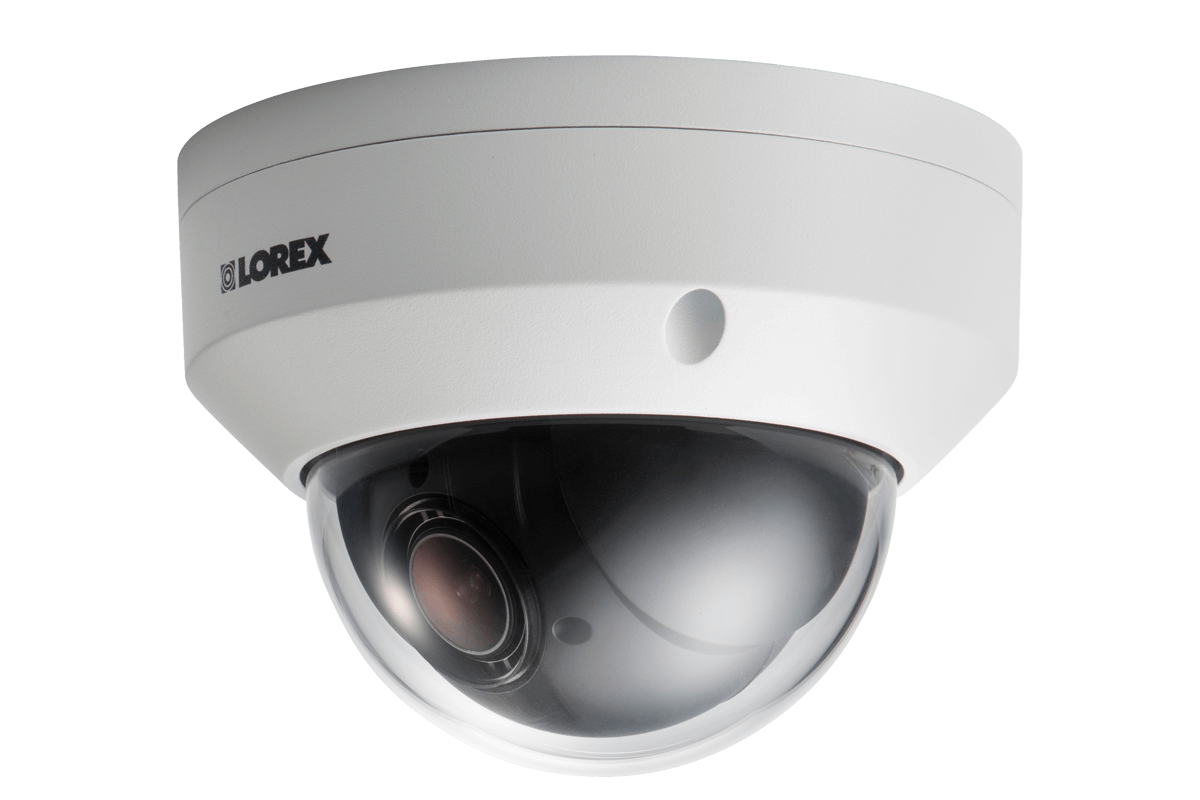

Full Metal Camera Housing

The PTZ camera is vandal resistant. Whether you place it within a reachable distance or a high ceiling, the solid metal casing will protect it from strong impacts and the elements.

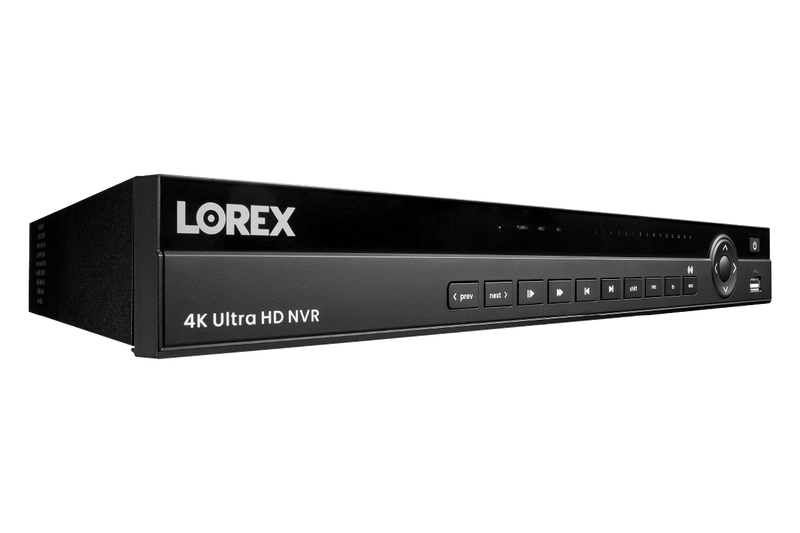

Two storage bays

This NVR comes with 2 separate hard drive bays. Each of which can be upgraded with a hard drive up to 10TB, giving you the potential for a total of 20TB of storage space. You can also use the second hard drive to record videos in parallel with the primary hard drive. This way, the footage is automatically backed up.

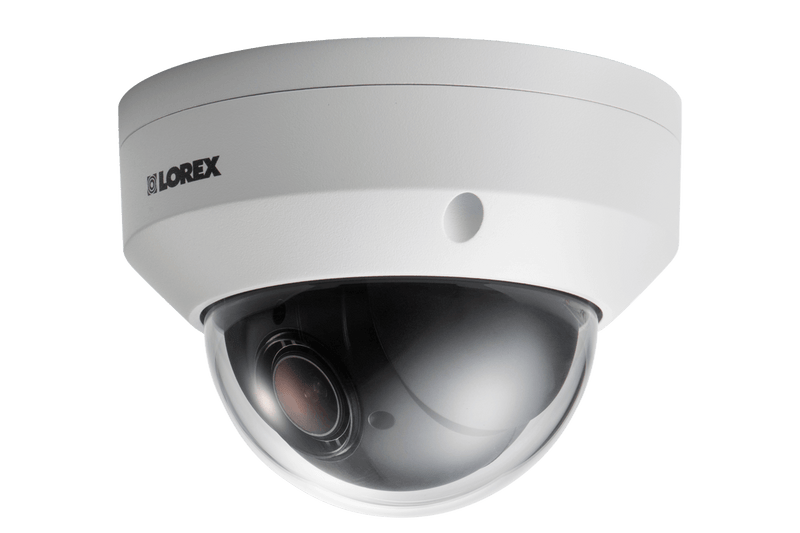

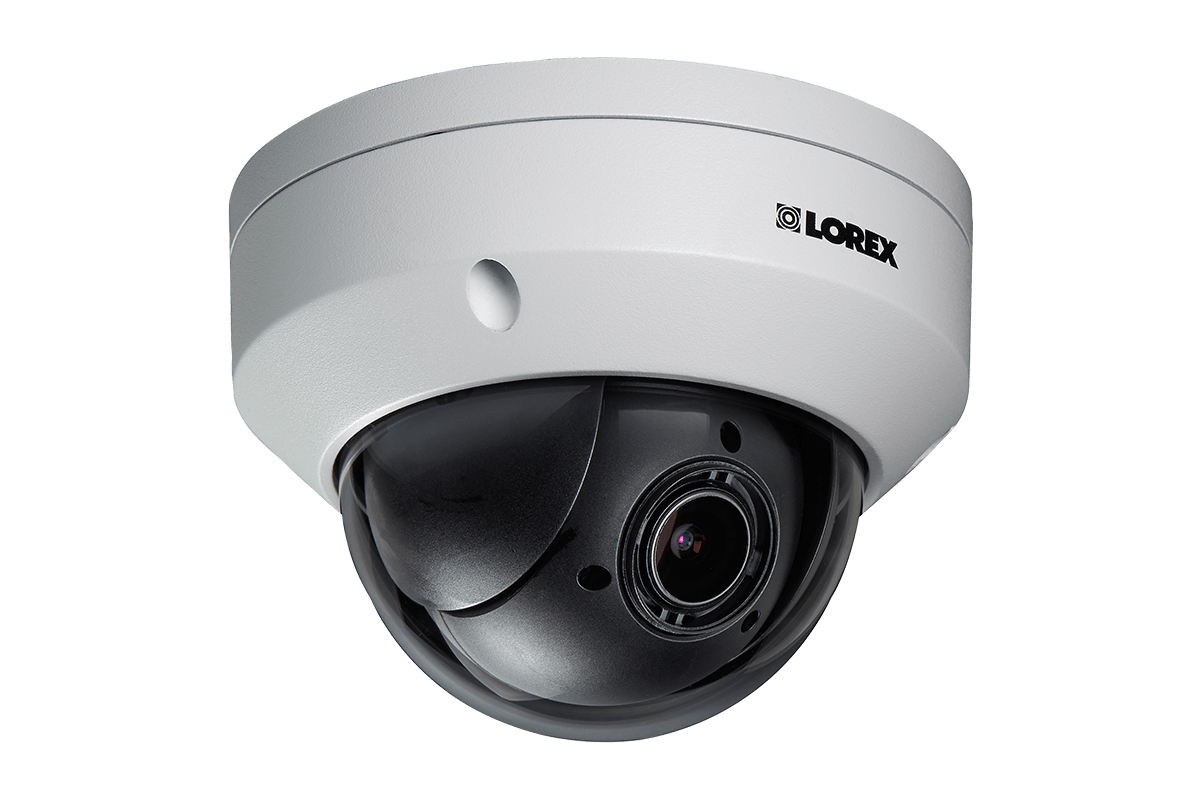

High definition 4MP image sensor¹
Powerful 4× optical zoom and 16× digital zoom to focus in on even the finest details
ClearNight imaging for improved low light performance and improved recording efficiency²
355° pan rotation for complete area coverage. Fast 100° per second panning speed
Control PTZ camera movement and transmit video over a single network cable
Program preset viewing points and tours when connected to a NVR
Remote control of the PTZ camera using a smartphone when connected to a NVR
Infrared cut filter ensures accurate color representation
Weatherproof (IP66-rated) camera with extreme temperature performance (-22° ~ 140°F / -30° ~ 60°C)³

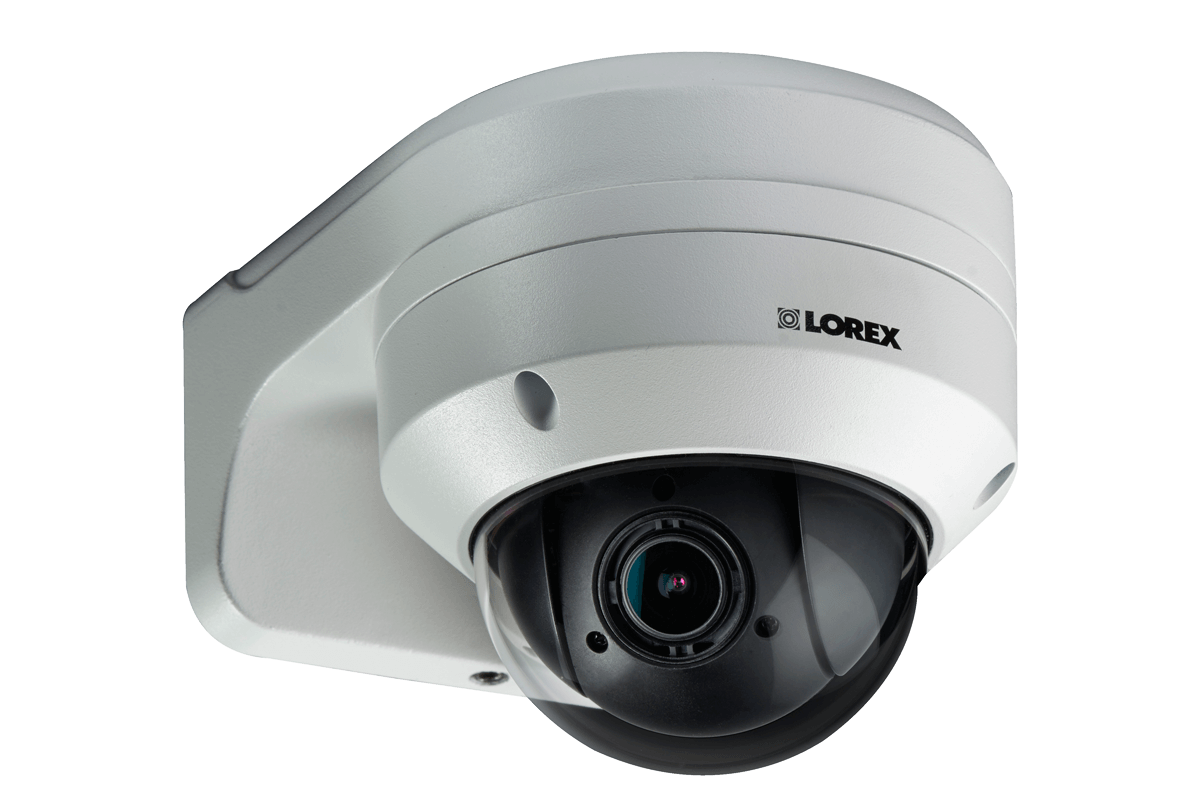

Wall mount bracket & 100ft (30m) extension cable included for installation flexibility
H.265 offers significant bandwidth and video storage savings over older compression technologies, extending the amount of video stored on the hard drive⁴

Each LNZ44P4B Includes:

1 × HD PTZ Camera

1 × Mounting Kit

1 × Wall Mount Bracket

1 × 100ft Ethernet Cable

Instruction Manuals

Compatible with all Lorex HD NVRs except for LNR200 & LNR300 Series. For the most up-to-date list of compatible recorders, visit www.lorextechnology.com/support
This camera features an ultra-low light sensitive image sensor and therefore does not feature Infra-Red LEDs. The camera requires ambient lighting (for example, street/ building lighting, star or moon light) to render a night time image. In total darkness (zero Lux), the camera will not produce a night time image and therefore the camera should not be installed in completely dark areas.
Not intended for submersion in water. Installation in a sheltered location recommended.
You must connect the camera to a supporting H.265 NVR to take advantage of H.265 compression. For instructions on enabling H.265 compression, visit lorextechnology.com/support

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown. Images are simulated.

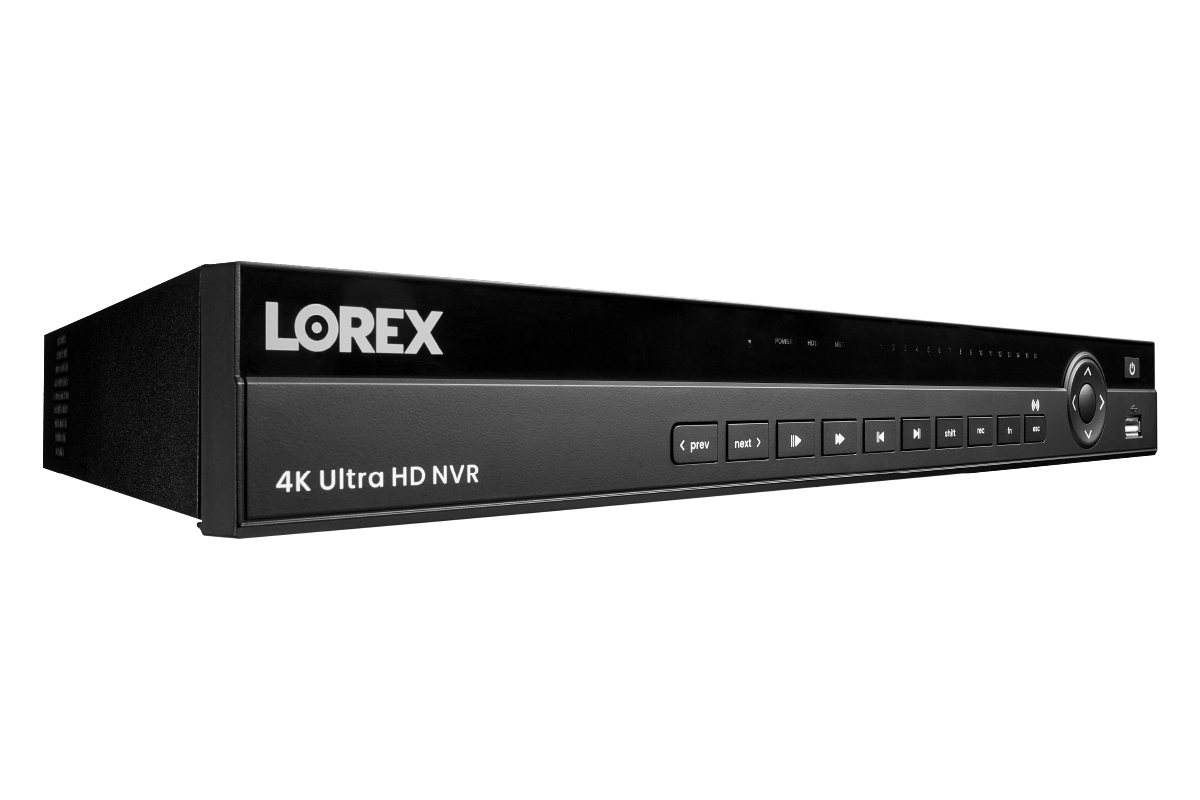

Power, Hard Drive & Network Statuses
Channel Statuses
Navigation Controls
Power Button
Playback Controls
Switch Keyboards (shift)
Start/Stop Recording (rec)
Special Functions (fn)
Back/Cancel (esc)
Info Button
USB Port

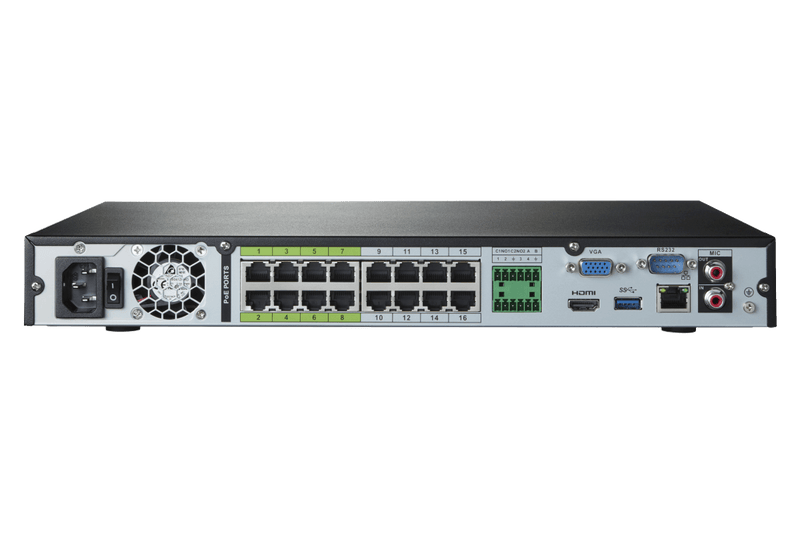

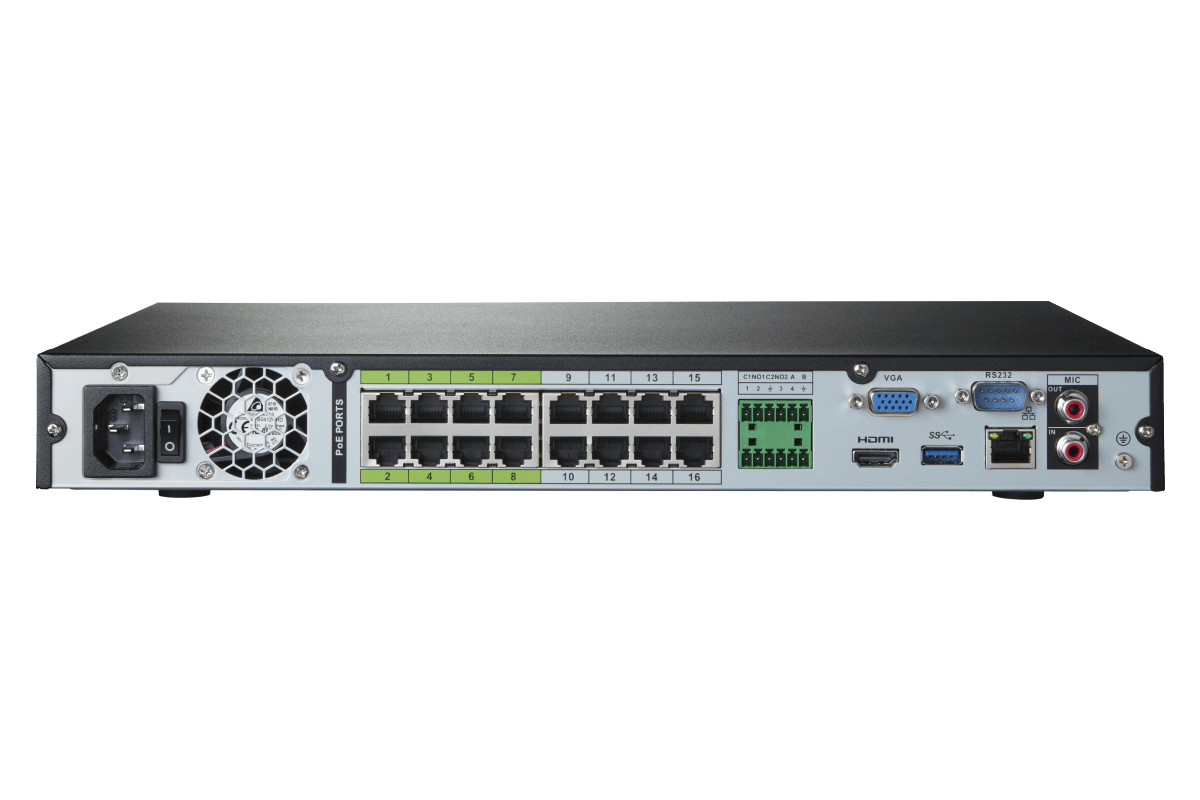

Power Connection
Power Switch
Camera Connection (ePoE)
Camera Connection (PoE)
RS485 Alarm
Monitor Connection (VGA)
RS232
Audio In/Out
Monitor Connection (HDMI)
USB Port
Network Connection (LAN)

Package Contents:

4K NVR

Ethernet Cable

USB Mouse

HDMI Cable

Power Cord

4K (8MP) IP cameras are required to take advantage of 4K recording.
Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
Accuracy of Advanced Person and Vehicle Motion Detection will be influenced by multiple factors, such as the object’s distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection.
Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 6 Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
Compatible with certain Lorex IP cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
Both firmware and software must be updated to latest version to ensure remote connectivity.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.
