NOCTURNAL 4
SECURITY CAMERA SYSTEM

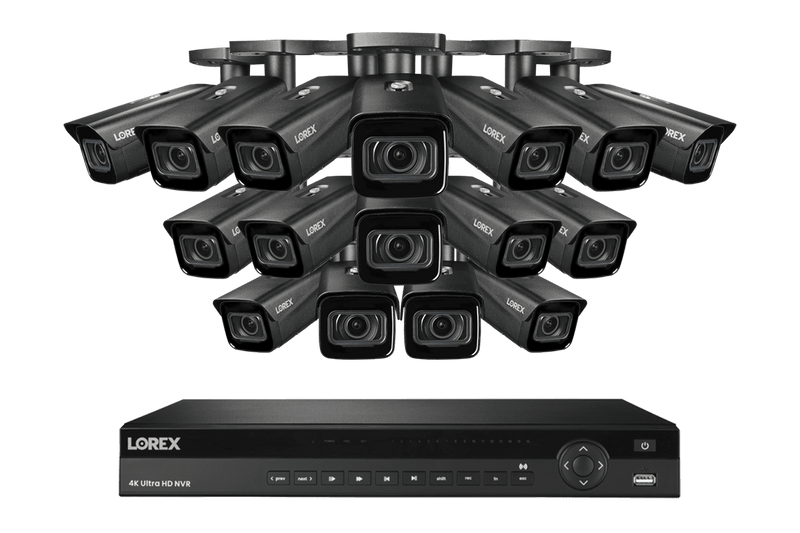

Welcome to the next generation of Nocturnal security. Watch over your business like never before with this top performing professional-grade 16-channel security system featuring our latest Nocturnal 4 Bullet Security Cameras. With smooth Real-Time 4K recording, next level Color Night Vision, Smart Motion Detection, IK10 Vandal Resistance, ePoE technology, and IP67 rated weatherproof metal exteriors, these cameras will provide everything you need and more to deliver the best 24/7 surveillance for your business.
See Clearly,
Day and Night
Ultra HD Resolution
Nocturnal security cameras use an 8MP image sensor that delivers exceptionally detailed 4K Ultra HD resolution video and incomparable low-light performance.
Color Night Vision
Nocturnal security cameras have the longest night vision ranges available. With the help of external lighting, these cameras will also record in full color all night long.
Real-time 30 FPS
Don't miss a moment with our Real-Time 4K Nocturnal Security Cameras. With 30 frames recorded within each second, the on-screen movement will look like you are witnessing events in real life.
Improve Service, Efficiency, and Profitability
People Counting
Advance people counting analytics provides valuable information about the number of people inside your premises at any point in time.
Heat Mapping
Heat Maps illustrate customer movement to better understand where the heaviest and lightest traffic areas are.
Vandal Resistant
Nocturnal 4 Cameras are rated IK10. This means their heavy-duty metal exteriors are built with additional protection to withstand direct impacts.
Go The Distance With ePoE Technology
Save on long distance cabling with Nocturnal 4 Cameras. They feature Enhanced PoE (ePoE) technology, which allows you to connect them up to 600m (2000 ft) away, compared to the standard 100m (328 ft), without the need for numerous PoE switches.
*N883 Series NVRs have 8 designated ePoE ports (CH 1-8) compatible with Nocturnal 4 Series Cameras.
Built to Last
Pro-Grade heavy-duty aluminum housings protect against weather and vandalism, extending the life-cycle of your camera so you can count on years of uninterrupted service.
Built for the
Outdoors
Nocturnal security cameras can endure anything from torrential downpours to freezing snowstorms. So go ahead and place these security cameras where you need them most.
Always Know What's Happening
Keep an eye on trespassers and vehicles with advance AI features like Smart Motion Detection, which detects motion from person/vehicle
Person/Vehicle Detection
Secure access anytime, anywhere
Always have your security system at your fingertips with the Lorex Cloud™ app for your mobile device or the Lorex Cloud client for your computer. See what your cameras see, watch recorded playback, and receive push notifications for motion-triggered events with the help of the Lorex Cloud.
Local Storage - No Monthly Fees
-
Included in the NVR is a 4TB security-grade hard drive designed for advanced processing and the workload of 24/7 recording
-
2 hard drive bays with up to 2 × 10TB of storage space
-
Storage mirroring for continuous back-up of data from one hard drive to another
360° Product View
What's Included?
Dimensions (LxWxH): 273.2mm × 95.0mm × 95.0mm (10.76" × 3.74" × 3.74")
Weight: 1.11lbs / 2.44kg
- Cable Notch
- Adjustment Screw
- Adjustment Knob
- Zoom (T) Wide Angle (W) Buttons
- MicroSD Card Slot
- Reset Button
- Camera Lens
- Infrared Lights
Package Contents:
4K Motorized Varifocal IP Camera
Mounting Kit*
Allen Key*
- Power, Hard Drive & Network Statuses
- Channel Statuses
- Navigation Controls
- Power Button
- Playback Controls
- Switch Keyboards (shift)
- Start/Stop Recording (rec)
- Special Functions (fn)
- Back/Cancel (esc)
- Info Button
- USB Port
- Power Connection
- Power Switch
- Camera Connection (ePoE)
- Camera Connection (PoE)
- RS485 Alarm
- Monitor Connection (VGA)
- RS232
- Audio In/Out
- Monitor Connection (HDMI)
- USB Port
- Network Connection (LAN)
Package Contents:
4K NVR
Ethernet Cable
USB Mouse
HDMI Cable
Power Cord
- 4K (8MP) IP cameras are required to take advantage of 4K recording.
- Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
- Accuracy of Advanced Person and Vehicle Motion Detection will be influenced by multiple factors, such as the object’s distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection.
- Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 6 Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
- Compatible with certain Lorex IP cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
- HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
- Both firmware and software must be updated to latest version to ensure remote connectivity.
All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.
Nocturnal Comparison Chart
| Nocturnal 4 | Nocturnal 3 | |||||
|---|---|---|---|---|---|---|
| Camera Model |
LNB9383 / LNB9393 Bullet |
LNE9383 / LNE9393 Dome |
LNB9242 / LNB9252 Fixed Bullet |
LNE9242 / LNE9252 Fixed Dome |
LNB9282 / LNB9292 MVF Bullet |
LNE9282 / LNE9292 MVF Dome |
| Resolution | Real-Time 4K (30fps) | Real-Time 4K (30fps) | Real-Time 4K (30fps) | Real-Time 4K (30fps) | ||
| Color Night Vision | Yes | Yes | Yes | Yes | ||
| Night Vision Range | 60m (197ft) | 50m (164ft) | 30m (98ft) | 30m (98ft) | ||
| Field of View (H) | 110.4°–45° | 110.4°–45° | 107° | 113°–31° | ||
| Lens Type | Motorized Varifocal | Motorized Varifocal | Fixed | Motorized Varifocal | ||
| Audio | No | Yes (Listen-in Audio) | Yes (Listen-in Audio) | Bullet: No Dome: Yes (Listen-in Audio) |
||
| Smart Motion Detection | Person/Vehicle | Person/Vehicle | Person/Vehicle | Person/Vehicle | ||
| Person Counting | Yes | Yes | No | No | ||
| Heat Mapping | Yes | Yes | No | No | ||
| Power over Ethernet Type | ePoe: 600m (2000ft) | ePoe: 600m (2000ft) | PoE: 100m (328ft) | PoE: 100m (328ft) | ||
| Operating Temperature | -40ºF ~ 140ºF / -40ºC ~ 60ºC | -40ºF ~ 140ºF / -40ºC ~ 60ºC | -40ºF ~ 140ºF / -40ºC ~ 60ºC | -40ºF ~ 140ºF / -40ºC ~ 60ºC | ||
| Ingress Protection | IP67 | IP67 | IP67 | IP67 | ||
| Vandal Resistance | IK10 | N/A | N/A | N/A | ||
