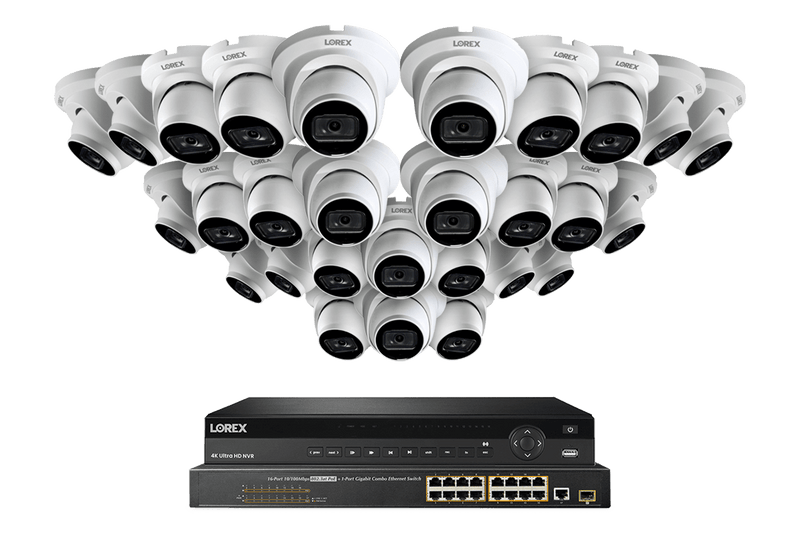

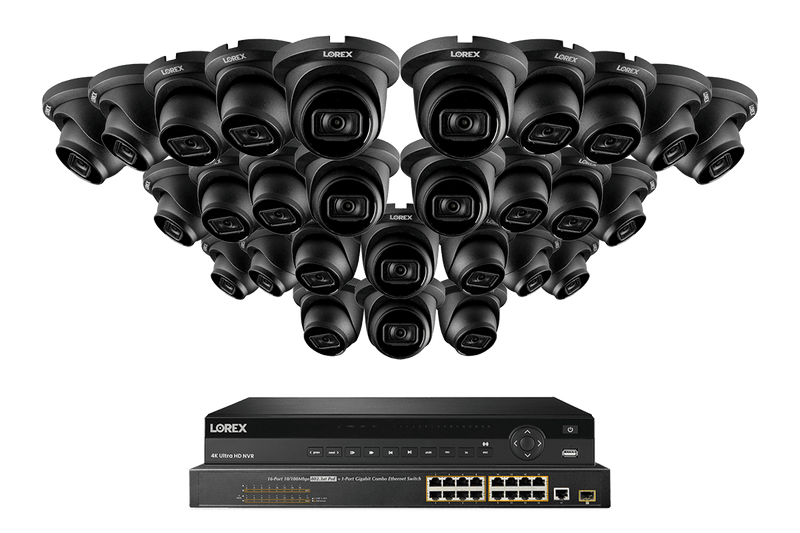

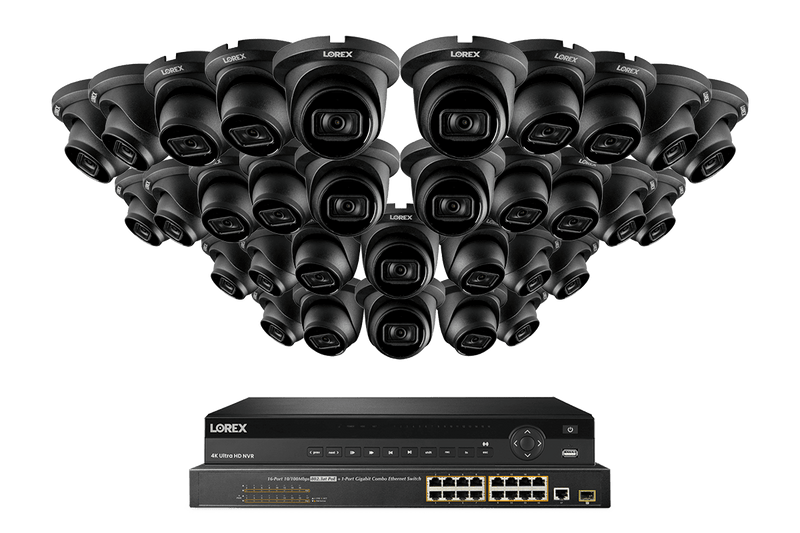

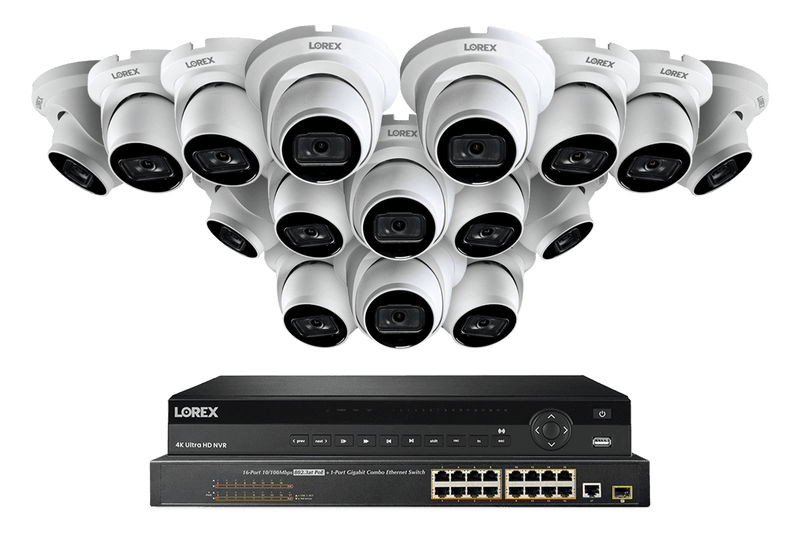

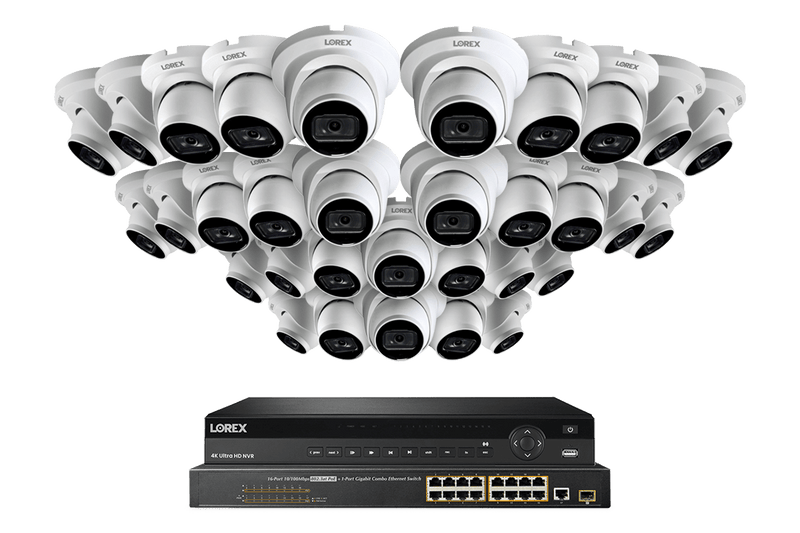

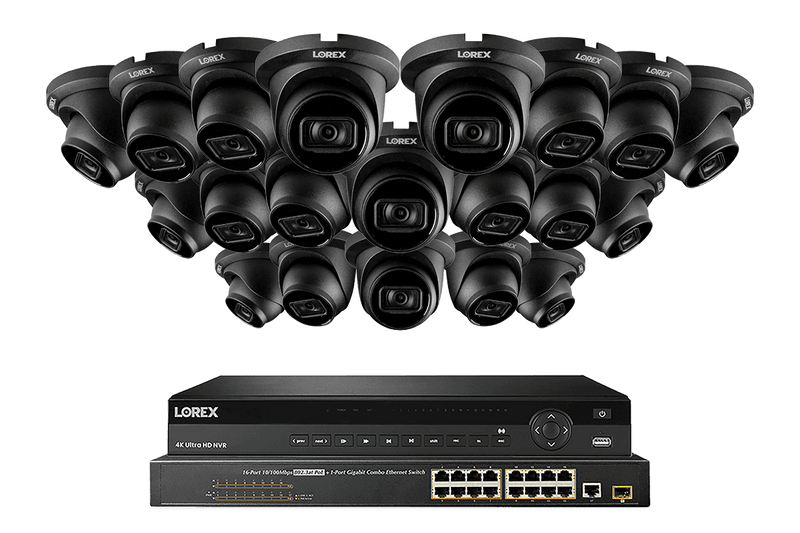

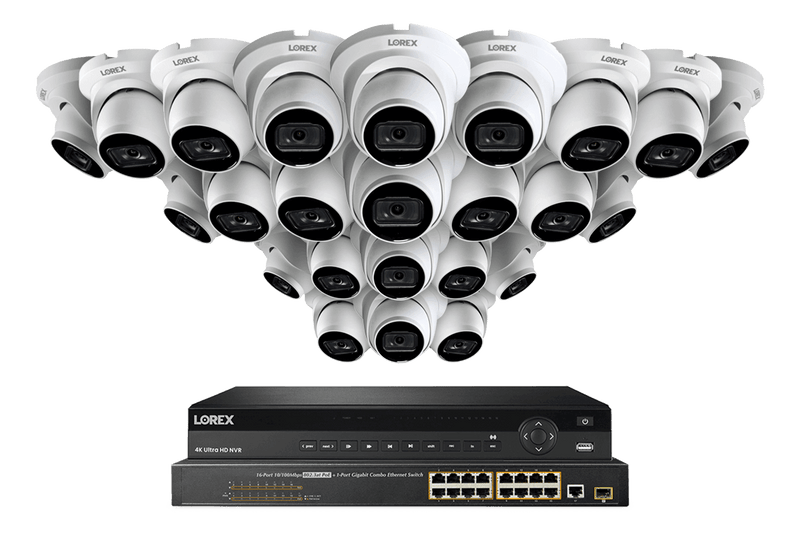

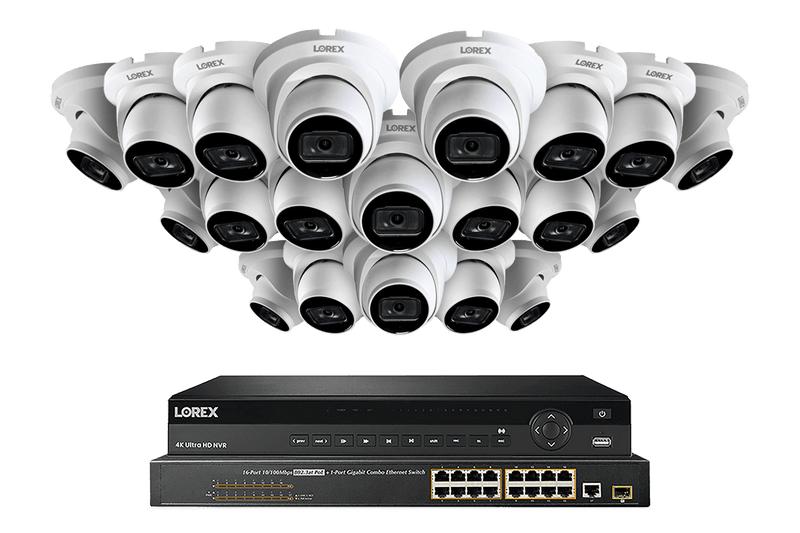

Lorex 4K (32 Camera Capable) 8TB Wired NVR System with Nocturnal 3 Smart IP Dome Cameras Featuring Listen-In Audio and 30FPS Recording

NC4K8F-3216BD-1
Number of cameras:
Color:
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

bi-ecology

No Monthly Fees

Local recording protects privacy and saves money.

Features

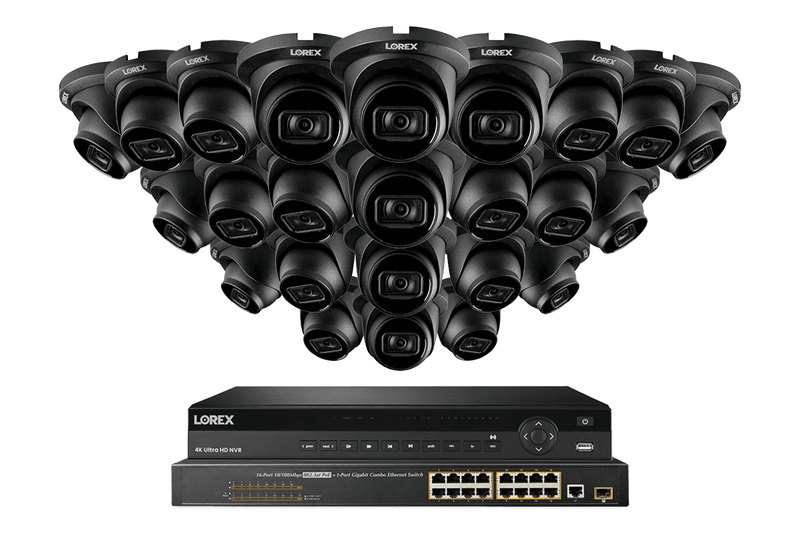

Protect your property, day and night, with this Nocturnal security camera system from Lorex. This system includes 4K IP dome security cameras, a powerful thirty-two channel Network Video Recorder (NVR), and a sixteen channel PoE switch. Along with 4K recording resolution, Color Night Vision, and smart motion detection, these security cameras include listen-in audio which adds a whole new dimension to your overall security monitoring. These features, as well as open channels on the NVR, make this system an incredibly versatile and expandable security solution perfect for a large home, small business, office, or commercial facility.

32

CHANNELS

4K NVR can support up to 32 cameras

4K

RESOLUTION

4× the resolution of HD 1080p

150FT

NIGHT VISION

Maximum nightvision range

8TB

HARD DRIVE

Maximum Capacity 2 × 10TB hard drives

Real-time 30fps

Don't miss a moment with our Real-Time 4K Nocturnal Security Cameras. With 30 frames recorded within each second, the on-screen movement will look like you are witnessing events in real life.*

Color Night Vision

These Nocturnal 3.0 security cameras feature our revolutionary Color Night Vision™ (CNV) technology, which will produce full-color video with the help of external lighting around the camera.

Listen-in Audio

Add another layer of security coverage with our Nocturnal audio security cameras. Adding audio can add valuable information (such as voices) to your security system**.

*When Smart Motion Detection is enabled, the camera's recording frame rate is reduced from 30 frames per second to 20 frames per second.
**Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its products that fails to conform with local laws.

Advanced Motion Detection

This system comes with advanced person and vehicle detection that helps identify more important objects that enter the camera's field of view. Thanks to this innovative feature, you will only get a push notification to your Lorex Cloud app whenever motion from a person/vehicle is detected on your property. This effectively reduces the number of unwanted false alerts caused by moving branches or animals.

4K Ultra HD Resolution

Ultra HD
Resolution

Nocturnal security cameras use an 8MP image sensor that delivers exceptionally detailed 4K Ultra HD resolution video.

Color Night Vision

Long-range
IR night vision

This camera will use it's infrared LEDs in regular nighttime conditions that are too dark for CNV to render full-color images.

High Dynamic Range

High Dynamic
Range (HDR)

HDR improves video clarity in high-contrast lighting, revealing details in extremely bright and dark areas of the image.

HEVC Compression

High Efficiency
Video Coding (HEVC)

HEVC compresses video file sizes without any noticable difference in quality, which will save you lots of hard drive space.

Metal housing

Full Metal
Exteriors

Heavy-duty aluminum exteriors will extend the life-cycle so you can count on years of uninterupted service.

Power Over Ethernet

Easy PoE
Installation

IP cameras only need a single Cat5e ethernet cable to connect it to a compatible NVR for video, power and a stable network connection.

Extreme Weather Capabilities

Rated IP67, Nocturnal security cameras can endure anything from torrential downpours to freezing snowstorms. So go ahead and place these security cameras where you need them most.

Heat Rating

140°F | 60°C

Heat Rating

Cold Rating

-40°F | -40°C

Cold Rating

Water Rating

IP67

Weatherproof

remote monitoring NR900 Lorex Cloud App

Remote mobile viewing with Lorex Cloud App

Always have your security system at your fingertips with the Lorex Cloud™ app for your mobile device. Connect your NVR to Lorex Cloud™ and securely access your system no matter where you are in the world. See what your cameras see, watch recorded playback, and receive push notifications for motion-triggered events with the help of this app.

32-channel NVR - add 32 cameras to one security system

What is the included PoE switch for?

The 32-channel NVR supports up to 32 security cameras but only has 16 built-in PoE ports on the back. This is why a PoE switch has been included in this system. By connecting this PoE switch to your system you can utilize the remaining open channels.

Security-grade hard drive

Reliable security grade hard drive with no hidden storage fees

Included in the NVR is 8TB security-grade hard drives that have been designed to meet the demands of 24/7 surveillance, while also providing ample storage space for all recorded video footage. With the possibility of increasing storage space up to 20TB (2 × 10TB), there is more than enough room to safely store all motion events that only you can access.

Motion Zones

Regional
Motion Zones

Using the NVR, you can program specific motion zones so that they are customized for heightened sensitivity (the amount of motion needed to register that movement) and threshold (how much motion is needed before creating a motion "event").

Privacy Mask

Privacy
Masking

In the event that the camera is facing areas that you do not want recorded, simply activate the privacy masking option. Use the NVR to draw a square around the spot(s) you don't want the camera to record.

High Dynamic Range

Multiple Recording
Options

Record security footage continuously, during scheduled times, or when movement is detected. Motion recordings include a pre-recording function that will go back to record the five seconds before activity is detected.



What's Included?

LNE9242B dimensions
  • 4K (8MP) Ultra HD resolution, ensuring clear and detailed footage1
  • See more with a with up to 107° field of view
  • Hear and record audio from your camera thanks to listen-in audio2
  • Record at a real-time 30 frames-per-second, providing smooth and clearer footage3
  • Enhanced nighttime clarity with Color Night Vision™4 thanks to an impressive large format lens
  • Up to 150ft (46m) IR night vision in low light and 98ft (30m) in total darkness5
  • Reduce unnecessary alerts and false alarms with Smart Motion Detection6
  • Receive motion notifications when only a Person or Vehicle is detected on your property from your Lorex App6
  • Weatherproof rated (IP67)7
  • Operates in temperatures low as -40°F (-40°C) and high as 140°F (60°C)
  • Aluminum Alloy housing, designed to withstand harsh weather condition
  • Install indoors or outside, with the option of hanging on a ceiling or mounted to a wall

Each LNE9242B / LNE9252B Includes:

1 × IP Dome Camera
1 × Ethernet Cable*
1 × Mounting Kit
1 × Mounting Template

1. 4K capable recorder (not included) is required to record video in 4K resolution. 4K TV (not included) is required to view live or pre-recorded 4K video.
2. Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws.
3. Smart Motion Detection is enabled by default. When enabled, the camera's recording frame rate is reduced from 30 frames per second to 20 frames per second. To obtain the maximum of 30 frames per second, the camera must be connected to a recorder that supports the maximum frame rate. For a list of compatible recorders, please visit lorextechnology.com/compatibility
4. Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
5. Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 98ft/30m in total darkness). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
6. In order for Person and Vehicle detection to operate, this camera requires a connection to a compatible Lorex Network Video Recorder with smart motion detection technology. For a list of compatible recorders please visit: lorextechnology.com/compatibility
7. Not intended for submersion in water. Installation in a sheltered area recommended.
8. A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing.

* Cable length is dependent on product configuration. See product packaging for details.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown. Images are simulated.

ACC front

Package Contents:

1 × PoE Switch

1 × Power Cord

2 × Rack Mount Bracket

8 × Mounting Screws

1 × SFP Dust Cap

4 × Rubber Feet

Quick Start Guide


  • Centralized power distribution - Easy all-in-one PoE switch
  • 1 Gigabit rated RJ45/SFP port for fast device/network connection
  • High speed transmission of IP surveillance data
  • 220W total PoE power budget (up to 30.8W per port)
  • Convenient Real-time PoE usage LED indicators
N883 Front Overview
  1. Power, Hard Drive & Network Statuses
  2. Channel Statuses
  3. Navigation Controls
  4. Power Button
  5. Playback Controls
  6. Switch Keyboards (shift)
  7. Start/Stop Recording (rec)
  8. Special Functions (fn)
  9. Back/Cancel (esc)
  10. Info Button
  11. USB Port
N883 Back Overview
  1. Power Connection
  2. Power Switch
  3. Camera Connection (ePoE)
  4. Camera Connection (PoE)
  5. RS485 Alarm
  6. Monitor Connection (VGA)
  7. RS232
  8. Audio In/Out
  9. Monitor Connection (HDMI)
  10. USB Port
  11. Network Connection (LAN)

Package Contents:

4K NVR

Ethernet Cable

USB Mouse

HDMI Cable

Power Cord

  • 4K (8MP) IP cameras are required to take advantage of 4K recording.
  • Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
  • Accuracy of Advanced Person and Vehicle Motion Detection will be influenced by multiple factors, such as the object’s distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection.
  • Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 6 Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
  • Compatible with certain Lorex IP cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
  • HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
  • Both firmware and software must be updated to latest version to ensure remote connectivity.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

ACCDPS261B Front Overview ACCDPS261B Front Overview

  • Centralized power distribution - Easy all-in-one PoE switch
  • 1 Gigabit rated RJ45/SFP port for fast device/network connection
  • High speed transmission of IP surveillance data
  • 220W total PoE power budget (up to 30.8W per port)
  • Convenient Real-time PoE usage LED indicators

Package Contents:

16-Channel PoE Switch

Power Cable
