IP67 Water Rating
–40 °C / -40 °F Cold Rating
60 °C / 140 °F Heat Rating
All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.
Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.

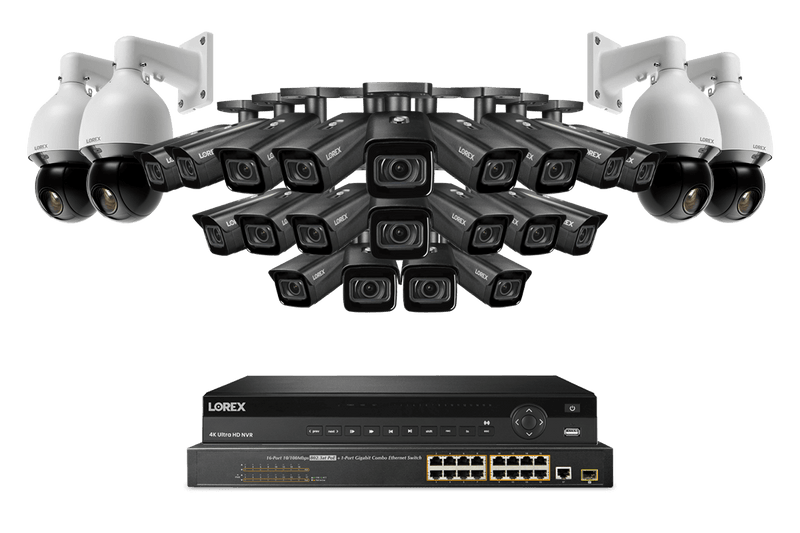

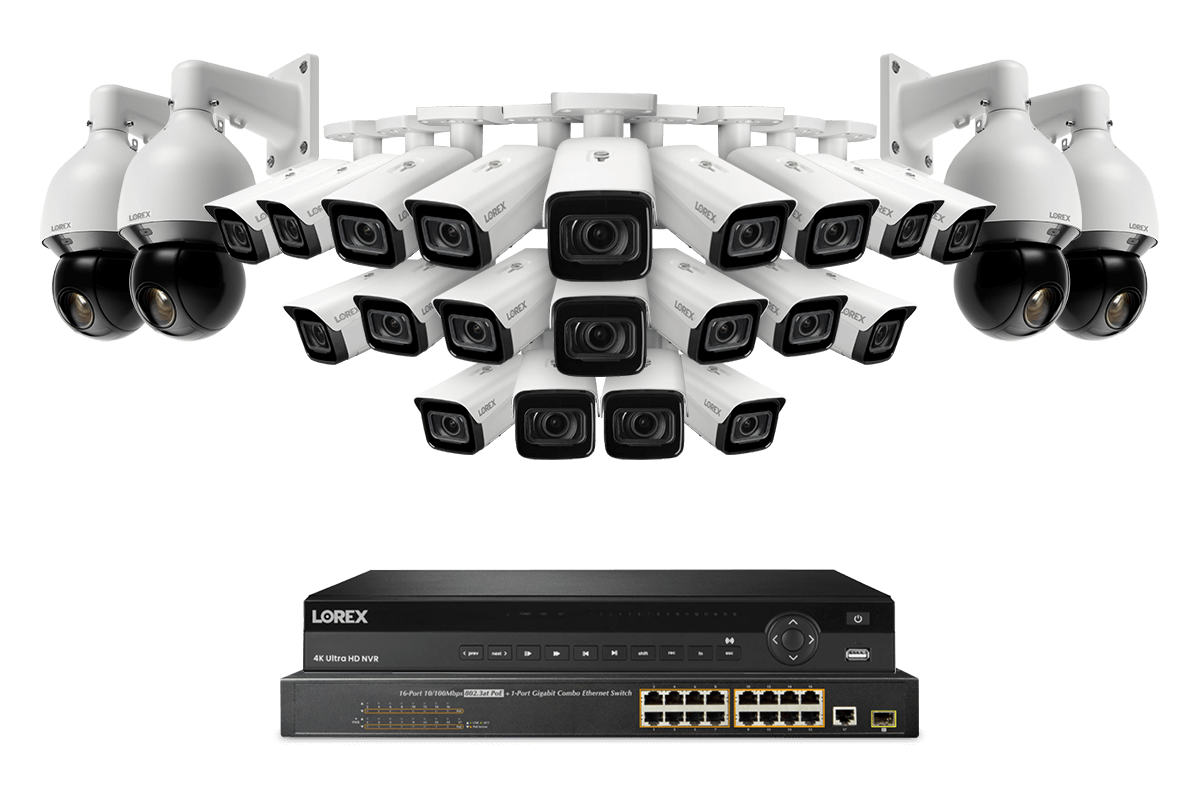

Secure your home or business with the Lorex Nocturnal 4K NVR System. This system is capable of connecting up to 32 cameras and includes 20 Smart IP Dome Cameras and Four 25× Pan-Tilt-Zoom IP Cameras. All cameras record in real-time (30fps) 4K resolution and provide Color Night Vision with ambient lighting and long range IR night vision in very dark areas. They are also IK10 Vandal Resistant and IP67 Weatherproof rated.
4K Ultra HD Nocturnal NVR System
32
CAMERA CAPABLE
4K NVR can support
up to 32 cameras
24
CAMERAS
20× bullets
4× PTZ
4K
RESOLUTION
4× the resolution
of HD 1080p
8TB
HARD DRIVE
Maximum Capacity
2× 10TB hard drives
NOCTURNAL 4
SERIES SECURITY CAMERA
Empower your business with a top performing professional-grade monitoring solution –
The Lorex 4K IP Nocturnal Motorized Varifocal Wired Camera.
See Clearly,
Day and Night
Ultra HD Resolution
Nocturnal security cameras use an 8MP image sensor that delivers exceptionally detailed 4K Ultra HD resolution video and incomparable low-light performance.
Color Night Vision
Nocturnal security cameras have the longest night vision ranges available. With the help of external lighting, these cameras will also record in full color all night long.
Real-time 30 FPS
Don't miss a moment with our Real-Time 4K Nocturnal Security Cameras. With 30 frames recorded within each second, the on-screen movement will look like you are witnessing events in real life.
Improve Service, Efficiency, and Profitability
People Counting
Advance people counting analytics provides valuable information about the number of people inside your premises at any point in time.
Heat Mapping
Heat Maps illustrate customer movement to better understand where the heaviest and lightest traffic areas are.
*People Counting and Heat Mapping features are supported by the N883 Series NVRs and Nocturnal 4 Series cameras
Go The Distance With ePoE Technology
Save on long distance cabling with Nocturnal 4 Cameras. They feature Enhanced PoE (ePoE) technology, which allows you to connect them up to 600m (2000 ft) away, compared to the standard 100m (328 ft), without the need for numerous PoE switches.
*N883 Series NVRs have 8 designated ePoE ports (CH 1-8) compatible with Nocturnal 4 Series Cameras.
Vandal Resistant
All the cameras in this security system are rated IK10. This means their heavy-duty metal exteriors are built with additional protection to withstand direct impacts.
Built to Last
Pro-Grade heavy-duty aluminum housings protect against weather and vandalism, extending the life-cycle of your camera so you can count on years of uninterrupted service. The included PTZ cameras are rated IK10 for additional protection to withstand direct impacts.
Built for the
Outdoors
These cameras can endure anything from torrential downpours to freezing snowstorms. So go ahead and place these security cameras where you need them most.
Security at Every Angle

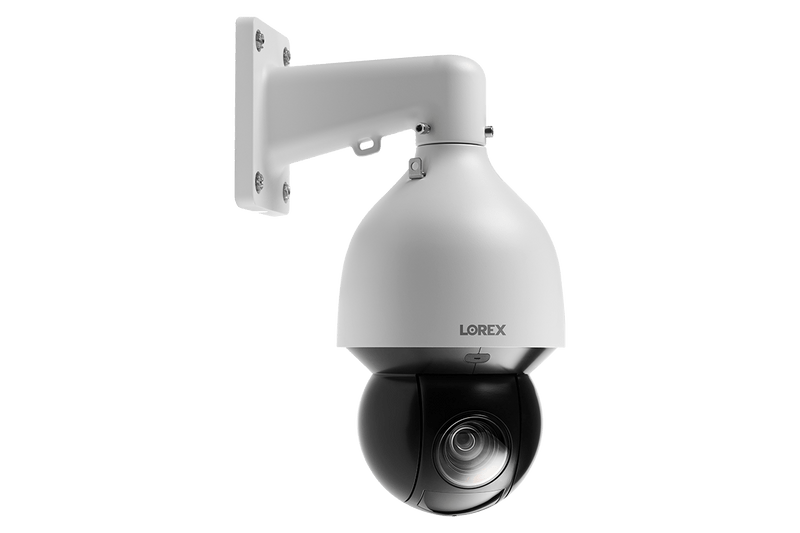

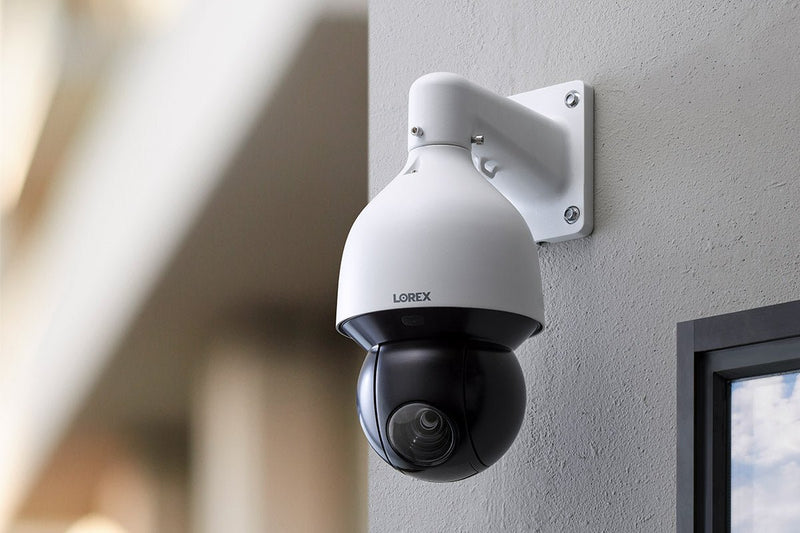

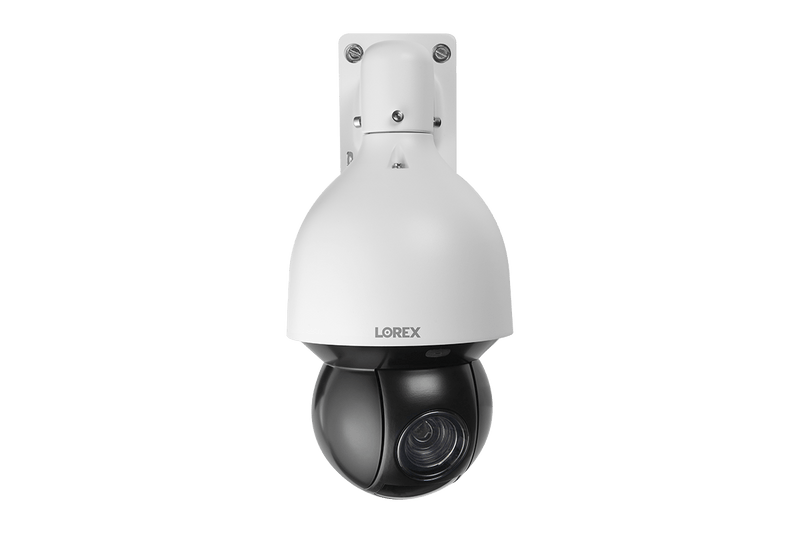

Experience a heightened level of security with the Lorex 4K Pan-Tilt-Zoom IP Camera. Monitor large areas using the camera’s full 360° rotation and rapid panning and tilt-speeds. See the finest details, day and night, with 4K resolution and Color Night Vision (with the help of ambient light) or long range IR Night Vision up to 150 feet (without ambient light). View objects from afar with the impressive 25x optical zoom. The camera's real-time 30 frames-per-second recording is also perfect for high traffic areas. Monitor your large property smarter and with ease with this intuitive Lorex 4K Pan-Tilt-Zoom IP Camera.
4K
Resoluton
Color Night
Vision
Smart Motion
Detection
Wide Dynamic
Range
Pan Tilt
Zoom
Fast 400°/s
Panning Speed
IK10 Vandal
Resistant
Create Unlimited PTZ Tours
Expand your security coverage with fully automated PTZ tours. These tours are designed to cycle through a number of user-defined location presets. All of the pan, tilt, and zoom features can be used during a tour. You can also create a simple "pattern" movement that will automatically cycle the camera's viewpoint between two presets. These automated tour and pattern settings can be found in the NVR's PTZ settings menu. You can even program your NVR to change the tour / pattern based on the time of day within these settings.
Always Know What's Happening
Keep an eye on trespassers and vehicles with advance AI features like Smart Motion Detection, which detects motion from person/vehicle. Use it with Auto Tracking* to cover a large area and to automatically detect, follow, and record moving objects, such as a person or vehicle. When an object triggers the motion detection rule, this camera will automatically use its pan/tilt rotation and zoom feature to lock in the moving object in the center of the screen and continue to follow it without missing any details.
*Auto tracking feature is available on the the LNZ81P25 PTZ camera
Secure access anytime, anywhere
Always have your security system at your fingertips with the Lorex Cloud™ app for your mobile device or the Lorex Cloud client for your computer. See what your cameras see, watch recorded playback, and receive push notifications for motion-triggered events with the help of the Lorex Cloud.
Local Storage - No Monthly Fees
-
Included in the NVR is an 8TB security-grade hard drive designed for advanced processing and the workload of 24/7 recording
-
2 hard drive bays with up to 2 × 10TB of storage space
-
Storage mirroring for continuous back-up of data from one hard drive to another

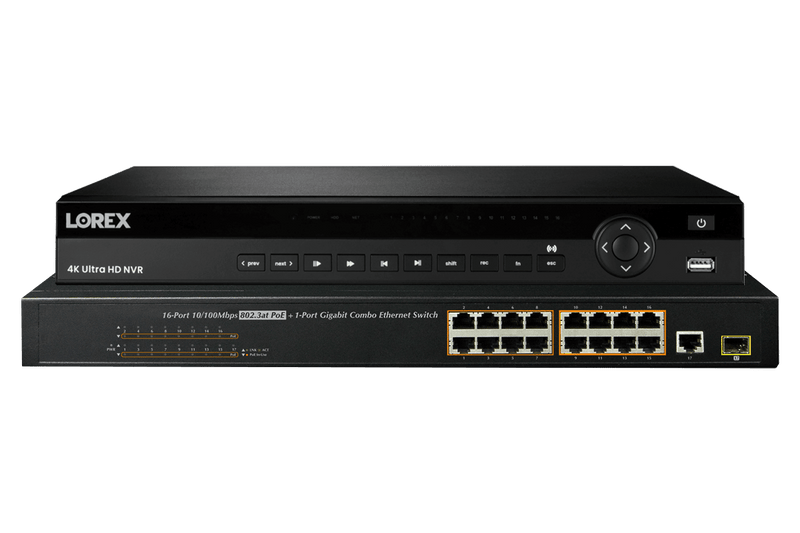

What's Included?
-
PoE Switches
ACCLPS263B -
IP Security Cameras
LNB9383 / LNB9393 -
Security NVR
N883A38B-W -
Pan-Tilt-Zoom Camera
LNZ81P25
Package Contents:
1 × PoE Switch
1 × Power Cord
2 × Rack Mount Bracket
8 × Mounting Screws
1 × SFP Dust Cap
4 × Rubber Feet
Quick Start Guide
- Centralized power distribution - Easy all-in-one PoE switch
- 1 Gigabit rated RJ45/SFP port for fast device/network connection
- High speed transmission of IP surveillance data
- 220W total PoE power budget (up to 30.8W per port)
- Convenient Real-time PoE usage LED indicators
Dimensions (LxWxH): 273.2mm × 95.0mm × 95.0mm (10.76" × 3.74" × 3.74")
Weight: 1.11lbs / 2.44kg
- Cable Notch
- Adjustment Screw
- Adjustment Knob
- Zoom (T) Wide Angle (W) Buttons
- MicroSD Card Slot
- Reset Button
- Camera Lens
- Infrared Lights
Package Contents:
4K Motorized Varifocal IP Camera
Mounting Kit*
Allen Key*
- Power, Hard Drive & Network Statuses
- Channel Statuses
- Navigation Controls
- Power Button
- Playback Controls
- Switch Keyboards (shift)
- Start/Stop Recording (rec)
- Special Functions (fn)
- Back/Cancel (esc)
- Info Button

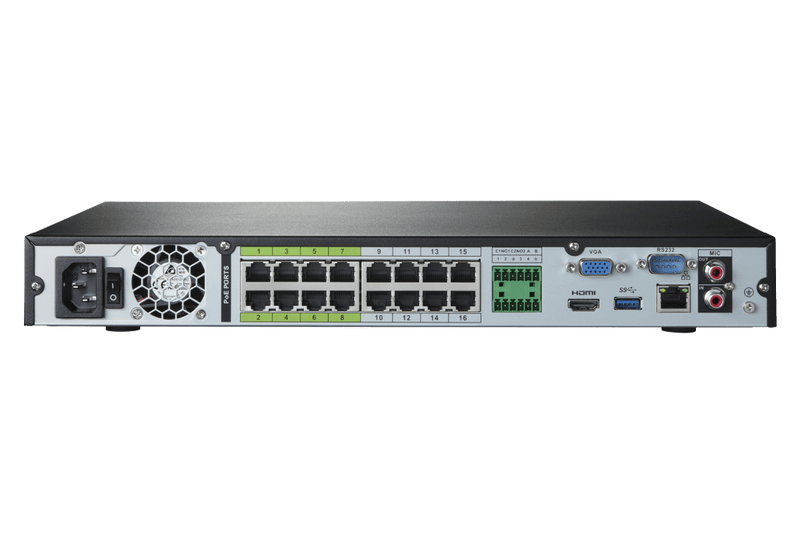

- USB Port
- Power Connection
- Power Switch
- Camera Connection (ePoE)
- Camera Connection (PoE)
- RS485 Alarm
- Monitor Connection (VGA)
- RS232
- Audio In/Out
- Monitor Connection (HDMI)
- USB Port
- Network Connection (LAN)
Package Contents:
4K NVR
Ethernet Cable
USB Mouse
HDMI Cable
Power Cord
- 4K (8MP) IP cameras are required to take advantage of 4K recording.
- Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
- Accuracy of Advanced Person and Vehicle Motion Detection will be influenced by multiple factors, such as the object’s distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection.
- Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 6 Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
- Compatible with certain Lorex IP cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
- HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
- Both firmware and software must be updated to latest version to ensure remote connectivity.
All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.
- Centralized power distribution - Easy all-in-one PoE switch
- 1 Gigabit rated RJ45/SFP port for fast device/network connection
- High speed transmission of IP surveillance data
- 220W total PoE power budget (up to 30.8W per port)
- Convenient Real-time PoE usage LED indicators
Package Contents:
16-Channel PoE Switch
Power Cable
Weight: 5.3kg (11.7lbs)
Package Contents:
1 × PTZ camera
1 × Wall mount
1 × Power adapter & cable
4 × Mounting anchors, screws & flat washers
1 × ESD gloves
1 × Waterproof tape
1 × Waterproof connector
1 × Safety chain
1 × Allen key (A)
1 × Torx key (B)
3 × M6x14 screws
1 × Rubber ring
- Compatible with select Lorex analog HD recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility
- Full color nighttime video typically switches to black & white IR night vision below 1 lux to ensure optimal low-light image quality.
- Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depend on the installation location, viewing area, and light reflection/absorption level of an object. In low light, the camera will switch to black and white.
- Not intended for submersion in water. Installation in a sheltered area recommended.
- Digital zoom is a function controlled by the connected NVR. For a list of compatible NVRs visit: www.lorex.com/compatibility
- A Cat5e cable is required to connect to a compatible NVR. Not included.
Lorex products are designed for consumer and business use only and not for US federal governments, federally-funded projects or contractors subject to NDAA.
