Your security, your way. Combine both Wired and Wi-Fi cameras to perfectly personalize your home security ecosystem. With a 12-Channel Fusion DVR (8 Wired | 4 Wi-Fi), Four 4K Wired Active Deterrence Cameras, a 2K Wired Video Doorbell with a Wi-Fi Chime Box, and an Indoor Wi-Fi Camera, this system is the perfect starting point for your security and can be easily expanded with further Wired and Wi-Fi cameras. This Fusion DVR will also let you record all cameras (Wired and Wi-Fi) around-the-clock and keep your recordings private on its security grade hard drive.

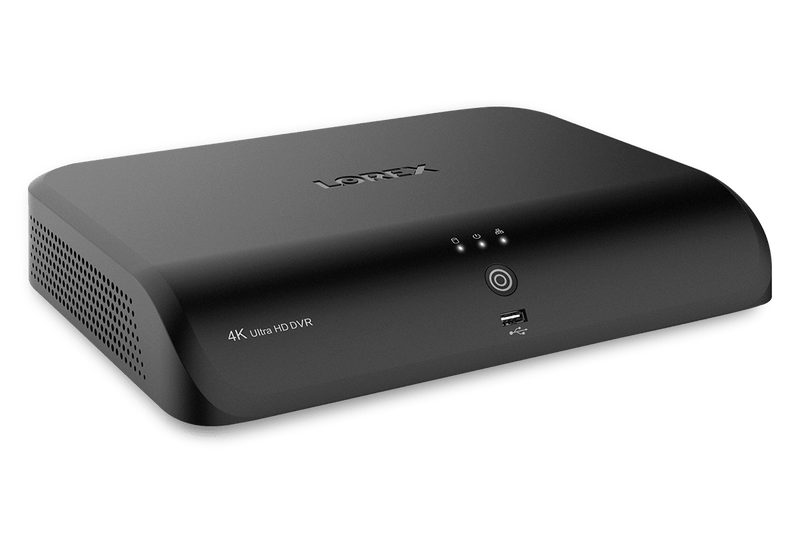

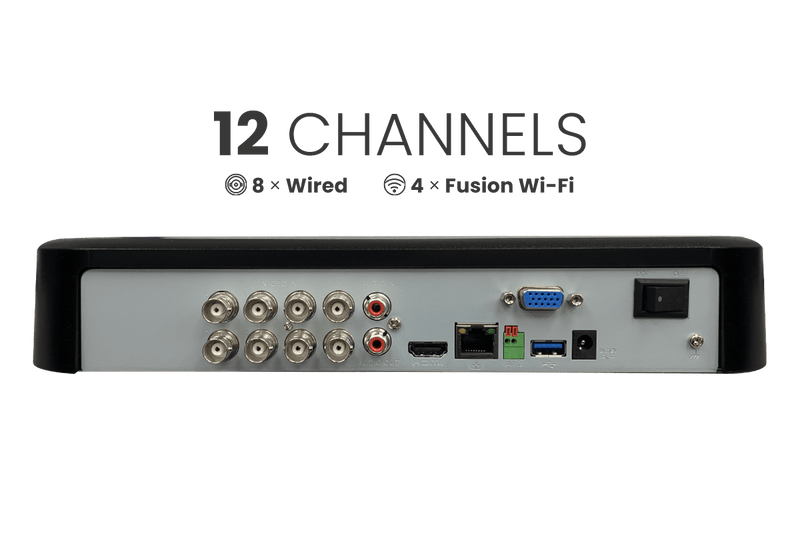

4K (12 camera Capable) Fusion DVR
Create a personalized security system with the 4K Fusion DVR, which offers the ability to pair with both Wired and Wi-Fi cameras.
Learn MoreA 2TB security-grade hard drive keeps your data safe and local. This DVR can be upgraded to 8TB of space.
This DVR is able to receive HEVC (High Efficiency Video Encoding) or H.265 video compression files. This type of encoding can save up to 40% more space when compared to H.264 Advanced Video Coding.
Stop events before they happen. An easy-to-use panic button located on the front of the recorder will activate all lights and sirens on your compatible Active Deterrence cameras to deter potential intruders.
With Smart Motion Detection and Face Recognition receive notifications when a person, vehicle or a person's face is detected on your property from the Lorex™ app

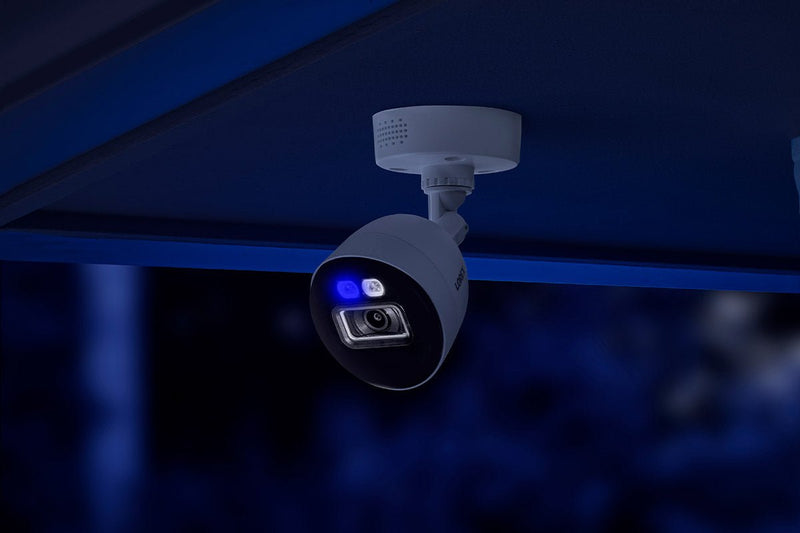

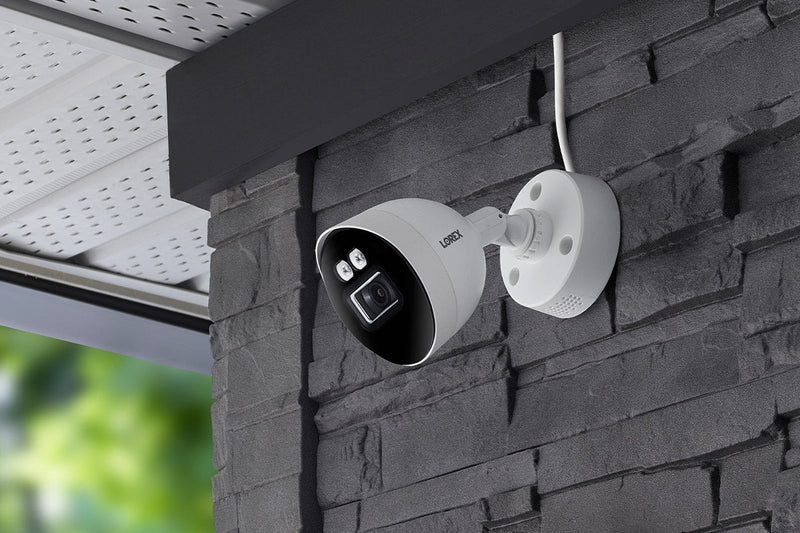

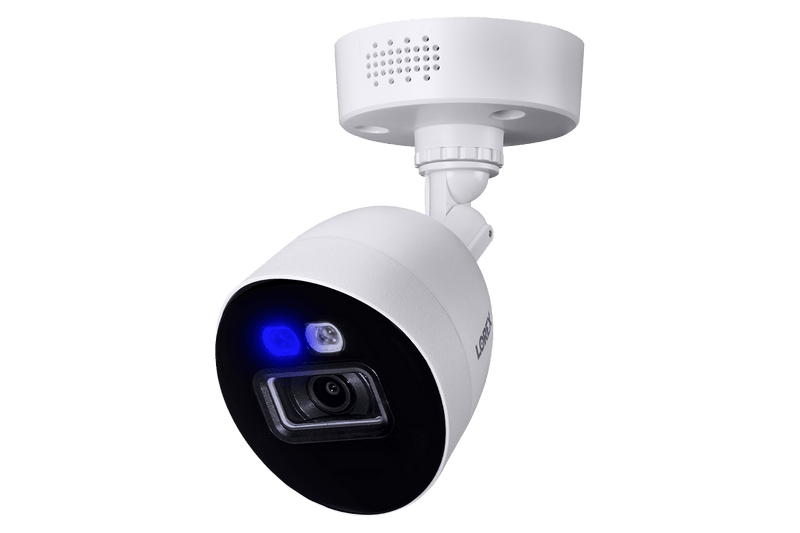

4K Smart Deterrence Analog Wired Bullet Camera
Record 4K security video and experience the latest in smart innovations to provide the highest level of security for your property.
Learn More4K means there are more than 8 million pixels, and that results in sharper video and realistic color representation
See full color with the help of ambient lighting or long-range infrared night vision in low-light settings.
The IP67 weatherproof rating ensures protection from harsh rain, wind, snow, dust, and heat. Operating temperature (-40°C/-40°F to +60°C/140°F).
Set your camera's smart LED light to a blue or white hue as desired. Assign white or blue colors to motion events like Person and Vehicle detection. Also deter unwanted guests with the remote-activated siren.
Monitor a wider area with a 125° field of view.

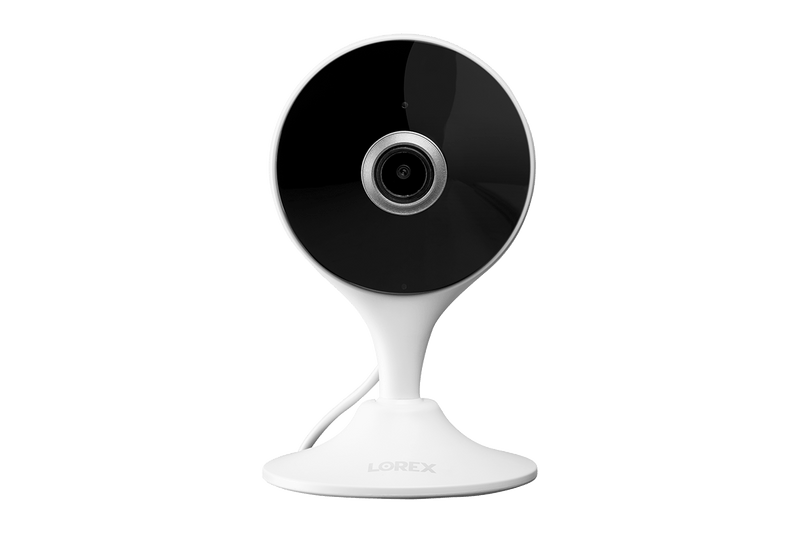

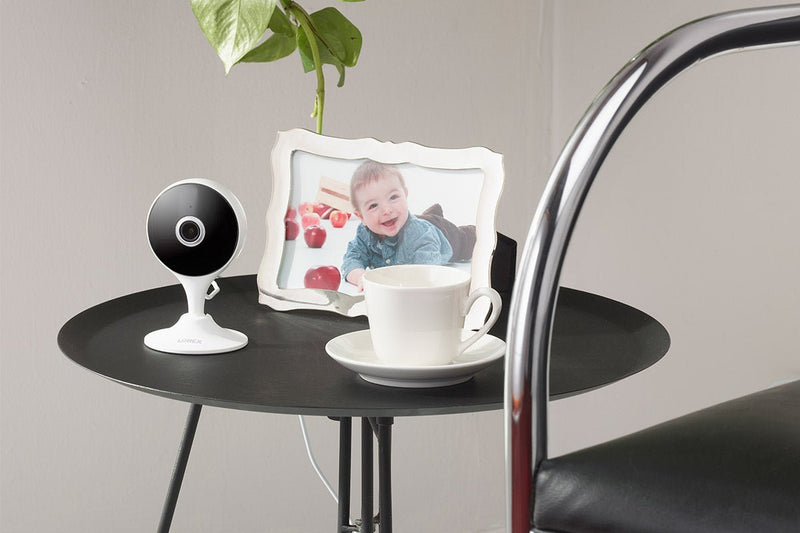

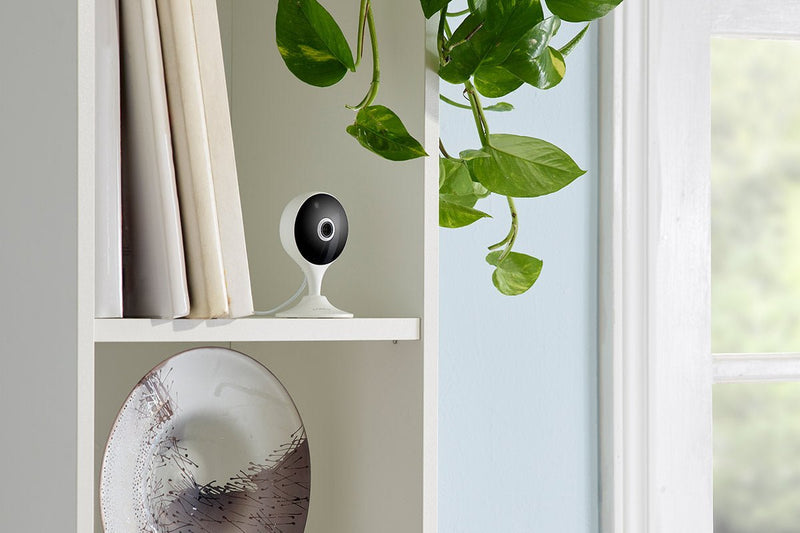

2K Indoor Wi-Fi Security Camera
With plug-and-play design, the 2K Indoor Wi-Fi camera lets you keep an eye on what matters the most.
Learn MoreA 4MP image sensor provides 2× the resolution as 1080p. This creates exceptionally sharp and detailed video.
The compact, lightweight design and magnetic base promise flexibility in placement, while the included mounting kit allows for ceiling or wall installation.
Avoid false alerts and unnecessary notifications with person detection, which is designed to recognize when a person enters the camera's field of view.
Use the 2-Way Talk via the Lorex app to talk and listen to the person on the other end of the camera.
When light is limited, the camera will automatically switch to infrared night vision so you won't miss a thing.

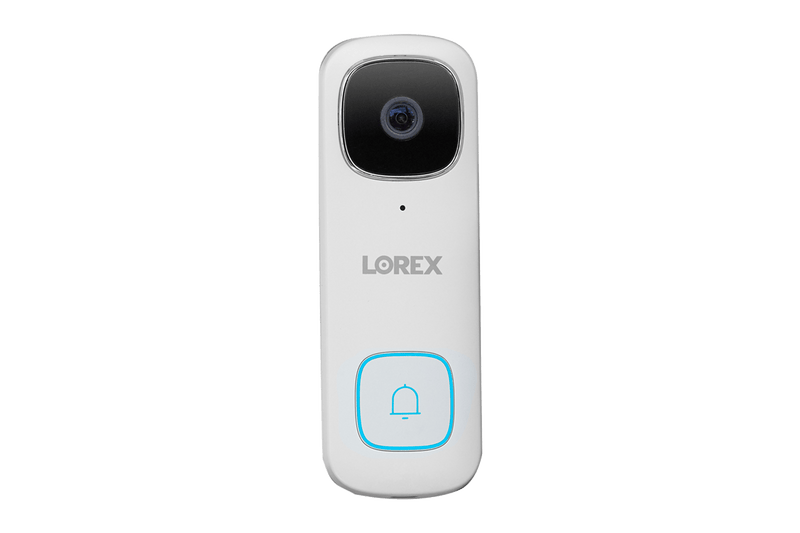

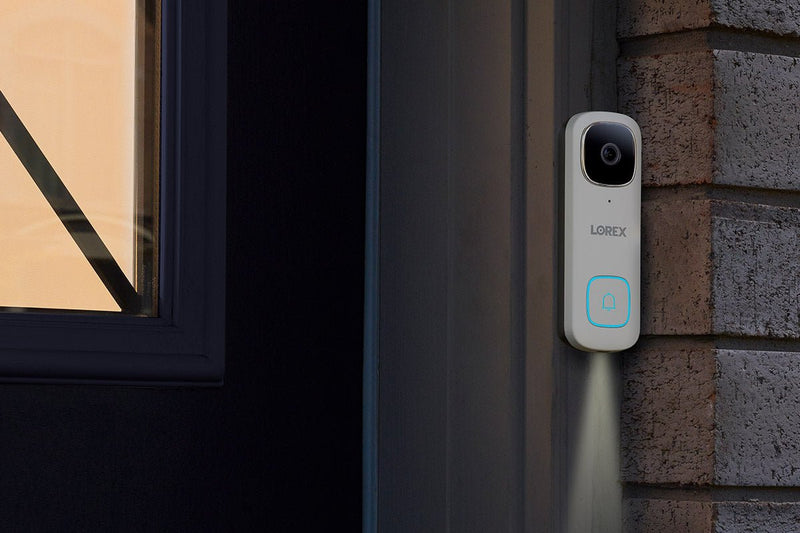

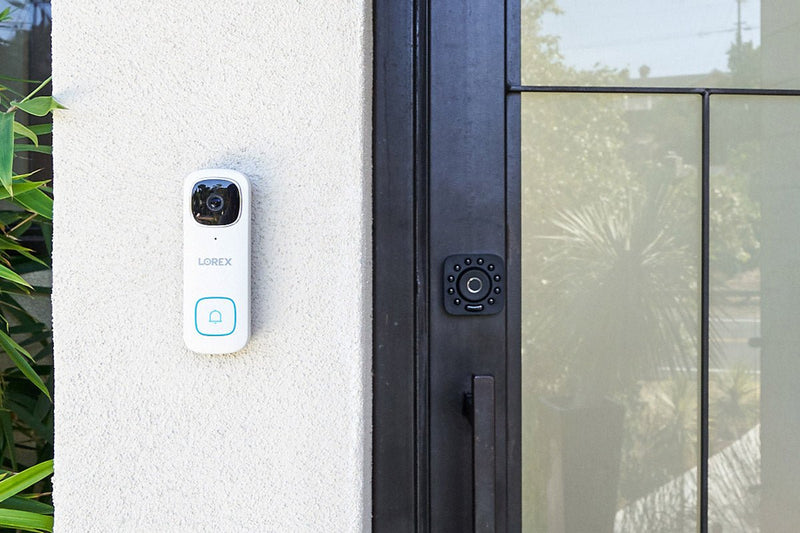

2K Wired Video Doorbell
See who's at the door, greet guests with a nightlight, answer the door from anywhere, play pre-recorded messages when someone rings, and talk to those on the other side with the 2K Video Doorbell.
Learn MoreA 4MP image sensor provides 2× the resolution as 1080p. This creates exceptionally sharp and detailed video.
Thanks to a pre-motion recording feature, the doorbell will automatically start recording 5 seconds before the event starts so you don't miss any action.
Automatically receive notifications to your phone telling you that there is someone at the door.
Use 1 of 3 quick responses to greet visitors who ring your doorbell. You can even record your own custom message to add your personal touch or speak directly through the doorbell using 2-Way Talk.
See more with a 164° viewing angle and 4:3 aspect ratio showing you the full picture.

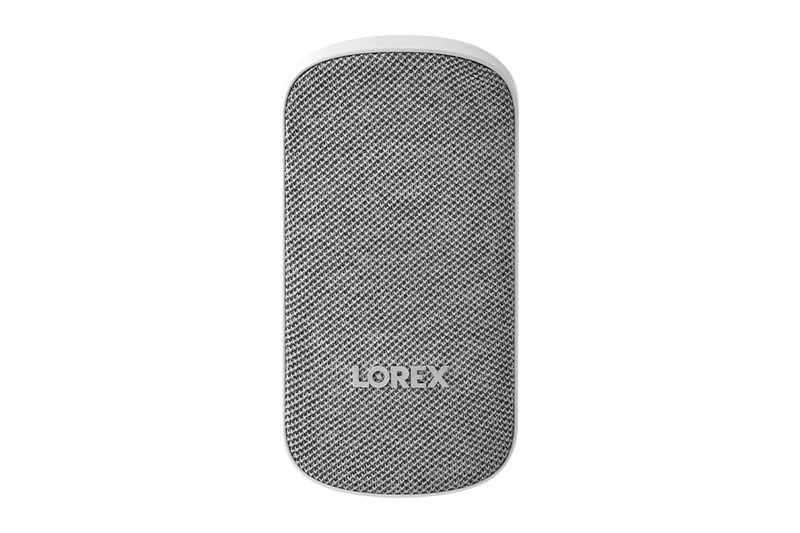

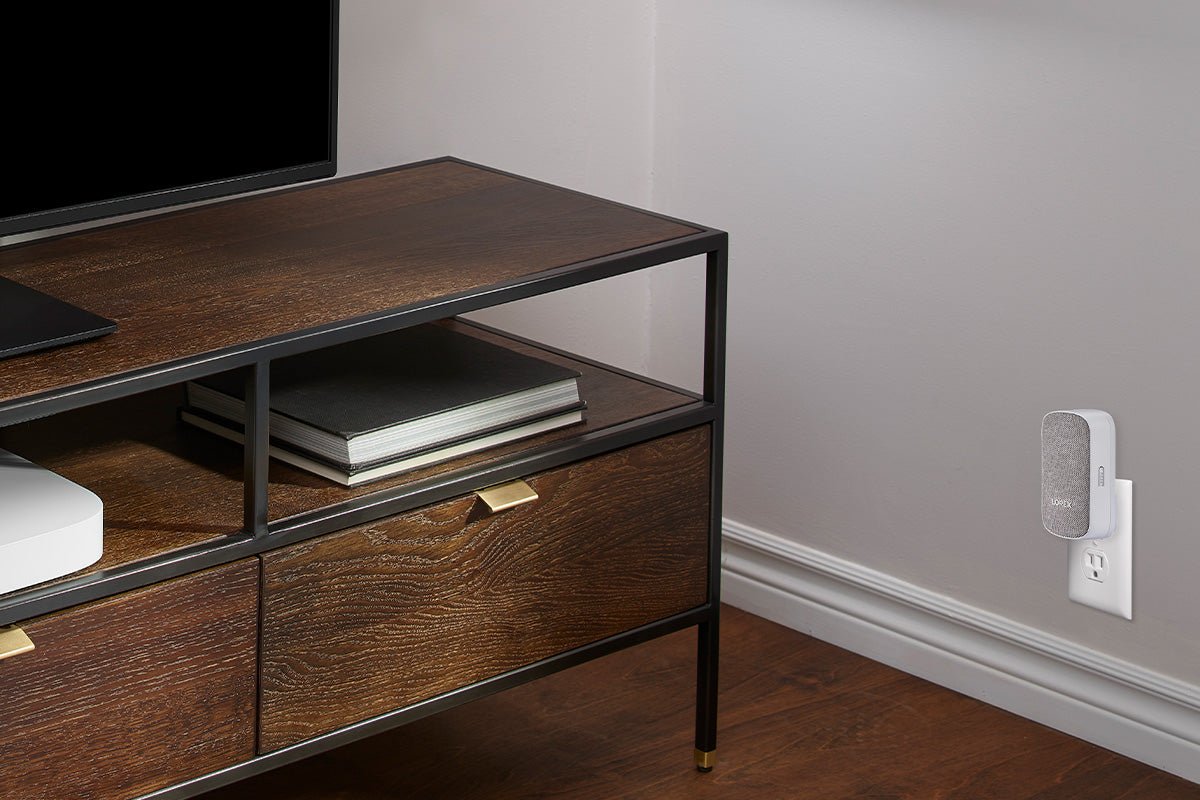

Wi-Fi Chimebox
Connect this chime effortlessly to your Lorex Video Doorbell(s) using your Wi-Fi Network. When someone rings your doorbell, this chime will ring as well as send notifications to your Lorex app.
Learn MoreChoose from four different volume settings to set the ring tone to the right level. When you want some quiet, set to mute to stop the chime from ringing.
Select from an array of ringtones to customize your chime for your home.
Insert into a power outlet, then scan the QR code to add your Chimebox to the Lorex app.
More than one doorbell? No Problem. Pair this Chime between multiple Lorex Doorbells connected to the same Wi-Fi network.
Build your security the way
you want with the Lorex
All-in-One Security
Connect all of your devices to one recorder with secure local storage for enhanced privacy and protection.
24/7 Recording
Continuous recording directly to your device with upgradable storage and no monthly fees.
One App Access
Remotely view all of your Lorex devices from one app, allowing for easy control and monitoring of your property from anywhere.

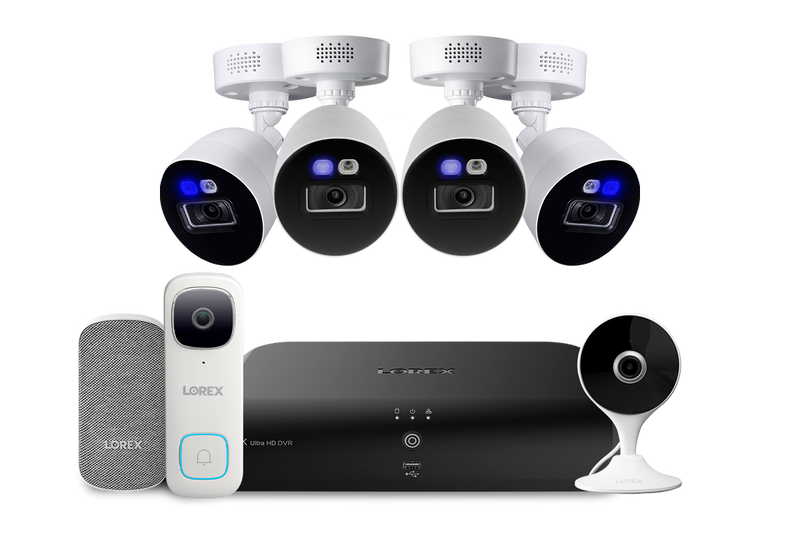

What's Included?
-
DVR
D881A82B -
BULLET CAMERA
4 × C884DA -
INDOOR CAMERA
1 × W461ASC-E -
WIRED DOORBELL
1 × B451AJD-E -
CHIMEBOX
1 × ACCHM2-B
Dimensions (W×D×H): 12.9 × 9.6 × 2.1" (328 × 245 × 53mm)
Weight: 2.75 lbs. / 1.26 kg (excl. HDD)
- Hard Drive LED
- Power LED
- Network LED
- USB Ports
- Info / Panic Button
- Video Inputs
- Audio In / Out
- HDMI Port
- LAN Port
- RS-485 Port
- VGA Port
- Power Port
- Power Switch
Package Contents:
1 × 4K Fusion
DVR
1 × Ethernet
Cable
1 × USB
Mouse
1 × HDMI
Cable
1 × Power
Adapter
- Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
- Accuracy of Smart Motion Detection or Person and Vehicle Detection will be influenced by multiple factors, such as the object’s distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection.
- Accuracy of Face Detection and Face Recognition will be influenced by the distance of the face from the camera. Partially or fully covered faces will not be detected. Night vision will impact the accuracy of Face Detection. Facial recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws.
- Face Detection and Face Recognition are available on up to 2 channels only. Smart Motion Detection can not be enabled on all channels while Face Detection or Face Recognition is enabled.
- Virtual Fence is available on up to 2 channels only. Smart Motion Detection can not be enabled on the same channel when a single channel is enabled. To enabled Virtual Fence on 2 channels, Smart Motion Detection must be disabled on all channels.
- Compatible with select Lorex cameras only. For a list of compatible cameras, please visit www.lorex.com/compatibility
- Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available.
- Requires a high-speed internet connection and a router (not included) for remote access. A minimum upload speed of 7.5Mbps is required for the best video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit: www.lorex.com/support
- Both firmware and software must be updated to latest version to ensure remote connectivity in all areas or networks. For compatibility, features, instructions visit: www.lorex.com/smarthome
- HDMI output supports up to 4K for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the DVR, as well as TV/ monitor resolution.
- AppleTV™ or Chromecast™ need to be connected to the same network as your recorder. Requires AppleTV Gen 4 or newer with Lorex Home Apple TV APP or Chromecast ™ device connected to the TV that you want to view the system on.
Dimensions (W×D×H): 2.9"x 6.4" x 3.3" (73mm x 164mm x 83mm)
Weight: 0.55lb / 0.25kg
- Speaker and Siren
- Cable Notch
- Adjustment Ring
- Adjustment Screws
- Camera lens
- Dual Color Warning Lights
Package Contents:
4 × 4K CVI
Camera
4 × Mounting
Kit
4 × 60ft BNC/Power
Extension Cable
Power Adapter*
- Compatible with select Lorex analog HD recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility
- Full color nighttime video typically switches to black & white IR night vision below 1 lux to ensure optimal low-light image quality.
- Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depend on the installation location, viewing area, and light reflection/absorption level of an object. In low light, the camera will switch to black and white.
- Not intended for submersion in water. Installation in a sheltered area recommended.
Dimensions (WxDxH): 5.1" x 1.8" (130mm x 45mm)
Weight: 1.17lbs / 0.53kg
Package Contents:
1 × 2K Video
Doorbell
1 × 32GB MicroSD
Card
1 × USB
Cable
1 × Electrical
Wiring
1 × Mounting
Kit
1 × Quick Start
Guide
1 × 15° Horizontal
Bracket
1 × 5° Vertical
Bracket
- Impressive 2K Resolution for clear video quality.
- See more with the doorbell's 4:3 aspect ratio and 164° diagonal field-of-view.
- Get the best picture always with HDR imaging.
- Use pre-recorded messages or 2-way talk1 to greet visitors.
- Motion-activated LED warning light can be manually enabled or customized to only be triggered when a person detected.
- Deter unwanted guests with the remote-activated siren.
- Be aware of activity around your doorstep with built-in Person Detection feature.
- Receive notifications from the Lorex Home™ app when motion is detection2.
- Local microSD storage, expandable up to 256GB.
- Adjust the viewing angle of your Video Doorbell with the included set of mounting bracket wedges.
- Pair with additional wired and wireless Fusion products to enhance your Lorex security experience.
- Be notified when someone rings the doorbell, as well as answer it without using your phone with Amazon Alexa™.
- Compatible with existing doorbell wiring (16V-24V) and traditional mechanical and electronic digital chimes.3
- QR Code
- Release Tab
- Power Plug
- Slot
- Reset Button
- Status Indicator
| Audio Input | Built-in Speaker |
|---|---|
| Status Indicator Light | Bi-colour light |
| Mobile Client | Lorex Home |
| Wi-Fi | 2.4GHz, IEEE802.11b/g/n |
| Wi-Fi Security Encryption | WPS; WPA-PSK/WPA2-PSK; WPA/WPA2; 64/128bit WEP |
| Power Supply | AC 100~240V 50/60Hz |
| Operating Temperature | -10°C~4°C |
| Operating Humidity | 20%~95% RH |
| Dimensions (L × W × H) | 95mm × 51mm × 31mm (3.7" × 2"× 1.2") |
| Weight | 0.2kg |
| Compatibility | LNWDB1 Series, B451AJD Series, B241AJD Series |
Package Contents:
1 × Wi-Fi
Chime
1 × Power
Plug
Dimensions (WxDxH): 2.7" x 2.7" x 4.3" (68mm x 68mm x 109mm)
Weight: 0.53lbs / 0.24kg
Package Contents:
1 × 2K Wi-Fi
Camera
1 ×16GB MicroSD
Card
1 × Universal
Mount
1 ×Power
Adapter
1 ×Mounting
Kit
1 ×Quick Start
Guide
- Receive push notifications from the Lorex Home app1
- 2-way communication allows for seamless communication with your visitor/family, if you're in a different room or even different home.
- Easily access your videos with voice commands (Compatible with: Google Assistant and Amazon Alexa)2
- View live or recorded videos from your smartphone, tablet, or Apple TV3
- View more with night vision range up to 32ft (10m)4
- Convenient built-in local MicroSD card slot upgradable to 256GB
