1080p HD Outdoor Security System with 4 Ultra Wide Lens Cameras and 4 Vandal proof 3x Zoom Cameras, 150ft Night Vision

MPX16422VDUW
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

bi-ecology

No Monthly Fees

Local recording protects privacy and saves money.

Features

MPX16422VDUW home security system

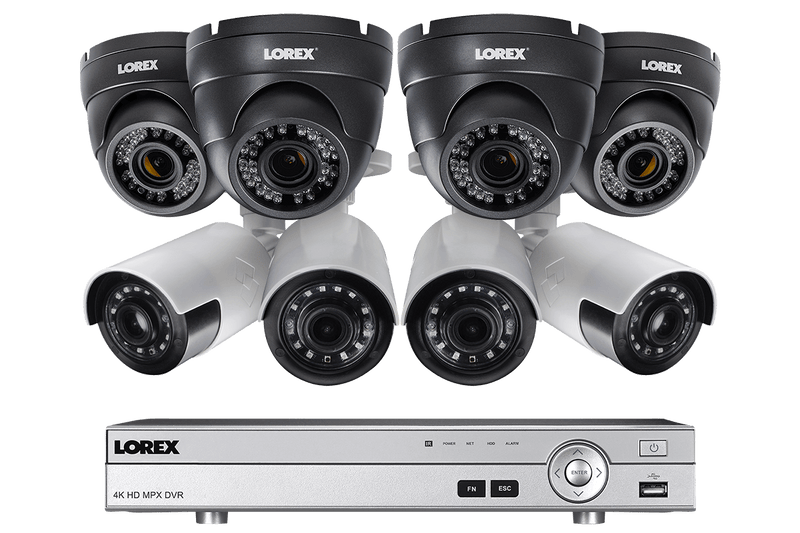

Experience the peace-of-mind that comes along with a complete Lorex 1080p HD security monitoring system. The MPX16422VDUW is an exclusive home security system from Lorex that includes our top-of-the line high definition DV700 DVR, four LBV2561U ultra-wide HD bullet cameras, and four LEV2724B HD dome security cameras. The LEV2724B features motorized varifocal lenses for easy field of view (FoV) adjustment. A total of 16-channels on the DVR allows for plenty of room to grow with the option to accommodate up to eight more security cameras.

MPX16422VDUW

SPECIFICATIONS

16

CHANNELS

1080P DVR can support up to 16 cameras

8

CAMERAS

6 bullet and 4 dome 1080p cameras

150FT

NIGHT VISION

Maximum night vision

3TB

HARD DRIVE

Maximum capacity 1 x 4TB hard drive

Home security monitoring in 1080p HD resolution


Analog 1080p HD security monitoring

HD quality can be the difference you need when identifying vital details such as faces. The high definition 1080p Sony Exmor™ image sensor within the LEV2724B security camera will deliver that difference. Leave nothing to question with exceptionally detailed HD images and smooth on-screen movement. If needed, an analog HD security camera such as this can be installed up to 800 feet away from the DVR - making it ideal for monitoring large properties (see documentation for complete details). Compatible with the LHV2000 and DV700 Series DVRs, the LEV2724B HD security camera can be combined with our full range of analog cameras, from 400TVL all the way to 1080p HD.

Extend security coverage up to 800ft for long distance security monitoring

Flexible analog HD technology for easy installation

Analog HD cameras such as these can be placed up to 800 feet away from the DVR - making them ideal for securing large properties (see documentation for complete details). The 16-channel DVR is also backwards-compatible, which means it can be used with older compatible BNC cameras. This unique feature allows you to expand your security coverage without having to purchase more security cameras.

Video - super wide angle security camera four-pack  src=

Super wide angle security cameras

Your LBV2561UW security cameras are the perfect choice for large area or doorway monitoring. These cameras provide superior coverage thanks to its massive 160° diagonal / 120° horizontal field of view. Whether you need to monitor a large room, the street in front of your house, or a wide backyard, a single wide angle security camera can often take the place of multiple standard viewing cameras.

wide angle security camera

Motorized varifocal lenses for easy adjustment

Four of the 1080p security cameras featured in the MPX16422VDUW security system contain a motorized varifocal lens. This type of lens gives your cameras the ability to switch between a 33° horizontal field of view all the way out to a 90° field of view (depending on what kind of area needs to be monitored). Easily make these adjustments anywhere and anytime using your Lorex DVR, or even using a connected mobile device.

live video streaming Lorex Cloud App

Remote viewing with Lorex Cloud™ App

Take control of your entire security system from your mobile device or computer with our free Lorex Cloud™ app. Using this app, you can remotely adjust the motorized varifocal lenses of the 4 cameras to suit the sections of your property that need to be monitored. Remain connected to your property even when you can’t be there yourself. Use convenient push notifications, and set up instant alerts that email with snapshot attachments based on motion-triggered events.

Works With

System Compatibility
System Compatibility
HD 1080p night vision security cameras for all-night protection

Night vision for 24/7 security monitoring

Expect high quality security footage day and night with the LEV2724B HD security camera. Rest assured that your security camera will never leave you in the dark with a remarkable night vision range up to 150ft / 46m in ambient lighting (100ft / 31m in total darkness). This camera also uses a High Dynamic Range (HDR) to assist in clearly identifying details in extremely challenging lighting scenarios. SmartIR technology for close-up recognition of objects in the dark will help capture the details you need around the clock.

Night Vision Range
LBV2561U Night Vision Range
IP66 Weatherproof that can stand up to extreme temperatures as low as -22_F cameras

Security cameras for all types of weather

The HD security cameras within this bundle are manufactured to with an IP66 weatherproof rating that ensures that they are suitable for both indoor or outdoor security applications. These Lorex cameras will continue to operate in extreme temperatures.

LBV2561UW

LBV2561U

Heat Rating

122°F | 50°C

Heat Rating

Cold Rating

-4°F | -20°C

Cold Rating

LEV2724B

LEV2724B

Heat Rating

140°F | 60°C

Heat Rating

Cold Rating

-22°F | -30°C

Cold Rating

Metal Housing

Full Metal Camera Housings

Built from a solid unibody metal housing, the LBV2723B and LEV2724B allow for durability while still maintaining a lightweight design. The corrosion-resistant aluminum bodies make these cameras perfect for both indoor and outdoor use, protecting them from even the harshest of weather; rain, snow, or hail. Engineered from the same material that is used in construction of airplanes and cars, these Lorex cameras are strong enough to withstand large impacts unlike conventional plastic security cameras.

Reliable security grade hard drives that can be in constant use

Reliable, high-performance hard drive

A 3TB security grade hard drive comes preinstalled in our exclusive DV700 high definition DVR. Under normal conditions this hard disk will provide weeks (or even months) of reliable security footage storage. Settings allow for recording at a lower resolution, and can be customized to record at scheduled times. Motion-triggered recording is also available, so that your security system is always watching but only records when movement is detected.

1080 MPX Comparison Chart
  HD 1080 Digital IP HD 720 Digital IP HD 1080 Analog BNC HD 720 Analog BNC
Recording Full 1080p HD (1920x1080) 720p HD (1280x720) Analog 1080p HD (1920x1080) 720p HD (1280x720)
Platform 1080p HD NVR systems 720p HD NVR systems 1080p HD DVR systems 720p HD DVR systems
Video Digital IP / RJ45 connection Digital IP / RJ45 connection Analog BNC / RG59 connection Analog BNC / RG59 connection
Power PoE (Power over Ethernet) PoE (Power over Ethernet) Standard DC power Standard DC power
Installation Connect cameras to NVR or to router/LAN Connect cameras to NVR or to router/LAN Cameras require wired connection to DVR Cameras require wired connection to DVR

Video

What's Included?

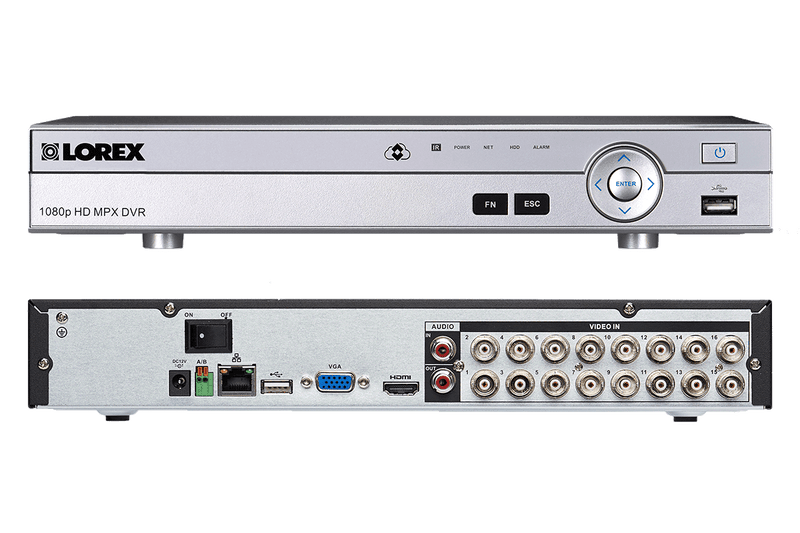

DV7163

16 channel, analog HD 1080p security DVR:

  • True high definition 1080p recording on all cameras1
  • 24/7 security-grade hard drive
  • Continuous, scheduled and motion recording
  • PTZ cameras supported, remote control through App1
  • H.264 video compression2
  • HDMI cable included for simple connection to HD TVs3
  • Accurate time stamps with NTP & daylight savings time
  • Click and drag digital zoom in live view and playback
  • 2 video outputs (HDMI & VGA) to connect multiple monitors
  • Instant USB backup of live video from selected camera
  • Automatic firmware upgrade
  • 3-Step remote view with Lorex Cloud4
  • PC and Mac compatible 5
  • Instant mobile viewing on smartphones and tablets5
  • Advanced apps with live viewing, playback, video recording, and snap shot
  • Mobile push notifications of motion events and email alerts
  • Dual streaming to conserve bandwidth

Each DV7163 Includes:

1 × DVR
1 × HDMI Cable
1 × Remote Control
1 × Power adapter
1 × Mouse
1 × Ethernet Cable
Quick Start Guides

1. Compatible with Lorex 1080p and 720p wired HD cameras only. For a list of compatible cameras, please visit lorextechnology.com/support
2. Recording time may vary based on recording resolution & quality, lighting conditions and movement in the scene.
3. HDMI output (1920x1080) HD for high definition multi-channel live viewing only. 1080p recording resolution is limited to a maximum of 1920x1080 per channel. Image quality and resolution is dependent on the type of camera connected to the DVR.
4. Requires a high speed internet connection and a router (not included). A minimum upload speed of 1Mbps is required for the best video performance. Up to 2 devices may connect to the system at the same time.
5. For the latest list of supported apps and devices, please visit www.lorextechnology.com/support

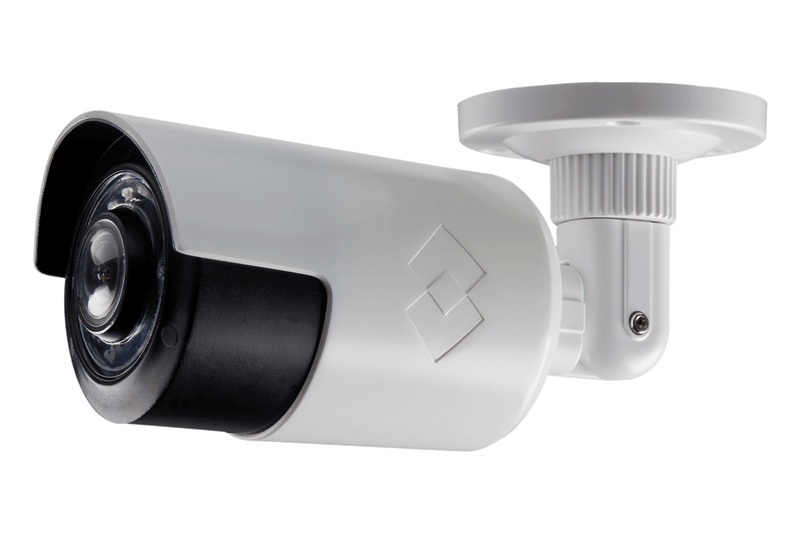

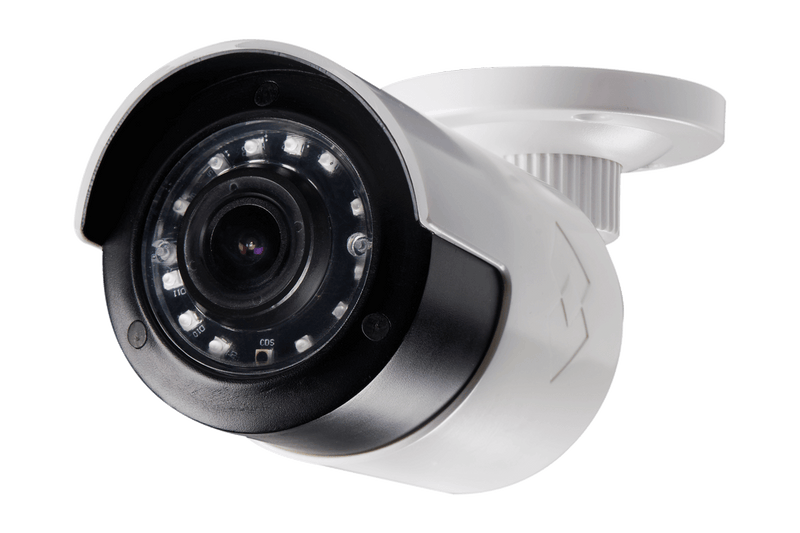

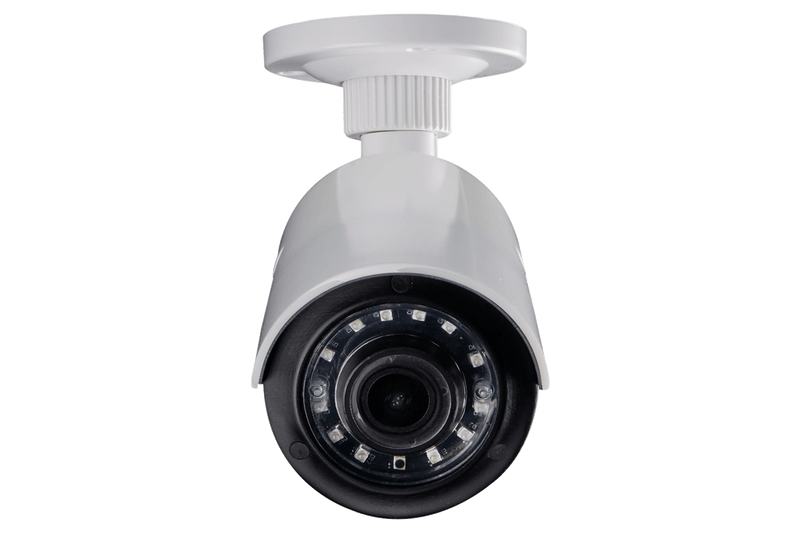

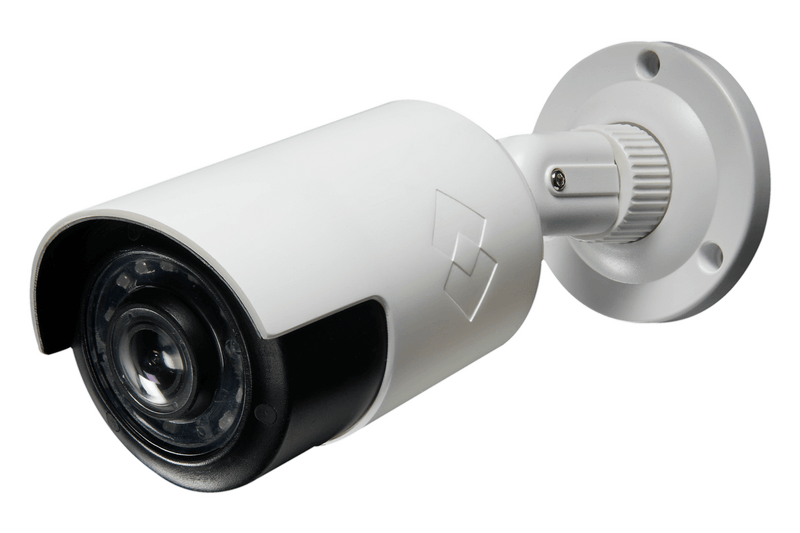

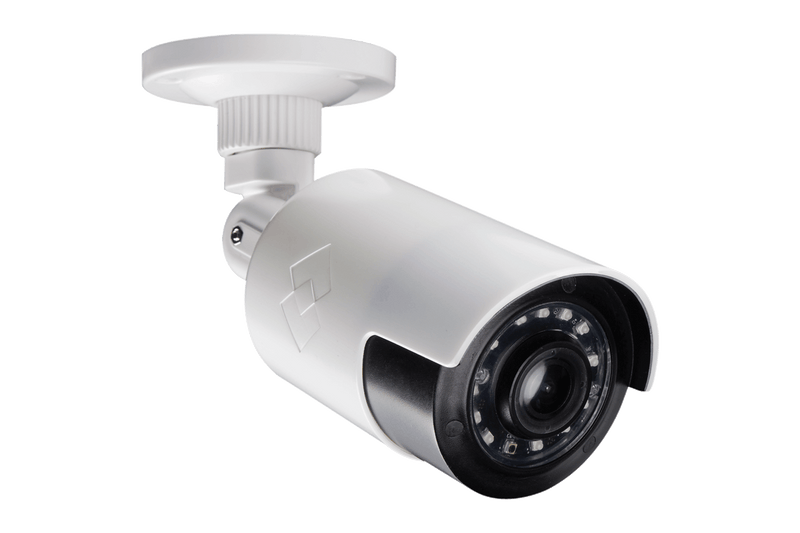

LBV2561UW

1080p HD super wide-angle security camera:

  • High definition 1080p image sensor1
  • Ultra-Wide field of view captures the entire scene for superior coverage
  • Night vision range up to 90ft (27m) in ambient lighting and 60ft (18m) in total darkness2
  • Close up recognition in the dark with SmartIR
  • Infrared cut filter ensures accurate color representation
  • Anti-glare feature ensures clear images under strong lighting conditions
  • Split glass design minimizes IR reflection
  • Versatile ceiling or wall mounting options
  • Vandal resistant design with cable pass-through bracket and durable Polycarbonate construction
  • UL compliant cable suitable for surface and in-wall installation
  • Weatherproof for outdoor & indoor installation (IP66 Rated)3

Each LBV2561U Includes:

1 × Wide Angle Camera
1 × Mounting Kit
1 × Allen key
1 × 60ft BNC Extension Cable
1 × Power adapter

1. 1080p HD cameras are compatible with Lorex 1080p HD DVRs only. For a list of compatible recorders please visit lorextechnology.com/support.
2. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection / absorption level of object. In low light, the camera will switch to black and white.
3. Not intended for submersion in water. Installation in a sheltered location recommended.

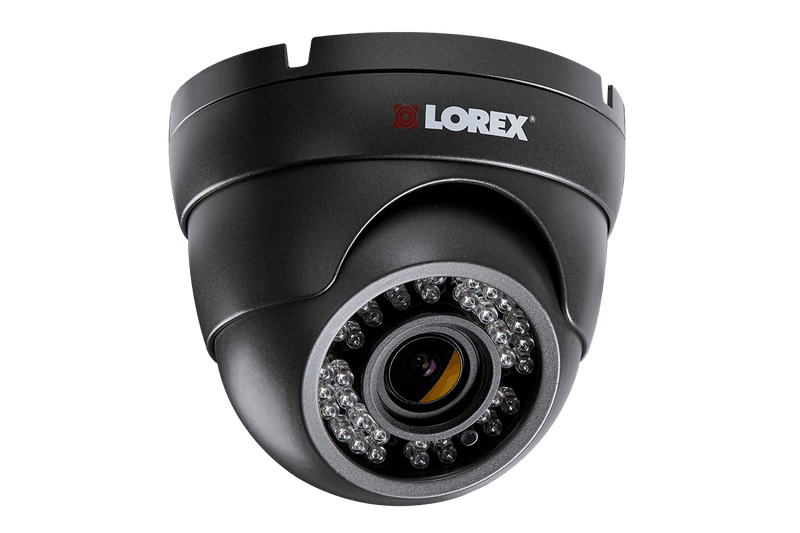

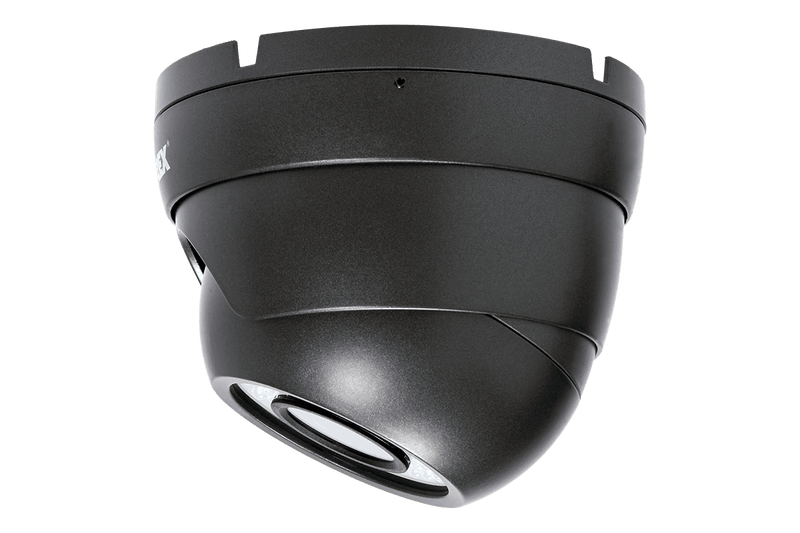

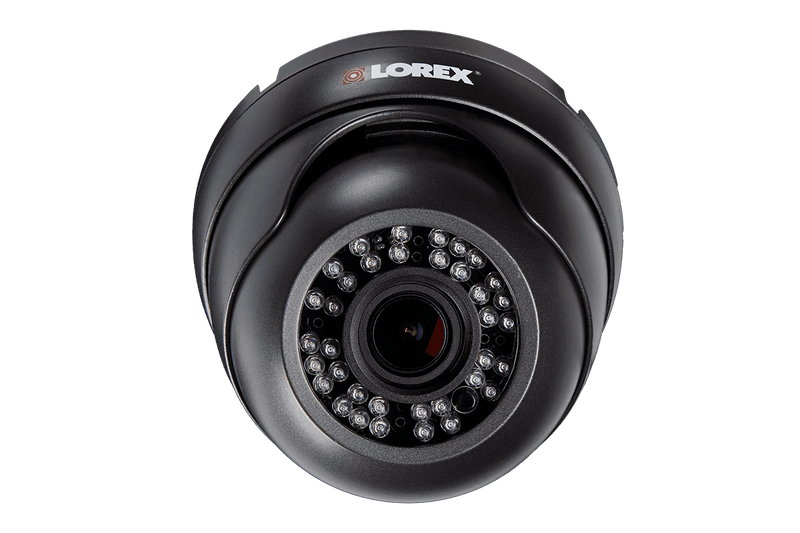

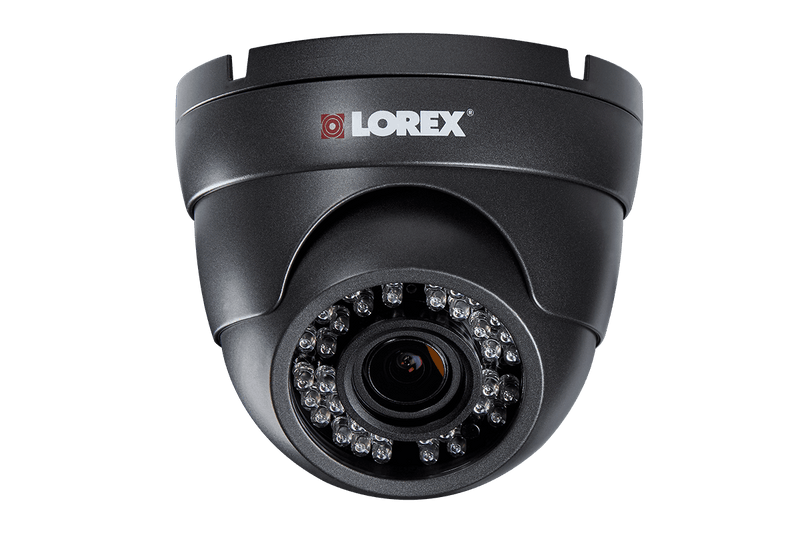

LEV2724B

High Definition Security Camera:

  • High Performance 1080p Sony ExmorTM Image Sensor1
  • Motorized varifocal lens for quicker and easier viewing angle set up
  • Change the viewing angle from your DVR or mobile device1
  • 960H analog video output for convenient set up or connecting to legacy 960H DVRs
  • Night vision range up to 150ft (46m) in ambient lighting & 100ft (31m) in total darkness 2
  • Close up recognition in the dark with SmartIR
  • Wide Dynamic Range (WDR) for viewing in extremely challenging lighting scenarios
  • ClearNight imaging for superior low light performance, improving recording efficiency
  • Weatherproof for outdoor & indoor installation (IP66 Rated) 3
  • Extreme temperature performance (-22
