  • Includes transmitter and receiver
  • Compatible with DIN rail mount (28mm slide width)
  • Compatible with Lorex outdoor junction boxes
  • Supports PoE and ePoE cameras

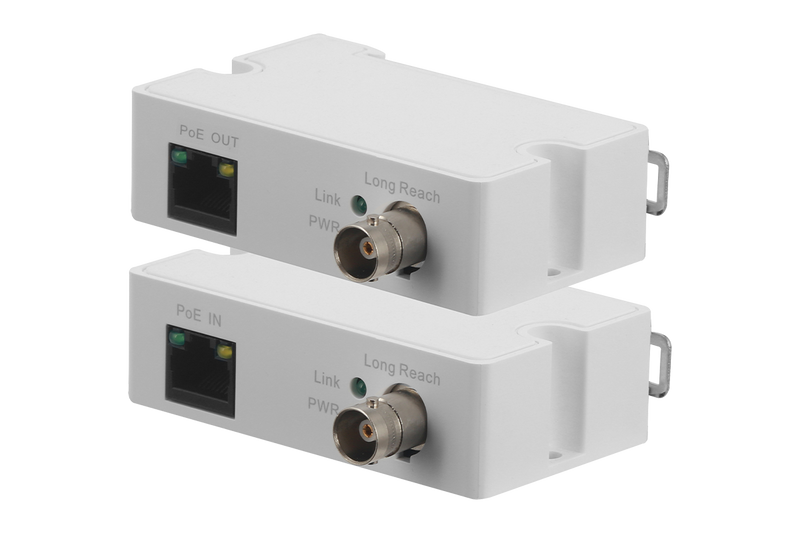

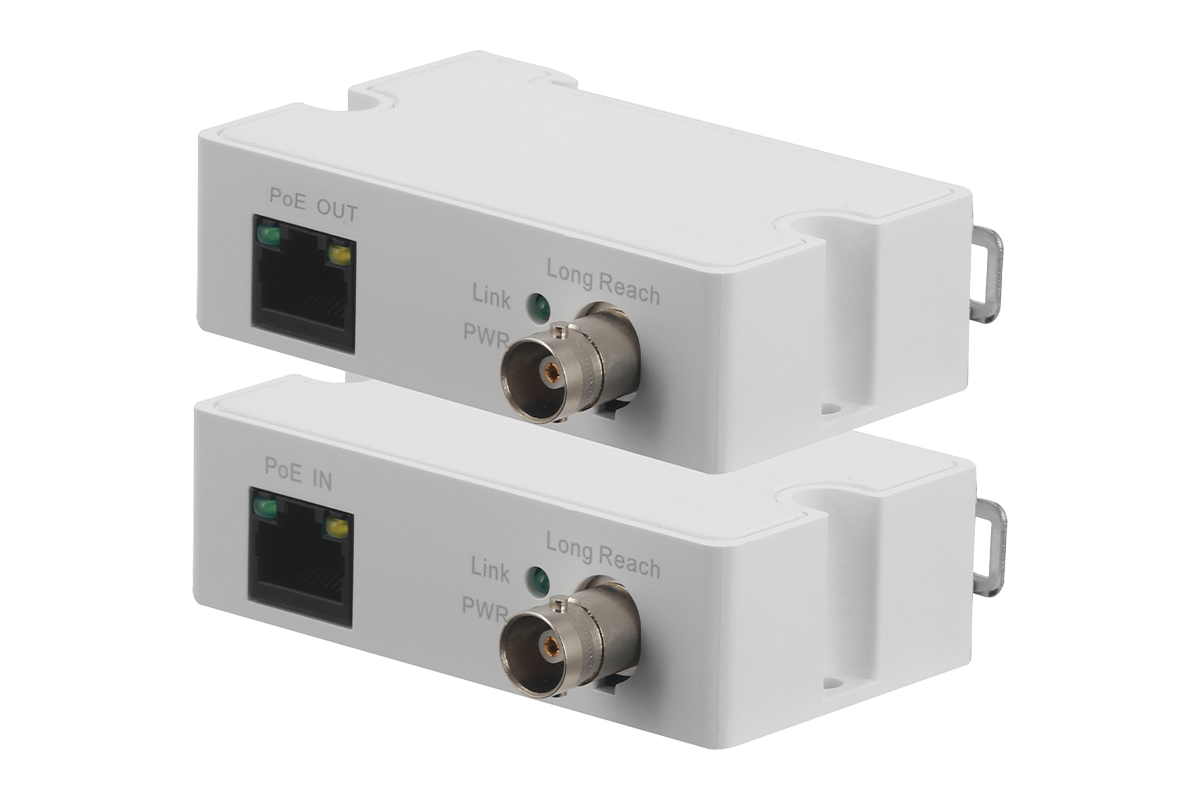

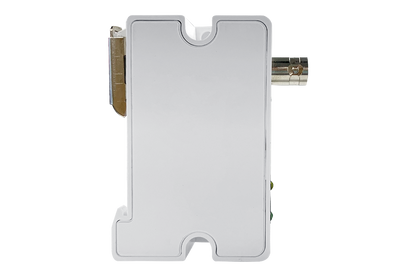

Coaxial to Ethernet Converter for PoE Cameras (Bundle, Single)

ACVKIT-BNew Arrival
  • Includes transmitter and receiver
  • Compatible with DIN rail mount (28mm slide width)
  • Compatible with Lorex outdoor junction boxes
  • Supports PoE and ePoE cameras
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

bi-ecology

No Monthly Fees

Local recording protects privacy and saves money.

Features

Use Coaxial-To-Ethernet Converters to upgrade your Analog Security System to IP without having to re-wire your current infrastructure with new ethernet cables. By simply converting BNC connections to Ethernet, you can easily (and cost-effectively) add new IP cameras and an NVR to transform your security system.


Wiring Diagram

Save Cost and Time on Your System Upgrade

Avoid installation costs by easily adding the Coaxial to Ethernet Converter Transmitter (ACVTR) and Receiver (ACVRC) to the ends of your existing coaxial cables. Then simply use ethernet cables to connect to an NVR on the receiver end and an IP camera on the transmitter end. These converters support long-range power supply and data transmission to IP Cameras over the coaxial cables and a reliable connection up to 1,000m (3,280ft)* with 100Mbps and 10Mpbs transmission modes depending on the distance (400m/100Mbps, 1000m/10Mbps).


*The number of ACVRC (receiver) connected to the same switch/NVR cannot exceed 8. Performance and transmission speed are subject to coaxial cable quality and coupler quality.




Quick and Easy Mounting

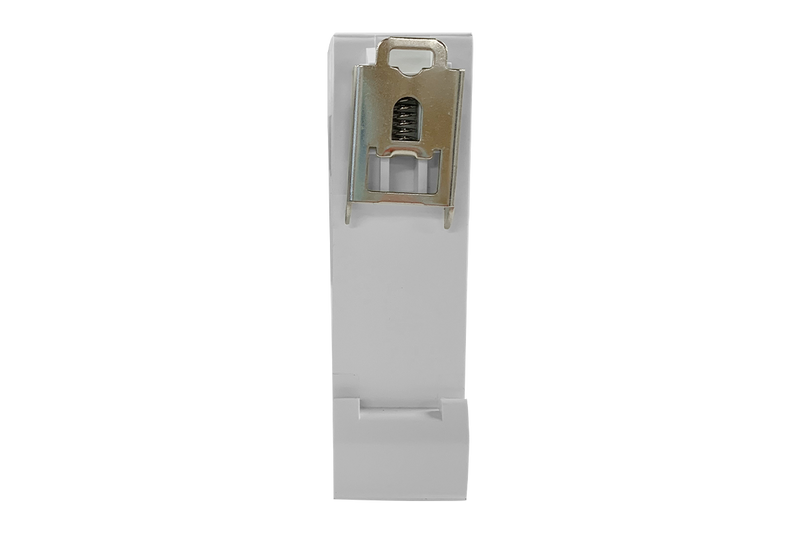

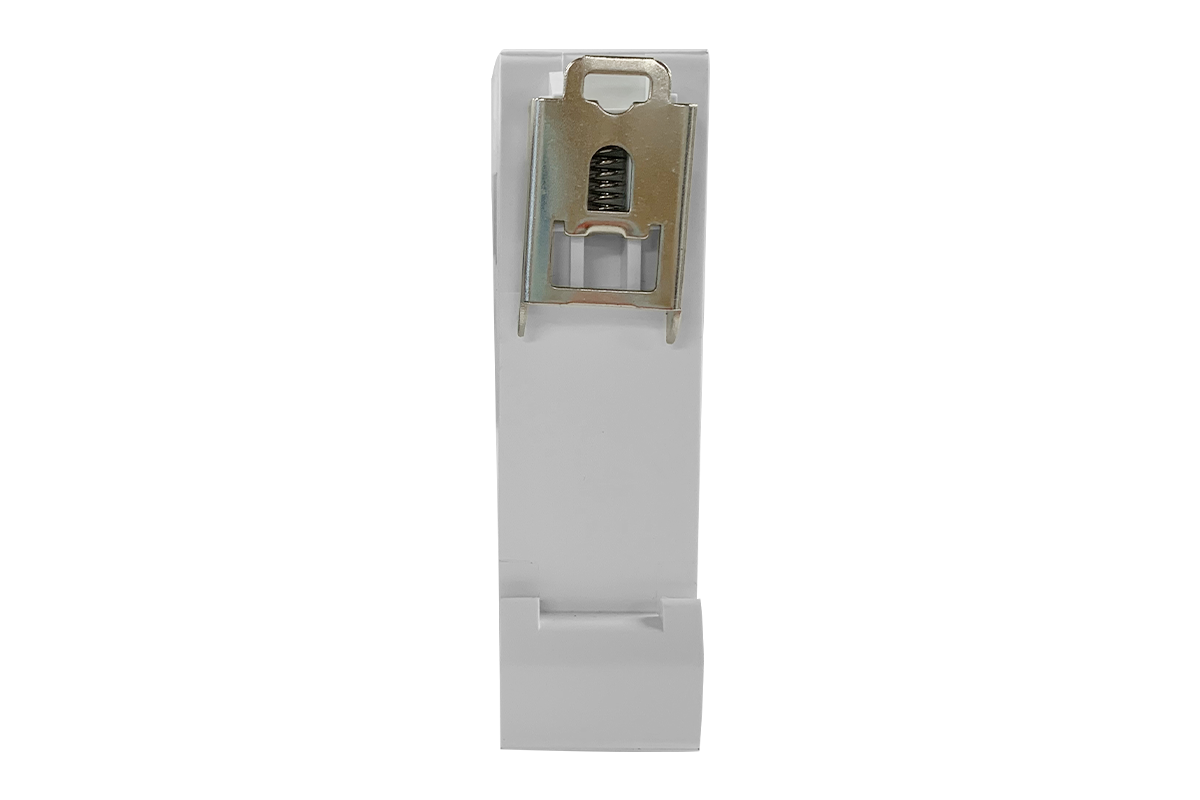

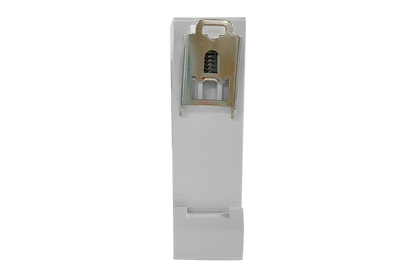

Use the DIN rail mount on the Transmitter/Receiver to easily attach to a DIN rail mount (not included)*. Simply lay the switch hook on the rail then press in to secure the buckle into the slide.


*Supports slide width of 28mm (1.1").



Compatible with Lorex Outdoor Junction Box

The small design of the Transmitter allows it to easily fit inside a Lorex camera Junction Box (ACJNCD4B and ACJNCD3B, sold separately). This allows you to conveniently hide your security camera cables and Transmitter from view and protect them from vandalism.



Supports PoE and ePoE Cameras

The Coaxial to Ethernet Converter is compatible with our full range of wired IP security cameras, both PoE and ePoE. This includes our new Nocturnal 4 Series and Smart Security Lighting IP cameras.



Product Specifications

Maximum Length of Coaxial Cable Reference Table

Camera Max. Power Consumption (W) Solid Wire RG59 Coaxial Cable*
Note 1
Lorex 250ft RG59 Siamese Cable
CB250URB
Lorex 120ft RG59 Siamese Cable
CB120URB
Lorex 4K
MCBL-60BNCU4K1
Lorex 1080p
MCBL-BNCW
Other Brands Coaxial Cable 4K Other Brands Coaxial Cable 1080p Other Brands Coaxial Cable 720p

LNB9242B / LNB9252B
6.12 972m (3,189ft) 304m (1,000ft) 292m (960ft) 73m (240ft) 55m (180ft) 55m (180ft) 55m (180ft) 55m (180ft)

LNE9242B / LNE9252B
7.92 972m (3,189ft) 304m (1,000ft) 292m (960ft) 55m (180ft) 55m (180ft) 55m (180ft) 55m (180ft) 55m (180ft)

E841CA / E841CAB
7.68 972m (3,189ft) 304m (1,000ft) 292m (960ft) 73m (240ft) 55m (180ft) 55m (180ft) 55m (180ft) 55m (180ft)

E841CD
7.68 972m (3,189ft) 304m (1,000ft) 292m (960ft) 73m (240ft) 55m (180ft) 55m (180ft) 55m (180ft) 55m (180ft)

LNB9292B / LNB9282B
9.5 608m (1,995ft) 304m (1,000ft) 292m (960ft) 55m (180ft) 55m (180ft) 55m (180ft) 55m (180ft) 55m (180ft)

LNE9292B / LNE9282B
11 608m (1,995ft) 229m (750ft) 219m (720ft) 55m (180ft) 55m (180ft) 55m (180ft) 55m (180ft) 18m (60ft)

LNB9393 / LNB9383
7.9 695m (2,280ft) 229m (750ft) 219m (720ft) 73m (240ft) 55m (180ft) 55m (180ft) 55m (180ft) 55m (180ft)

LNE9393 / LNE9383
7.9 695m (2,280ft) 229m (750ft) 219m (720ft) 73m (240ft) 55m (180ft) 55m (180ft) 55m (180ft) 55m (180ft)

E893AB
9.5 608m (1,995ft) 152m (500ft) 183m (600ft) 55m (180ft) 55m (180ft) 55m (180ft) 55m (180ft) 55m (180ft)

E893DD
9.5 608m (1,995ft) 229m (750ft) 219m (720ft) 55m (180ft) 55m (180ft) 55m (180ft) 55m (180ft) 55m (180ft)

E892AB
9.5 608m (1,995ft) 152m (500ft) 183m (600ft) 55m (180ft) 55m (180ft) 55m (180ft) 55m (180ft) 55m (180ft)

E891AB
10.8 304m (997ft) 76m (250ft) 110m (360ft) 55m (180ft) 55m (180ft) 55m (180ft) 55m (180ft) 55m (180ft)

E896AB
10.2 304m (997ft) 152m (500ft) 183m (600ft) 55m (180ft) 55m (180ft) 55m (180ft) 55m (180ft) 36m (120ft)

LNZ44P4BW
10 304m (997ft) 36m (120ft) 36m (120ft) 55m (180ft) 55m (180ft) 55m (180ft) 55m (180ft) 55m (180ft)

E881AP
24 304m (997ft) 36m (120ft) 36m (120ft) 55m (180ft) 55m (180ft) 55m (180ft) 55m (180ft) 55m (180ft)

LNZ44P12B
24 304m (997ft) 36m (120ft) 36m (120ft) 55m (180ft) 55m (180ft) 55m (180ft) 55m (180ft) 36m (120ft)

Note 1:

*RG59, 95% Braid, 20AWG(Solid) cable

The following NVR or PoE switches had been verified compatible with:
NVRs: N845 Series, N844 Series, N843 Series, N842 Series, N864 Series, N863 Series, N862 Series, N883 Series, N882 Series, N881 Series, NR616X4T
PoE Switches: ACCLPS263B, AEX8


Function Port 1*10/100 Mbps Base-TX, 1*BNC
Power Consumption <2W
Transmission Bandwidth RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
PoE Protocol 48V Passive PoE (Pairs 1, 2+; 3, 6 Return)
Network Standard IEEE802.3, IEEE802.3u, IEEE802.3x
Lightning Protection Common Mode 4KV
Differential Mode 2KV
Operating Temperature –30°C to 65°C (–22°F to 149 °F )
Operating Humidity 5%–95%
Weight 61 g (0.13 lb)
Dimension (W×D×H) 79 mm × 52 mm × 23 mm

Take RG59 as an example (Max. DC resistance < 5.0Ω/100m)

ACVTR/ACVRC Supports with 48V Supports with 53V
100m Bandwidth (Mbps) 100 100
Load Capacity (W) 21 25.5
200m Bandwidth (Mbps) 100 100
Load Capacity (W) 15 24
300m Bandwidth (Mbps) 100 100
Load Capacity (W) 11 19
400m Bandwidth (Mbps) 100 100
Load Capacity (W) 9 16
500m Bandwidth (Mbps) 10 10
Load Capacity (W) 7 13
800m Bandwidth (Mbps) 10 10
Load Capacity (W) 5 8
1000m Bandwidth (Mbps) 10 10
Load Capacity (W) 4 6

What's Included?

Product Support

ACVTR - Coaxial to Ethernet Converter for PoE Cameras (Transmitter)

ACVRC - Coaxial to Ethernet Converter for PoE Cameras (Receiver)
