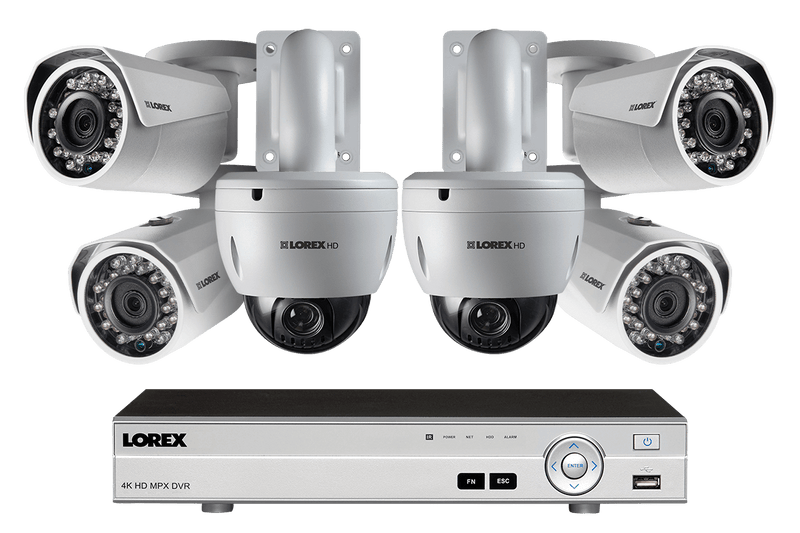

Home Security System with HD 1080p Bullet Cameras and two 720p PTZ Cameras

MPX842ZW

bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

bi-ecology

No Monthly Fees

Local recording protects privacy and saves money.

Features

MPX842ZW home security system

This professional grade surveillance solution is ideal for your home or business. It features our 8-channel DV700 HD digital video recorder (DVR) and four weatherproof 1080p security cameras with excellent night vision capabilities. To top it off, this web exclusive security system comes with two 720p HD pan-tilt-zoom security speed dome cameras. All that combined makes the MPX842Z home security system well-equipped to protect any type of property. This versatile security system from Lorex brings an increased level of detail to your surveillance footage and provides ample coverage with its two PTZ security cameras.

MPX842ZW

SPECIFICATIONS

8

CHANNELS

1080P DVR can support up to 8 cameras

6

CAMERAS

2 HD 720p PTZ + 4 HD 1080p security cameras

150FT

NIGHT VISION

Maximum night vision

2TB

HARD DRIVE

Maximum capacity 1 x 4TB hard drive

badge mpx1080P dblock noRadius positionAm


1080p HD security monitoring

Combined, the DV700 DVR and the 1080p HD security cameras can produce stunningly vivid high definition images that leave nothing to the imagination. Program the DVR to record at a real-time 30 frames-per-second rate (in 720p mode) for smooth on-screen movement that doesn’t miss a beat. View your cameras live surveillance feed (or recorded footage) by connecting the included HDMI cable to an HDTV or monitor.p>

PTZ security camera control with flexible BNC analog connection

Easy analog HD security installation

Lorex is proud to provide customers with home security systems that feature a simplified installation process. The MPX842Z security system is no exception. It uses a single RG59 siamese BNC cable to connect your cameras to power and the DVR. This BNC cables carries both video and power transmission for a simple plug-an-play installation. The PTZ controls are also accomplished through this single cable. The reach of analog HD cameras like the LBV2711B HD security can be extended up to 800 feet away from the DVR. This makes them an ideal option for monitoring larger properties (see documentation for complete details).

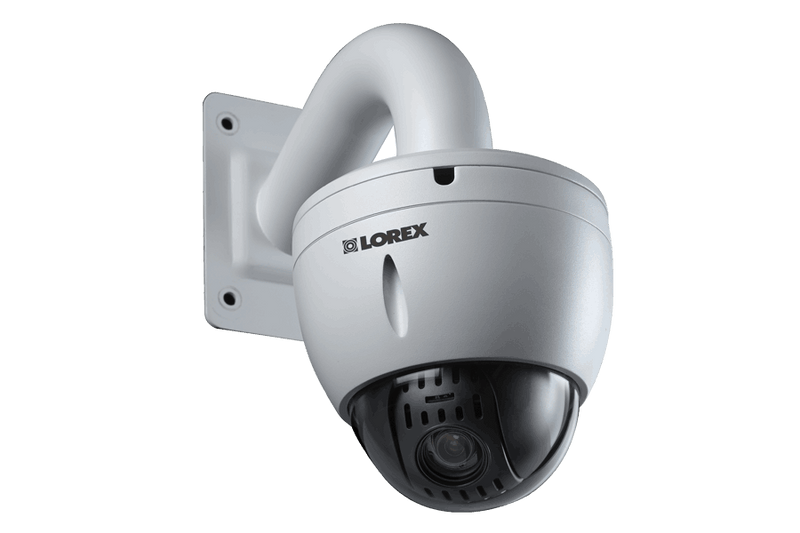

Pan-Tilt-Zoom speed dome security camera with optical zoom

Pan-Tilt-Zoom security camera for maximum coverage

The 12x optical zoom and 16x digital zoom lenses contained in the PTZ security cameras allow you to view small and distant objects in incredible detail. Their rapid 300° per second panning speed, 200° per second tilt speed, and continuous 360° rotation abilities provide maximum security coverage. Customize viewing points, patterns, scan cycles and tours all from your DVR or connected mobile device.

Lorex Cloud app on your smartphone or tablet

Lorex Cloud™ App keeps you connected to your home

Securely view your security cameras from virtually anywhere in the world with our innovative Lorex Cloud™ app. With iOS® and Android™ options your security system will always be at your fingertips. Lorex Cloud™ also allows you to control the PTZ camera movements and functions. Enable push notifications and email alerts for motion-triggered events to stay connected to your property at all times.

Works With

System compatibility
System compatibility
HD night vision security cameras keep you protected through the night

Around-the-clock night vision security

The LBV2711B HD security camera contains cutting edge infrared (IR) LEDs that provide excellent performance in the dark. See detailed infrared images up to 150ft / 46m away in ambient lighting (up to 100ft / 31m away in total darkness). ClearNight imaging technology generates superior low light performance and improves recording efficiency. Close up recognition of objects in the dark is provided through SmartIR technology. These amazing features make sure your security cameras won’t leave you in the dark.

LBV2711B Night Vision Range
IIP66 weatherproof security cameras that stand up to rain, winds and snow

Rugged weatherproof security cameras for all-season security surveillance

All cameras in the MPX842Z web exclusive home security system are IP66 rated. This allows you to safely install the cameras wherever you may need them most - indoors and outdoors.

LBV2711B

LBV2711B

Heat Rating

140°F | 60°C

Heat Rating

Cold Rating

-22°F | -30°C

Cold Rating

LZV1722B

LZV1722B

Heat Rating

140°F | 60°C

Heat Rating

Cold Rating

14°F | -10°C

Cold Rating

large capacity hard drive for security systems

Large hard drive for storing footage

The HD DVR featured in the MPX842Z security bundle contains a 2TB security certified hard drive. This hard drive is engineered precisely for the high workloads and constant operation demands of security monitoring. Delivering high quality efficiency and reliability, it can safely store weeks (or even months) of recorded footage. Adjust the DVR settings to record at a lower resolution (or program scheduled and motion-triggered recordings) to maximize hard drive space.

1080 MPX Comparison Chart
  HD 1080 Digital IP HD 720 Digital IP HD 1080 Analog BNC HD 720 Analog BNC
Recording Full 1080p HD (1920x1080) 720p HD (1280x720) Analog 1080p HD (1920x1080) 720p HD (1280x720)
Platform 1080p HD NVR systems 720p HD NVR systems 1080p HD DVR systems 720p HD DVR systems
Video Digital IP / RJ45 connection Digital IP / RJ45 connection Analog BNC / RG59 connection Analog BNC / RG59 connection
Power PoE (Power over Ethernet) PoE (Power over Ethernet) Standard DC power Standard DC power
Installation Connect cameras to NVR or to router/LAN Connect cameras to NVR or to router/LAN Cameras require wired connection to DVR Cameras require wired connection to DVR

Video

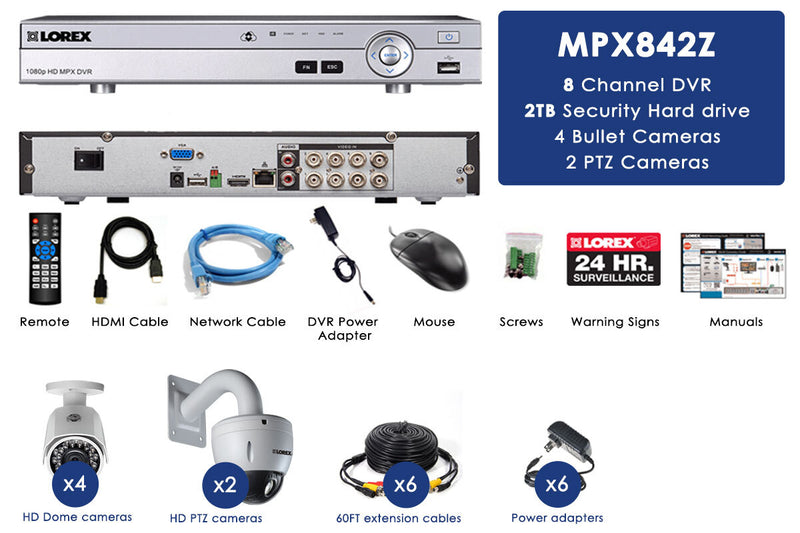

What's Included?

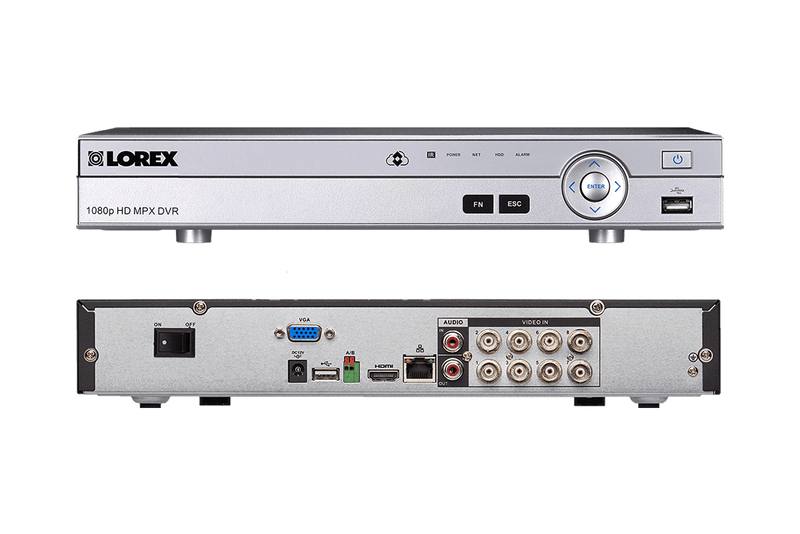

DV7082

8 channel, analog HD 1080p security DVR:

  • True high definition 1080p recording on all cameras1
  • 24/7 security-grade hard drive
  • Continuous, scheduled and motion recording
  • PTZ cameras supported, remote control through App1
  • H.264 video compression2
  • HDMI cable included for simple connection to HD TVs3
  • Accurate time stamps with NTP & daylight savings time
  • Click and drag digital zoom in live view and playback
  • 2 video outputs (HDMI & VGA) to connect multiple monitors
  • Instant USB backup of live video from selected camera
  • Automatic firmware upgrade
  • 3-Step remote view with Lorex Cloud4
  • PC and Mac compatible5
  • Instant mobile viewing on smartphones and tablets5
  • Advanced apps with live viewing, playback, video recording, and snap shot
  • Mobile push notifications of motion events and email alerts
  • Dual streaming to conserve bandwidth

Each DV7082 Includes:

1 × DVR
1 × HDMI Cable
1 × Remote Control
1 × Power adapter
1 × Mouse
1 × Ethernet Cable
Quick Start Guides

1. Compatible with Lorex 1080p and 720p wired HD cameras only. For a list of compatible cameras, please visit lorextechnology.com/support
2. Recording time may vary based on recording resolution & quality, lighting conditions and movement in the scene.
3. HDMI output (1920x1080) HD for high definition multi-channel live viewing only. 1080p recording resolution is limited to a maximum of 1920x1080 per channel. Image quality and resolution is dependent on the type of camera connected to the DVR.
4. Requires a high speed internet connection and a router (not included). A minimum upload speed of 1Mbps is required for the best video performance. Up to 2 devices may connect to the system at the same time.
5. For the latest list of supported apps and devices, please visit www.lorextechnology.com/support

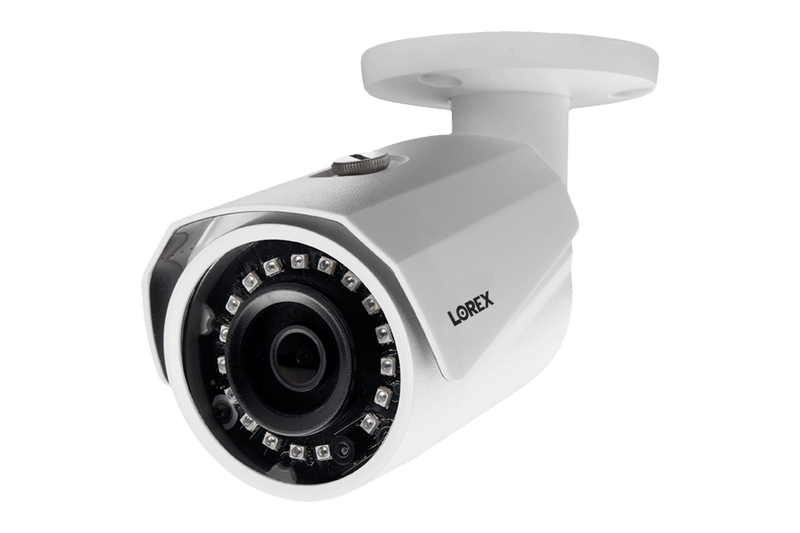

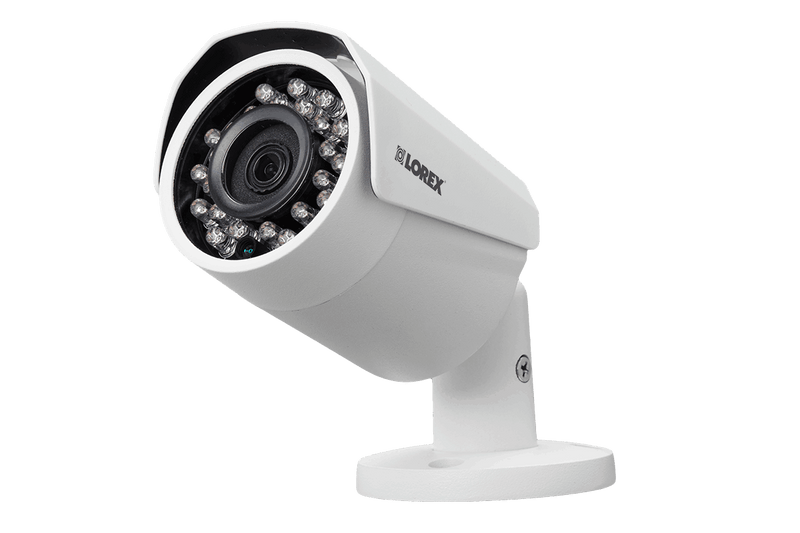

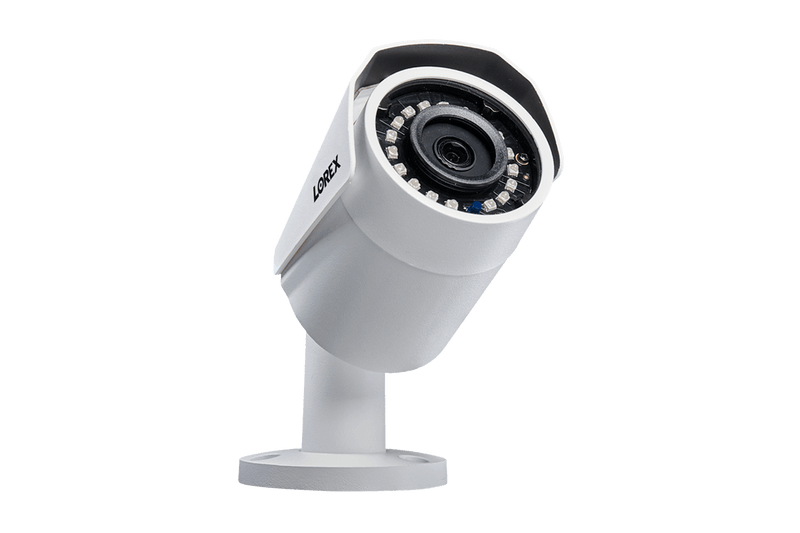

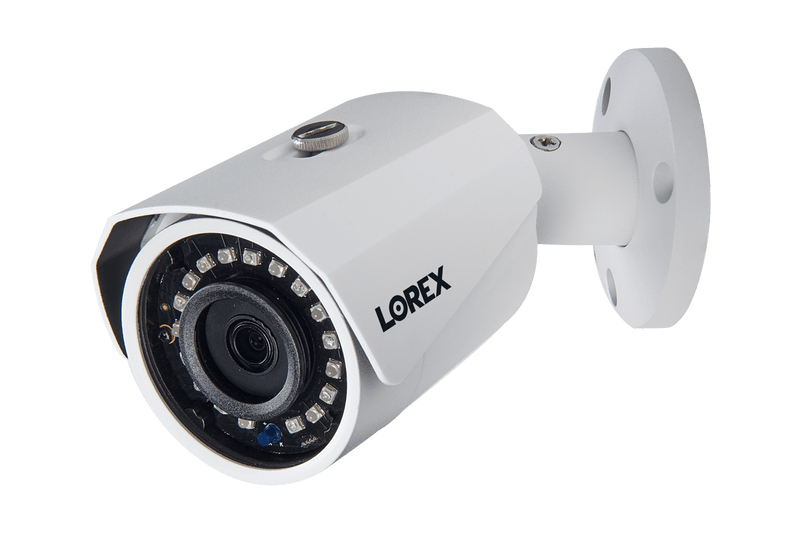

LBV2711B

1080p HD Bullet Security Camera Features:

  • True HD 1080p Image Sensor1
  • Infrared cut filter ensures accurate color representation
  • Night vision range up to 130ft (40m) in ambient lighting & 90ft (28m) in total darkness2
  • Close up recognition in the dark with SmartIR
  • Anti-glare feature ensures clear images under strong lighting conditions
  • ClearNight imaging for superior low light performance, improving recording efficiency
  • Split glass design minimizes IR reflection
  • Weatherproof for outdoor & indoor installation (IP66 Rated)3
  • Extreme temperature performance (-22° ~ 140°F / -30° ~ 60°C)
  • 90° field of view
  • Vandal resistant design with cable pass-through bracket
  • Lightweight and durable polycarbonate housing
  • Versatile ceiling or wall mounting options
  • Residential and business friendly compact design

Each LBV2711B Includes:

1 × HD Bullet Camera
1 × 60ft Extension Cable
1 × Mounting Kit
1 × Power Adapter

1. Compatible with Lorex MPX Series DVRs only.
2. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area and light reflection / absorption level of object.
3. Not intended for submersion in water. Installation in a sheltered location recommended.

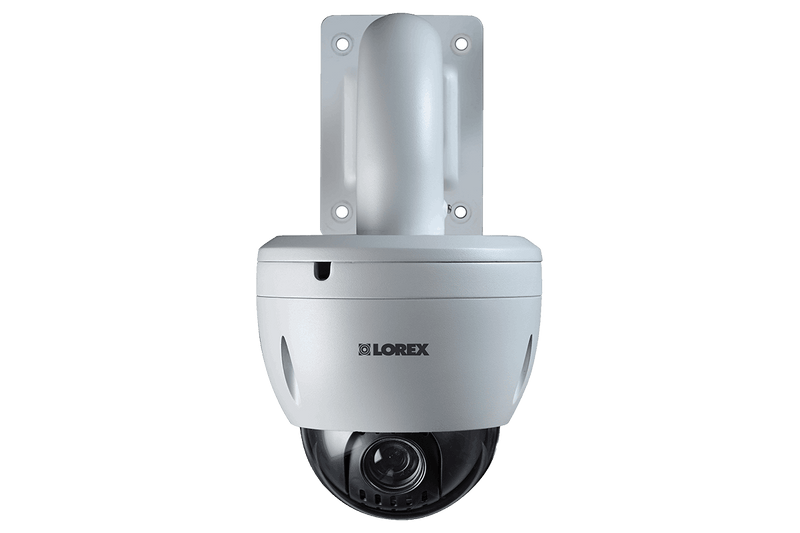

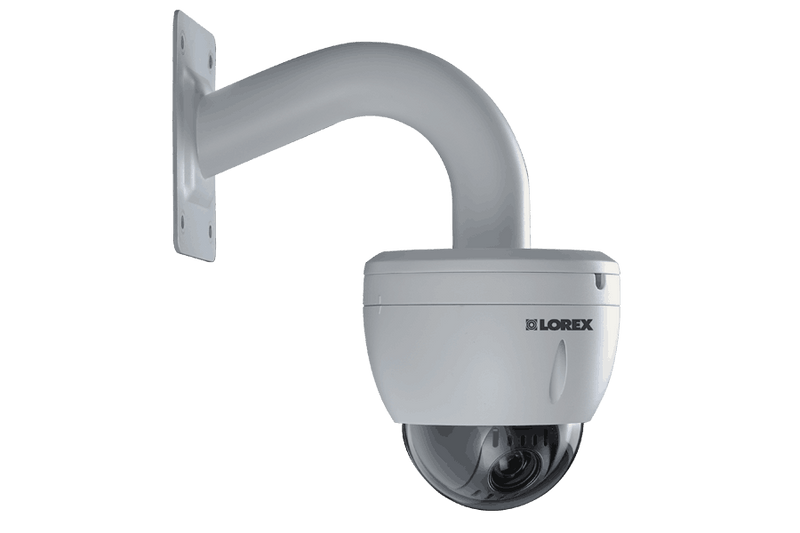

LZV1722B

High definition 720p resolution 1.3 MP Sony Exmor® image sensor

  • High definition 720p resolution 1.3 MP Sony Exmor® image sensor.1
  • Powerful 12x optical zoom and 16x digital zoom to focus in on even the finest details.
  • Full 360° continuous pan rotation for complete area coverage. Fast 300° per second panning speed.
  • Zoom lens for viewing small or distant objects with enhanced definition.
  • Control PTZ camera movement and transmit video over a single coaxial cable.
  • Program preset viewing points, patterns, scan cycles and tours when connected to a DVR.
  • Remote control of the PTZ camera using a smartphone or tablet (when connected to a DVR).
  • Day/Night mode: picture automatically switches to B&W delivering better clarity in low light conditions.
  • ClearNight imaging for superior low light performance.2
  • Infrared cut filter ensures accurate color representation.
  • High definition video with outstanding detail, day or night.
  • Weatherproof for outdoor & indoor installation (IP66 Rated).3
  • Wall mount & 100ft extension cable included for installation flexibility.

Each LZV1722B Includes:

1 × PTZ Camera
1 × 100ft Extension Cable
1 × Power Adapter
1 × Mounting Template
4 × Mounting Screws
4 × Mounting Anchors
4 × O-Rings
1 × Allen Key
4 × Allen Bolts
1 × Instruction Manual

1. Compatible with Lorex LHV1000 Series only.
2. This camera features an ultra-low light sensitive image sensor and therefore does not feature Infra-Red LEDs. The camera requires ambient lighting (for example, street/ building lighting, star or moon light) to render a night time image. In total darkness (zero Lux), the camera will not produce a night time image and therefore the camera should not be installed in completely dark areas.
3. Not intended for submersion in water. Installation in a sheltered location recommended.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown. Images are simulated.
