1. 2K (4MP) Super HD cameras are compatible with select Lorex HD DVR recorders. For a full list of compatible recorders, visit www.lorextechnology.com/compatibility
2. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection / absorption level of object. In low light, the camera will switch to black and white.
3. Not intended for submersion in water. Installation in a sheltered locationrecommended.





Features

Add this 2K dome security camera to your MPX home or business security camera system. It is capable of recording double the resolution of 1080p (2K), is fully weatherproof (rated IP67), and comes with 150ft night vision. It also has a heavy-duty metal exterior for extra protection against vandalism and the elements.
LEV4712BW
SPECIFICATIONS
4 MP camera
MPX security camera
2K
RESOLUTION
Double the resolution of HD 1080p
150FT
NIGHT VISION
Maximum night vision range
85°
FIELD OF VIEW
Ideal for monitoring wide, open areas

SuperHD security camera
2K resolution will leave nothing to the imagination. Compared to 1080p HD, which records at a 1920 × 1080 pixel ratio, this security camera will record a pixel ratio of 2592 × 1520 – that's almost double the number of pixels of 1080p. The advantage of this heightened resolution, besides adding extra clarity and sharpness to the video, is that it will allow for greater digital zooms while reviewing video. This means that details deep in the distance of the video won't blur together as quickly as a digital zoom is applied simply because there are more pixels available. This camera also comes with a wide 85° angle lens that is perfect for large areas or doorways.

Straightforward connection
This MPX security camera comes with a siamese coaxial cable (60ft) to connect it to a SuperHD DVR (not included). This single cable splits into two heads at both ends (one head is for power, the other for video). Simply connect the video cable to the DVR and the power cable to an electrical outlet. Then connect the other two ends to the corresponding connections on the camera for an easy plug-and-play installation.

Night vision for all-night security coverage
Rest assured knowing that your dome security camera can see up to 150ft / 46m with the help of some ambient lighting or 100ft / 31m in total darkness. It also use SmartIR technology to ensure that the infrared lights don't over-expose faces or objects that get close to the camera.


Full Metal Camera Housing
Built using the same heavy-duty aluminum that is used in the construction of airplanes, this Lorex camera is strong enough to withstand large impacts, unlike conventional plastic security cameras.

IP67 weatherproof rating
Install this security camera wherever you need it. It is manufactured to be fully weatherproof (IP67), so you can count on all-season security monitoring that never stops working.

Built to endure the cold
Your Lorex security camera is perfect for those living in extremely cold atmospheres. They can endure sub-zero temperatures as low as -22°F / -30°C. In fact, some tests even saw it continuing to record at much lower temperatures (-40°F / -40°C) as well.
Video

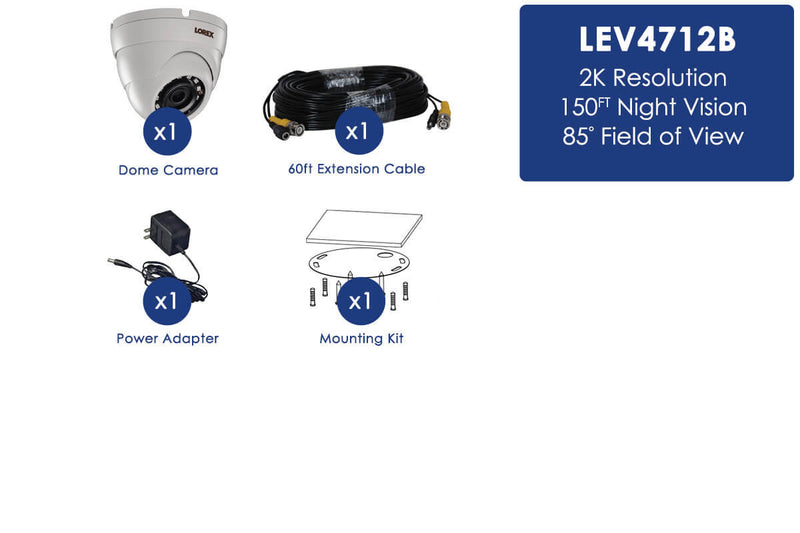

What's Included?

- High definition 2K (4MP) image sensor delivers double the detail of 1080p1
- 2K (4MP) Super HD video recording provides superior quality for reviewing fine details in heightened resolution
- Infrared cut filter ensures accurate color representation
- Night vision range up to 150ft (46m) in ambient lighting and 100ft (31m) in total darkness2
- Close up recognition in the dark with SmartIR
- Anti–glare feature ensures clear images under strong lighting conditions
- ClearNight imaging for improved low light performance and improved recording efficiency
- Split glass design minimizes IR reflection
- Weatherproof for outdoor & indoor installation (IP67 Rated)3
- Extreme temperature performance (-22°F ~ 140°F / -30° ~ 60°C)
- 85° horizontal field of view
- Includes 60ft video/power cable for simple installation
- Durable metal housing
- Versatile ceiling or wall mounting options
Image Sensor | 2K (4MP), 1/3" CMOS |
Video Format | NTSC |
Effective Pixels | H: 2688(H) V: 1520(V) |
Resolution | 2K (4MP) @30fps / 25fps |
Scan System | Progressive |
Sync System | Internal |
S/N Ratio | >65dB (AGC Off) |
Iris | AES |
AES Shutter Speed | 1/30 ~ 1/100,000 sec. |
Min. Illumination | 0.03 Lux without IR LED, 0 Lux with IR LED |
Video Output | MPX |
Lens / Lens Type | 3.6mm F2.0 / Fixed |
Field of view (Horizontal) | 85° |
Termination | BNC Type |
IR LED Qty / Type | 12 pieces/850nm |
Night Vision Range | 150ft (46m) / 100ft (31m) |
Power Requirement | 12V DC ±10% |
Power Consumption | Max. 300mA (w/IR), 3.6W |
Operating Temp. Range | -22°F ~ 140°F / -30° ~ 60°C |
Operating Humidity Range | <95% RH |
Environmental Rating | Both (IP67) |
Weight (including stand) | 0.6lbs / 0.28kg |
